GE DBSR453GB0WW gas dryer Parts

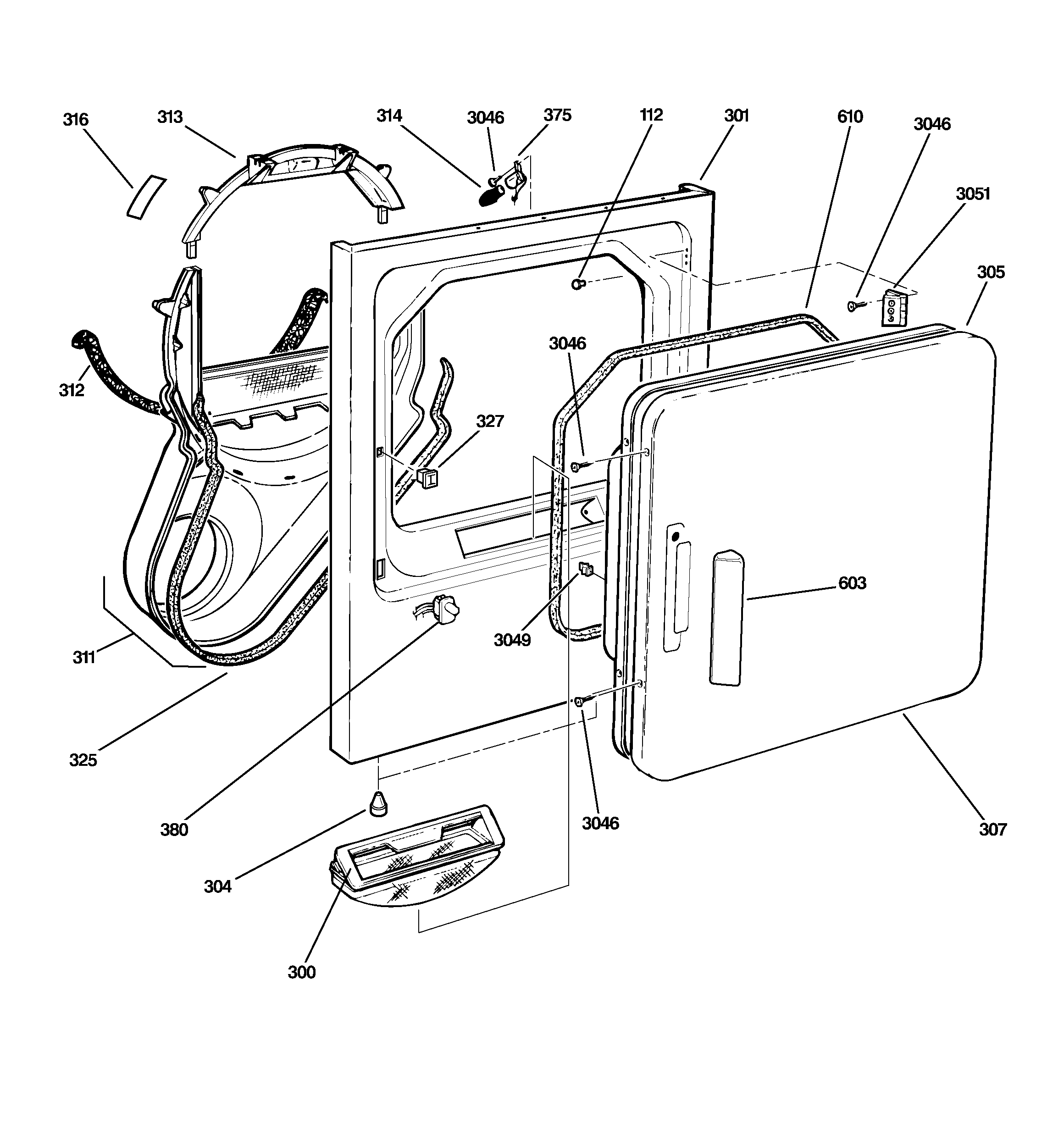

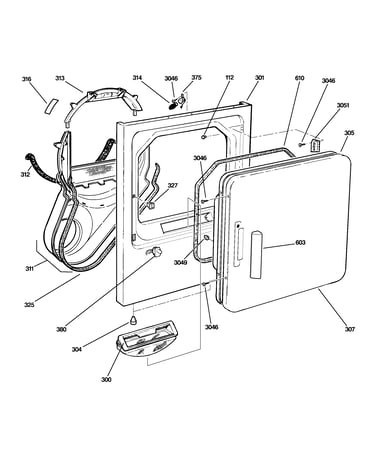

To remove the front panel on your GE dryer model DBSR453GB0WW, we typically lift the top, remove the screws that secure the front panel, then disconnect the door switch wiring so the panel can come off cleanly.

• Unplug the dryer from the wall outlet.
• Shut off the gas supply valve (this is a gas dryer).
• Pull the dryer forward so you can work comfortably.
• Have a container ready for screws.
• Wear cut-resistant gloves; cabinet edges can be sharp.

1. Remove the lint screen (if it’s in the top) and take out any screws in the lint screen housing.

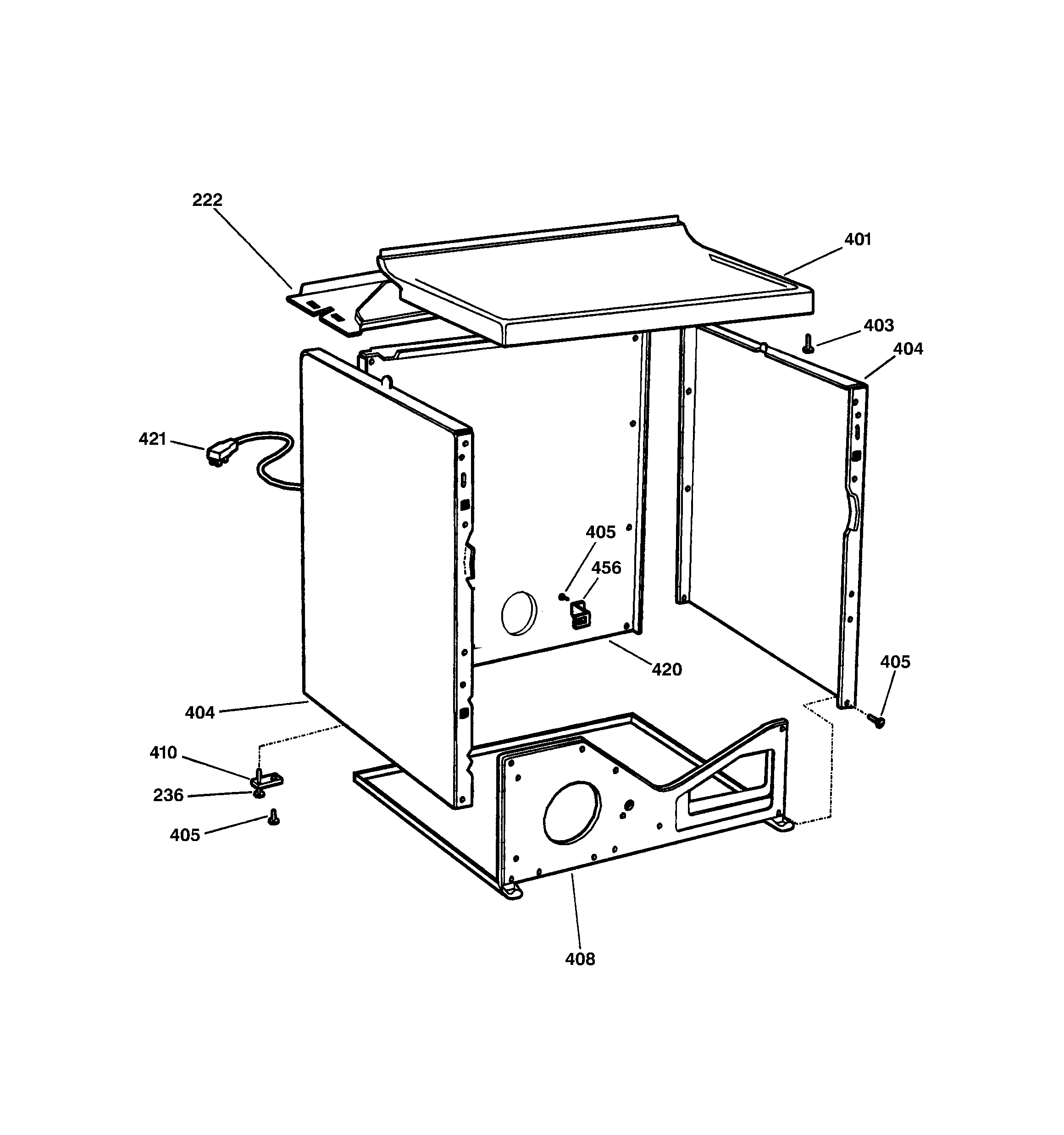

2. Release the top panel: remove the screws at the back edge of the top (or release front clips with a putty knife), then lift the top.
3. Remove front panel mounting screws: look for screws near the upper inside corners of the front panel (accessible with the top lifted).
4. Support the front panel with one hand and disconnect the door switch harness so you do not pull wires.
5. Lift the front panel up and off the lower retaining tabs/clips, then set it aside.

Removing the front panel is the first step for common repairs like replacing a worn belt, idler pulley, or drum slides. Doing it in the right order prevents broken tabs, stripped screws, and damaged wiring.

• Drive belt WE03X29897 (drum won’t turn, squealing, belt damage)
• Idler pulley WE03X31620 (squeal, thump, belt tension issues)
• Door switch WE4M415 (dryer won’t start when door is closed)

Last updated: February 2026

A GE dryer like model DBSR453GB0WW typically lasts about 10 to 13 years with normal household use. Regular airflow maintenance (lint screen and venting) and replacing wear items when symptoms show up can push service life toward the higher end.

• Vent restriction (lint buildup, crushed duct, long runs) that makes the dryer run hotter and longer
• Load habits (overloading strains the drum support, belt, and motor)
• Heat system health on a gas dryer (ignition and flame sensing)
• Routine cleaning (lint screen every load; periodic vent cleaning)
• Early repair of wear parts (belt, idler, drum slides) before they damage other components

If you notice squealing, thumping, a drum that will not turn, or longer dry times, these parts are common culprits:

• Drive belt WE03X29897
• Idler pulley WE03X31620
• Slide drum WE03X37317
• Igniter WE04X25996

A dryer that runs with poor airflow or worn drum support parts often needs longer cycles and runs hotter; that extra heat and strain shortens the life of the motor, drum support, and gas ignition components.

For airflow-related longevity tips, we recommend how to keep a dryer clean and economical.

Last updated: February 2026

On your GE gas dryer model DBSR453GB0WW, the model and serial tag (where you will find the model number and serial number used to look up the correct parts) is typically located just inside the dryer door opening on the door frame or on the inside of the door.

• Open the dryer door and inspect the door frame around the opening
• Check the inside face of the door (near the latch area)
• Look for a silver or white sticker/plate with printed text and a barcode
• Wipe lint and residue off the label gently so the numbers are readable
• Write down the full model number and serial number exactly as shown

Most GE dryer ID labels include these fields:

GE often uses similar-looking dryers with different internal components. Using the exact model number (DBSR453GB0WW) helps us match the correct drive system, ignition parts, and controls so you do not order the wrong item.

• Drive belt WE03X29897 (drum belt)
• Igniter WE04X25996 (gas ignition)
• Door switch WE4M415 (start and safety interlock)
• Dryer timer WE4M271 (cycle timing)
