Homelite
Gas Line Trimmer

Model # UT15520A Official Homelite trimmer

Here are the diagrams and repair parts for Official Homelite UT15520A trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

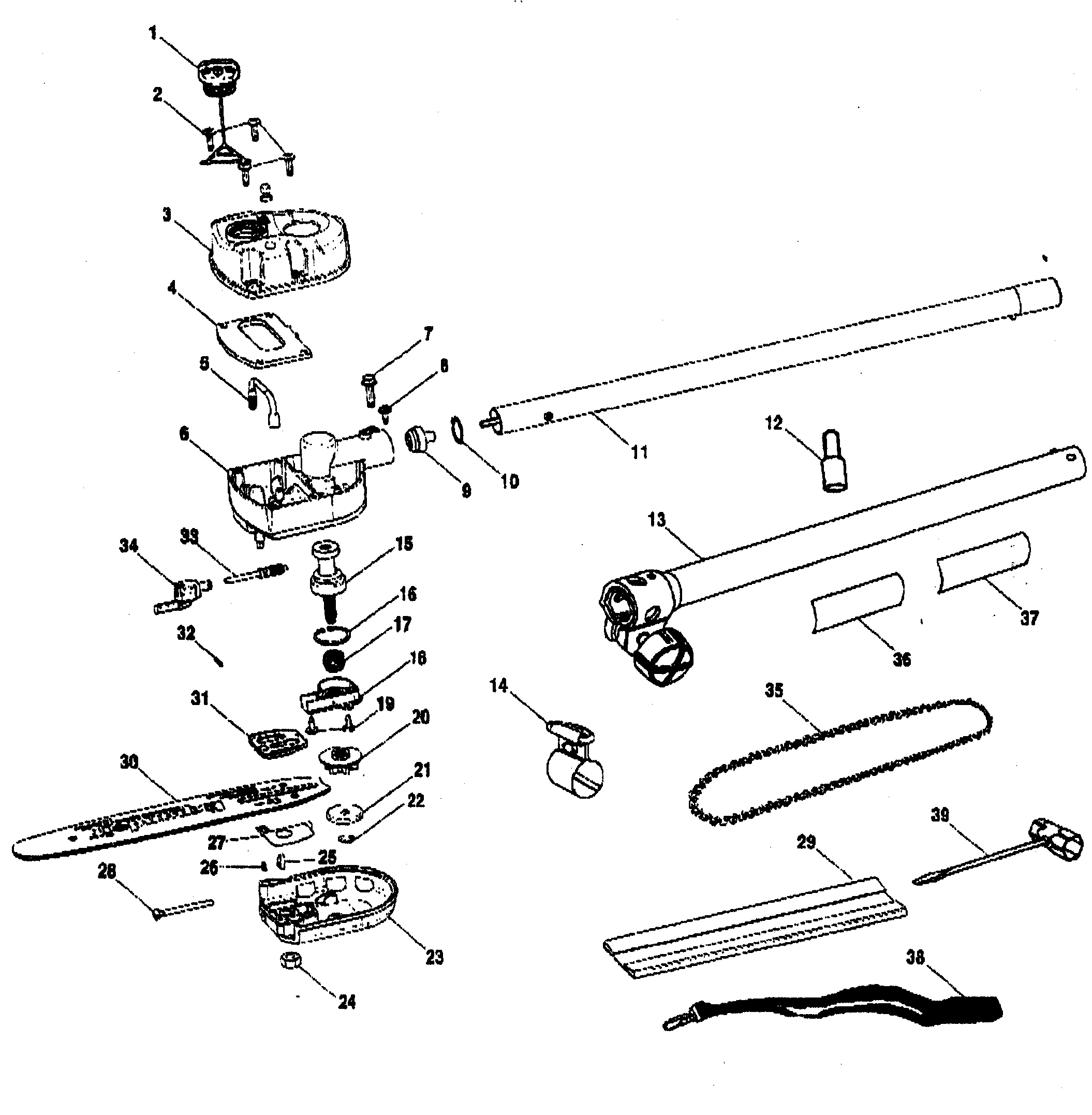

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Label 983608-001
#37

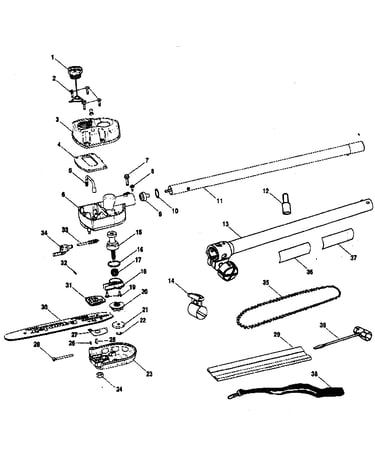

Trimmer diagram

Label

Part #983608-001

The manufacturer no longer makes this part, and there's no substitute part

Oil Cap A07591
#1

Trimmer diagram

Oil cap

Part #A07591

The manufacturer no longer makes this part, and there's no substitute part

Pad Plate PS04554
#31

Trimmer diagram

Pad plate

Part #PS04554

The manufacturer no longer makes this part, and there's no substitute part

Drive Shaft PA01335C
#11

Trimmer diagram

Drive shaft

Part #PA01335C

The manufacturer no longer makes this part, and there's no substitute part

Hanger Cap PS02155
#12

Trimmer diagram

Hanger cap

Part #PS02155

The manufacturer no longer makes this part, and there's no substitute part

Label PS01524
#36

Trimmer diagram

Label

Part #PS01524

The manufacturer no longer makes this part, and there's no substitute part

Pin 06842
#25

Trimmer diagram

Pin

Part #06842

The manufacturer no longer makes this part, and there's no substitute part

Sprocket PS04556
#20

Trimmer diagram

Sprocket

Part #PS04556

The manufacturer no longer makes this part, and there's no substitute part

Chainsaw Spark Plug Wrench 09207
#39

Trimmer diagram

Chainsaw spark plug wrench

Part #09207

The manufacturer no longer makes this part, and there's no substitute part

Screw 82538
#2

Trimmer diagram

Screw

Part #82538

The manufacturer no longer makes this part, and there's no substitute part
