Model #EH220FXGW06 Whirlpool chest freezer

Here are the diagrams and repair parts for Whirlpool EH220FXGW06 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

    Showing 10 of 55 parts

    Refrigeration Appliance Run Capacitor#10

    Unit Diagram

    Run capacitor

    Part #4356601
    Replaced by #WPW10662129
    ?
    Manufacturer substitution
    This part replaces 4356601. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $50.09
    Appliance Touch-Up Paint, 0.6-oz (Almond)

    #NI

    All parts Diagram

    Touch up

    Part #72107
    Replaced by #WP72107
    ?
    Manufacturer substitution
    This part replaces 72107. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $5.59
    Refrigerator Compressor#1

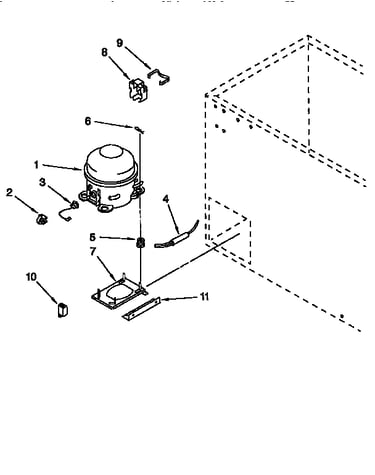

    Unit Diagram

    Compressor

    Part #4356660
    Replaced by #W10309990
    ?
    Manufacturer substitution
    This part replaces 4356660. Substitute parts can look different from the original.
    In Stock
    $491.39
    Hose Adapter#21

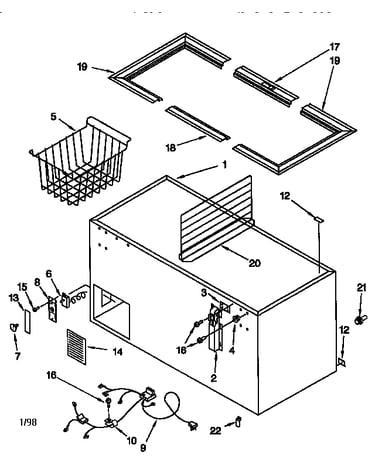

    Cabinet Diagram

    Hose adapter

    Part #4356481
    Replaced by #1-33178
    ?
    Manufacturer substitution
    This part replaces 4356481. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.01
    Refrigerator Temperature Control Thermostat#6

    Cabinet Diagram

    Thermostat

    Part #4356670
    Replaced by #WP4-35940-001
    ?
    Manufacturer substitution
    This part replaces 4356670. Substitute parts can look different from the original.
    In Stock
    $102.18 |
    15% OFF
    MSRP: $120.00
    Appliance Spray Paint (Almond)

    #NI

    All parts Diagram

    Paint (almond)

    Part #350956
    Replaced by #350956
    ?
    Manufacturer substitution
    This part replaces 350956. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $20.99
    Freezer Lid Gasket (White)#13

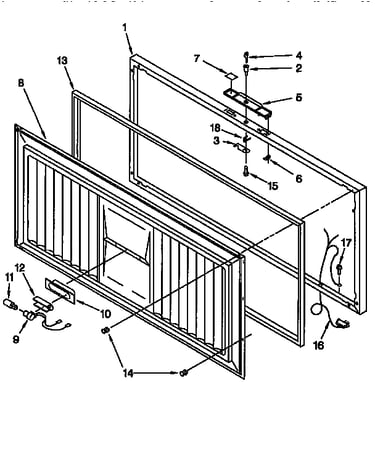

    Door Diagram

    Door gasket

    Part #4356697
    Replaced by #4-35260-006
    ?
    Manufacturer substitution
    This part replaces 4356697. Substitute parts can look different from the original.
    In Stock
    $127.18 |
    15% OFF
    MSRP: $150.00
    Grommet#4

    Cabinet Diagram

    Grommet

    Part #4356321
    In Stock
    $11.39
    Trim Breaker#17

    Cabinet Diagram

    Trim breaker

    Part #4356641
    In Stock
    $62.60
    Screw#16

    Cabinet Diagram

    Screw

    Part #4356491
    In Stock
    $11.59
