Amana BX22A5W-P1182302WW bottom-mount free-o-frost refrigerator/freezer Parts
Here are the diagrams and repair parts for Amana BX22A5W-P1182302WW bottom-mount free-o-frost refrigerator/freezer, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

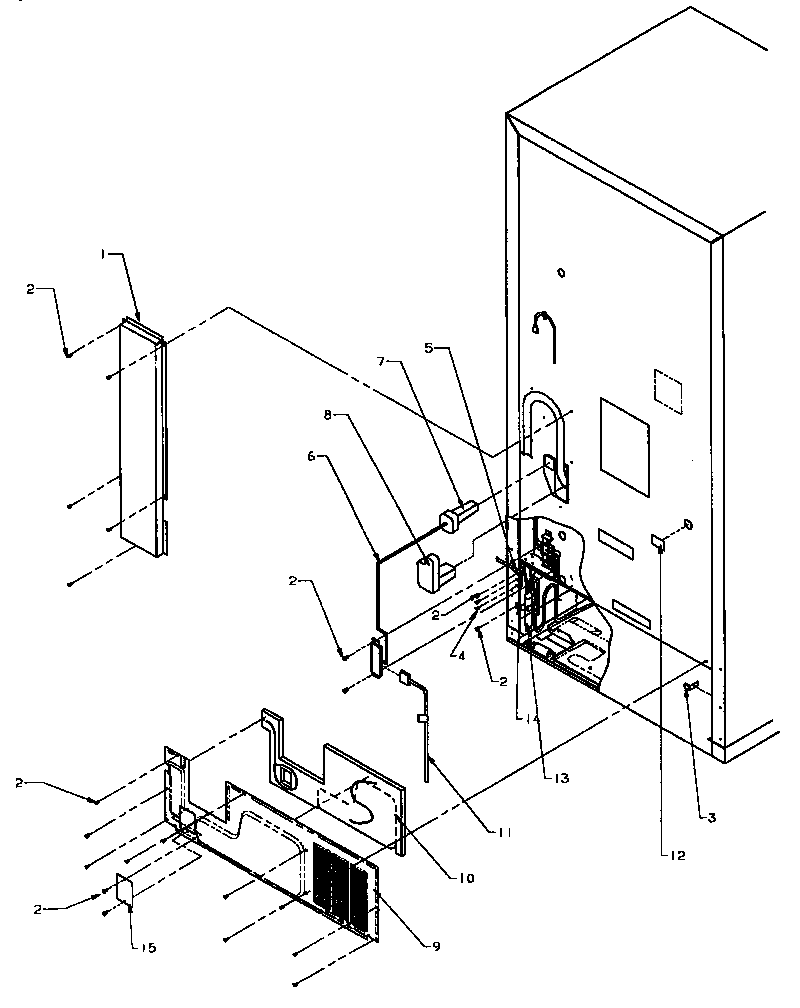

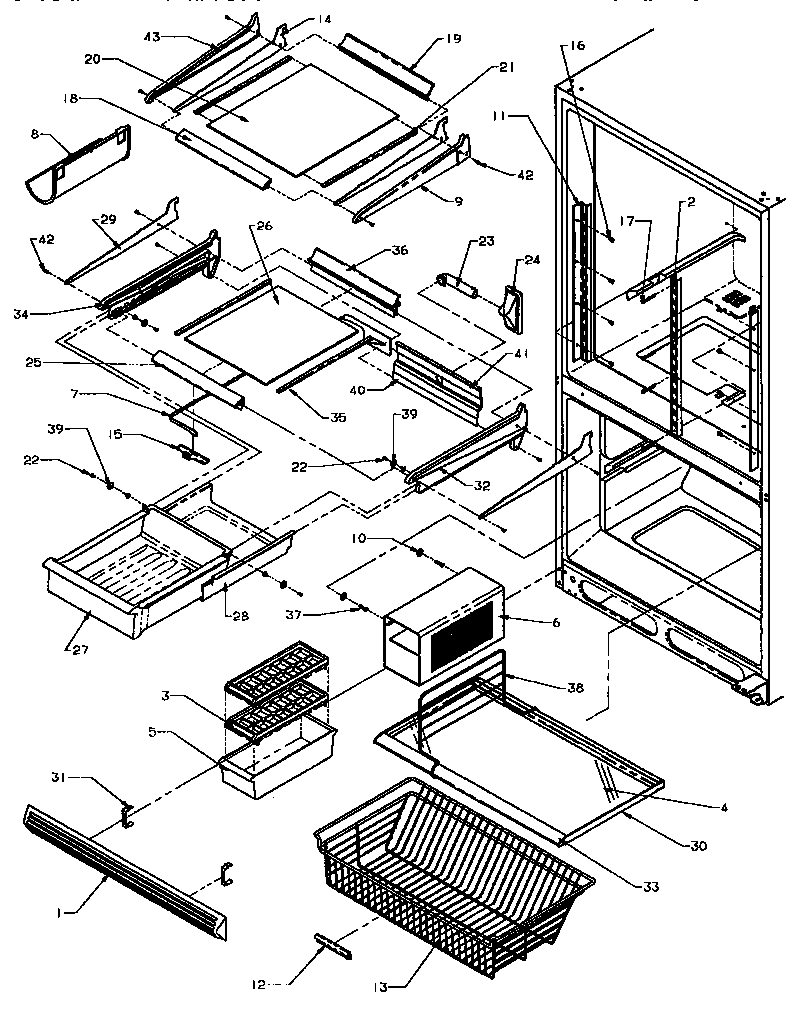

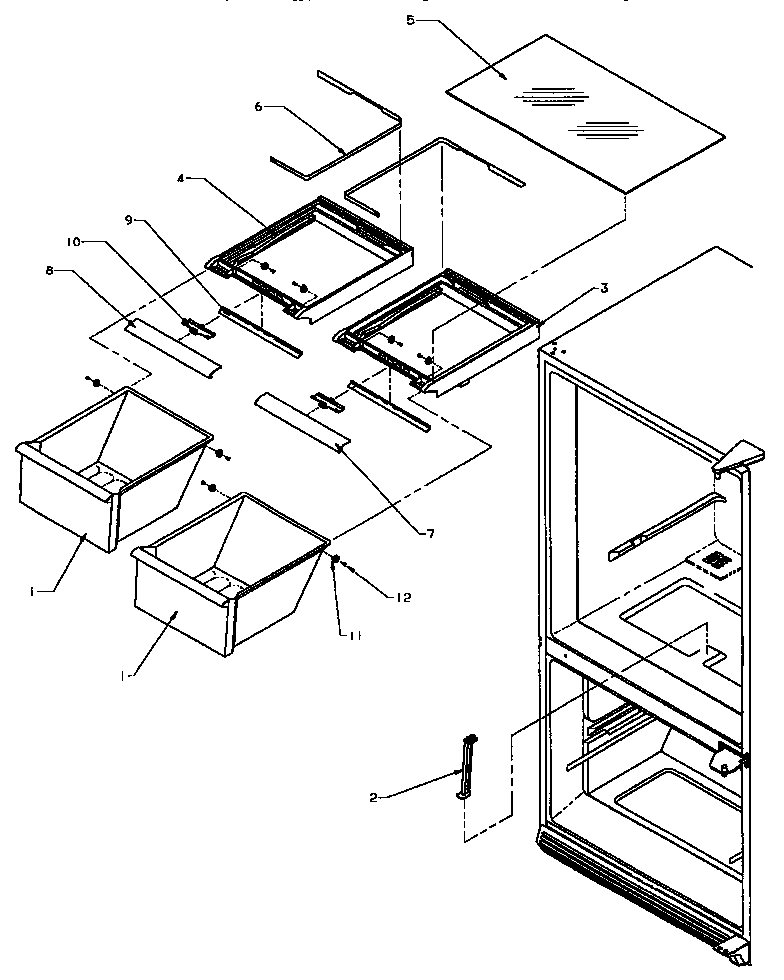

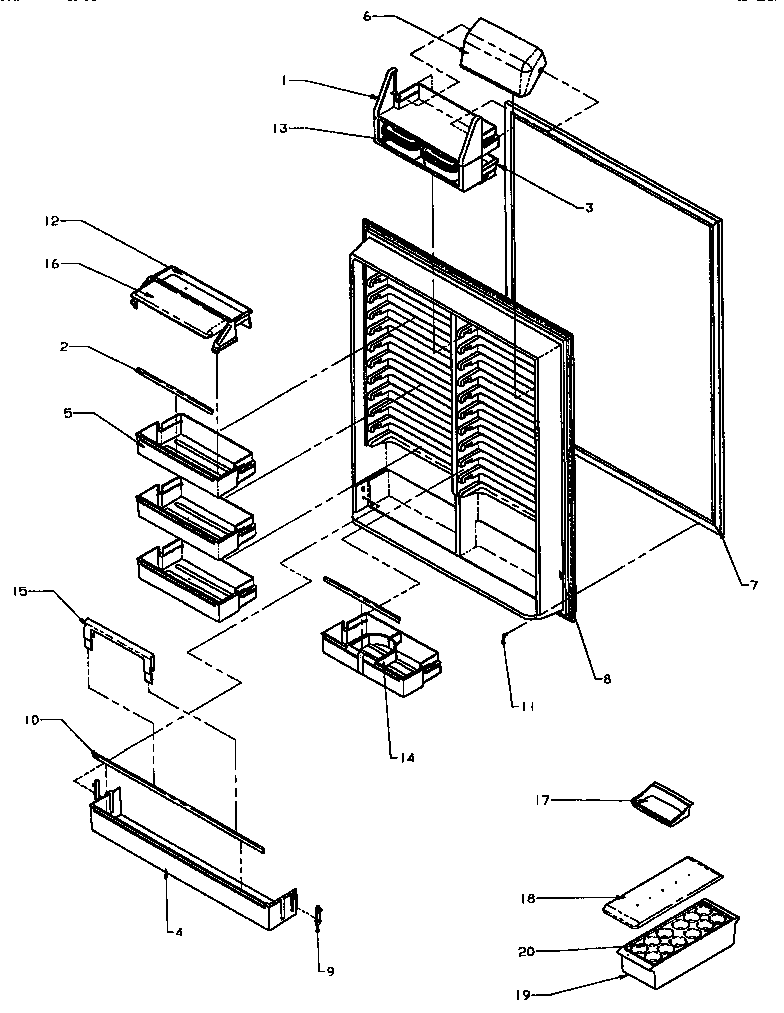

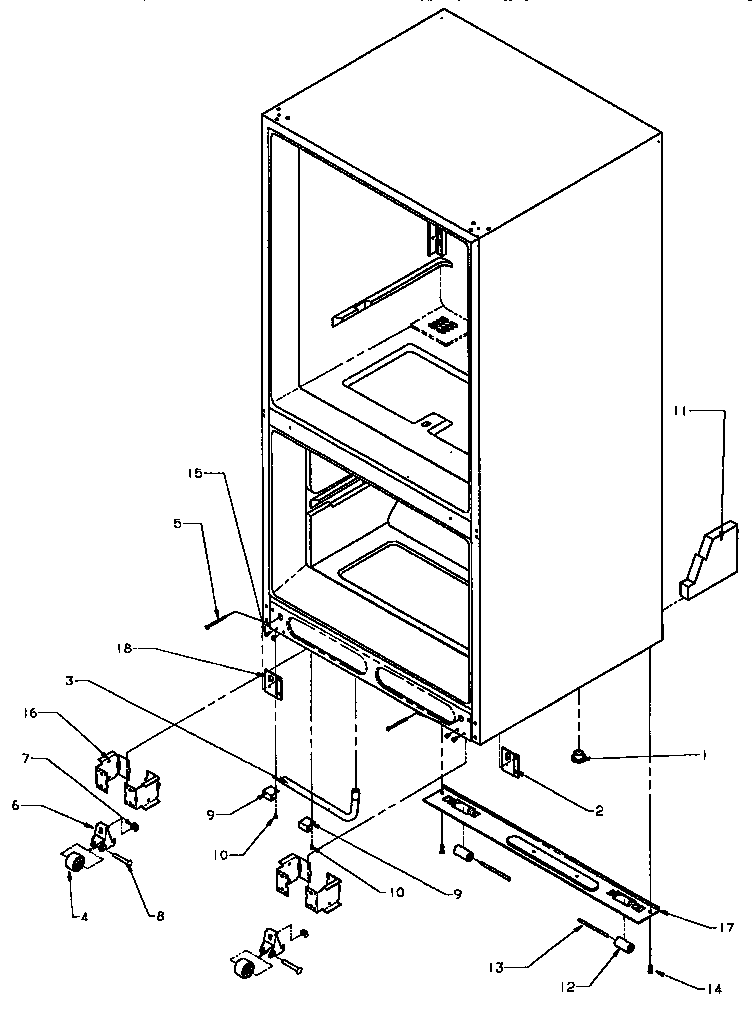

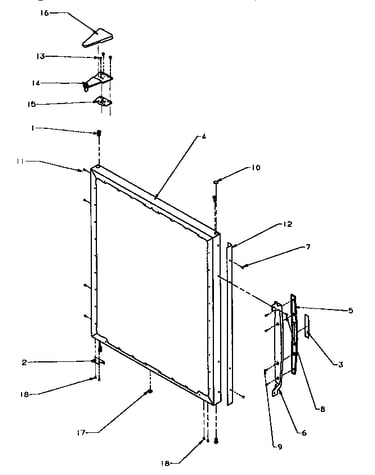

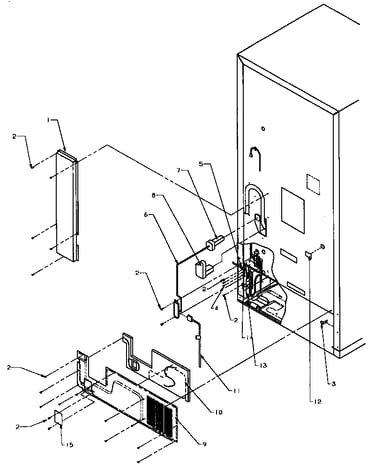

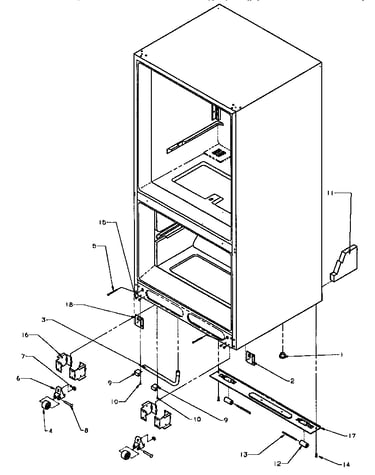

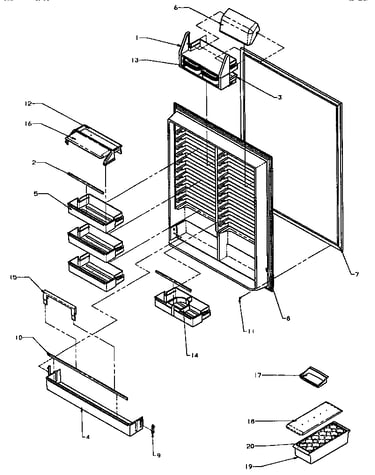

SELECT DIAGRAM
Browse Parts for BX22A5W-P1182302WW Refrigerators

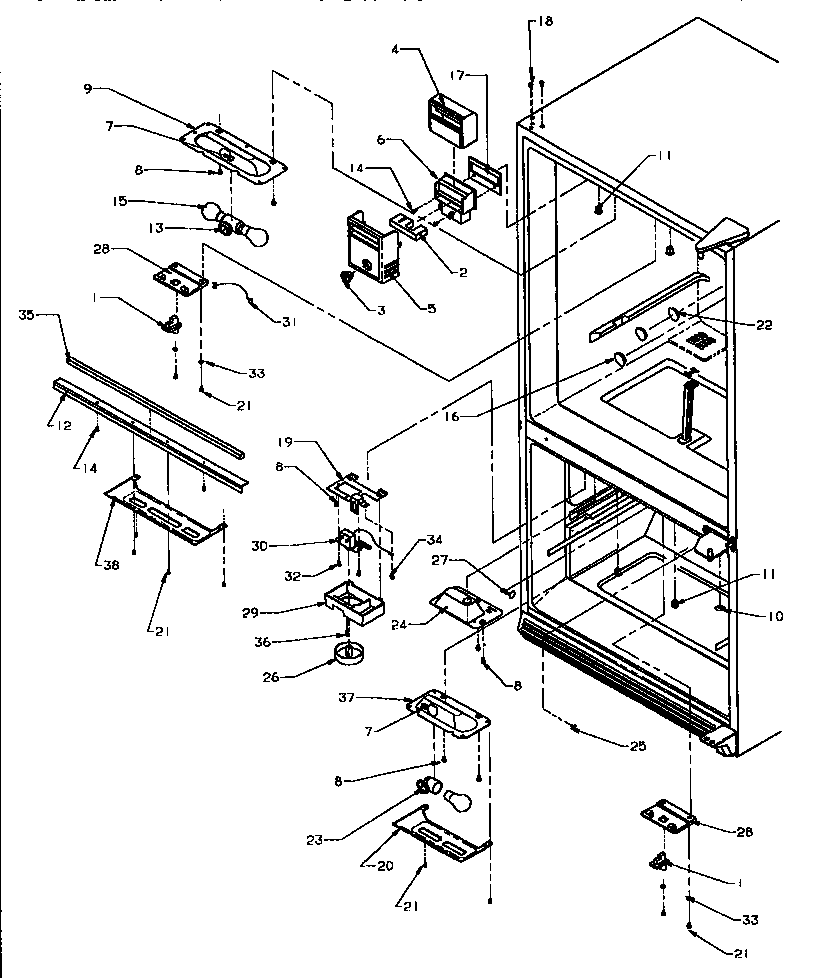

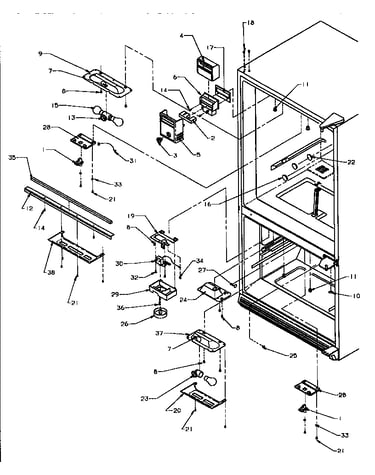

Ref/fz control switches diagram
Refrigerator Light Switch
Part #C3680307
The manufacturer no longer makes this part, and there's no substitute part

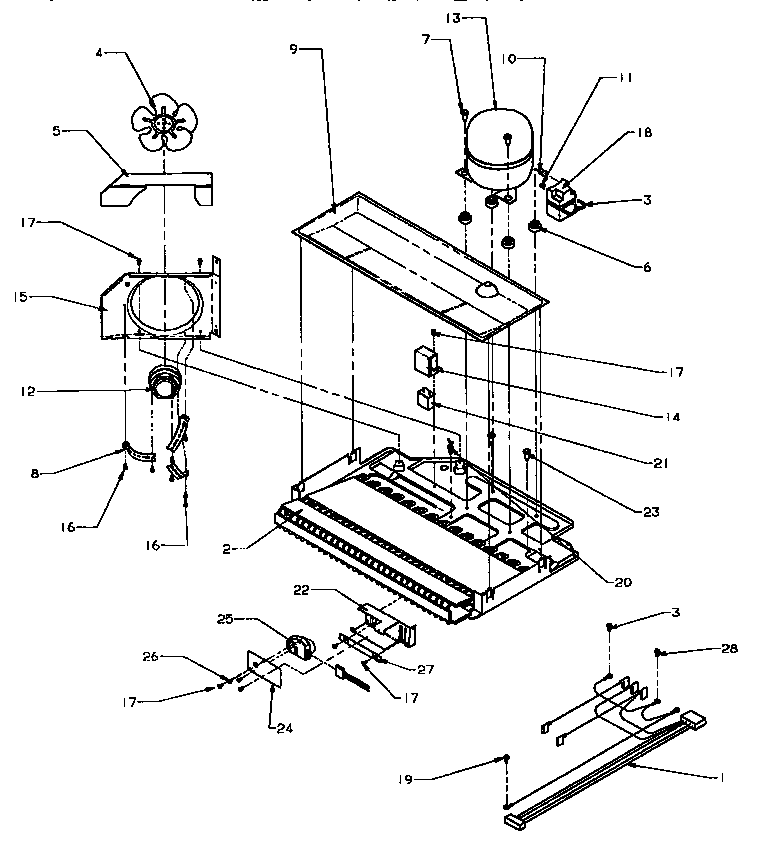

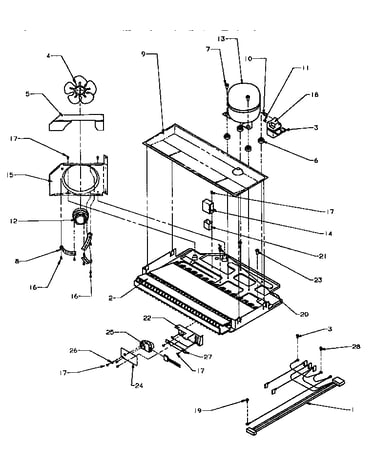

Compressor compartment diagram
Refrigerator Condenser Motor
Part #10884501
The manufacturer no longer makes this part, and there's no substitute part
Compressor compartment diagram
Refrigerator Capacitor
Part #C8931604
The manufacturer no longer makes this part, and there's no substitute part

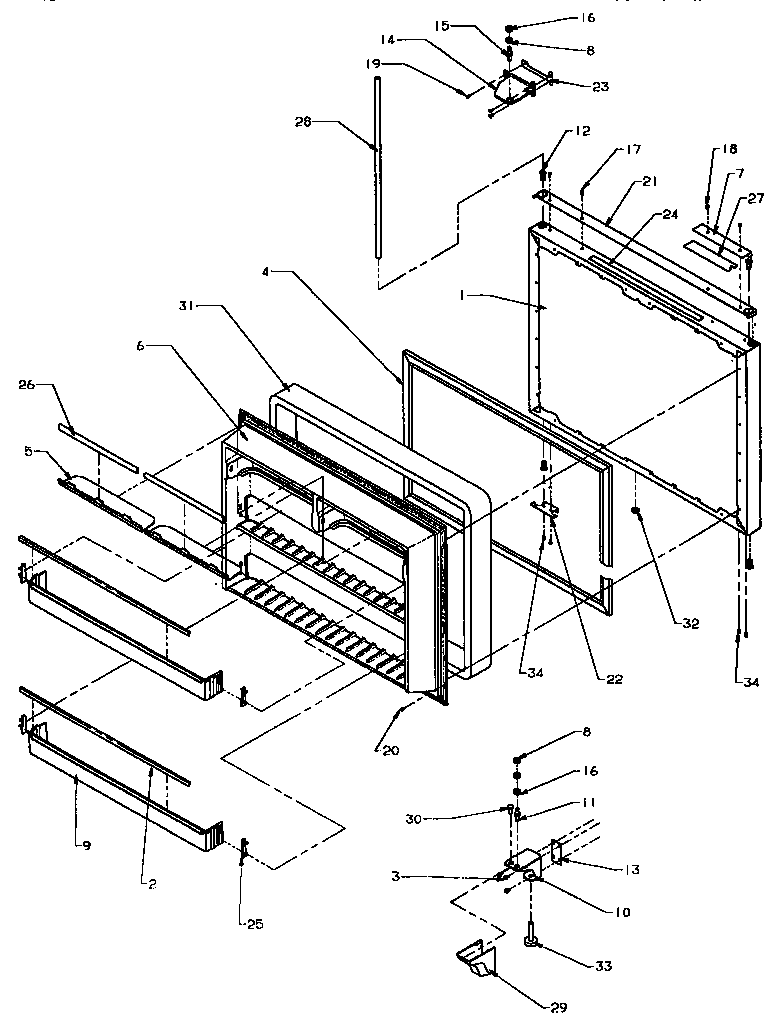

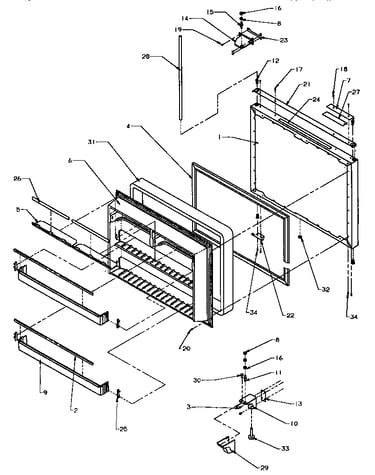

Fz door diagram
Refrigerator Gasket
Part #10456810
The manufacturer no longer makes this part, and there's no substitute part
Refrigerator Screw
Part #M0203944Replaced by #WPW10348409
Manufacturer substitutionThis part replaces M0203944. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88
Qty
Refrigerator Screw
Part #M0211533Replaced by #WPW10348409
Manufacturer substitutionThis part replaces M0211533. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyFz door diagram
Refrigerator Screw
Part #M0222429Replaced by #WPW10348409
Manufacturer substitutionThis part replaces M0222429. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyRef/fz control switches diagram
Screw
Part #M0216529Replaced by #WP90767

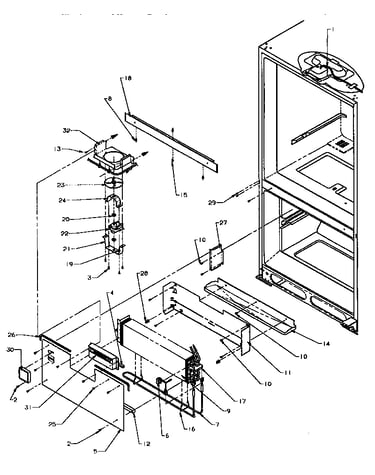

Manufacturer substitutionThis part replaces M0216529. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyEvap area diagram

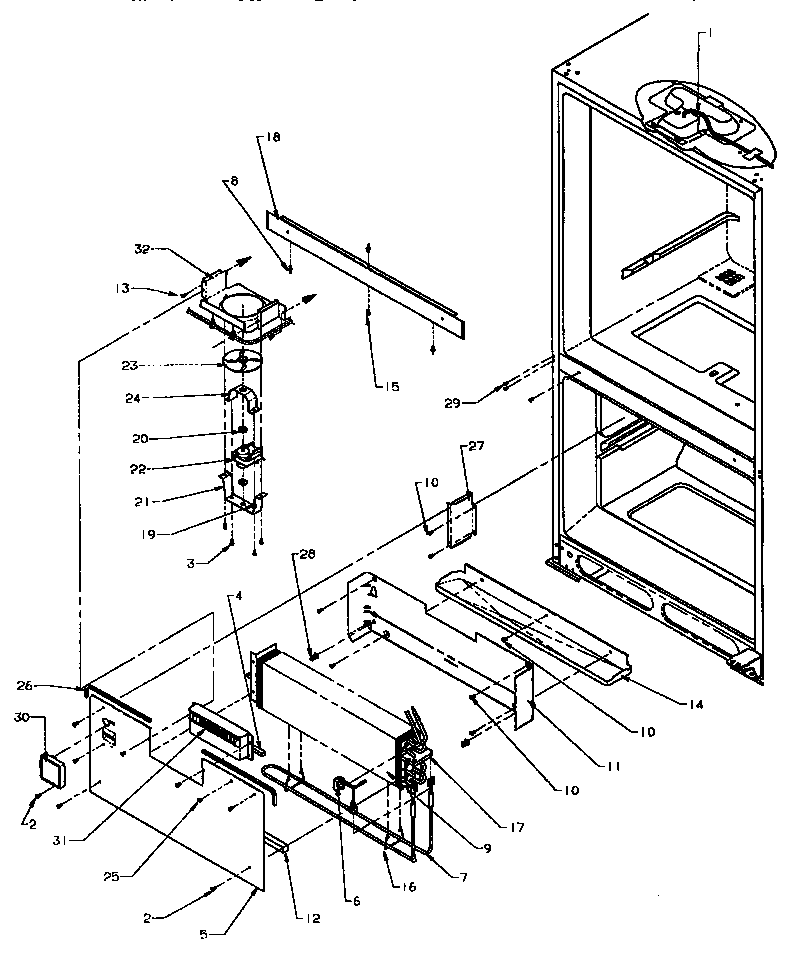

Refrigerator Evaporator Motor
Part #10513801
The manufacturer no longer makes this part, and there's no substitute part
Ref/fz control switches diagram
Refrigerator Temperature Control
Part #C8946703Replaced by #W10752646
Manufacturer substitutionThis part replaces C8946703. Substitute parts can look different from the original.In Stock$119.669% OFF Phone Price : $131.66Qty
