GE
Chest Freezer

Model #FCM7DUCWW GE freezer

Here are the diagrams and repair parts for GE FCM7DUCWW freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

    Showing 10 of 33 parts

    Freezer Basket#7

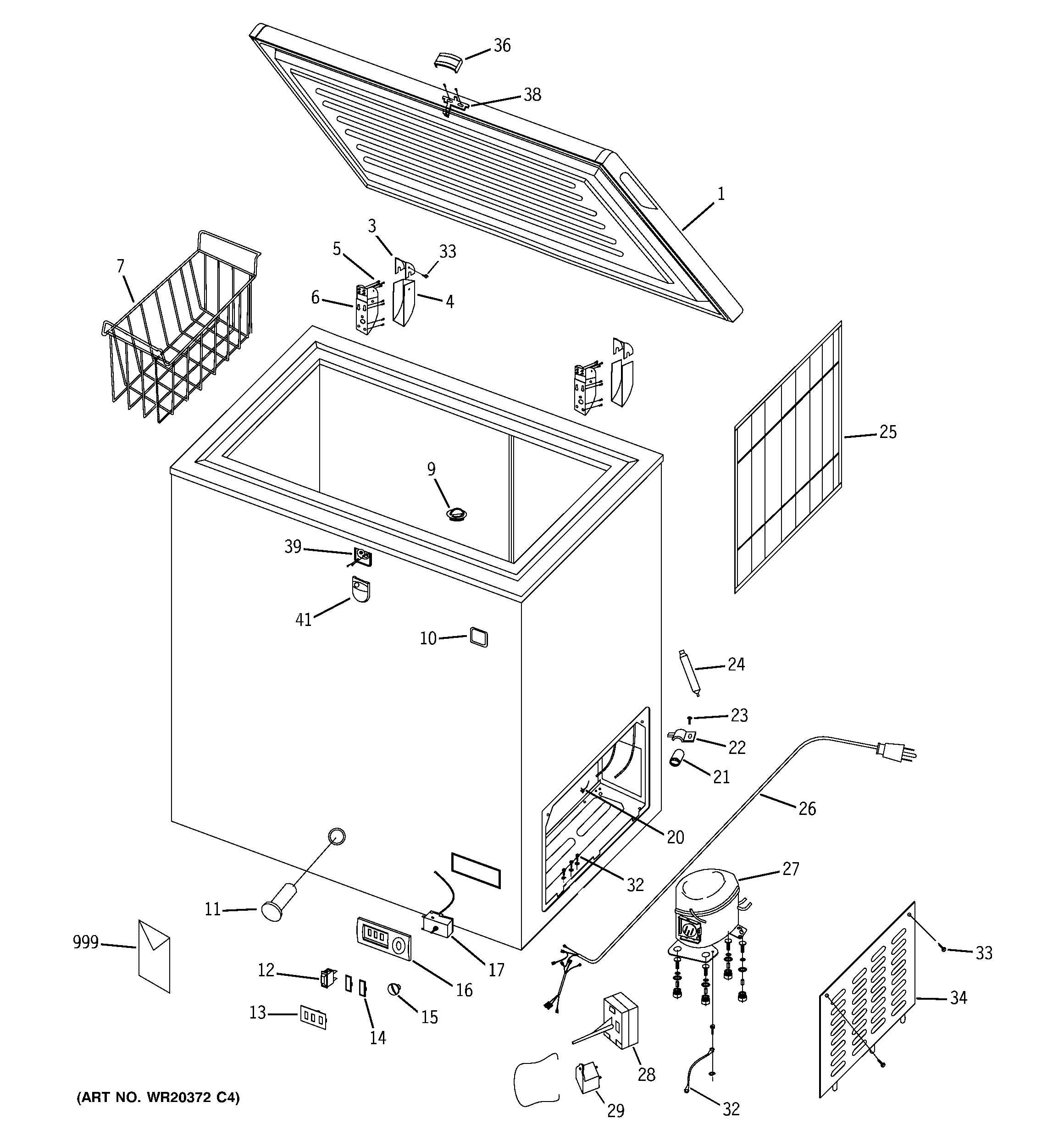

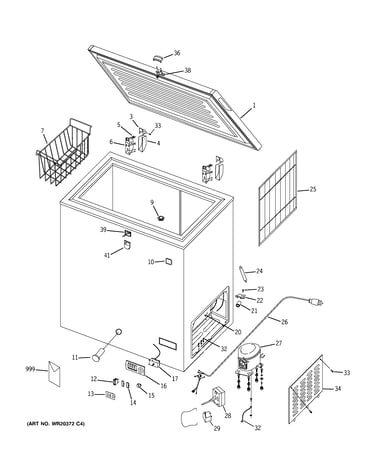

    Freezer Diagram

    Freezer basket

    Part #WR21X10208
    BEST SELLER
    In Stock
    $23.29
    Freezer Drain Plug#11

    Freezer Diagram

    Freezer drain plug

    Part #WR02X12044
    Replaced by #WR01X27970
    ?
    Manufacturer substitution
    This part replaces WR02X12044. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.69
    Freezer Interior Drain Plug#9

    Freezer Diagram

    Drain stopper

    Part #WR02X12189
    Replaced by #WR01X28051
    ?
    Manufacturer substitution
    This part replaces WR02X12189. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.69
    Freezer Screw#5

    Freezer Diagram

    Freezer screw

    Part #WR01X10743
    This item is not returnable
    In Stock
    $7.69
    Freezer Lid Lock and Key Set#39

    Freezer Diagram

    Freezer lid lock and key set

    Part #WR05X10022
    Replaced by #WR01X28052
    ?
    Manufacturer substitution
    This part replaces WR05X10022. Substitute parts can look different from the original.
    In Stock
    $28.89
    Freezer Power Cord#26

    Freezer Diagram

    Power cord

    Part #WR23X10619
    Replaced by #WR23X10458
    ?
    Manufacturer substitution
    This part replaces WR23X10619. Substitute parts can look different from the original.
    In Stock
    $30.39
    Access Panel#34

    Freezer Diagram

    Access panel

    Part #WR17X12345
    In Stock
    $13.09
    Lock Claw#38

    Freezer Diagram

    Lock claw

    Part #WR05X10032
    This item is not returnable
    In Stock
    $7.69
    Lower Lock#41

    Freezer Diagram

    Lower lock

    Part #WR05X10033
    This item is not returnable
    In Stock
    $5.00
    Hinge#6

    Freezer Diagram

    Hinge

    Part #WR13X10467
    In Stock
    $28.99
