Model # GTX65EBSJ2WS Official GE electric dryer

Here are the diagrams and repair parts for Official GE GTX65EBSJ2WS electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |

Dryer Drum Belt WE12M29
#213

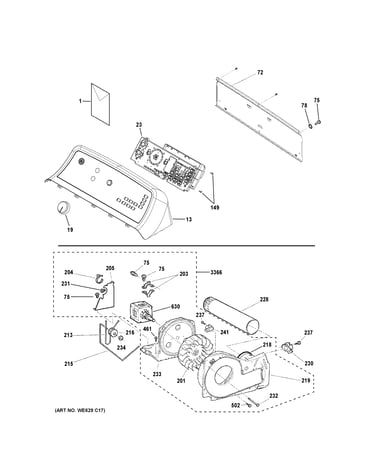

Backsplash, blower & motor assembly diagram

Dryer drum belt

Part #WE12M29

Replaced by #WE03X29897

?
Manufacturer substitution
This part replaces WE12M29. Substitute parts can look different from the original.
BEST SELLER
$24.42
17% OFF Phone Price : $29.42
In Stock
Dryer Drum Felt Seal WE09X20441
#312

Water system diagram

Dryer drum felt seal

Part #WE09X20441

Replaced by #WE09X27634

?
Manufacturer substitution
This part replaces WE09X20441. Substitute parts can look different from the original.
BEST SELLER
$7.92
11% OFF Phone Price : $8.92
In Stock
Dryer Lint Screen WE03X23881
#300

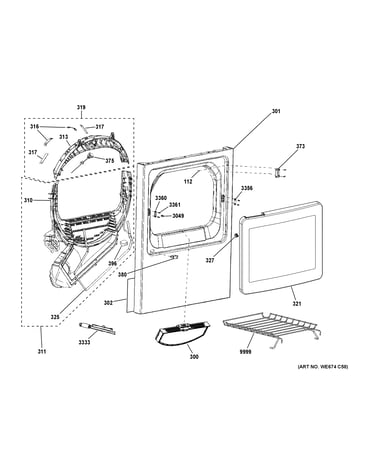

Front panel & door diagram

Dryer lint screen

Part #WE03X23881

BEST SELLER
$36.13
12% OFF Phone Price : $41.13
In Stock
Dryer Drum Glide Bearing (replaces We03m0051, We1m404) WE3M51
#317

Front panel & door diagram

Dryer drum glide bearing (replaces we03m0051, we1m404)

Part #WE3M51

BEST SELLER
$7.20
12% OFF Phone Price : $8.20
In Stock
Dryer Drum Glide Bearing, Upper WE3M52
#316

Front panel & door diagram

Dryer drum glide bearing, upper

Part #WE3M52

Replaced by #WE03X34318

?
Manufacturer substitution
This part replaces WE3M52. Substitute parts can look different from the original.
BEST SELLER
In Stock
Dryer Door Switch WE10X23879
#380

Front panel & door diagram

Dryer door switch

Part #WE10X23879

Replaced by #WE04X28977

?
Manufacturer substitution
This part replaces WE10X23879. Substitute parts can look different from the original.
BEST SELLER
$10.28
16% OFF Phone Price : $12.28
In Stock
Dryer Heater Assembly WE11X21156
#512

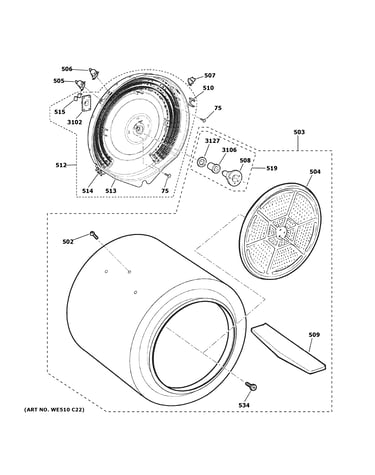

Drum diagram

Dryer heater assembly

Part #WE11X21156

BEST SELLER
$134.37
7% OFF Phone Price : $144.37
In Stock
Dryer Fuse Holder WE1X21955
#417

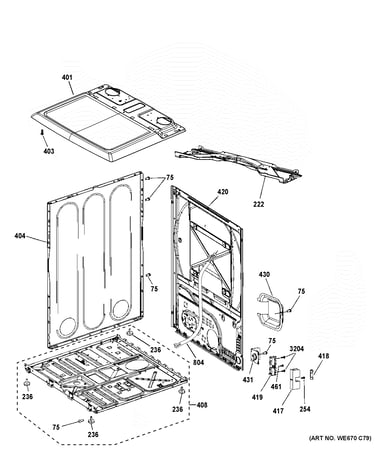

Cabinet & top panel diagram
