Whirlpool WFC7500VW1 washer Parts

Whirlpool washer parts are not universally interchangeable; we match parts to your exact washer model because fit, wiring, and software revisions vary by series and production run. For Whirlpool model WFC7500VW1, use factory-specified replacement parts listed for that model in the WFC7500VW1 owner's manual.

What “interchangeable” really means

Parts can look identical but still differ in mounting points, electrical connectors, or programming. On a front-load washer like the WFC7500VW1, that matters most for control and safety components.

Common examples where model matching is critical:

• Electronic controls and user interface assemblies
• Door lock and door lock switch components
• Wire harness connections and plug styles
• Motor and drive system components
• Tub and basket assemblies

How we recommend choosing the right part

Use your complete model number (WFC7500VW1) and then confirm the part by description and location in the parts diagram.

Checklist before ordering:

• Match the model number exactly: WFC7500VW1
• Compare the part name and where it installs
• Verify connector count and plug shape for electrical parts
• Check for any notes in the parts list (revisions, substitutions)
• If replacing a control, plan to transfer any wiring exactly as found

Quick examples for WFC7500VW1

What you’re replacing	Why interchangeability is risky	Example model-matched part
Door lock switch	Safety circuit and connector style must match	Washer door lock switch WPW10192994
Main control board	Software and wiring revisions vary	Washer electronic control board WPW10192966
User interface	Button layout and communication can differ	Washer electronic control board WPW10192981

Why it matters

Using the correct, factory-specified part helps your washer run safely and prevents issues like a door that will not lock, error codes, no-start conditions, or repeated control failures. It also reduces the chance of needing a second repair.

Last updated: February 2026

On the Whirlpool WFC7500VW1 washer, E01 and F03 together point to a drain problem: the washer is not pumping water out fast enough, so it stops the cycle to prevent overflow and protect the drive system. Start by checking the drain hose and pump area.

What to check first (fast, no parts)

• Press and hold CANCEL/DRAIN to stop the cycle and start draining.
• Verify the drain hose is not kinked, pinched, or frozen.
• Confirm the drain hose is not installed too high; most Whirlpool front-load setups need the standpipe height kept within the manual’s limits.
• Check the household drain for a slow clog (a partially blocked standpipe can trigger drain errors).
• Run RINSE/SPIN after correcting the issue to confirm normal draining.

For the exact control panel steps and any model-specific display behavior, follow the troubleshooting section in the WFC7500VW1 owner's manual.

When it’s likely a part problem

If the hose and household drain are clear but the washer still shows E01/F03, the most common causes are a restricted pump, a failing pump motor, or a control not sensing proper drain performance.

Common symptoms and what they suggest

• Humming during drain but little or no water flow: pump obstruction or failing pump
• Water left in the tub after drain: restriction in hose, pump, or drain path
• Intermittent drain errors: loose connection, pump starting to fail, or sensing issue

Quick comparison

What you observe	Most likely cause	Best next step
No drain, loud hum	Pump jammed	Inspect pump area; clear debris
Slow drain, no hum	Blocked hose/standpipe	Clear hose and household drain
Drains sometimes	Pump weakening or wiring issue	Inspect connections; consider pump replacement

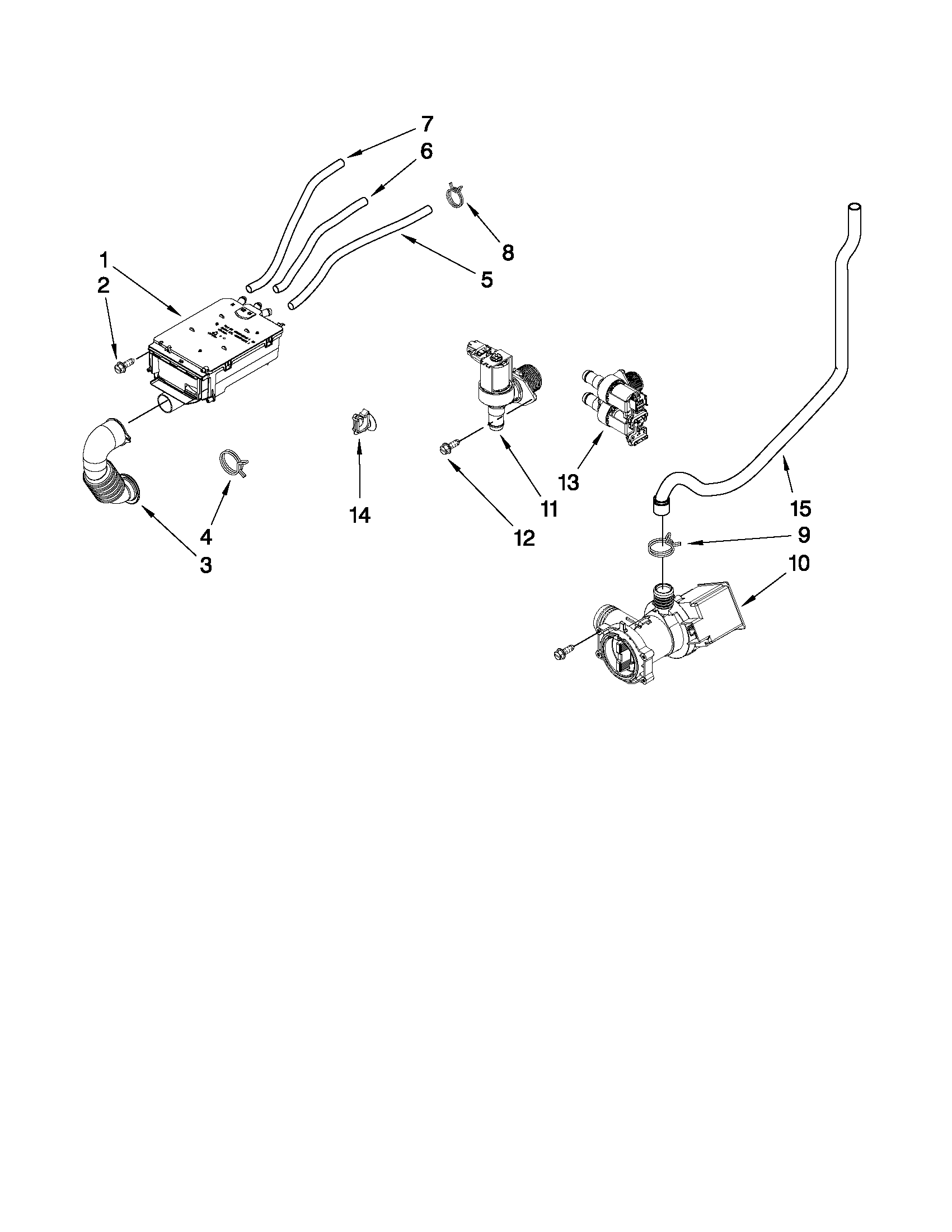

If you determine the pump is not moving water, replacing the drain pump is the typical fix; on this model, the drain pump is listed as water pump WPW10465252.

Why it matters

A drain fault can leave water in the tub, prevent high-speed spin, and cause repeated cycle stoppages. Fixing the restriction early helps prevent odor, standing water, and extra strain on the motor and control.

Related help: Whirlpool duet he front load washer error codes.

Last updated: February 2026

The most common Whirlpool washer problems are draining or spinning issues, off-balance vibration/noise, and “won’t start” symptoms. On the Whirlpool WFC7500VW1, the manual specifically calls out drain-hose restrictions (kinked, clogged, frozen, or too high) and leveling issues as frequent causes of these complaints; see the WFC7500VW1 owner's manual.

Most common symptoms and what usually causes them

• Won’t drain or shows a drain-related code: drain hose kinked/clogged/frozen, or standpipe height too high.
• Won’t spin or stops mid-cycle: off-balance load, leveling/foot issues, or the washer redistributing the load.
• Noisy or vibrating: washer not level, feet not firmly on the floor, or normal operational sounds during lock/unlock and spin.
• Won’t start or acts “dead”: power supply issue, door not locking, or a control problem.
• Intermittent electrical-type errors: wiring/connection issues or a failing control.

Quick checks we recommend first (WFC7500VW1)

1. Confirm power: use a grounded 3-prong outlet; avoid adapters/extension cords.
2. Check fill basics: faucets fully open; inlet screens clear; hoses not kinked or frozen.
3. Fix drain restrictions: verify the drain hose is not kinked, clogged, frozen, and is not routed higher than about 55 in. (1.4 m) above the floor.
4. Level the washer: all four feet firmly on the floor; locknuts tightened against the cabinet.
5. Reduce vibration triggers: wash similar items together and avoid overloading.

Symptom	Most likely “common” cause	Best first action
Not draining	Drain hose kink/clog/too high	Inspect hose routing and clear blockage
Shaking/noise	Not level, off-balance load	Level feet; redistribute load
Won’t start	Door not locking, power issue	Check outlet; verify door locks

When a part is the likely fix

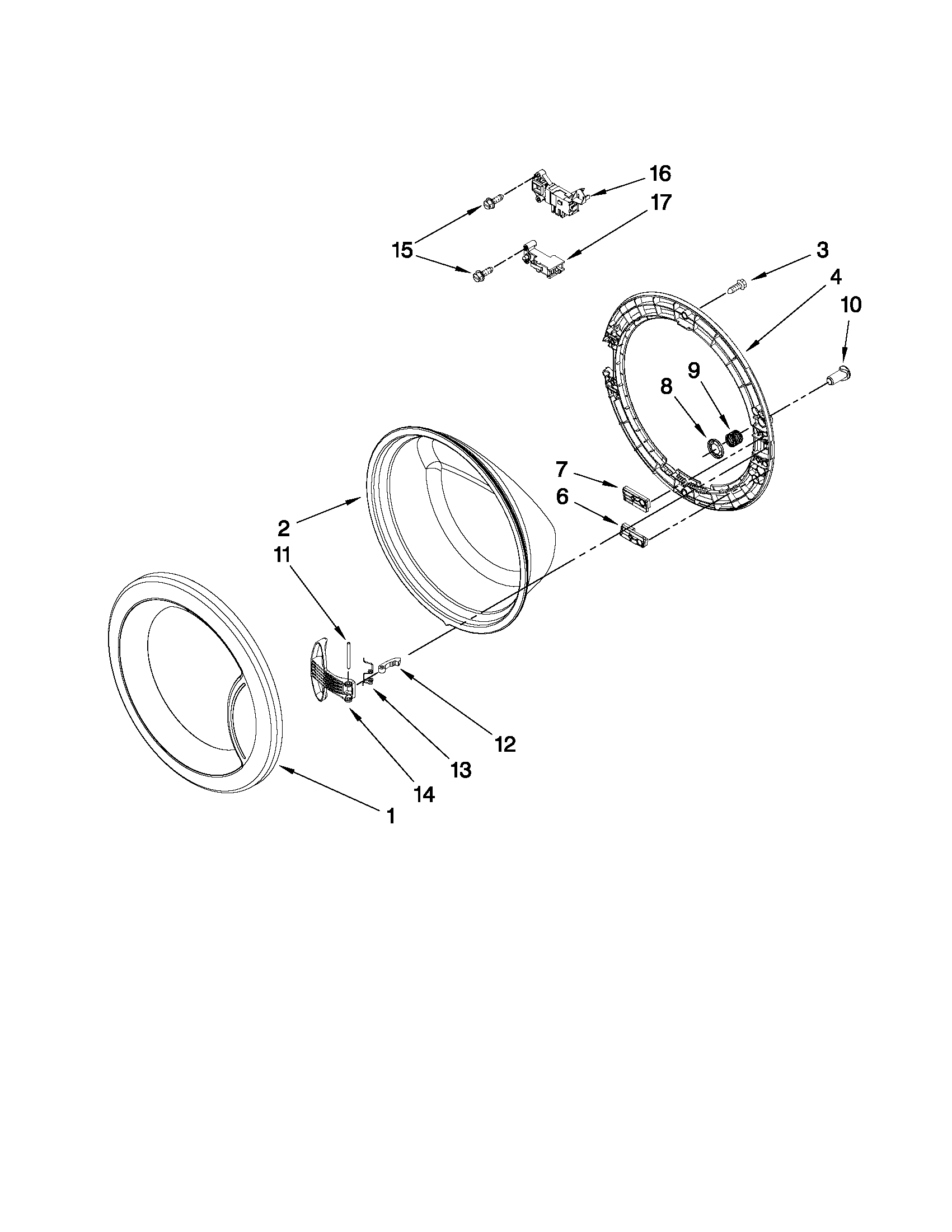

If the washer has power but will not run because the door will not lock, a failed door lock assembly is a common repair on front-load designs. For this model, we typically start by checking the washer door lock switch WPW10192994 and door lock operation.

Why it matters

Drain and balance problems can stop a cycle, leave clothes soaking wet, and increase vibration. Correct hose routing and proper leveling prevent repeat failures and reduce stress on the drive system and controls.

Last updated: February 2026
