Kenmore 2537034341B refrigerator Parts

Kenmore refrigerator model 2537034341B is a French door bottom-freezer style unit; its exact cubic-foot capacity is listed on the model’s rating label and in the 2537034341B use & care guide. Use those sources to match the correct capacity for your specific configuration.

How to find the exact capacity for 2537034341B

We recommend using one of these quick checks:

• Check the rating label inside the fresh food compartment (commonly on a side wall or near the crisper area).
• Look for a “Capacity” or “Total volume” line (often shown in cubic feet).
• Compare the rating label model number to the model list shown in the 2537034341B use & care guide.
• If you recently moved the unit, confirm doors and drawer are sealing correctly because poor sealing can make the refrigerator seem “too small” or hard to organize.
• If you need to remove doors for measuring or moving, follow the door removal guidance referenced in the 2537034341B installation instructions.

Why the model-number digit method is not reliable

Some online charts try to estimate cubic feet from digits in the model number. For Kenmore 253-prefix refrigerators, that shortcut is not dependable because capacity varies by platform, door style, and internal layout.

Typical size range for this style (helpful for planning)

Most Kenmore French door bottom-freezer refrigerators of this general design fall into a practical range of about 20 to 26 cu. ft. total capacity.

What you need	Best source	Why it matters
Exact cubic feet	Rating label inside the refrigerator	Matches your exact build
Operating and feature details	2537034341B use & care guide	Confirms configuration and controls
Moving, door removal, leveling	2537034341B installation instructions	Prevents damage and sealing issues

Why it matters

Knowing the correct capacity helps you compare replacements, plan kitchen fit, and choose compatible accessories (like filters) without guessing based on model-number patterns.

Last updated: January 2026

Common Kenmore Elite refrigerator problems include not cooling well (often tied to airflow or a sealed-system issue), ice maker not making ice, water dispensing issues, and doors not sealing. On Kenmore model 2537034341B, start with the basics in the 2537034341B owner's manual before replacing parts.

Most common symptoms and what they usually point to

• Warm fresh food or freezer: dirty condenser coils, evaporator fan issue, temperature sensor issue, or a control problem
• Ice maker not working: ice maker assembly issue, water supply problem, or inlet valve problem
• Frost or moisture inside: door left slightly open, gasket not sealing, high humidity conditions
• Long run times: door gasket leaks or dirty condenser (the manual notes gasket leaks can make the refrigerator run longer)
• Flashing temperature display or error behavior: electronic control system detecting a performance problem

Quick checks we recommend first (no parts needed)

1. Confirm controls are set correctly and allow 24 hours for temperatures to stabilize after changes.
2. Make sure the toe grille and vents are not blocked (air circulation is essential for proper operation).
3. Inspect door and drawer gaskets for gaps, tears, or areas not contacting the cabinet.
4. Clean the condenser area (dust buildup commonly causes poor cooling and long run times).
5. If water or ice is slow, confirm the house water supply is fully on and check for kinks in the water line.

Parts that commonly solve these problems on 2537034341B

Symptom	Common part to check	Example part for this model
Ice maker not making ice	Ice maker assembly	Refrigerator ice maker 243297613
No ice or no water flow	Water inlet valve	Refrigerator water inlet valve assembly 242253002
Temps swing or don’t hold	Temperature sensor	Refrigerator temperature sensor 240597220
Moisture, frost, warm spots near door	Door gasket	Frigidaire refrigerator door gasket (white) 241778315

Why it matters

Cooling and ice maker complaints often come from airflow restrictions, poor door sealing, or water supply issues. Fixing those first prevents unnecessary part replacement and helps the compressor and control system run normally.

For display messages and model-family troubleshooting, use Kenmore 253 series french door refrigerator error codes.

Last updated: January 2026

A Kenmore Elite refrigerator typically lasts 12 to 15 years under normal household use. To help your Kenmore refrigerator model 2537034341B reach that range, focus on steady temperatures, good airflow around the cabinet, and keeping door seals and filters in good condition.

What affects refrigerator lifespan most

• Ventilation and condenser cleanliness: Dust buildup and poor airflow make the compressor work harder.
• Door seal condition: Leaky gaskets cause longer run times and temperature swings.
• Ice maker and water system health: Small leaks or restricted flow can create ongoing stress and service issues.
• Stable settings: Avoid frequent temperature changes and overpacking air vents.
• Power quality: Repeated outages or surges can shorten control board life.

Maintenance checklist that helps you get the full 12 to 15 years

Use these as practical, high-impact habits:

• Keep the refrigerator level and slightly tilted back so doors close consistently (installation guidance is in the 2537034341B installation guide).
• Confirm the door is sealed to the cabinet on all sides and recheck after adjustments.
• Replace the water filter about every 6 months (or when the filter status prompts) as described in the 2537034341B owner’s manual.
• Clean spills and odors promptly; lingering odors often mean airflow or filter issues.
• If you notice warm spots or weak airflow, inspect the evaporator fan area and vents.

Parts that commonly impact longevity

If you are troubleshooting temperature swings, frost, or leaks, these parts are frequent wear items:

Symptom	Common area to check	Example part for 2537034341B
Door not sealing, moisture, frost	Door gasket	Frigidaire refrigerator door gasket (white) 241778315
Ice maker not filling or leaking	Water supply and valve	Refrigerator water inlet valve assembly 242253002
Odors that return quickly	Air filtration	Refrigerator door air filter EAFCBF

Why it matters

Most major refrigerator failures are caused by heat load (poor airflow, dirty coils, leaky doors) or moisture problems (bad gaskets, defrost issues). Reducing those stresses helps the compressor and electronic controls last closer to the expected 12 to 15 years.

Last updated: January 2026

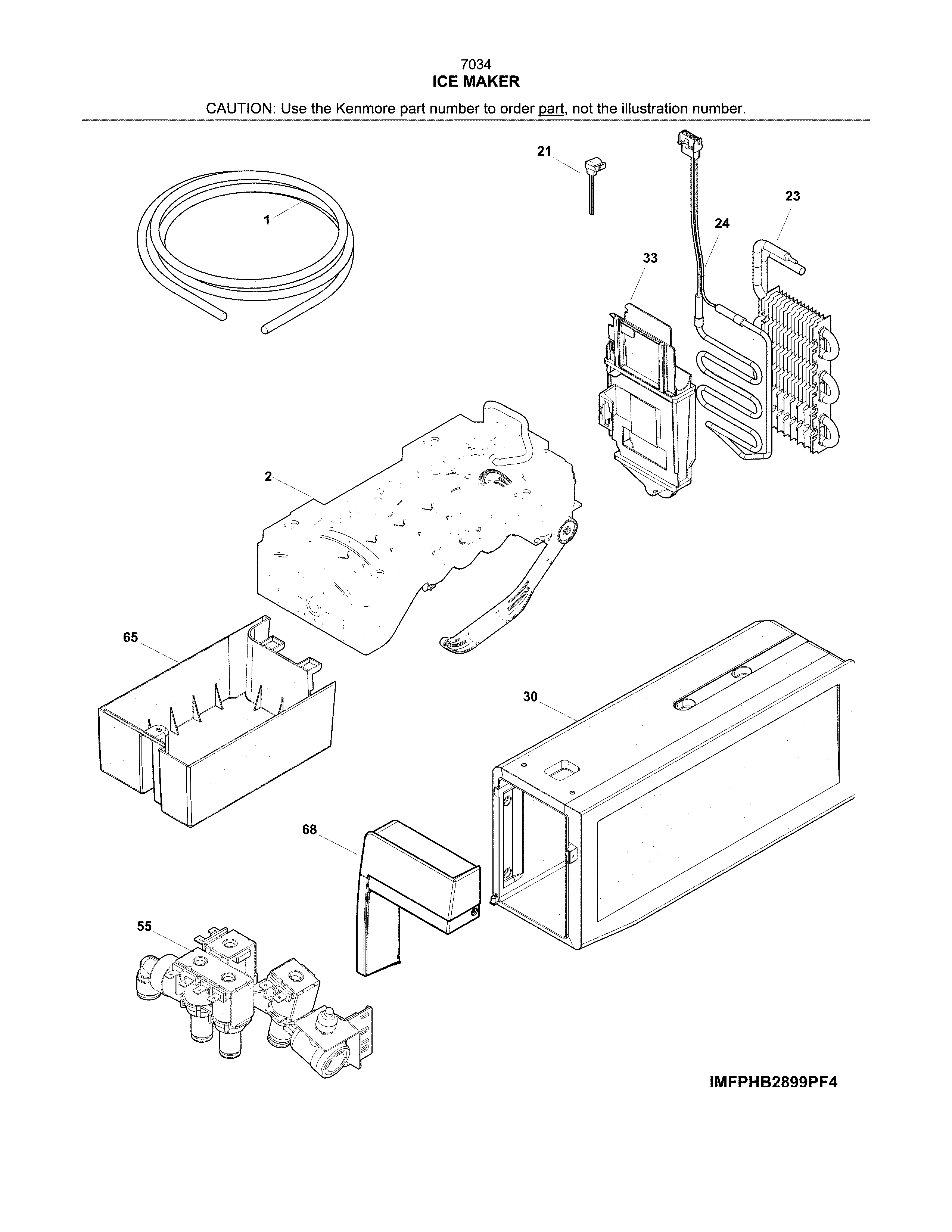

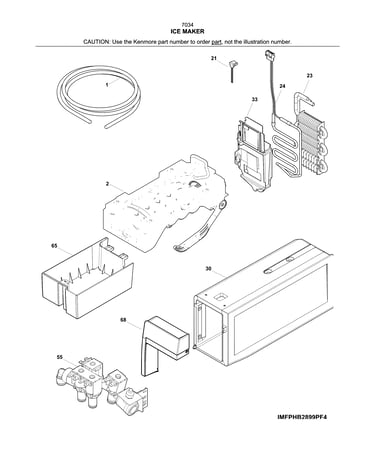

On the Kenmore 2537034341B refrigerator, the ice maker typically does not have a single labeled “reset button” you press like a small switch. Most “reset” actions are done by cycling the ice maker OFF and back ON, then allowing it time to run a new harvest cycle (see the 2537034341B owner's manual for your exact control style).

How to “reset” the ice maker on this model

Use the method that matches the ice maker type described in the manual:

• Fresh food ice maker: press and hold the “Ice Off” button for about 3 seconds to toggle it back ON.
• Freezer ice maker: lower the wire signal arm to the ON (down) position.
• After turning it ON, wait for the freezer to reach proper temperature and allow time for a full cycle.
• If the dispenser motor overheats from being pressed too long, it typically resets on its own in about 3 minutes.

Quick checks before you assume the ice maker failed

These are the most common reasons an ice maker seems like it needs a reset:

• House water supply valve is not fully open
• Supply line is kinked behind the refrigerator
• Water filter is not seated fully (not clicked/locked in)
• Water filter is clogged or older than about 6 months
• Ice maker shutoff arm is blocked by food or ice
• Doors are not closing completely (can affect ice production)

What symptoms point to which part

Symptom	Most likely cause	What we recommend
No ice at all	Ice maker turned off, no water supply	Turn ice maker on; verify water valve is open
Small/hollow cubes	Restricted water flow	Replace filter; check for kinked line

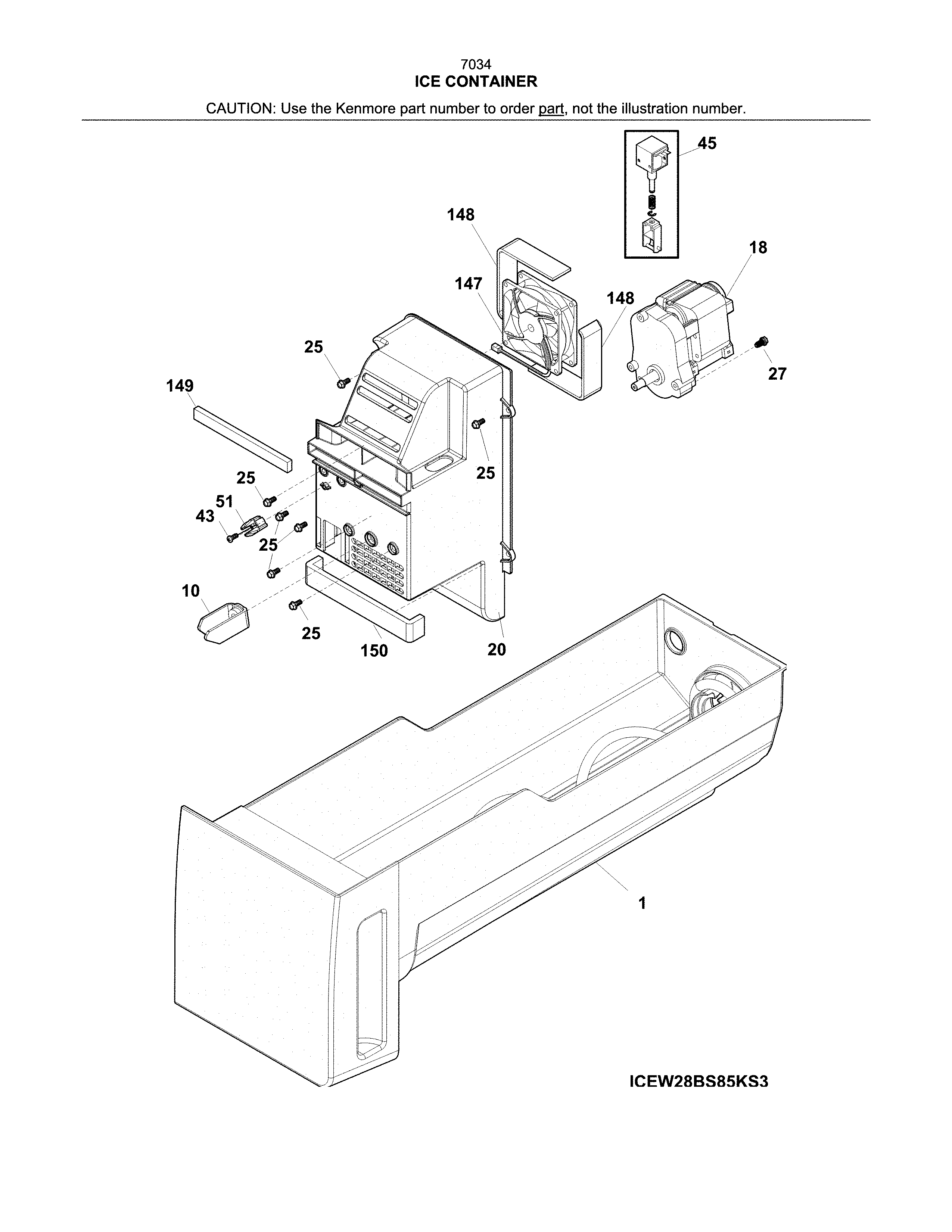

Ice dispenser jam	Melted/refrozen ice in bin	Empty bin, dry it, reinstall correctly

Parts that commonly solve “no ice” complaints

If the ice maker is ON and water supply is good, these parts are common fixes:

• Refrigerator ice maker 243297613 (if the module will not cycle)
• Refrigerator water inlet valve assembly 242253002 (if the valve is not opening)
• Refrigerator temperature sensor 240597220 (if temperatures are being read incorrectly)

Why it matters

A true “reset” rarely fixes the root cause. Ice makers stop producing ice most often because water flow is restricted (filter, kinked line, valve) or the ice maker is switched off by a control setting or shutoff arm position.

Last updated: January 2026
