Kenmore 79046893900 electric range Parts

For Kenmore electric range model 79046893900, the model and serial number are printed on the serial plate. You’ll typically find that plate on the oven front frame behind the oven door, or behind the storage or warming drawer (depending on the exact configuration). See the owner's manual for the illustrated location.

Check these spots in this order:

• Open the oven door and look along the front frame (door jamb area)
• Pull out the bottom storage drawer and look behind it on the frame
• If your range has a warming drawer, pull it out and check behind the drawer area
• Look for a label that says Model and Serial (often on a metal or foil plate)

The serial plate is usually a small rectangular label or metal plate with:

• Model number (example: 79046893900)
• Serial number
• Sometimes a lot number or letter

Using the exact model number from the serial plate prevents ordering the wrong Kenmore range parts (like an oven temperature sensor, control switch, or oven light components) that may look similar but fit differently.

Last updated: February 2026

If your Kenmore 79046893900 electric range oven stops working, the most common causes are a power interruption, a control fault (often shown as an error code like F1, F3, or F9), or a failed heating or sensing component such as the oven temperature sensor. Use the steps below to pinpoint the failure using your owner's manual.

• Confirm the range has power; check the house breaker for a tripped circuit.
• If there was a power outage, turn the oven OFF; the manual warns not to operate the oven during a power failure.
• If the control is beeping and showing F1, F3, or F9, press CLEAR to stop the beeping and clear the display.
• Try setting Bake again after clearing the code.
• If the code returns, treat it as an electronic control fault condition.

When the oven stops mid-cycle or will not start, the root cause is usually either lost power or the electronic control detecting a fault. Addressing the simple items first (power, CLEAR/reset, obvious light or sensor failures) prevents unnecessary part replacement and gets baking performance back to normal.

• Turn power off at the breaker before accessing wiring or internal components.
• Do not use aluminum foil to line the oven bottom; the manual warns this can create an electric shock, fire, or short-circuit risk.
• If the oven stopped during a power failure, keep it OFF until power is stable.

For control settings, error-code behavior, and model-specific procedures, follow the steps in the owner's manual.

Last updated: February 2026

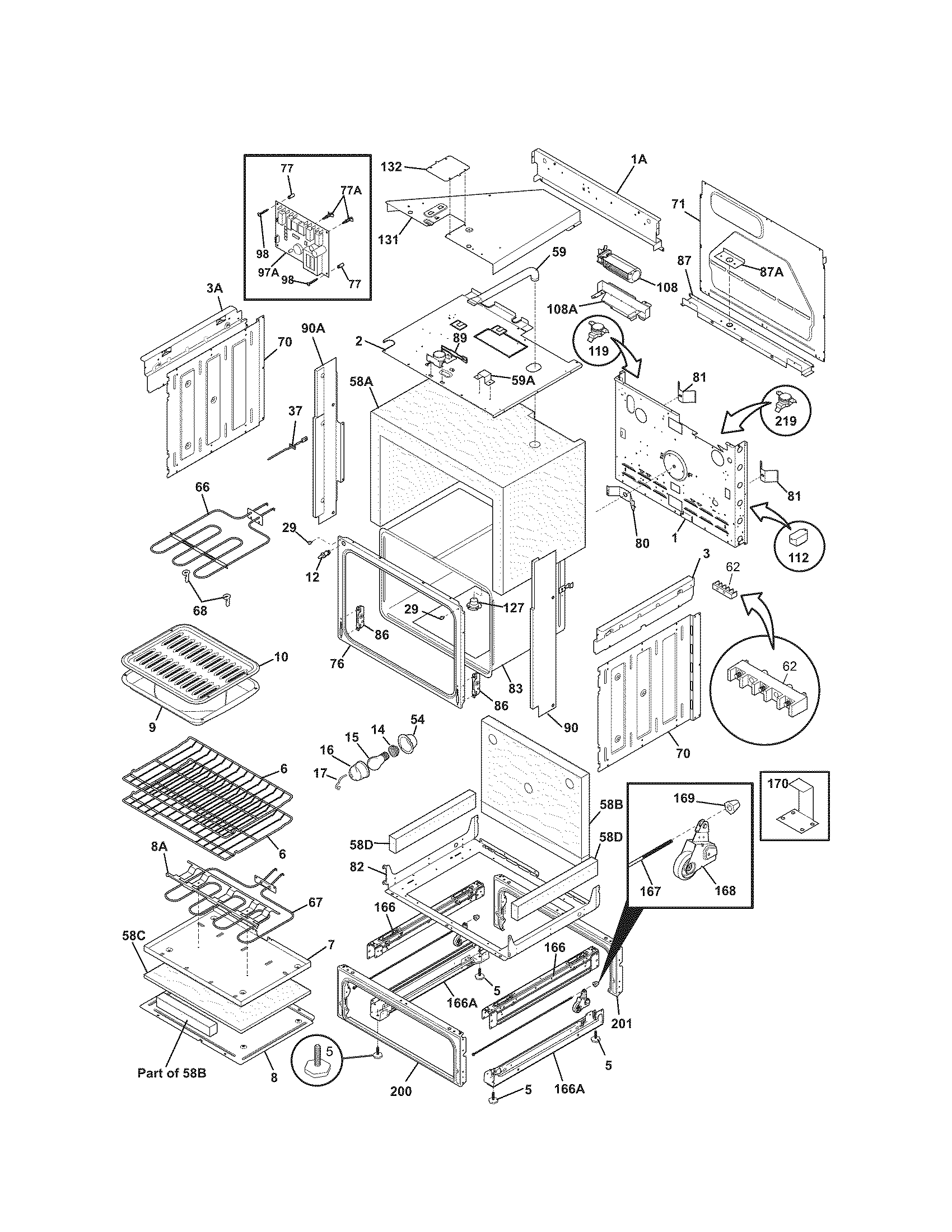

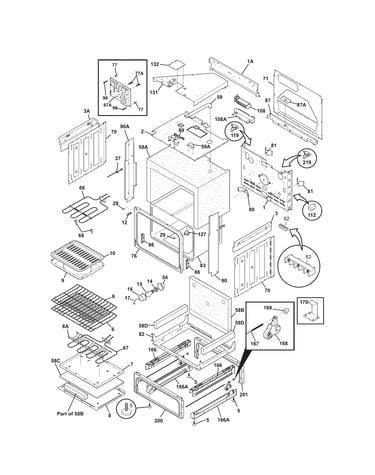

On a Kenmore 79046893900 electric range, the thermal fuse (often called a safety thermostat or thermal cutoff) is typically mounted on the back of the range, on the rear panel near the oven cavity and wiring, not inside the oven. You usually access it by pulling the range out and removing the rear access cover.

On most Kenmore electric ranges like model 79046893900, the thermal fuse style safety device is found in one of these spots:

• On the rear panel behind the control area (upper back of the range)
• On the back of the oven cavity (center to upper area), attached with small screws
• In the wiring path feeding the bake and broil circuits (near harness connections)
• Sometimes near the cooling fan ducting (if equipped)

For panel removal and safe access guidance, follow the steps and safety notes in the installation guide.

1. Turn off power at the breaker (240V). Confirm the display is off.
2. Pull the range forward carefully; avoid stressing the power cord.
3. Remove the rear access panel screws and lift the panel off.
4. Look for a small, flat, oval or rectangular device with 2 wires on the back of the oven cavity.
5. Take a photo of wire positions before disconnecting anything.

• Let the range cool completely before servicing.
• Keep flammables away from the appliance.
• Reset all controls to OFF after testing.

A thermal fuse style device opens to prevent overheating; other parts can cause similar symptoms.

Finding the correct device matters because a “thermal fuse” is often confused with the oven temperature sensor or control board. Checking the right component first saves time and helps prevent repeated overheating.

Last updated: February 2026

To reset your Kenmore 79046893900 electric range, we recommend doing a power reset: turn the range OFF, shut off power at the breaker (or unplug it), wait 1 minute, then restore power and test the oven and surface elements.

• Turn all surface element knobs to OFF.
• If the oven is on, press Cancel/Off (if your control has it).
• Unplug the range or switch the range circuit breaker OFF.
• Wait 60 seconds.
• Restore power.
• Set Bake and confirm the oven heats; then test a surface element.

A reset clears many temporary control glitches, but it will not fix a failed part or a wiring issue. Check these common causes next:

• No power: verify the breaker is fully reset (OFF then ON) and the cord is seated.
• Incorrect heat or uneven heating: confirm you are using the correct control knob for the correct element.
• Oven temperature seems off: use the calibration procedure in the owner's manual.
• Surface indicator light stays on: the cooktop can keep the light on until it cools.
• Burner control problems: a failed infinite switch or control board can cause erratic heating.

If troubleshooting points to a component, these are common on electric ranges like the Kenmore 79046893900:

• Frigidaire range oven temperature sensor 316217002 (helps regulate oven temperature)
• Terminal block 5304409888 (power connection point; overheating or loose connections can cause power loss)
• Range dual element infinite switch 318191023 (controls a dual surface element)

Resetting the range is the fastest safe first step because it restores the electronic control to a known state. If symptoms return immediately, the problem is usually power supply, a control switch, or an oven temperature sensing or control issue.

Last updated: February 2026
