Frigidaire LGUI2149LF1 refrigerator Parts

On your Frigidaire refrigerator, the model number is the exact ID we use to match the right parts and documentation to your unit. For model LGUI2149LF1, you will use the full model number exactly as shown on the rating label, then reference the owner's manual for model-specific details and features.

Where to find the model number on a top-mount refrigerator

Most Frigidaire top-mount refrigerators place the model and serial tag in one of these common spots:

• Inside the fresh food compartment on a side wall (often near the top)
• On the ceiling of the fresh food compartment near the light
• On the cabinet frame behind the crisper drawers (you may need to pull drawers out)
• On the hinge-side frame area near the door opening

How to read and use the model number

A Frigidaire model number is meant to be used as a complete string. For parts lookup and troubleshooting, we recommend:

• Copy the model number exactly (letters and numbers, no spaces)
• Use the full model number, not just the first few characters
• Keep the serial number separate; it helps with production date, but parts matching is driven by the model number
• If your label includes a revision (sometimes shown after the model), record that too

Why the exact model number matters

Small differences in a model number can change the correct fit for key items like a door gasket, ice maker, or evaporator fan motor. Using LGUI2149LF1 ensures you land on the correct parts list and diagrams for your refrigerator.

Quick reference: model vs. serial

Label item	What it’s used for	When you need it
Model number (example: LGUI2149LF1)	Matching parts and manuals	Always for ordering parts
Serial number	Identifying production run/date	Helpful for service history

Ordering parts once you have the model number

After you confirm the model number, you can order replacement parts from the parts list for LGUI2149LF1, or search by model on Sears PartsDirect.

Last updated: February 2026

A top-mount refrigerator like the Frigidaire LGUI2149LF1 typically makes fresh-food access less convenient because the refrigerator section sits lower, and it usually offers fewer premium organization and dispenser features than many bottom-freezer designs.

Common drawbacks you may notice

• More bending for daily items: Fresh food is below the freezer, so you reach down more often.
• Fewer built-in convenience features: Many top-mount models do not include an external water or ice dispenser.
• Less flexible organization: Shelving and bins are often simpler than higher-end bottom-mount layouts.
• Door seal sensitivity: If doors are not level or seals do not close fully, temperature stability can suffer (the installation checklist calls out door sealing and leveling). See the installation guide.
• Ice maker depends on a proper water hookup: If your unit has an ice maker, it needs a connected water supply and leak-free fittings.

Quick comparison: top-mount vs bottom-mount

Feature	Top-mount refrigerator	Bottom-mount refrigerator
Fresh-food access	Lower, more bending	Higher, easier access
Freezer access	Eye-level	Lower drawer
Typical features	Simpler, fewer dispensers	More premium options
Cost and complexity	Often lower and simpler	Often higher and more complex

Why it matters

If you open the refrigerator section many times per day, the lower fresh-food compartment can be the biggest day-to-day downside. On the other hand, top-mount designs are often simpler, which can mean fewer feature-related repairs over time.

Tips to reduce the downsides on LGUI2149LF1

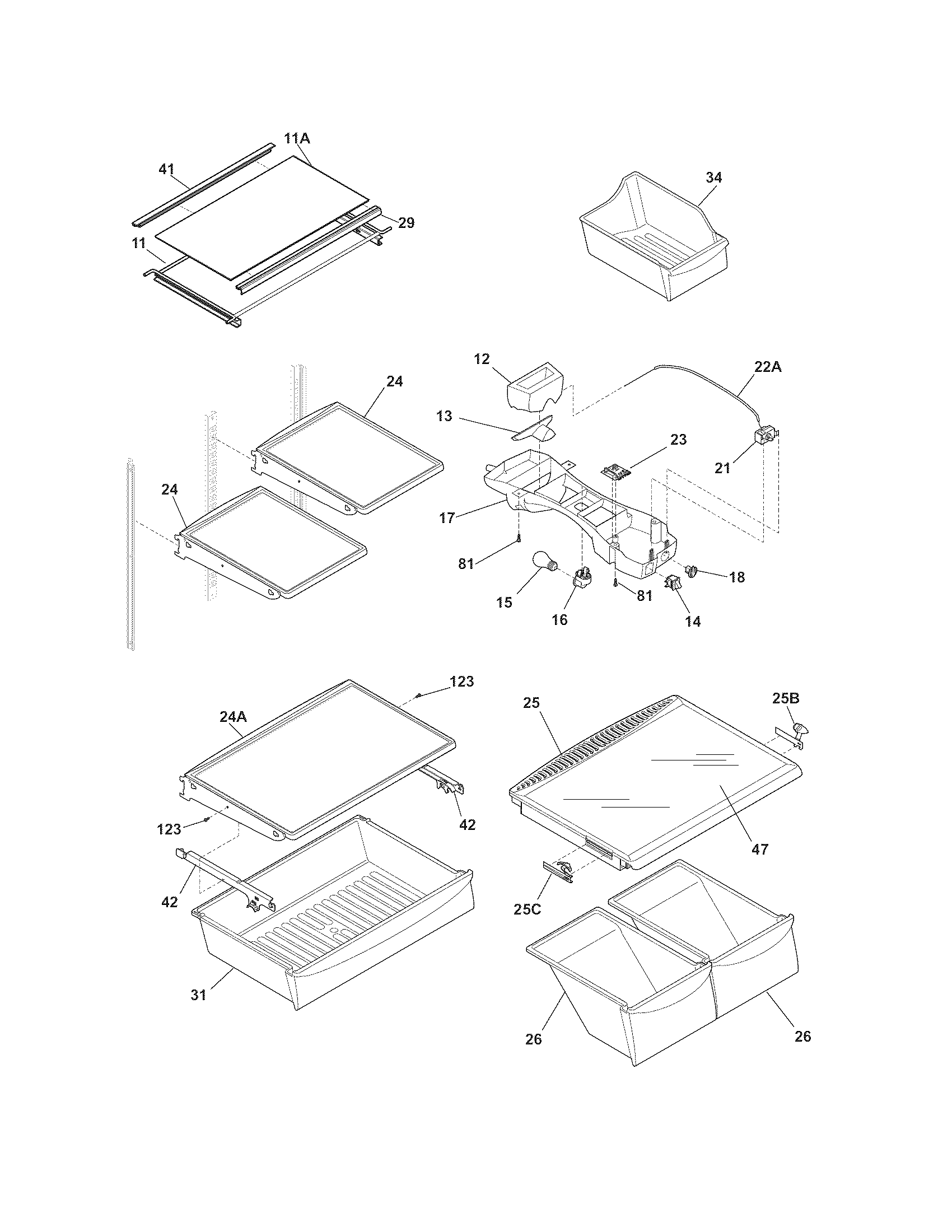

• Set frequently used items on the upper refrigerator shelves to reduce bending.
• Confirm the cabinet is level and the doors seal on all sides (helps prevent warm spots and frost).
• If you use an ice maker, keep the water line connections tight and recheck for leaks after 24 hours.
• Keep airflow clear around the cabinet; proper clearances help cooling performance.

For replacement parts that support day-to-day usability (like lighting or door sealing), you can shop the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

Frigidaire Gallery is not considered “high end” in the luxury-appliance sense; it is a strong mid-range line. For a Frigidaire top-mount refrigerator like model LGUI2149LF1, Gallery typically means upgraded styling and features compared with entry-level models, without the premium pricing of true luxury lines.

What “high end” usually means (and where Gallery fits)

In refrigerators, “high end” usually refers to premium materials, advanced cooling systems, and higher price tiers. Frigidaire Gallery generally sits above basic Frigidaire models and below the most premium lines.

• Mid-range pricing and feature set for most households
• More design-forward finishes and handles than entry-level units
• Convenience features (varies by model) rather than luxury-only features
• Strong value when you want upgrades without a luxury price

How to judge your specific LGUI2149LF1 model

The fastest way to confirm what your refrigerator includes is to match features to the documentation and the parts used on the unit.

What to check	Where to confirm	Why it matters
Included features and controls	LGUI2149LF1 owner's manual	Confirms what your exact model supports (not just the product line)
Installation requirements (clearances, water hookup)	LGUI2149LF1 installation guide	Helps avoid performance issues from poor airflow or incorrect setup

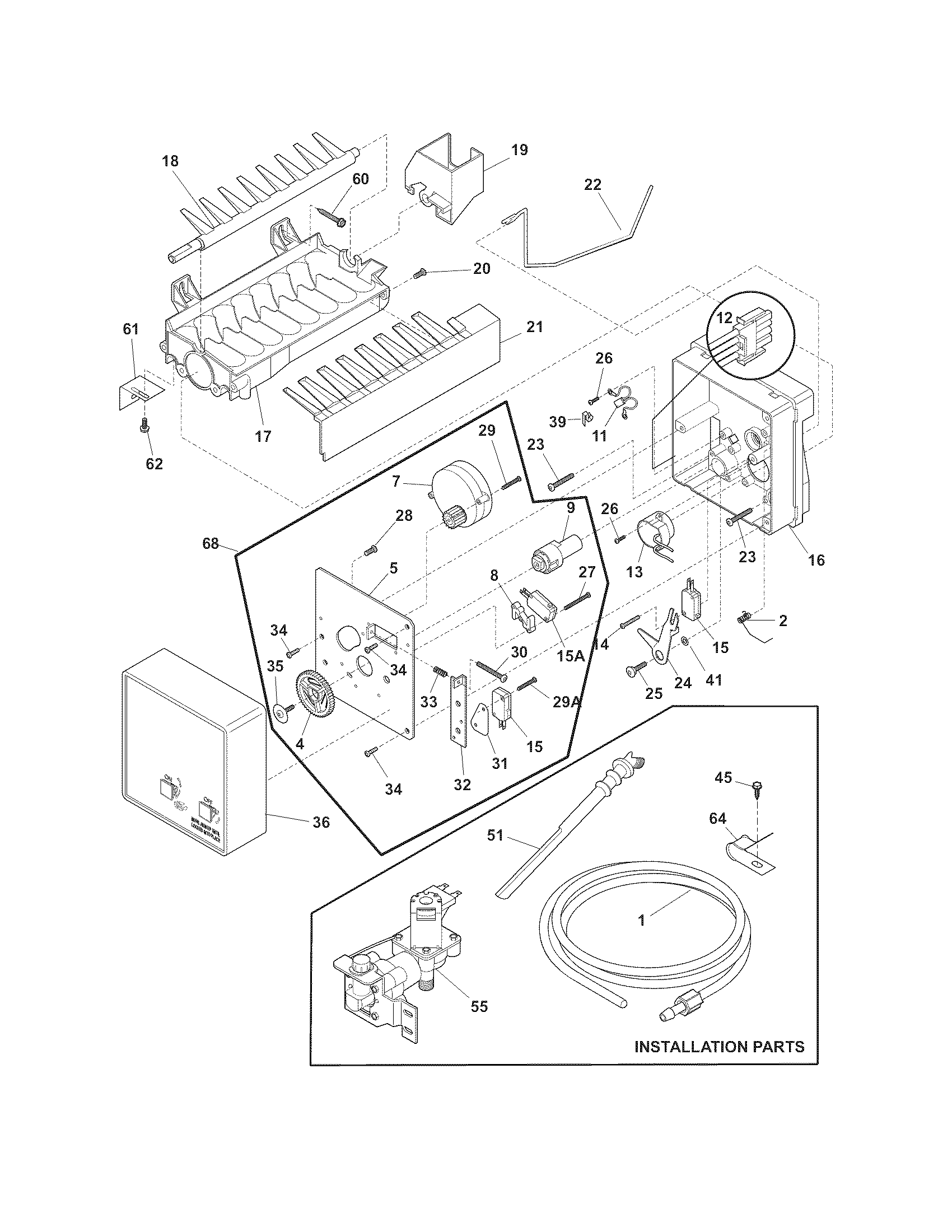

Ice maker configuration	Refrigerator ice maker assembly 241798231	Shows whether your unit is equipped for ice production and serviceable parts

Why it matters

Knowing whether Gallery is “high end” helps set expectations for noise level, finish durability, and feature depth. It also helps when deciding whether to repair or upgrade; many Gallery models are designed to be cost-effective to maintain with replaceable parts.

Parts and support options

If you are comparing repair costs, we recommend pricing the most common wear items first.

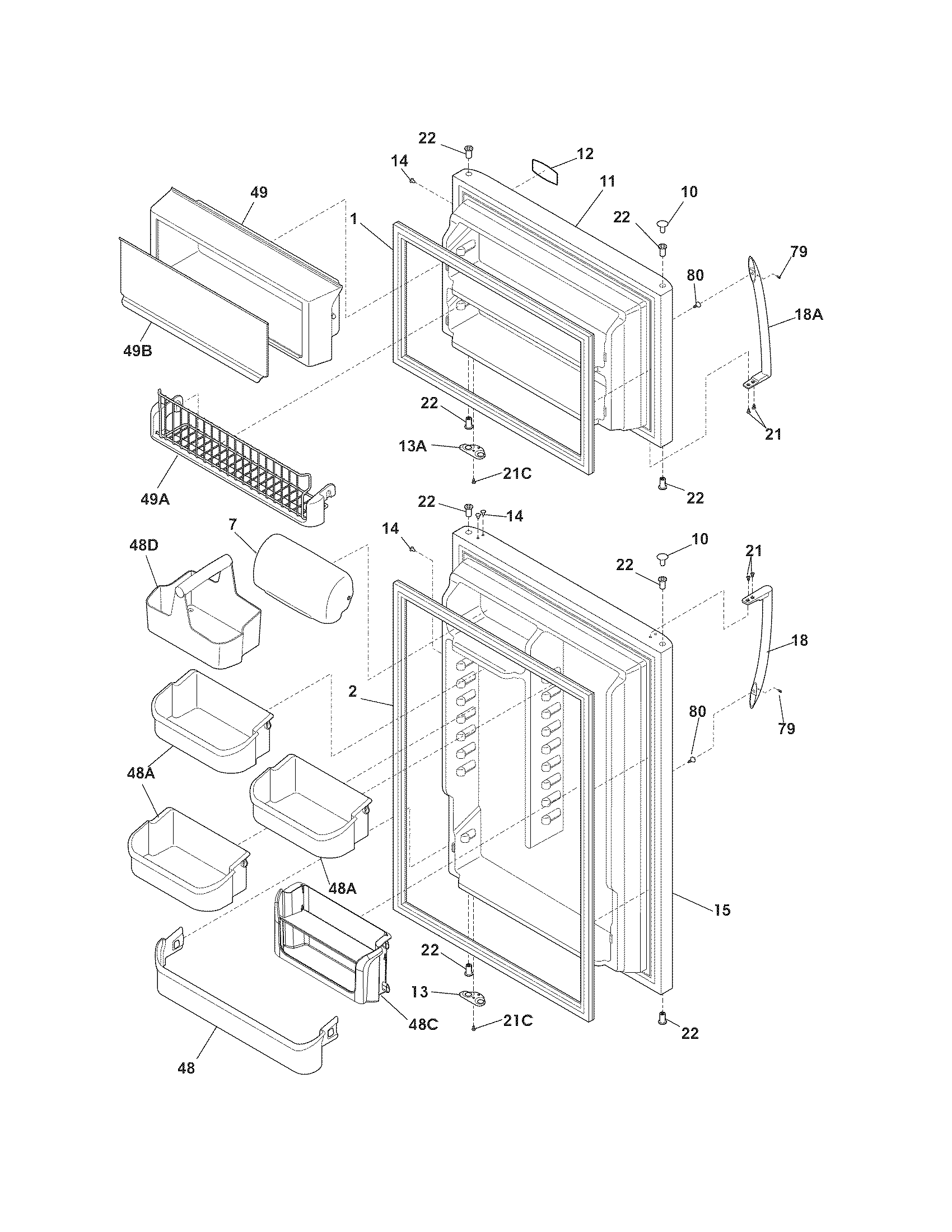

• Door gasket options (seal and efficiency)
• Ice maker components (ice production issues)

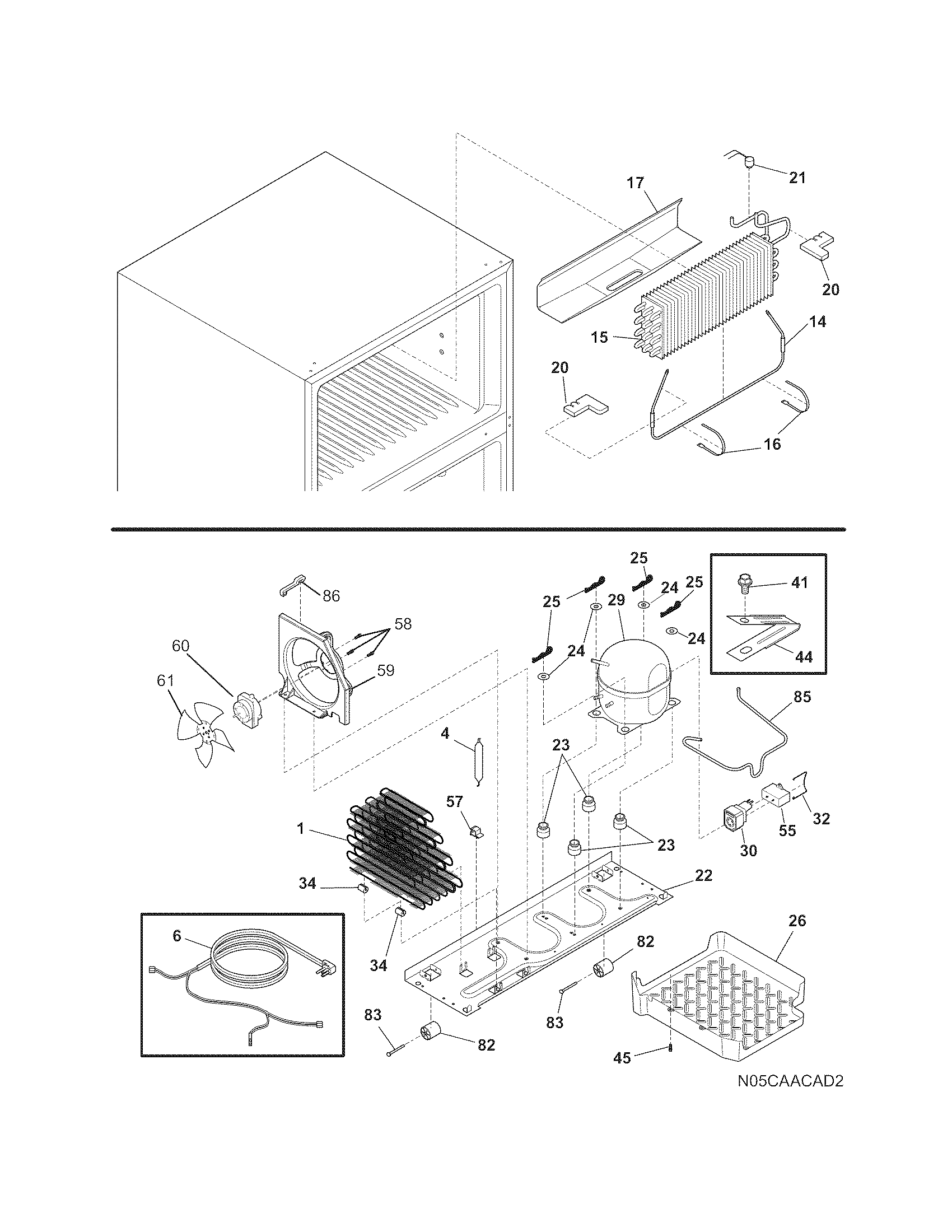

• Evaporator fan motor and blade (cooling and airflow)
• Light bulb (interior lighting)

You can order replacement parts for your LGUI2149LF1 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

A top-mount refrigerator (like the Frigidaire LGUI2149LF1) is usually the better choice for lower upfront cost, simple reliability, and strong energy efficiency; a bottom-mount is usually better for everyday convenience because fresh food sits at eye level and the freezer is easier to organize.

Quick comparison

Feature	Top-mount refrigerator	Bottom-mount refrigerator
Fresh food access	Lower shelves require more bending	Most-used items are at eye level
Freezer access	Easy to reach, freezer is on top	Less bending for freezer, often better drawer organization
Cost and complexity	Typically lower cost, simpler design	Typically higher cost, more complex layout
Energy use (typical)	Often very efficient	Can be efficient, but varies more by design
Best fit for	Value, simplicity, smaller kitchens	Convenience, frequent fresh-food use

How to choose for your kitchen and habits

• If you use the refrigerator section far more than the freezer, a bottom-mount usually feels better day to day.
• If you want a straightforward design with fewer moving parts and a lower purchase price, a top-mount is usually the better fit.
• If you have back or knee discomfort, bottom-mount designs reduce bending for fresh-food access.
• If you store bulky frozen items, compare freezer layouts; bottom-mount drawers can be easier to sort, while top-mount shelves can fit tall boxes.
• If you are tight on space, measure door swing and installation clearances before deciding.

Installation and clearance notes that matter

Proper airflow and leveling affect cooling performance and door sealing on either style. For this Frigidaire top-mount design, our installation guidance calls for typical clearances of 3/8 inch at the sides and top and 1 inch at the back, plus leveling the cabinet so it is solid on all corners and slightly tilted back (about 1/4 inch). See the installation guide for the full checklist.

Why it matters

Choosing the right mount style is not just preference; it affects how often you bend, how you organize food, and how well the doors seal over time. A good seal and proper leveling help maintain stable temperatures, reduce frost, and support efficient operation.

If you are shopping for replacement parts for your Frigidaire LGUI2149LF1, you can use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

The most common Frigidaire refrigerator problem is a cooling complaint, such as the fresh food section running warm while the freezer still seems cold. On the Frigidaire LGUI2149LF1, this usually traces back to airflow problems (evaporator fan issues), frost buildup from a defrost problem, or maintenance items like dirty condenser coils; the owner's manual covers normal operation and control adjustments.

What we see most often (and what to check first)

• Warm refrigerator, cold freezer: check for blocked vents, overpacked shelves, and listen for the evaporator fan.
• Frost or ice buildup in the freezer: points to a defrost system issue (ice can choke airflow to the refrigerator section).
• Noisy or weak airflow: a worn fan motor or damaged fan blade is common.
• Ice maker not making ice: confirm the ice maker is ON and the water supply is connected with no leaks.
• Temps drifting after changes: wait a full 24 hours after adjusting controls before changing them again.

Quick model-specific checks from the installation guidance

The LGUI2149LF1 installation checklist highlights a few basics that directly affect cooling and ice production:

• Door seals should close completely on all sides.
• The refrigerator should be level side-to-side and tilted about 1/4 inch (6 mm) front-to-back.
• If the water line is not connected, keep the ice maker turned OFF.
• Recheck water connections for leaks after 24 hours.

Common parts involved when symptoms match

If your symptoms line up, these are frequent repair parts for this model:

Symptom	Likely area	Example part on this model
Warm fresh food, freezer OK	Evaporator airflow	Refrigerator evaporator motor 242077705
Rattling or scraping fan noise	Fan blade	Refrigerator evaporator fan blade 5308000010
Heavy frost, poor airflow	Defrost sensing	Refrigerator defrost bi-metal thermostat 5303918202

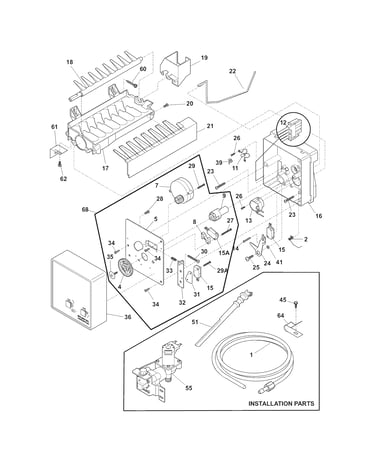

No ice (with water connected)	Ice maker assembly	Refrigerator ice maker assembly 241798231

Why it matters

Most “not cold enough” complaints are airflow-related, not sealed-system failures. Catching a weak evaporator fan, poor door sealing, or frost buildup early helps protect food temperatures and reduces compressor run time.

You can order LGUI2149LF1 replacement parts from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026
