What are the common problems with Kenmore dishwashers?
Common Kenmore dishwasher problems include not starting, poor cleaning, not draining, leaking, and dishes not drying. On Kenmore Elite model 63016303401, many of these issues trace back to loading/maintenance (filters and spray arms) or a few high-wear parts like the door latch, inlet valve, and pump; see the 63016303401 owner's manual for model-specific checks.
Most common symptoms and what usually causes them
- Won’t start: door not fully shut and latched, power issue (breaker/fuse), control lock, failed door latch
- Poor cleaning: spray arm rotation blocked by dishes, clogged spray arm nozzles, filters not seated/dirty, wrong cycle
- Not draining: clogged filter system, kinked/blocked drain hose, drain path obstruction
- Leaking: worn door seal, loose hose connections, splash-out from opening mid-cycle
- Dishes not drying: empty rinse aid dispenser, door opened too soon, heavy plastics holding water
Quick checks we recommend before replacing parts
- Confirm the door is shut and latched (a common no-start cause).
- Check the filter system and reinstall it correctly after cleaning.
- Inspect spray arm nozzles and clear debris; make sure the spray arm can spin freely.
- Use automatic dishwasher detergent only; hand soap causes suds and poor results.
- Refill rinse aid; the manual notes drying improves when rinse aid is used and the door is cracked open after the cycle.
Parts that commonly solve these problems
| Symptom | Part to inspect | Example part for 63016303401 |
|---|---|---|

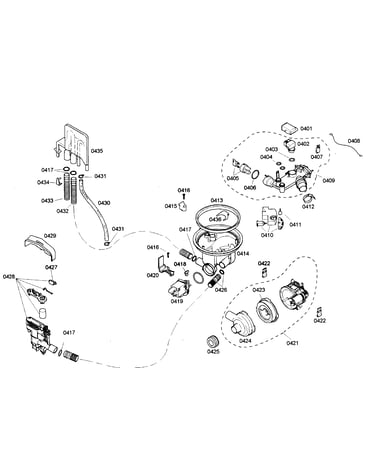

| Poor wash, weak circulation | Recirculation pump, pump seals | Dishwasher recirculation pump assembly 00442548 |
| Slow fill or no fill | Water inlet valve | Dishwasher water inlet valve 00425458 |
| Leaks at the door | Door seal | Door seal 00432490 |
| Drain issues | Drain hose, filter system | Drain hose 00263099, sump filter 00441905 |
Why it matters
Most “big” dishwasher complaints start as airflow, water-flow, or sealing problems. Keeping the filter system and spray arms clean helps prevent repeat clogs, reduces pump strain, and improves wash and dry performance.
Helpful DIY reference
If you’re seeing a code or blinking lights, use our Kenmore he dishwasher error codes to match the symptom to the most likely cause.
Last updated: January 2026
Where is the serial number on a Kenmore Elite dishwasher?
On the Kenmore Elite 63016303401 dishwasher, the model and serial number are printed on the rating label located just inside the door opening (typically along the left side of the inner frame). You can view the exact label location in the 63016303401 owner's manual.
How to find it quickly
- Open the dishwasher door fully.
- Look along the inner door frame (not the outer cabinet).
- Check the left side first; the manual diagram shows the model/serial label there.
- Wipe the area with a damp cloth if the label is dusty or spotted.
- Use a flashlight; the print can be small.
What the label is used for
You will use the model and serial number to match the correct Kenmore parts and service information for your dishwasher.
| What you need | Where it’s used | Example |
|---|---|---|
| Model number | Finding diagrams and compatible parts | 63016303401 |
| Serial number | Identifying production run for service | Varies by unit |
Why it matters
Using the exact model and serial number helps prevent ordering the wrong dishwasher parts (like a pump, door seal, or water inlet valve) and speeds up troubleshooting when you reference the 63016303401 owner's manual.
Last updated: January 2026
Who makes Kenmore dishwasher model 63016303401?
Kenmore is a brand name sold by Sears, and the actual manufacturer can vary by model and production run. For Kenmore Elite dishwasher model 63016303401, the 630 prefix is commonly associated with Bosch-built dishwashers, and the Use and Care Guide covers the 630.1630_ model family.
How to confirm the manufacturer on your exact unit
We recommend checking the identification details on the dishwasher itself and matching them to the documentation.
- Look for the model and serial tag on the tub frame (typically along the door edge).
- Confirm the full model number is 63016303401 (not just the 630.1630_ family).
- Check the serial number and FD-style codes if present (often used by Bosch-built units).
- Compare the control panel layout and features to the diagrams in the 63016303401 owner's manual.
- Use the parts list for this model; Bosch-built Kenmore units often share pump, valve, and filter designs.
Parts that often align with Bosch-built Kenmore 630 models
If you are troubleshooting performance or leaks, these common dishwasher parts can help you narrow down the platform:
| Symptom | Common area to inspect | Example part for 63016303401 |
|---|---|---|
| Poor wash or low spray | Circulation system, filters | Dishwasher recirculation pump assembly 00442548 |
| Not filling | Water supply and inlet valve | Dishwasher water inlet valve 00425458 |
| Leaking at the door | Door sealing surfaces | Door seal 00432490 |
Why it matters
Knowing who built the dishwasher helps when you are comparing error code families, choosing compatible replacement parts (like a recirculation pump or inlet valve), and following the correct service-style troubleshooting steps for a Kenmore Elite platform.
Last updated: January 2026
