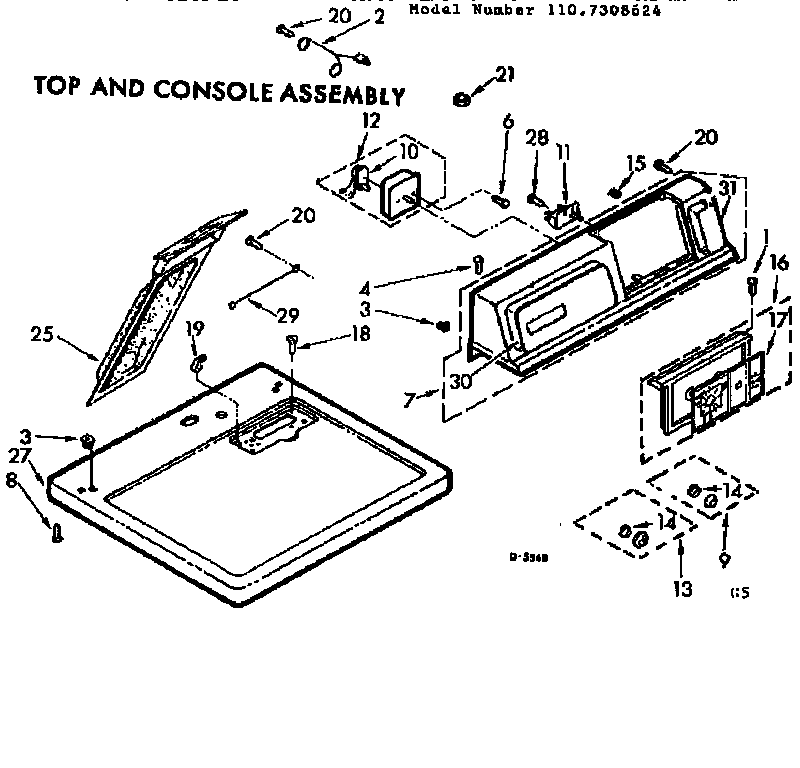

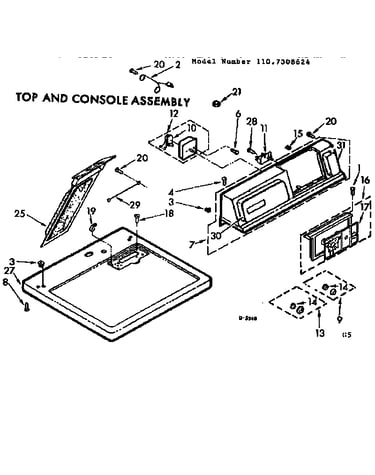

Model #1107308624 Kenmore electric dryer

Here are the diagrams and repair parts for Kenmore 1107308624 electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 159 parts

    Dryer Drum Support Roller Kit#44

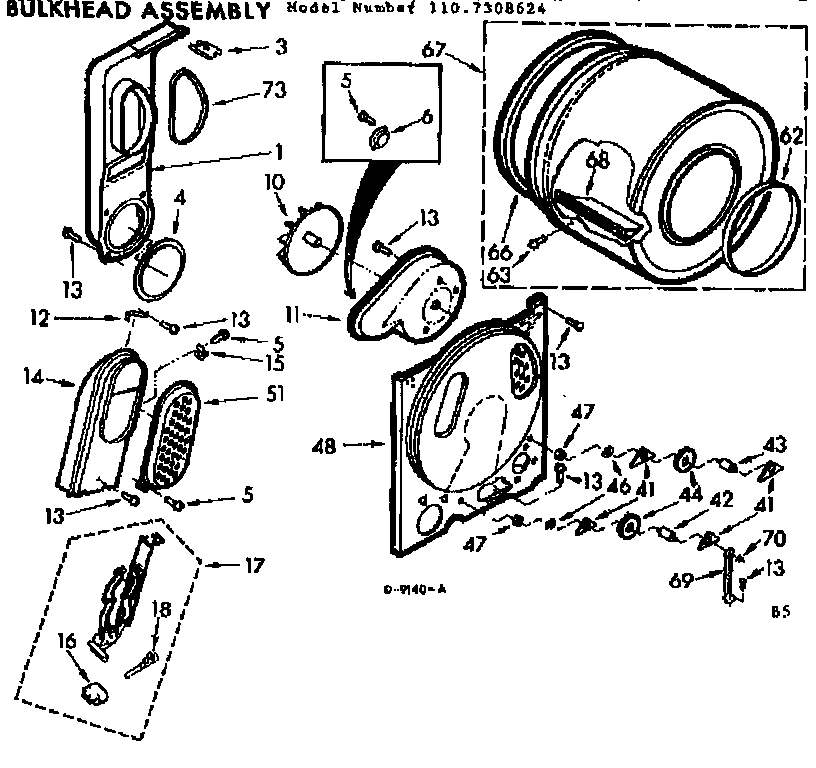

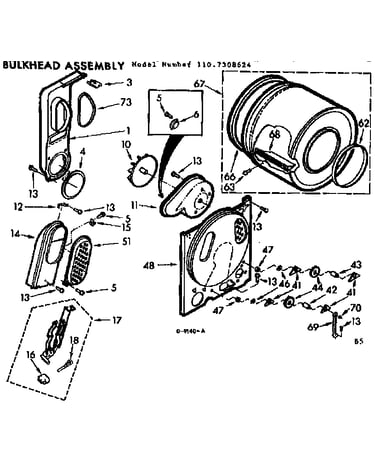

    Bulkhead assembly Diagram

    Support

    Part #349241
    Replaced by #349241T
    ?
    Manufacturer substitution
    This part replaces 349241. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $21.99
    Dryer Door Latch Kit#24

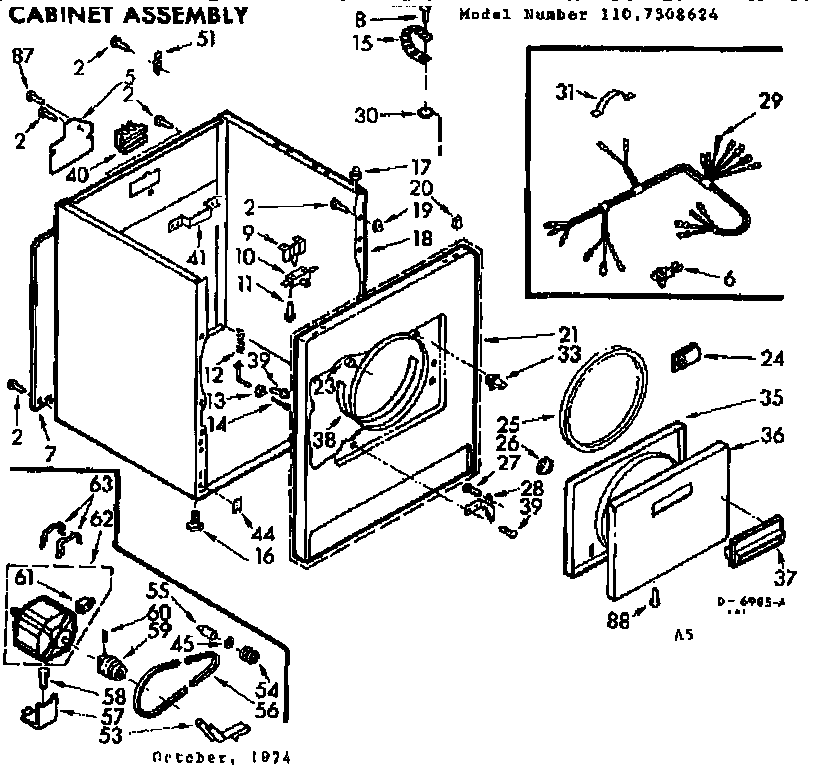

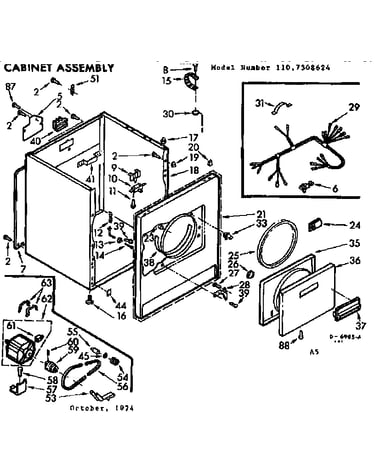

    Cabinet assembly Diagram

    Door catch

    Part #347813
    Replaced by #279570
    ?
    Manufacturer substitution
    This part replaces 347813. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.19 |
    52% OFF
    MSRP: $13.00
    Dryer Door Latch Kit#33

    Cabinet assembly Diagram

    Door strike

    Part #236876
    Replaced by #279570
    ?
    Manufacturer substitution
    This part replaces 236876. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.19 |
    52% OFF
    MSRP: $13.00
    Dryer Drive Motor#62A

    Cabinet assembly Diagram

    Motor

    Part #346744
    Replaced by #279827
    ?
    Manufacturer substitution
    This part replaces 346744. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $106.39 |
    18% OFF
    MSRP: $130.00
    Dryer Drive Motor#61A

    Cabinet assembly Diagram

    Switch

    Part #337351
    Replaced by #279827
    ?
    Manufacturer substitution
    This part replaces 337351. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $106.39 |
    18% OFF
    MSRP: $130.00
    Dryer Idler Pulley#53

    Cabinet assembly Diagram

    Bracket

    Part #337510
    Replaced by #WP691366
    ?
    Manufacturer substitution
    This part replaces 337510. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $21.39
    Dryer Idler Pulley#55

    Cabinet assembly Diagram

    Shaft pulley

    Part #337407
    Replaced by #WP691366
    ?
    Manufacturer substitution
    This part replaces 337407. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $21.39
    Dryer Idler Pulley#54

    Cabinet assembly Diagram

    Pulley

    Part #347226
    Replaced by #WP691366
    ?
    Manufacturer substitution
    This part replaces 347226. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $21.39
    Dryer Drum Support Roller Shaft#43

    Bulkhead assembly Diagram

    Shaft

    Part #339489
    Replaced by #WPW10359269
    ?
    Manufacturer substitution
    This part replaces 339489. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $46.79
    Dryer Drum Support Roller Shaft#42

    Bulkhead assembly Diagram

    Shaft

    Part #347364
    Replaced by #WPW10359270
    ?
    Manufacturer substitution
    This part replaces 347364. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $48.09
