Kenmore 9117498610 gas range

Kenmore 9117498610 gas range Parts

Here are the diagrams and repair parts for Kenmore 9117498610 gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 9117498610 Ranges

  • Frigidaire Range Oven Burner Igniter for Kenmore 9117498610 - Part 5303935066

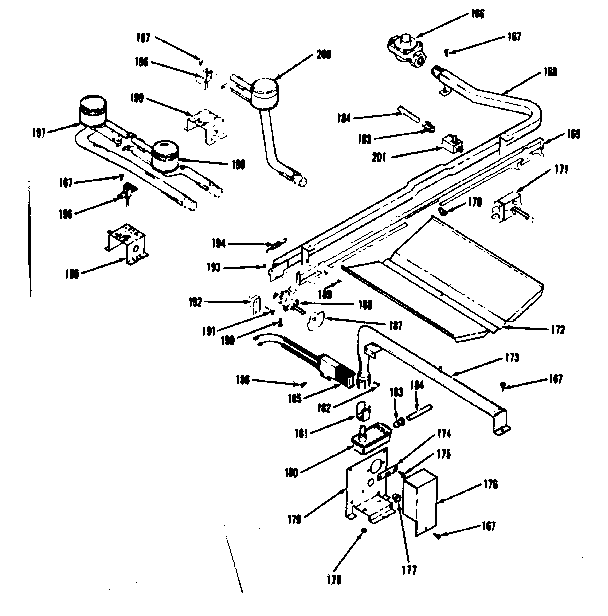

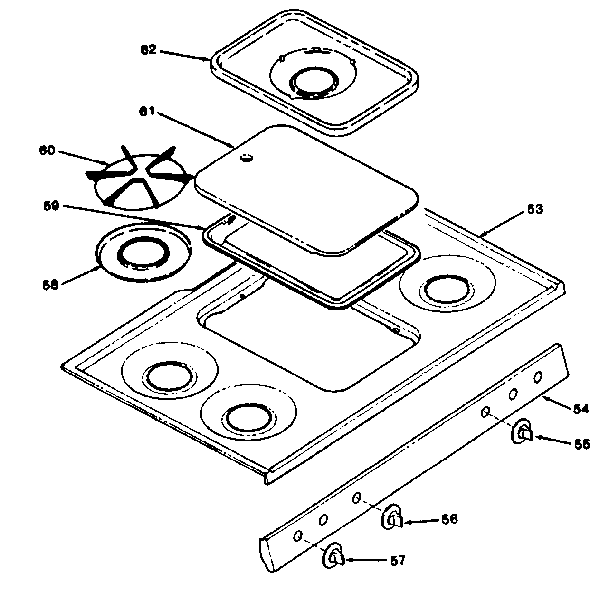

    Oven burner and top burners section diagram

    Oven Igniter

    Part #10064

    Replaced by #5303935066

    Info Icon
    Manufacturer substitution
    This part replaces 10064. Substitute parts can look different from the original.
    In Stock
    $21.50
    22% OFF Phone Price : $27.50Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Light Socket for Kenmore 9117498610 - Part 316116400

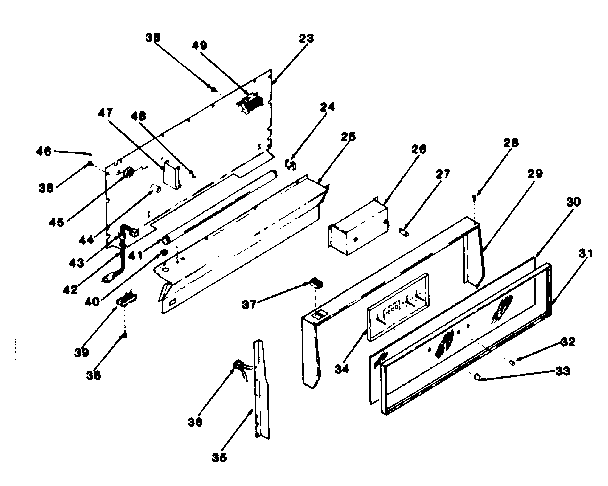

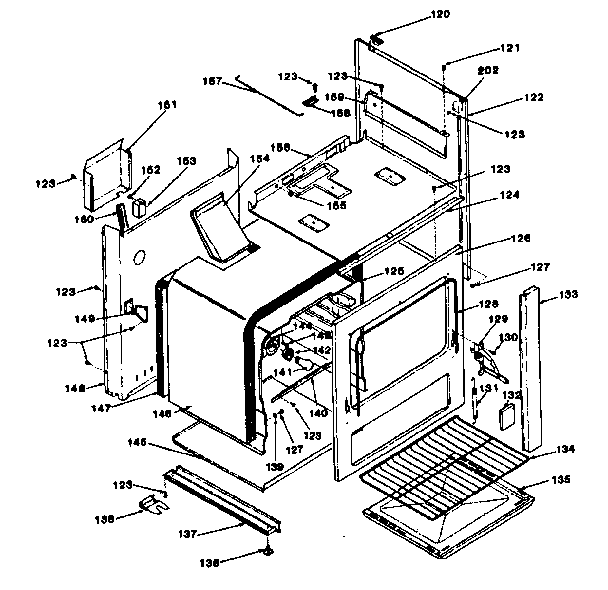

    Body section diagram

    Receptacle

    Part #10659

    Replaced by #316116400

    Info Icon
    Manufacturer substitution
    This part replaces 10659. Substitute parts can look different from the original.
    In Stock
    $49.60
    11% OFF Phone Price : $55.60Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Broil Drawer Hinge for Kenmore 9117498610 - Part 318024400

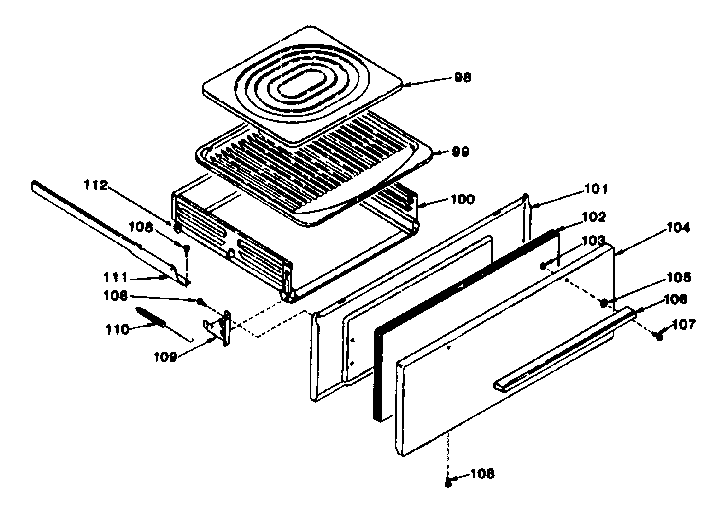

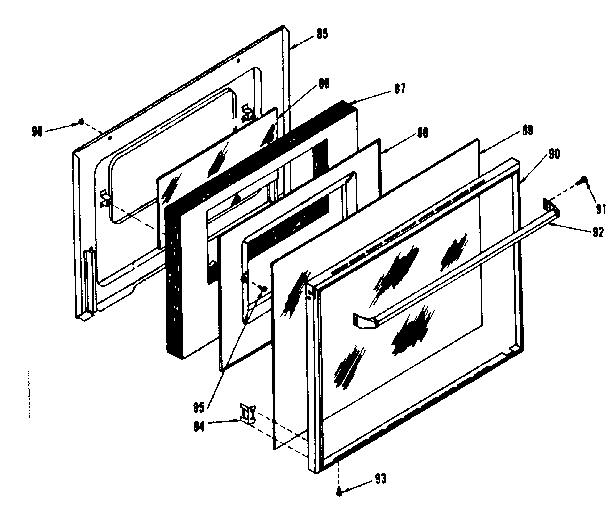

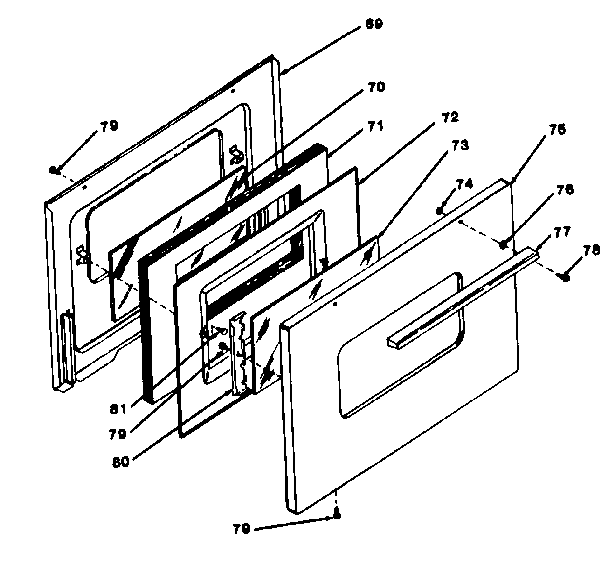

    Broiler section diagram

    Door Hinge

    Part #10650

    Replaced by #318024400

    Info Icon
    Manufacturer substitution
    This part replaces 10650. Substitute parts can look different from the original.
    In Stock
    $42.21
    12% OFF Phone Price : $48.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Storage Drawer Support Track, Right for Kenmore 9117498610 - Part 5303051055

    Broiler section diagram

    Drawer Track

    Part #9322

    Replaced by #5303051055

    Info Icon
    Manufacturer substitution
    This part replaces 9322. Substitute parts can look different from the original.
    In Stock
    $114.54
    Minus Item
    Qty
    Plus Item
  • Liner Lh for Kenmore 9117498610 - Part 5303286737

    Body section diagram

    Oven

    Part #9620

    Replaced by #5303286737

    Info Icon
    Manufacturer substitution
    This part replaces 9620. Substitute parts can look different from the original.
    In Stock
    $113.76
    Minus Item
    Qty
    Plus Item

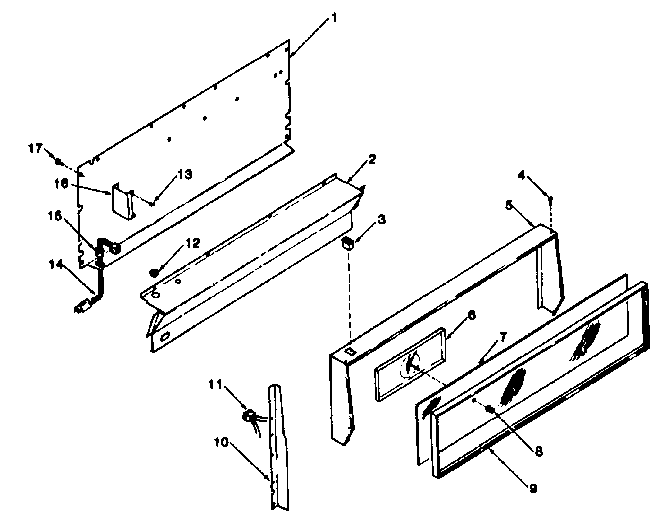

  • Range Analog Clock Knob for Kenmore 9117498610 - Part 3205788

    Clock Knob

    Part #7774

    Replaced by #3205788

    Info Icon
    Manufacturer substitution
    This part replaces 7774. Substitute parts can look different from the original.
    In Stock
    $96.08
    Minus Item
    Qty
    Plus Item
  • Liner for Kenmore 9117498610 - Part 5303286741

    Body section diagram

    Oven

    Part #10589

    Replaced by #5303286741

    Info Icon
    Manufacturer substitution
    This part replaces 10589. Substitute parts can look different from the original.
    In Stock
    $196.32
    Minus Item
    Qty
    Plus Item
  • Bulb for Kenmore 9117498610 - Part 8009

    Body section diagram

    Lamp Bulb

    Part #STD372402

    Replaced by #8009

    Info Icon
    Manufacturer substitution
    This part replaces STD372402. Substitute parts can look different from the original.
    In Stock
    $35.61
    Minus Item
    Qty
    Plus Item
  • Filler Panel for Kenmore 9117498610 - Part 10835

    Body section diagram

    Filler Panel (almond)

    Part #9438

    Replaced by #10835

    Info Icon
    Manufacturer substitution
    This part replaces 9438. Substitute parts can look different from the original.
    In Stock
    $104.78
    Minus Item
    Qty
    Plus Item
  • Range Pressure Regulator for Kenmore 9117498610 - Part 5308007974

    Oven burner and top burners section diagram

    Regulator

    Part #7044

    Replaced by #5308007974

    Info Icon
    Manufacturer substitution
    This part replaces 7044. Substitute parts can look different from the original.
    In Stock
    $213.00
    5% OFF Phone Price : $225.00Info Icon
    Minus Item
    Qty
    Plus Item
