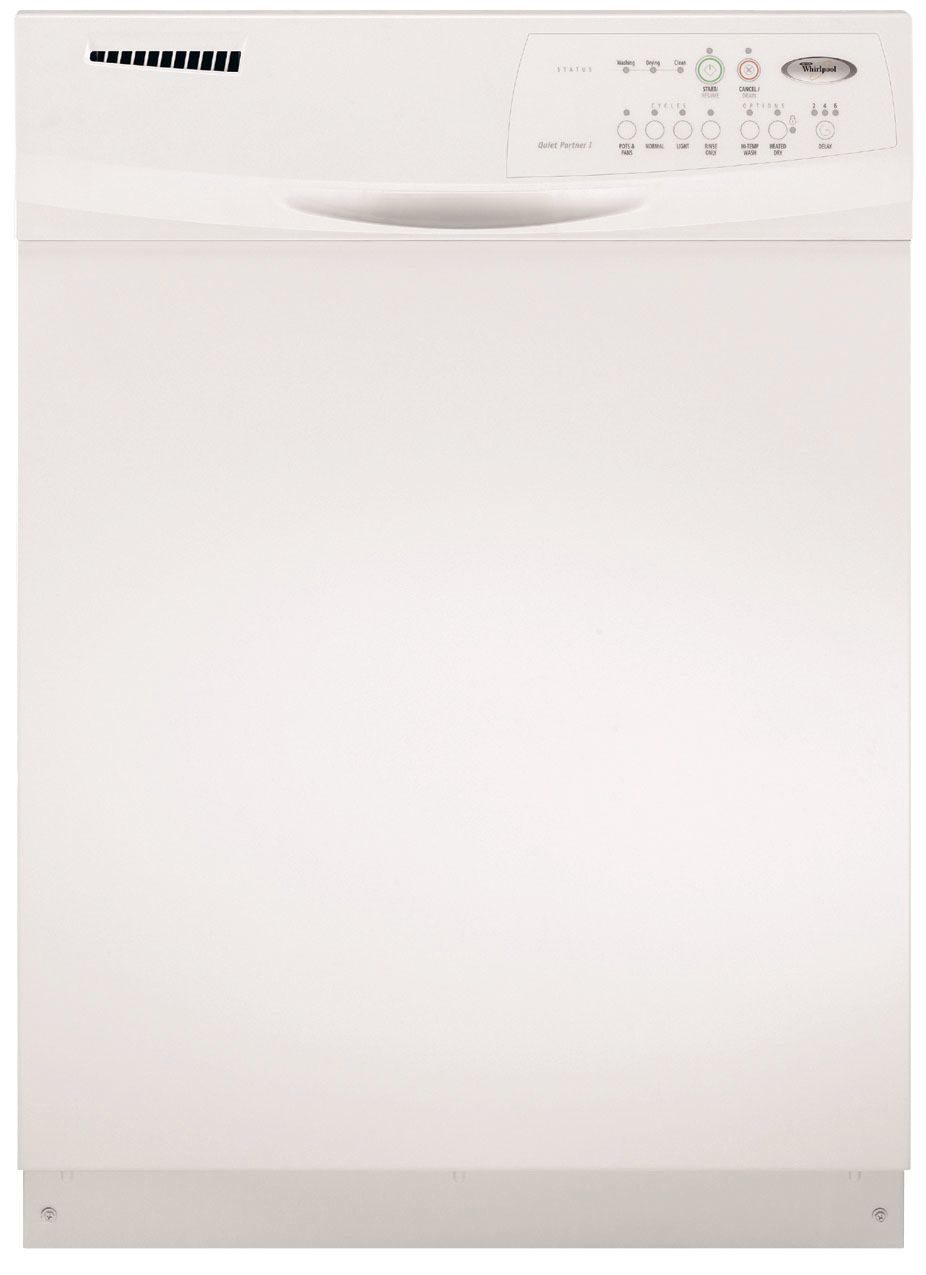

Whirlpool DU1055XTSQ3 dishwasher Parts

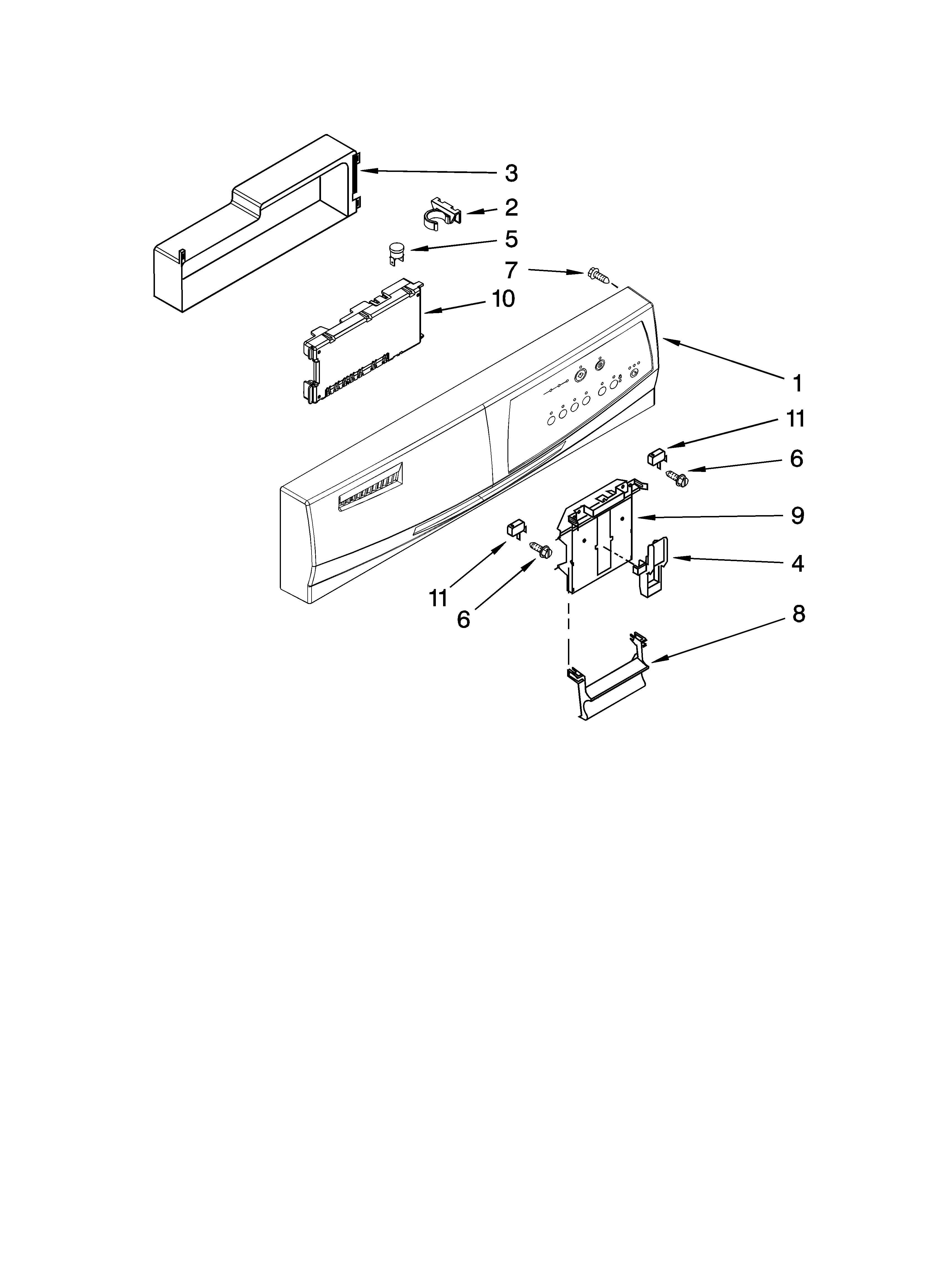

To reset your Whirlpool DU1055XTSQ3 dishwasher, we recommend first canceling the current cycle and then restoring the controls to a ready state. If the controls are locked, turn off Control Lock by pressing and holding Heat Dry for at least 4 seconds (the lock light turns off). See the owner's manual for the exact button functions on your control panel.

Quick reset steps (most common)

• Press Cancel/Drain (or Cancel) to stop the current cycle.
• Wait about 1 minute for the dishwasher to drain and the control to clear.
• If Control Lock is on, press and hold Heat Dry for 4 seconds to unlock.
• Close the door firmly so it latches.
• Press Start/Resume to restart the last cycle, or select a new cycle and press Start/Resume.

If the dishwasher still will not respond

These checks address the most common “won’t reset” causes on this model.

• Make sure the door is closed tightly and latched.
• Check the home circuit breaker or fuse (restore power if tripped/blown).
• If the motor overloaded, wait a few minutes; it can reset itself.
• Confirm the water shutoff valve (if installed) is turned on.
• If the Clean light is flashing, the dishwasher is signaling a malfunction; power-cycle the unit and recheck.

Control Lock vs. reset: what’s the difference?

Feature	What it does	What you’ll notice
Control Lock	Disables buttons to prevent unintended use	Lock light on; buttons don’t work
Cancel/Drain	Stops the cycle and drains water	Pump runs briefly; cycle ends
Start/Resume	Starts or resumes a selected cycle	Cycle begins; status lights change

Why it matters

A “reset” is often just clearing a stuck cycle or turning off Control Lock. Doing these steps first prevents unnecessary part replacement and helps you confirm whether the issue is controls, power, or a cycle interruption.

Last updated: February 2026

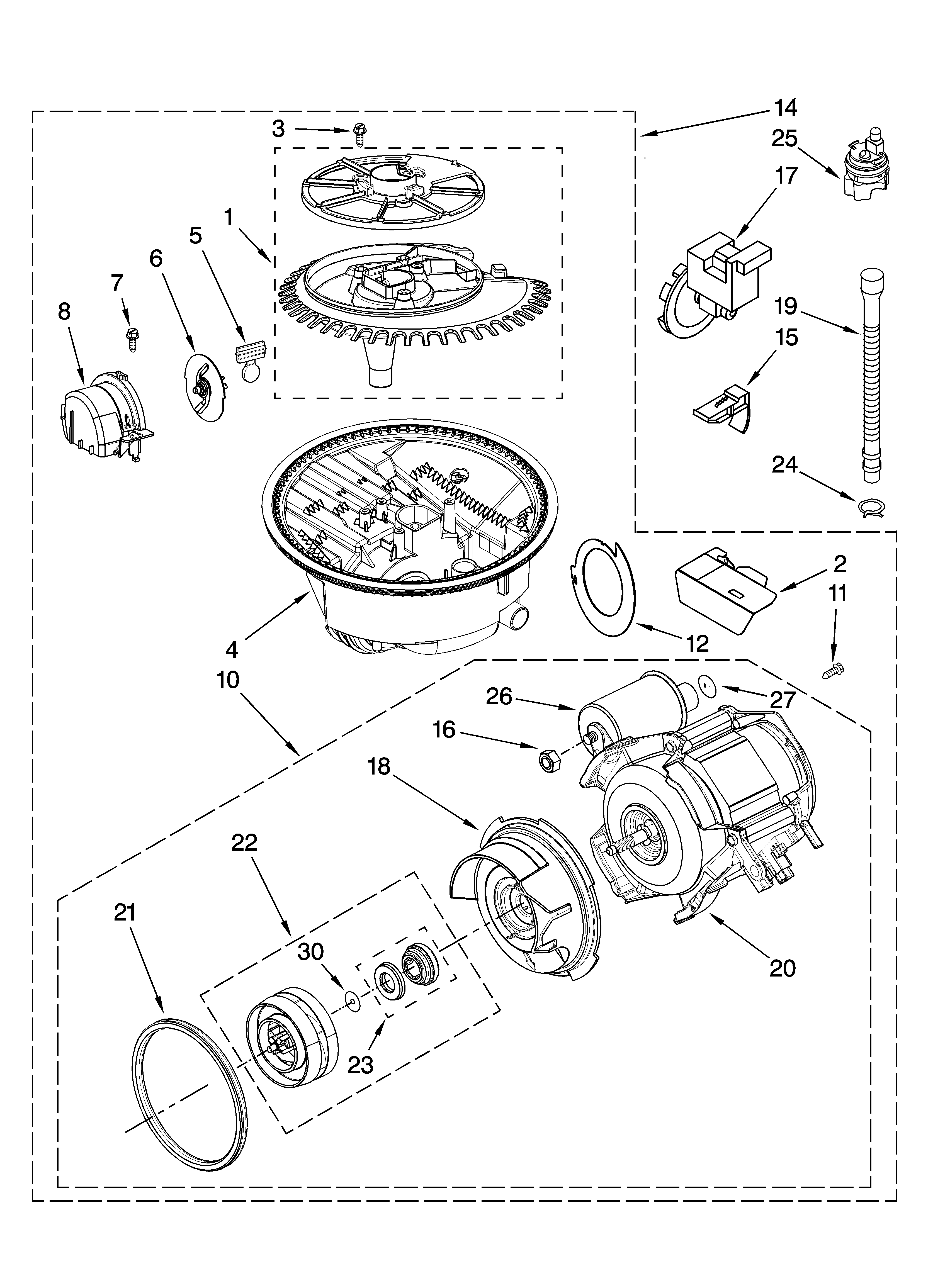

In a Whirlpool DU1055XTSQ3 dishwasher, the filter area is in the bottom of the tub under the lower dishrack, around the sump and lower spray arm area. Pull the lower rack out to access the bottom components and locate the filter screen/accumulator area.

How to find it (quick steps)

• Turn the dishwasher off at the control panel.

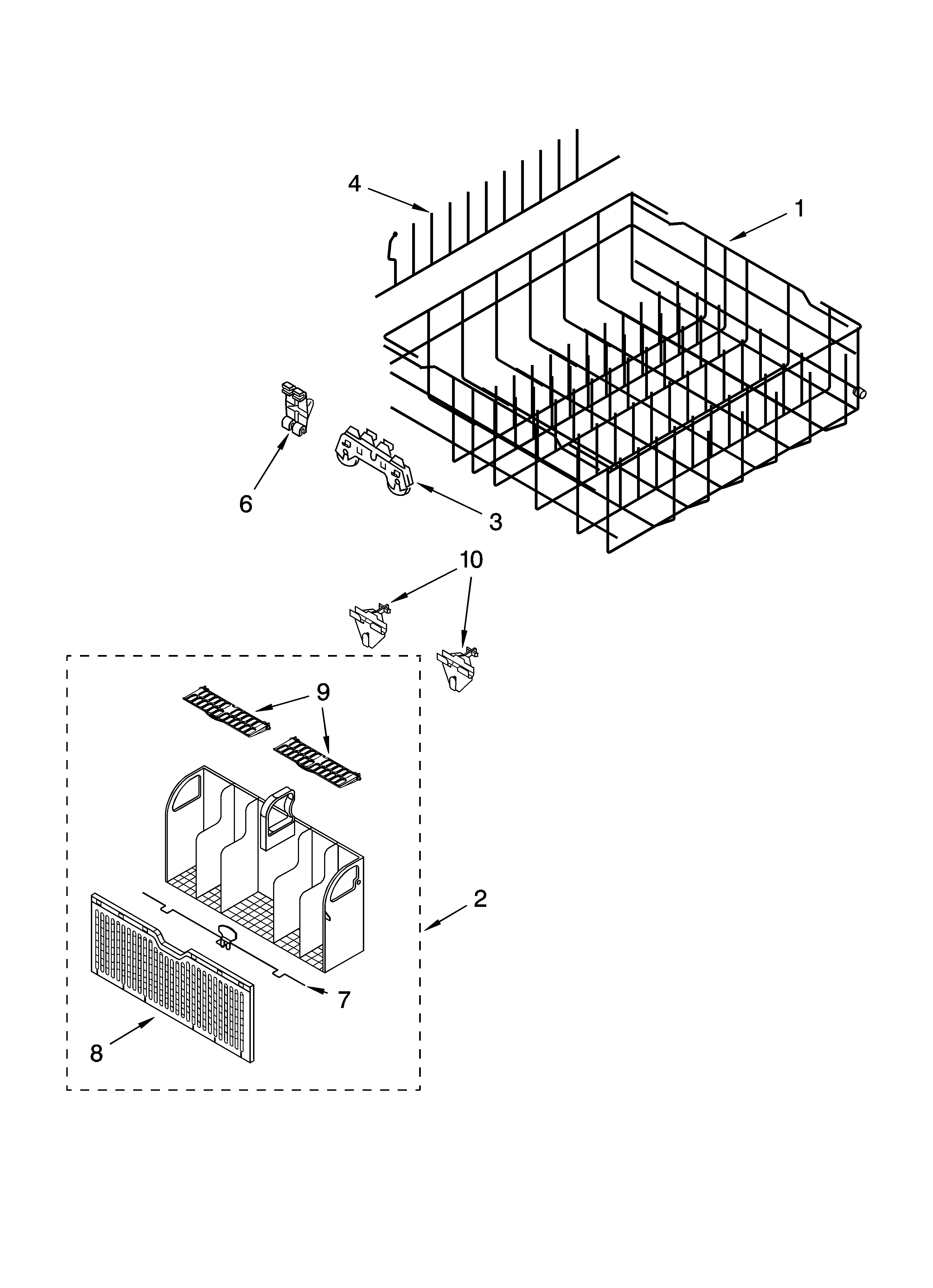

• Pull the lower dishrack all the way out.
• Look at the center-bottom of the tub where the lower spray arm mounts.
• Check for a screen or cover over the sump area (this is the filter zone on many Whirlpool designs).
• Remove any visible debris (labels, bones, toothpicks) before it gets pulled into the pump.

What you are looking at on this model

Many Whirlpool dishwashers in this series use a bottom filtration setup that is part of the sump area rather than a tall, twist-out “cup” filter.

Item in the bottom of the tub	What it does	What to do if it is dirty
Sump/filter screen area	Catches food soil before it reaches the pump	Rinse and wipe debris away
Accumulator	Helps manage soil and water flow	Clean out trapped debris

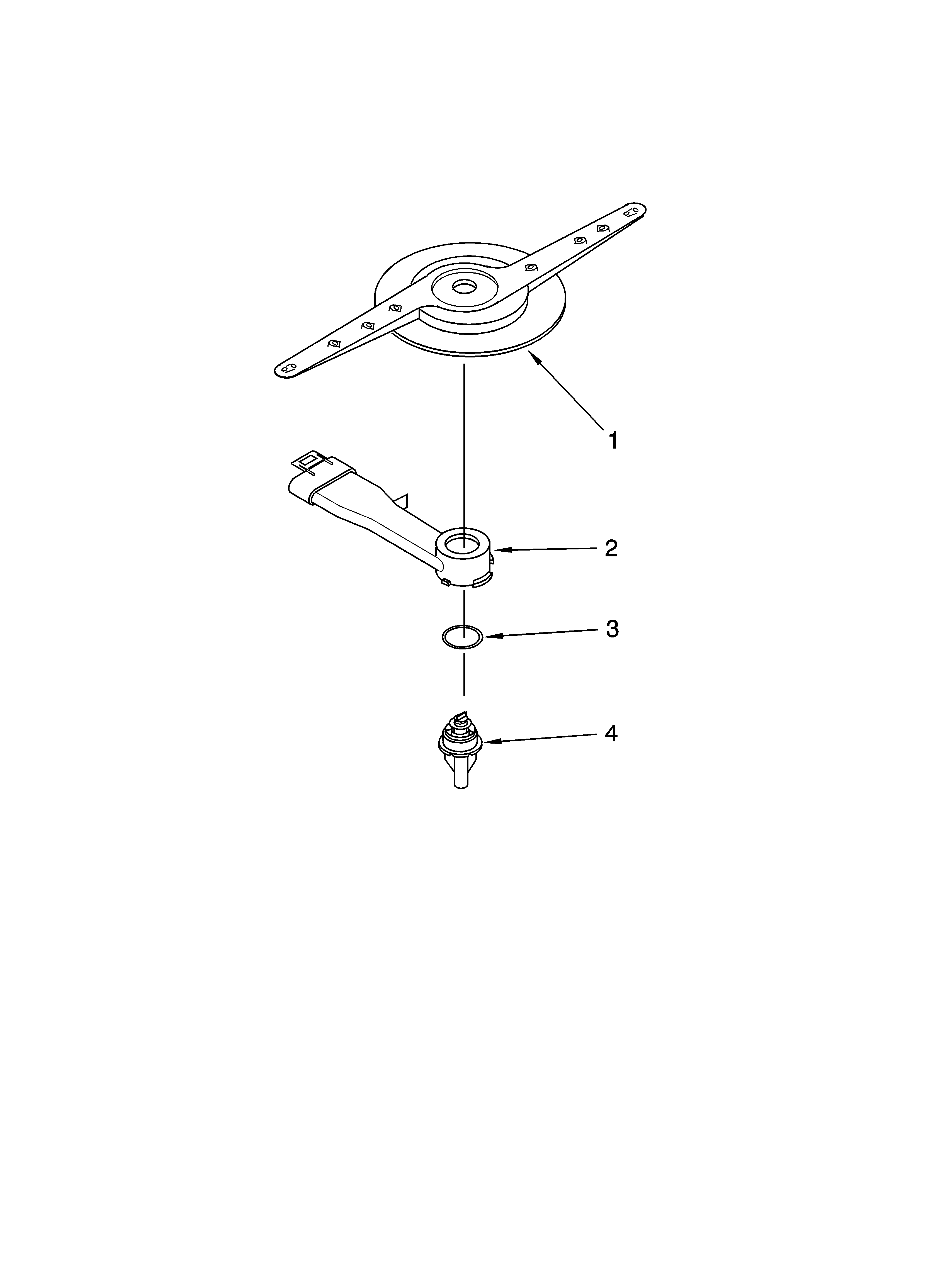

Lower spray arm base	Distributes wash water	Clear blockages in spray holes

If you need to replace a damaged filter component in the sump area, the related part is often the accumulator; for this model, see accumulator 8193918.

Why it matters

A clogged filter area is a top cause of poor cleaning, gritty residue, and drainage issues because water flow to the circulation pump and drain path gets restricted.

Helpful tips while you are there

• Load dishes so nothing blocks the spray arms from spinning freely (this improves cleaning and reduces redeposit). See the loading guidance in the owner's manual.
• If the dishwasher is not draining after you clean the bottom area, inspect the drain path and hose routing; a kinked or restricted hose can mimic a “clogged filter” symptom.

Last updated: February 2026

The most common Whirlpool dishwasher problems are poor cleaning and draining issues caused by simple blockages (labels, food debris) or normal wear in the wash system. On the Whirlpool DU1055XTSQ3, start by checking loading, water temperature, detergent freshness, and the drain path before replacing parts; see the owner's manual.

Most common symptoms and what usually causes them

• Dishes not clean: low incoming water temperature, not enough fresh detergent, clogged spray path
• Not draining: blocked drain hose, obstruction in the pump area
• Runs too long: unit heating water to reach target temperature; sensor-based cycle adjustments
• Won’t start or stops: door not latched, power issue, tripped breaker, motor overload reset
• Leaks: worn door seal, loose connections, overfilling symptoms

Quick checks we recommend first (fast, no parts)

• Confirm the door closes tightly and latches.
• Verify power at the dishwasher; reset the breaker if needed.
• Make sure the water shutoff valve is fully open.
• Use fresh dishwasher detergent; clean out any caked detergent in the dispenser.
• Check that the overfill protection float moves freely; press down to release it.
• If cleaning is poor, confirm hot water is reaching the dishwasher (best results at 120°F / 49°C at the inlet).

When a part is the likely fix

If the basic checks do not solve it, these parts commonly address the most frequent complaints:

Symptom	Common part to inspect/replace	What it affects

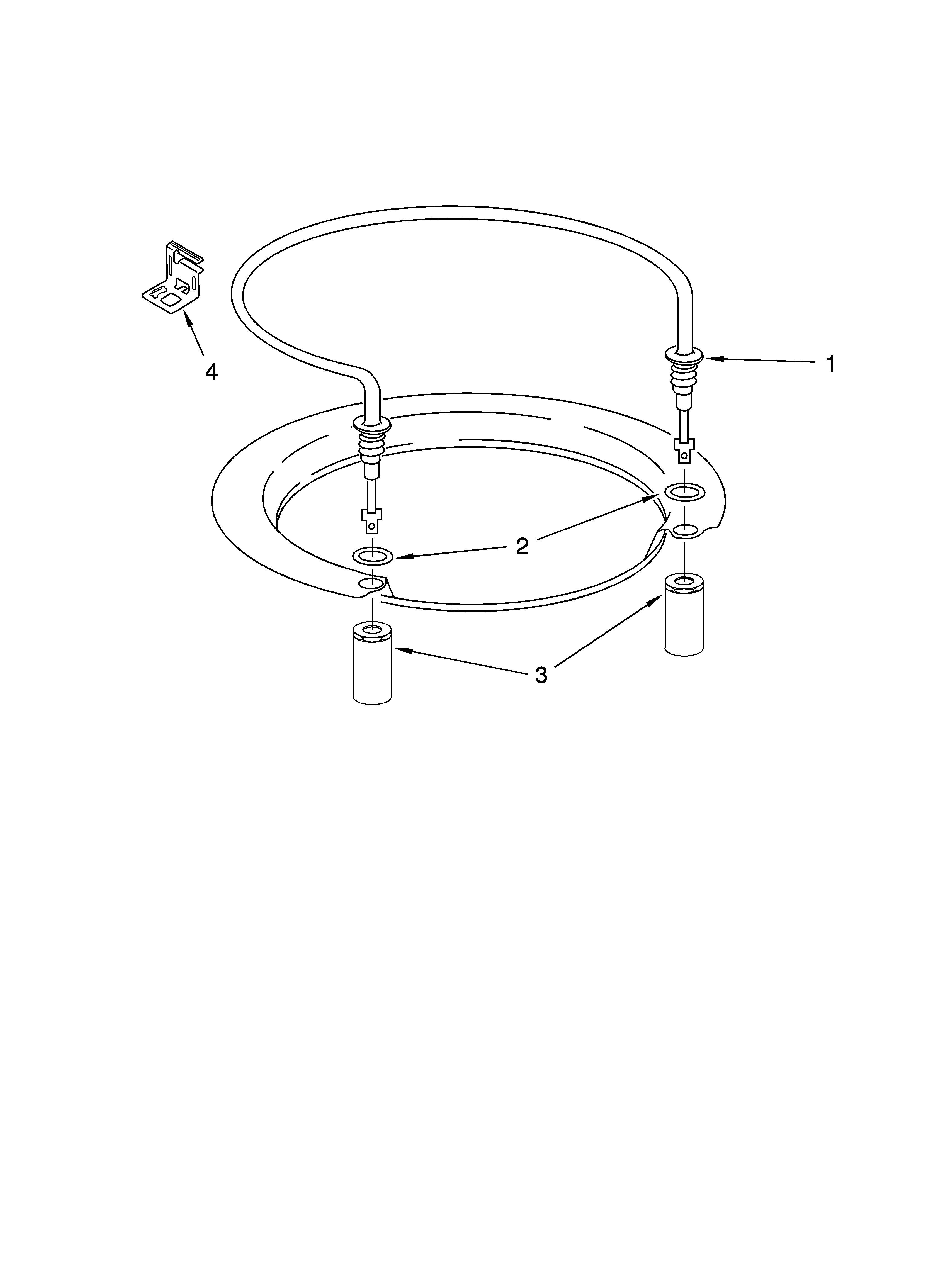

Not drying, cycle issues, water not heating well	Dishwasher heating element W10518394	Heats water and supports drying performance
Not filling or fills slowly	Dishwasher water inlet valve WPW10158389	Controls water entering the tub
Not draining or drains poorly	Dishwasher drain hose 8269144A	Carries water to the sink drain/disposal

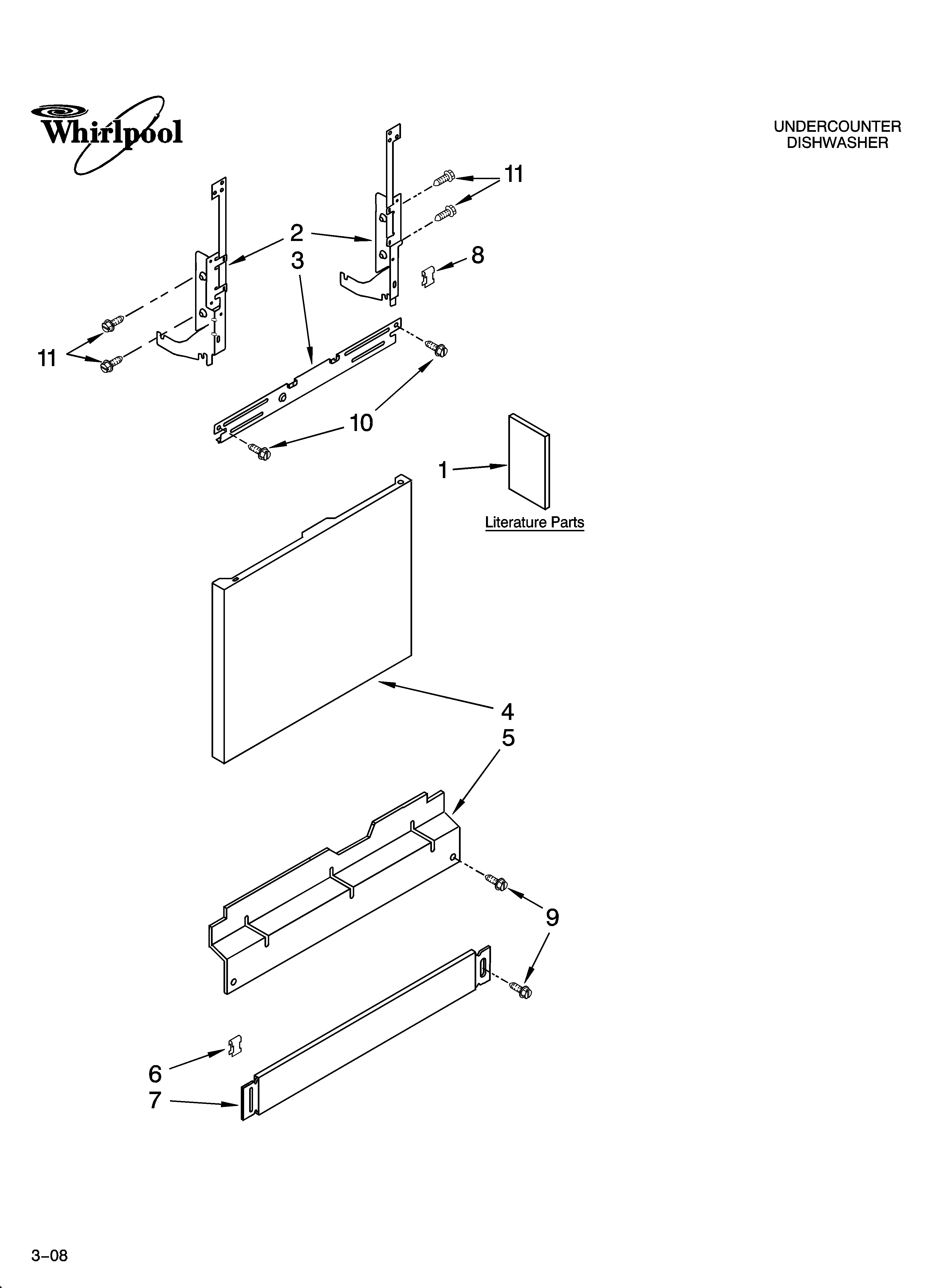

Leaking at the door	Dishwasher door seal W10542314	Seals the tub opening to prevent drips

Why it matters

Most “common problems” are really performance problems. A small restriction (labels in the spray path, a kinked drain hose, low water temperature) can make the dishwasher seem broken, increase cycle time, and leave soil behind even when the motor and control are fine.

Last updated: February 2026

A Whirlpool dishwasher typically lasts 10 years. For your Whirlpool DU1055XTSQ3, you can usually reach that lifespan (or longer) with consistent cleaning, correct detergent use, and quick repairs when symptoms like poor drying, leaks, or draining problems first show up.

Typical lifespan and what affects it

Most dishwashers land in a fairly tight range, and day-to-day conditions make the difference.

• Typical lifespan: about 10 years
• Heavy use (multiple loads daily): tends to shorten lifespan
• Hard water and scale buildup: increases wear on the pump, heater, and valves
• Overloading or poor loading: can stress racks, spray performance, and door sealing
• Maintenance habits: cleaning filters and running periodic cleaning cycles extends life

Quick maintenance that extends life

These are the highest-impact habits for a DU1055XTSQ3-STYLE Whirlpool dishwasher.

• Use a quality dishwasher detergent (avoid hand soap)
• Keep the door sealing surfaces clean and wipe spills from the tub edge
• Run hot water at the sink before starting a cycle to improve wash temperature
• Use rinse aid to improve drying and reduce spotting
• Periodically clean and maintain the dishwasher (see how to clean and maintain your dishwasher)

Parts that commonly determine “keep it or replace it”

When a dishwasher is near the end of its lifespan, a few parts often decide whether a repair is worth it.

Symptom	Common cause	Example part for DU1055XTSQ3
Not drying, water stays cool	Heater circuit issue	Dishwasher heating element W10518394
Leaks at the door	Worn door gasket	Dishwasher door seal W10542314
Won’t fill or fills slowly	Inlet valve problem	Dishwasher water inlet valve WPW10158389
Not draining	Drain path restriction or hose issue	Dishwasher drain hose 8269144A

Why it matters

Knowing the average lifespan helps you plan: if your DU1055XTSQ3 is close to 10 years old, fixing a single wear item (like a door seal or inlet valve) often restores reliable performance, but repeated pump or control issues can signal broader age-related wear.

For operating and care guidance specific to this model, use the owner's manual.

Last updated: February 2026
