GE ESF25LGRDWW refrigerator - r series Parts
Here are the diagrams and repair parts for GE ESF25LGRDWW refrigerator - r series, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part

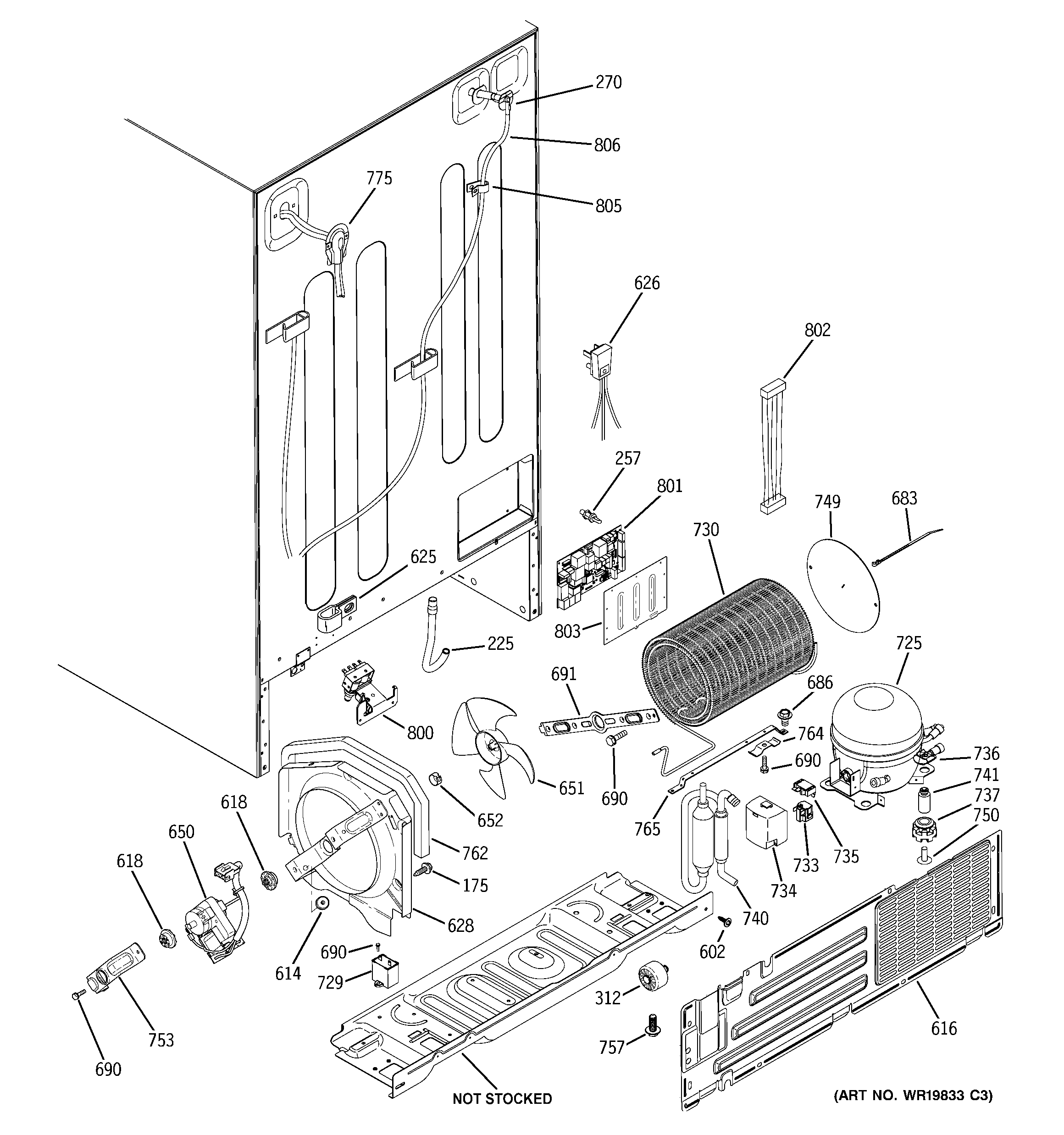

SELECT DIAGRAM
Browse Parts for ESF25LGRDWW Refrigerators
Spring Closure
Part #WR01X2027Replaced by #WR1X2027
Manufacturer substitutionThis part replaces WR01X2027. Substitute parts can look different from the original.In Stock$57.959% OFF Phone Price : $63.95
Qty

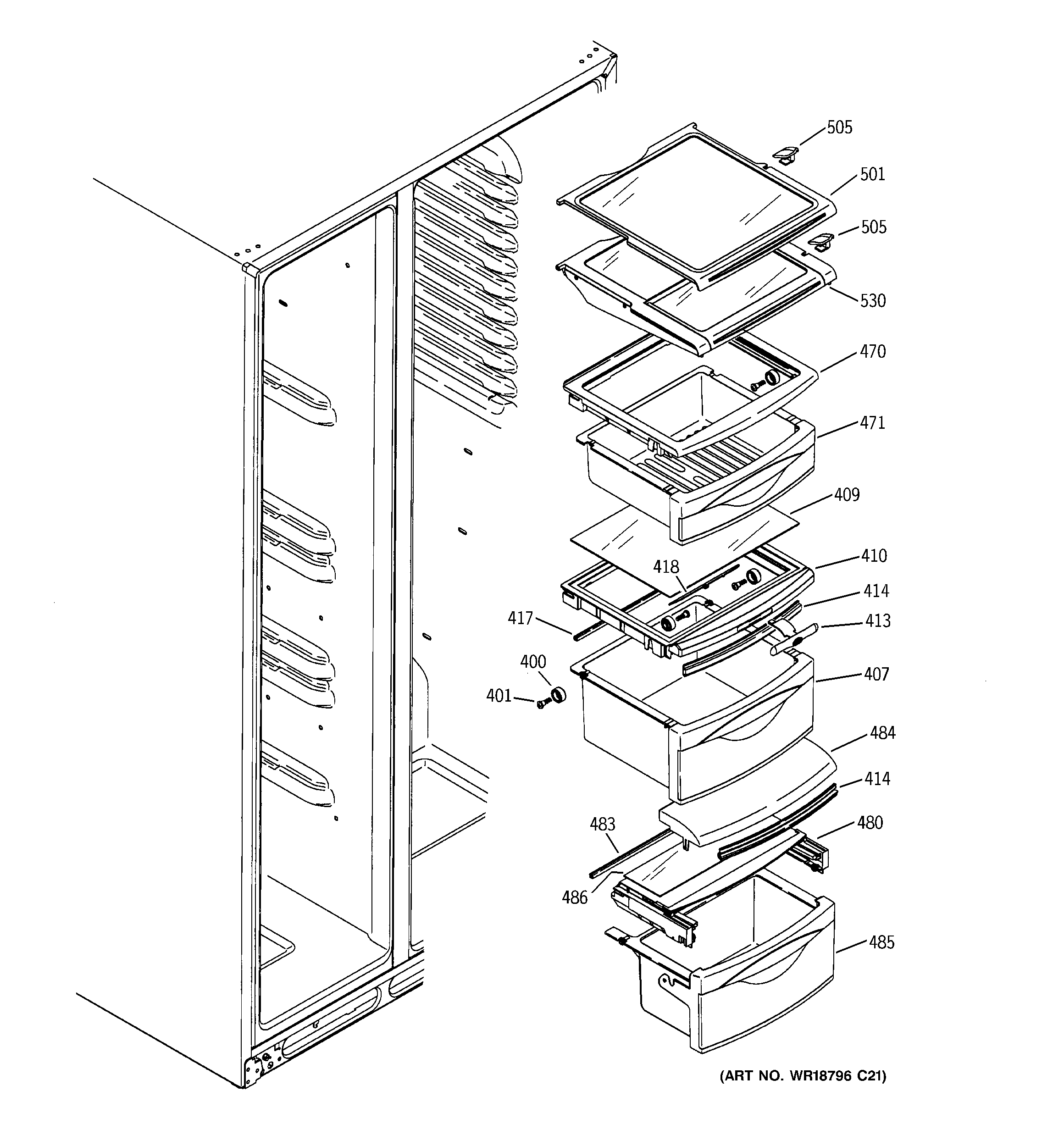

Fresh food shelves diagram
Refrigerator Crisper Drawer Assembly
Part #WR32X10369Replaced by #WR32X26248

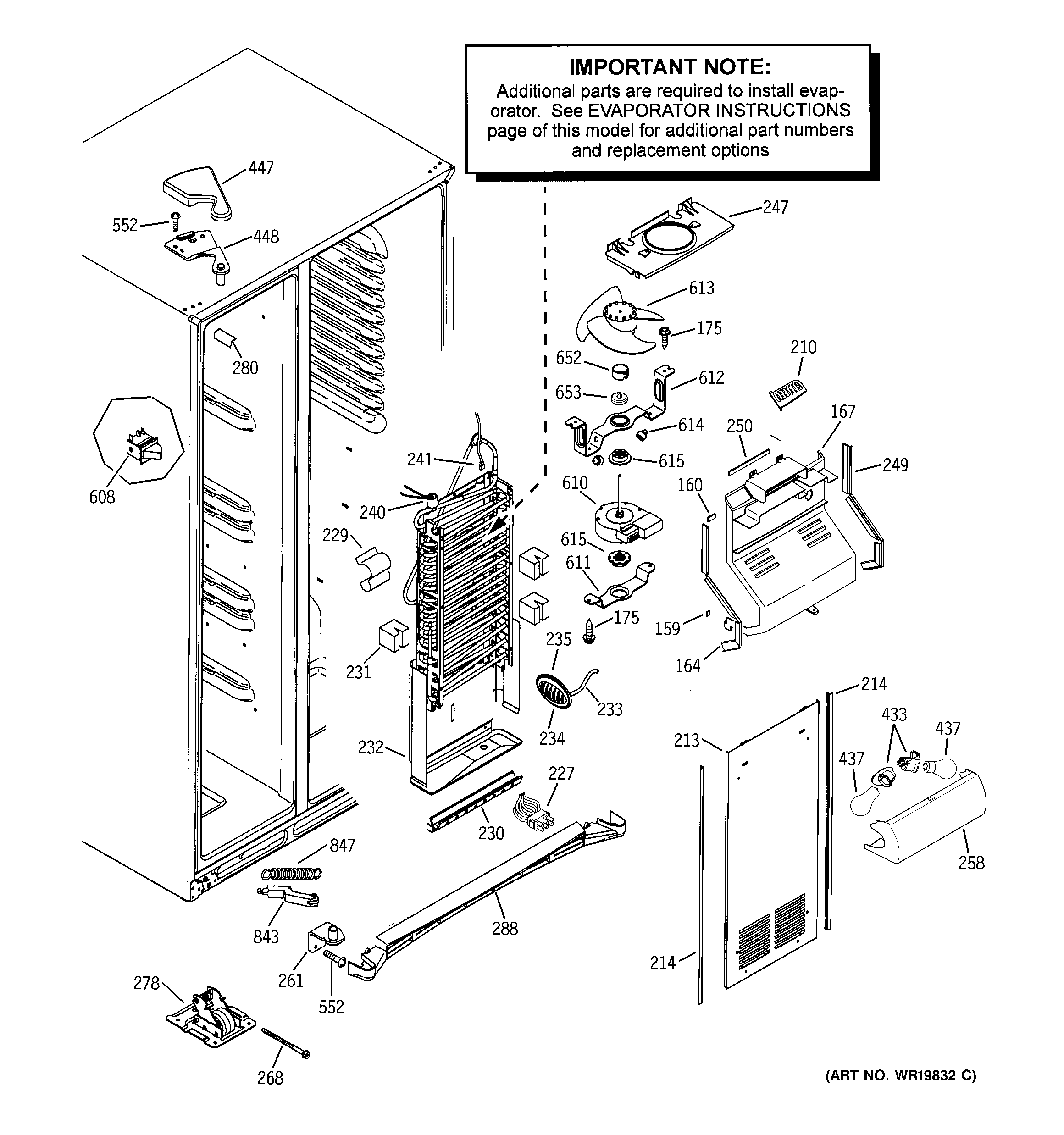

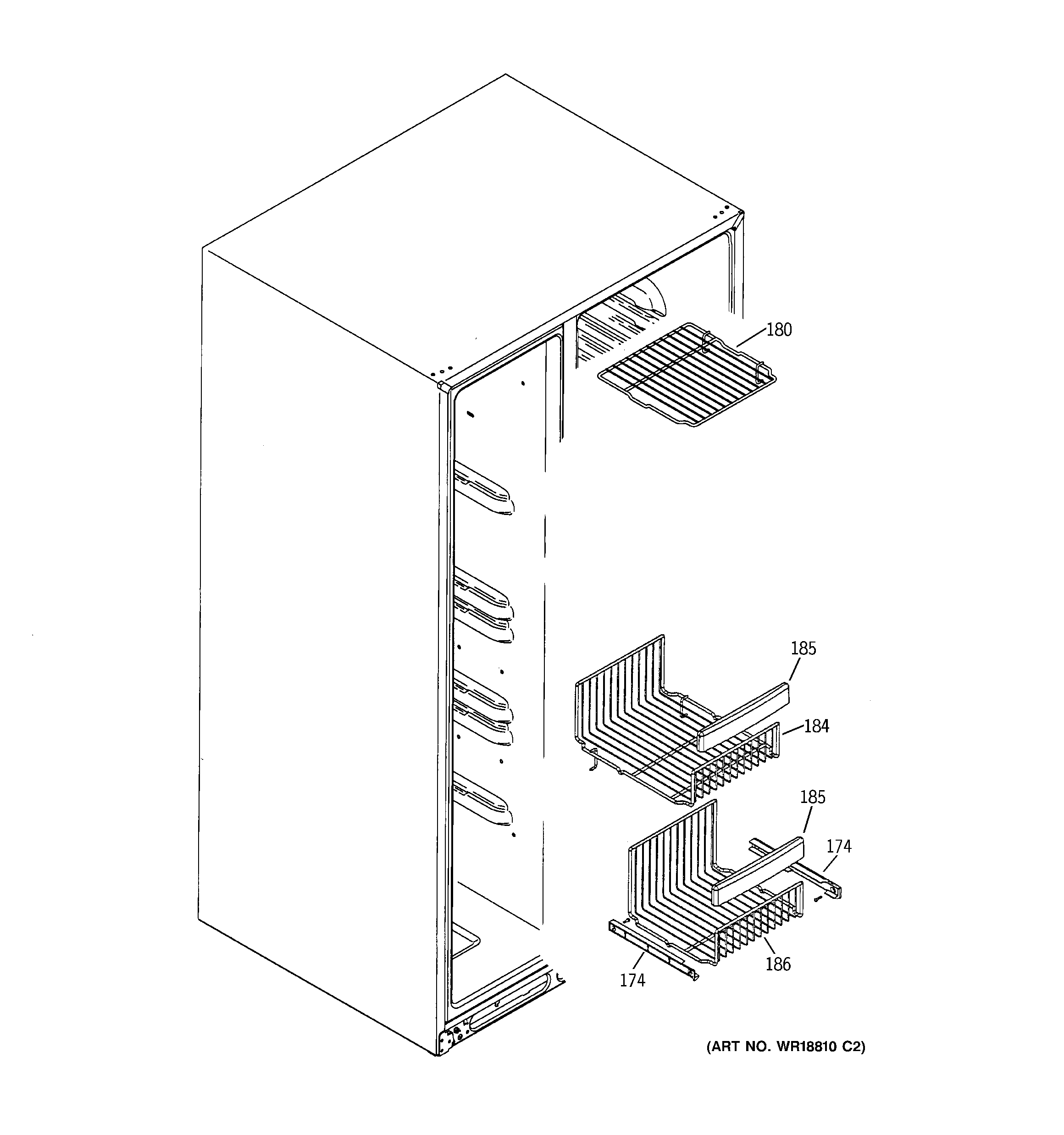

Manufacturer substitutionThis part replaces WR32X10369. Substitute parts can look different from the original.In Stock$80.807% OFF Phone Price : $86.80QtyFreezer section diagram
Refrigerator Wire Harness
Part #WR23X10337Replaced by #WR23X10487

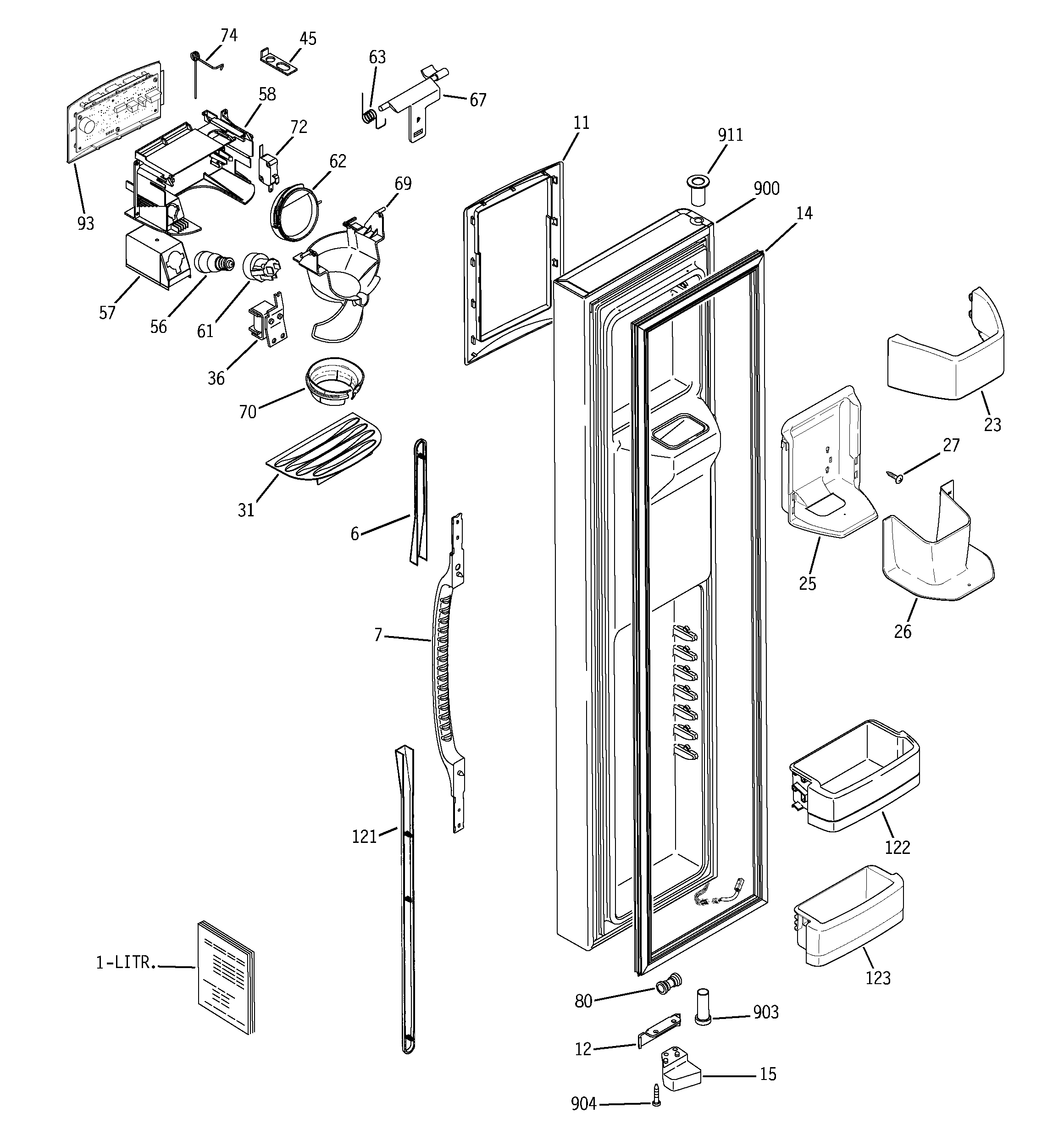

Manufacturer substitutionThis part replaces WR23X10337. Substitute parts can look different from the original.In Stock$72.848% OFF Phone Price : $78.84QtyFreezer door diagram
Refrigerator Light Bulb
Part #WR02X10675Replaced by #WR01X37886

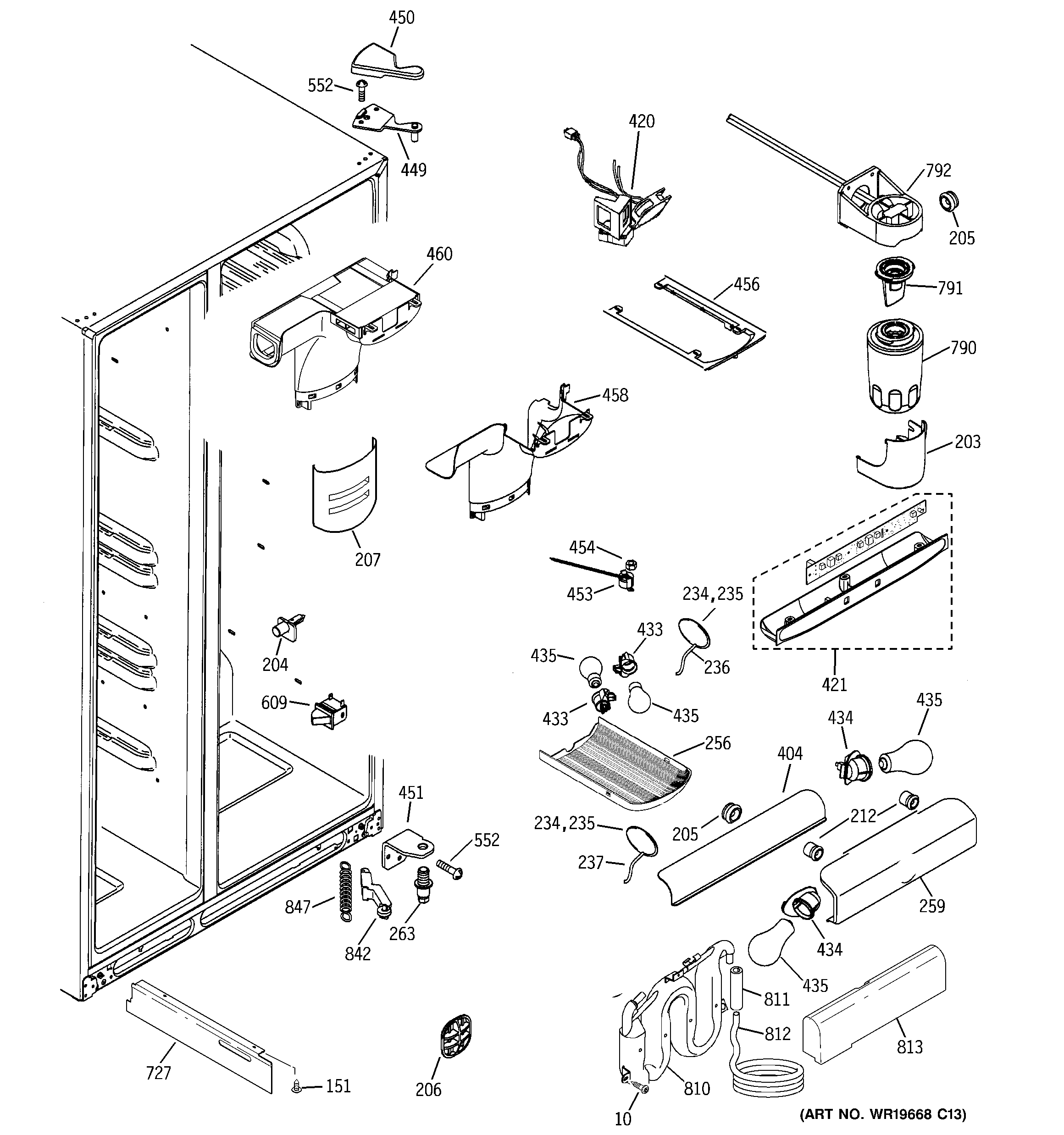

Manufacturer substitutionThis part replaces WR02X10675. Substitute parts can look different from the original.In Stock$45.89QtyFresh food section diagram
Ge Profile Grommet

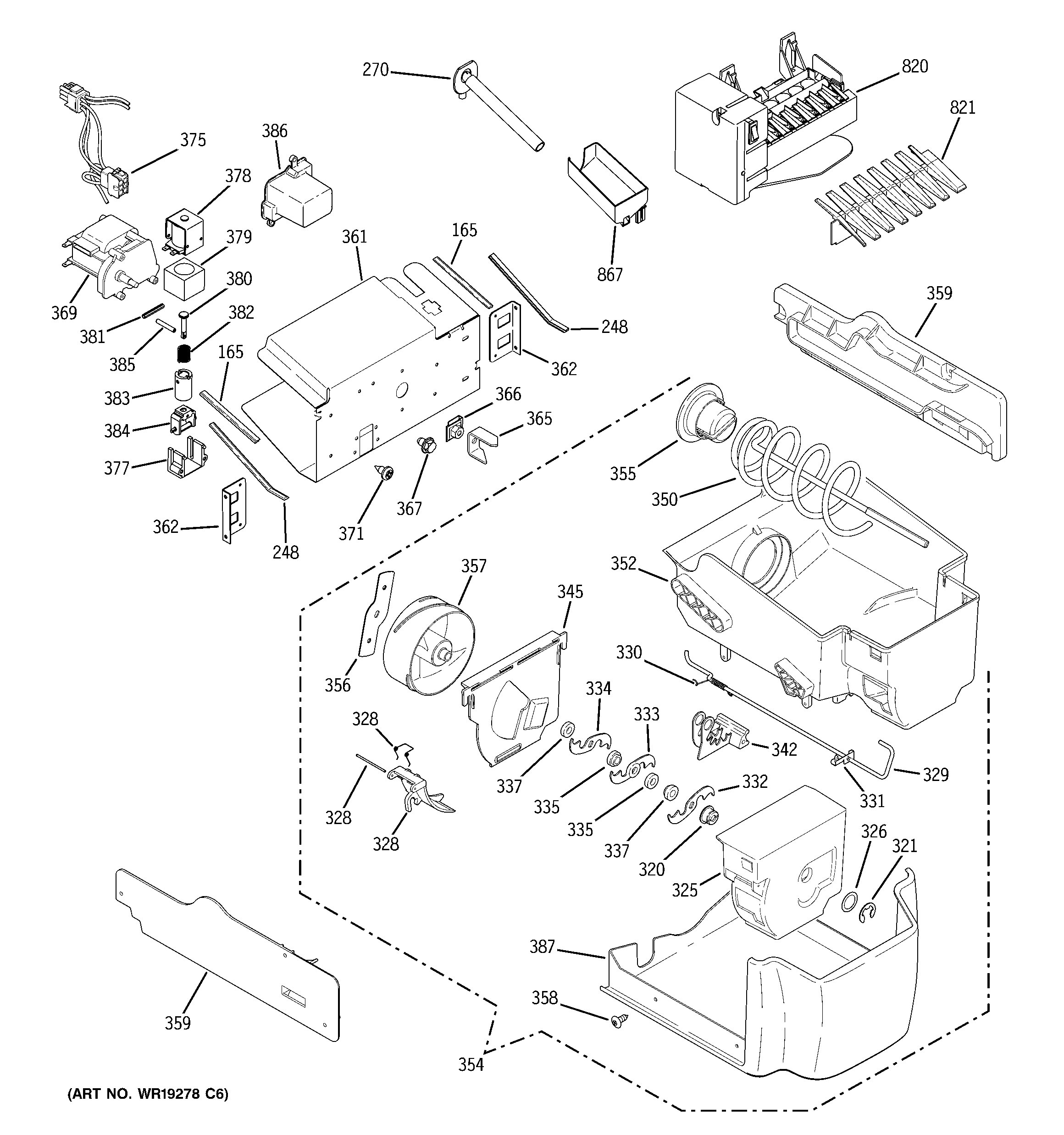

Part #WR02X10678This item is not returnableIn Stock$9.0110% OFF Phone Price : $10.01QtyIce maker & dispenser diagram
Refrigerator Ice Dispenser Drive Cam
In Stock$54.0410% OFF Phone Price : $60.04QtyFreezer door diagram
Ge Profile Refrigerator Freezer Door Hinge Bushing
In Stock$10.5216% OFF Phone Price : $12.52QtyFreezer door diagram
Extension Fu
Part #WR17X11268Replaced by #WR49X10076

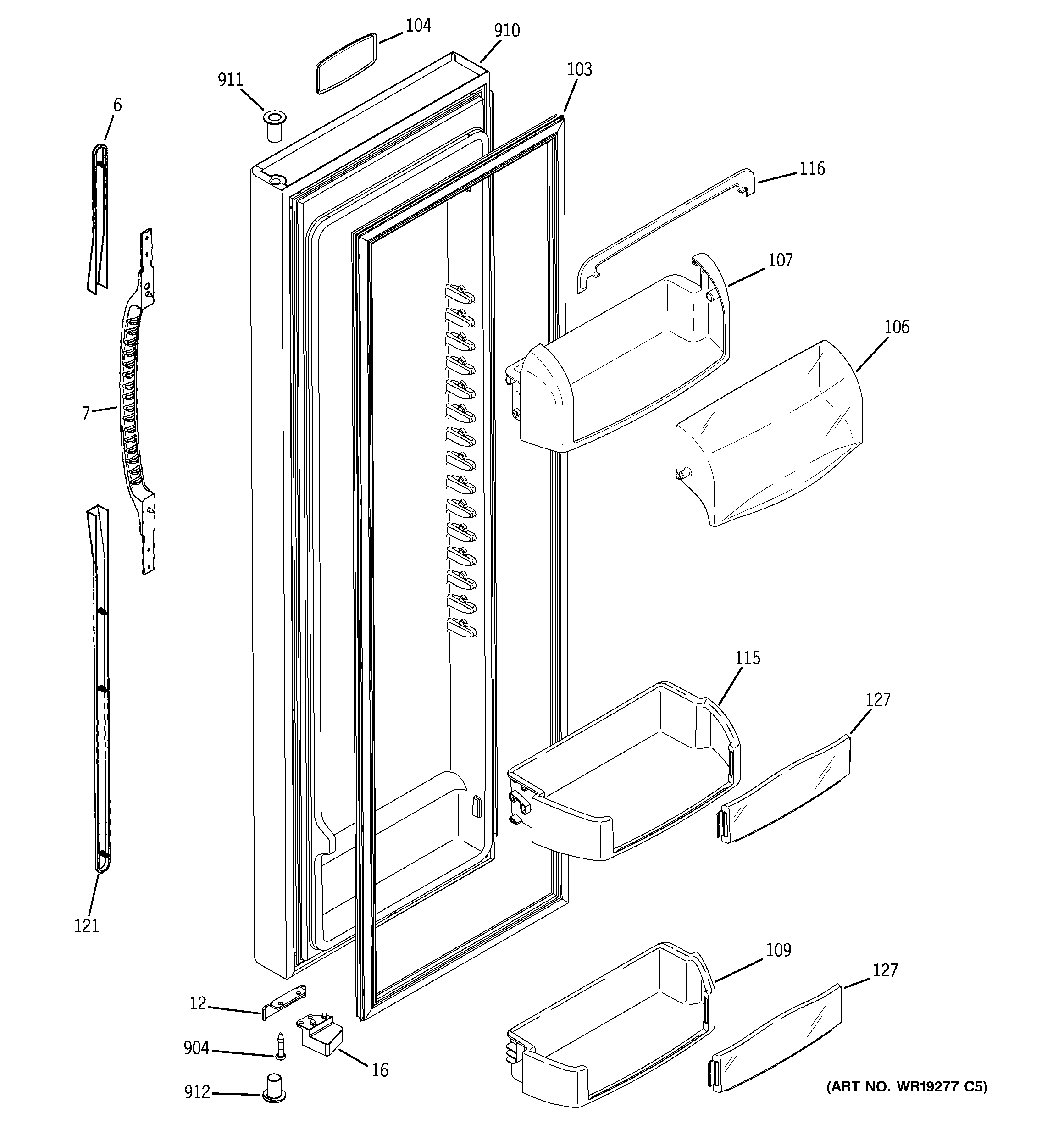

Manufacturer substitutionThis part replaces WR17X11268. Substitute parts can look different from the original.In Stock$88.286% OFF Phone Price : $94.28QtyFresh food door diagram
Refrigerator Shelf Module
Part #WR71X10607Replaced by #WR71X10973
Manufacturer substitutionThis part replaces WR71X10607. Substitute parts can look different from the original.In Stock$117.689% OFF Phone Price : $129.68QtyFresh food section diagram
Refrigerator Hinge
Part #WR13X10217Replaced by #WR13X24863
Manufacturer substitutionThis part replaces WR13X10217. Substitute parts can look different from the original.In Stock$46.1811% OFF Phone Price : $52.18Qty
