Frigidaire
Upright Freezer

Model # FFU21M7HWE Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFU21M7HWE freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |

Freezer Gasket And Liner Fastener Kit 5304406520
#NI

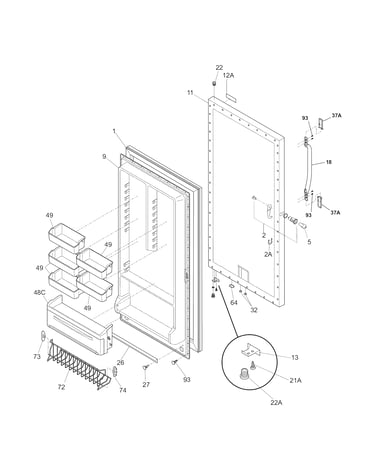

Door diagram

Freezer gasket and liner fastener kit

Part #5304406520

BEST SELLER
$30.86
14% OFF Phone Price : $35.86
In Stock
Freezer Door Closer Bearing 216503300
#26

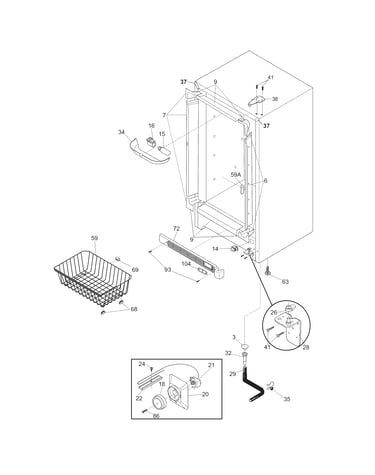

Cabinet diagram

Freezer door closer bearing

Part #216503300

BEST SELLER
This item is not returnable
$8.49
11% OFF Phone Price : $9.49
In Stock
Refrigerator Capacitor 216985001
#55

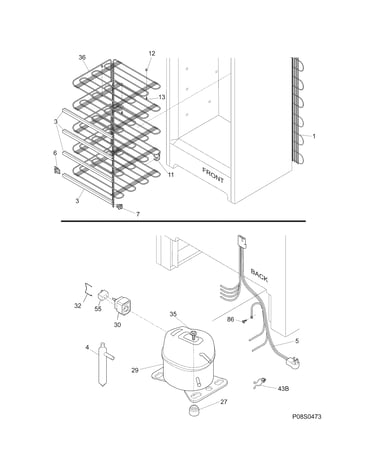

System diagram

Refrigerator capacitor

Part #216985001

Replaced by #297286803

?
Manufacturer substitution
This part replaces 216985001. Substitute parts can look different from the original.
BEST SELLER
$38.44
12% OFF Phone Price : $43.44
In Stock
Freezer Door Secondary Gasket (replaces 216524200, 7216524200, 7216524201) 216524201
#26

Door diagram

Freezer door secondary gasket (replaces 216524200, 7216524200, 7216524201)

Part #216524201

BEST SELLER
This item is not returnable
$36.81
12% OFF Phone Price : $41.81
In Stock
Freezer Door Hinge, Upper 297283800
#38

Cabinet diagram

Freezer door hinge, upper

Part #297283800

Replaced by #297283803

?
Manufacturer substitution
This part replaces 297283800. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$18.08
10% OFF Phone Price : $20.08
In Stock
Freezer Drain Plug (replaces 5306593887) 216502600
#3

Cabinet diagram

Freezer drain plug (replaces 5306593887)

Part #216502600

BEST SELLER
This item is not returnable
$11.93
14% OFF Phone Price : $13.93
In Stock
Freezer Door Hinge Bearing (replaces 216503200, 7297006800) 297006800
#22A

Door diagram

Freezer door hinge bearing (replaces 216503200, 7297006800)

Part #297006800

BEST SELLER
This item is not returnable
$12.59
14% OFF Phone Price : $14.59
In Stock
Freezer Shelf Trim 216847806
#3

System diagram

Freezer shelf trim

Part #216847806

Replaced by #5304509723

?
Manufacturer substitution
This part replaces 216847806. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$25.18
17% OFF Phone Price : $30.18
In Stock
Filter Drier 216987500
#4

System diagram

Filter drier

Part #216987500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216987500. Substitute parts can look different from the original.
BEST SELLER
$10.30
37% OFF MSRP : $16.34
In Stock
Door Bin 297187202
#49

Door diagram

Door bin

Part #297187202

Replaced by #A00299203

?
Manufacturer substitution
This part replaces 297187202. Substitute parts can look different from the original.
This item is not returnable
$41.60
11% OFF Phone Price : $46.60
In Stock
