Bosch WFVC544CUC/25 washer Parts
Here are the diagrams and repair parts for Bosch WFVC544CUC/25 washer, as well as links to manuals and error code tables, if available.
Owner’s manual
Error Codes
By Schematic
By Part

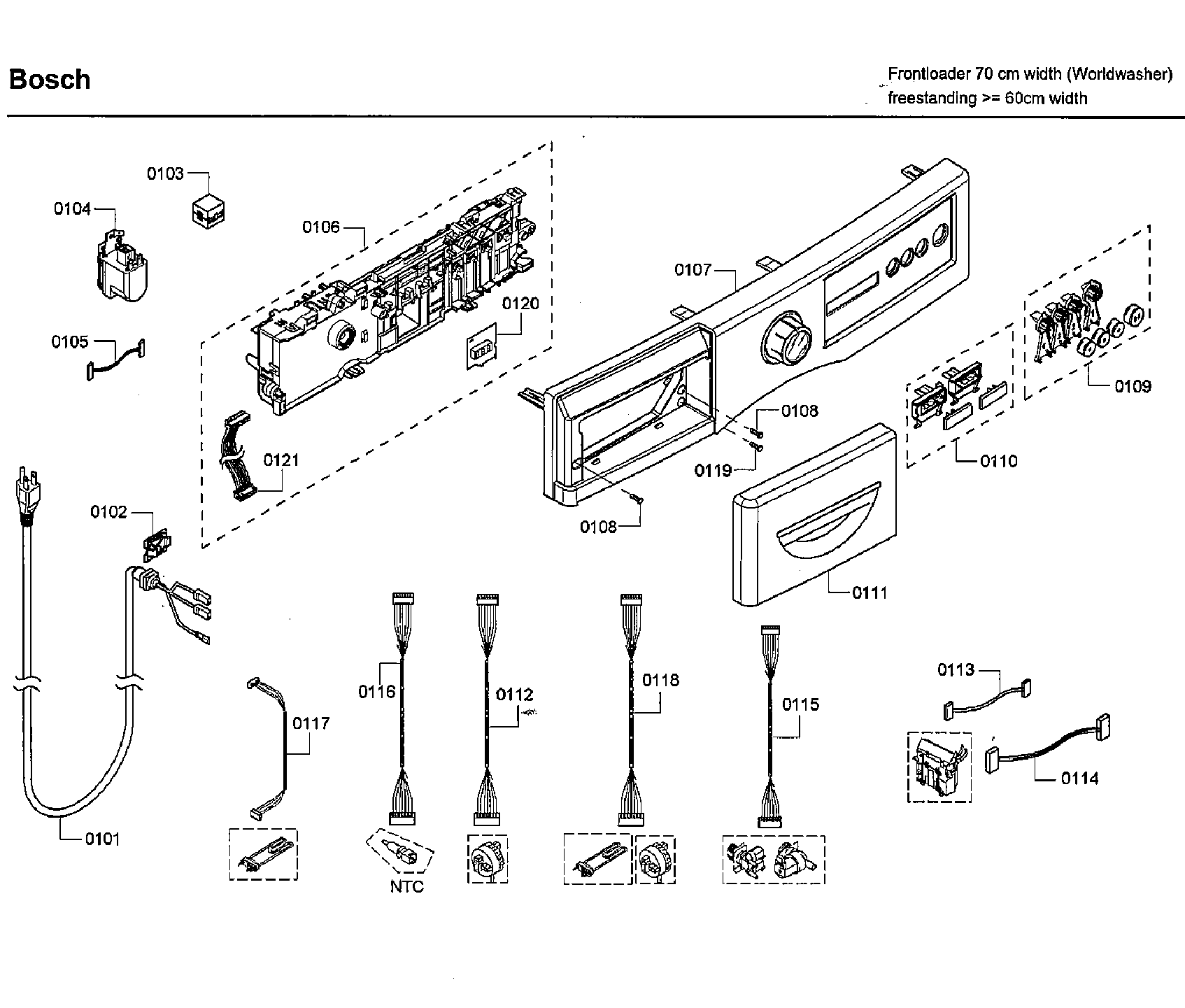

SELECT DIAGRAM
Browse Parts for WFVC544CUC/25 Washer

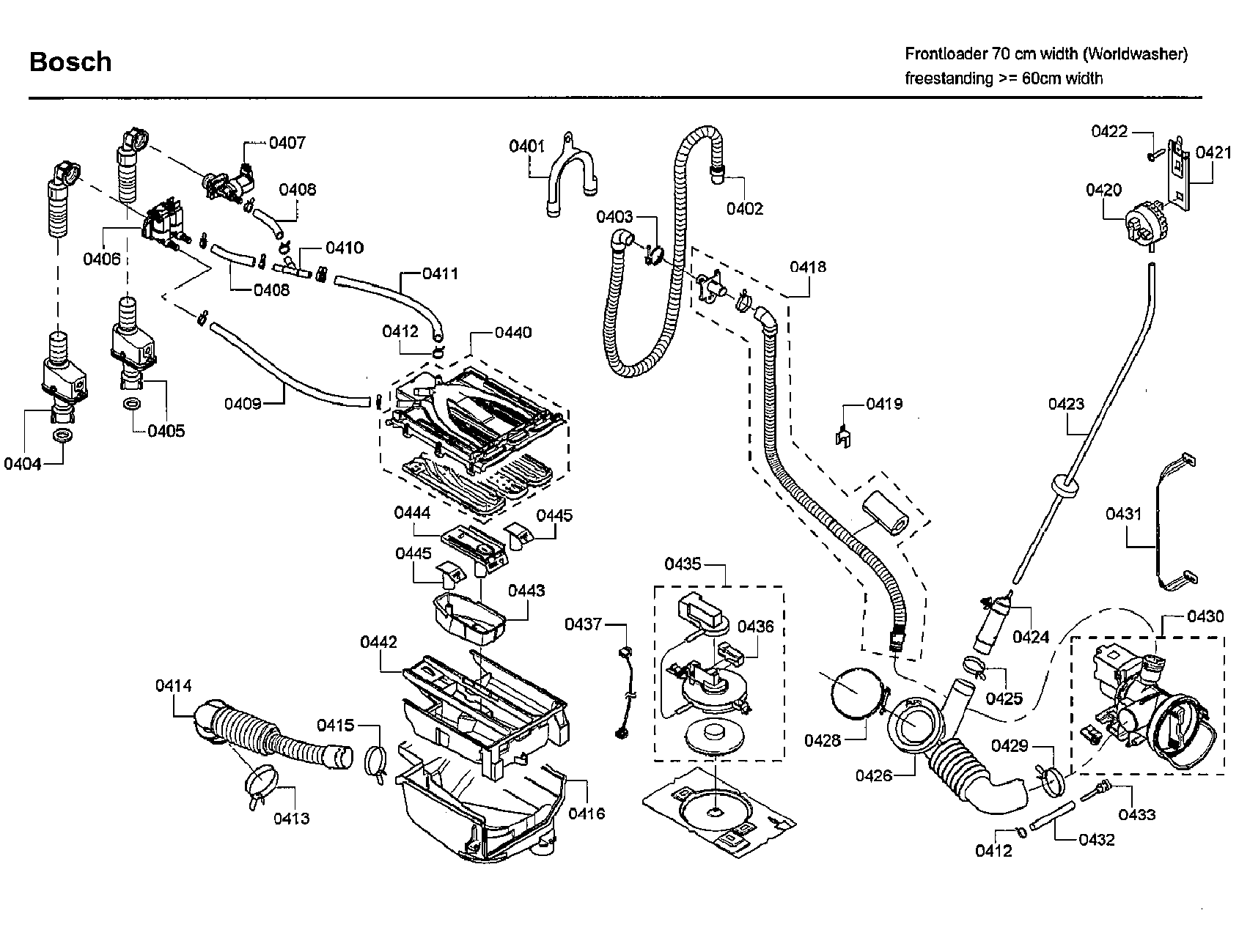

Pump diagram
Washer Cover
Part #00263501Replaced by #11049560
Manufacturer substitutionThis part replaces 00263501. Substitute parts can look different from the original.In Stock$93.89
Qty

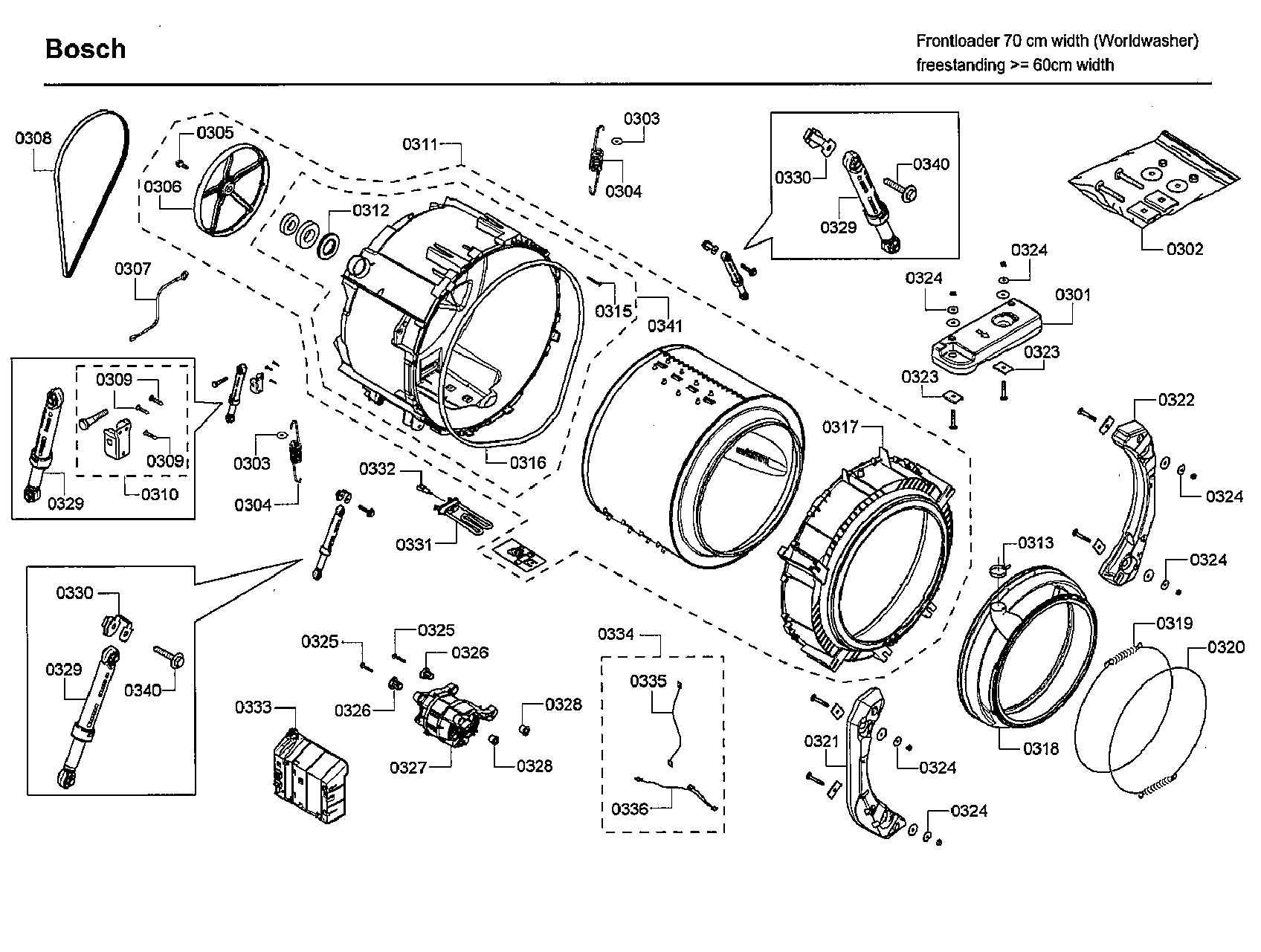

Drum diagram
Washer Outer Tub Gasket
Part #00494722Replaced by #12054183
Manufacturer substitutionThis part replaces 00494722. Substitute parts can look different from the original.In Stock$48.30QtyCabinet diagram
Washer Door Lock
Part #00648526
The manufacturer no longer makes this part, and there's no substitute part
Pump diagram
Washer Dispenser Drawer Insert Siphon Cover
Part #00617847
The manufacturer no longer makes this part, and there's no substitute part
Drum diagram
Washer Water Temperature Sensor
Part #00609240
The manufacturer no longer makes this part, and there's no substitute part

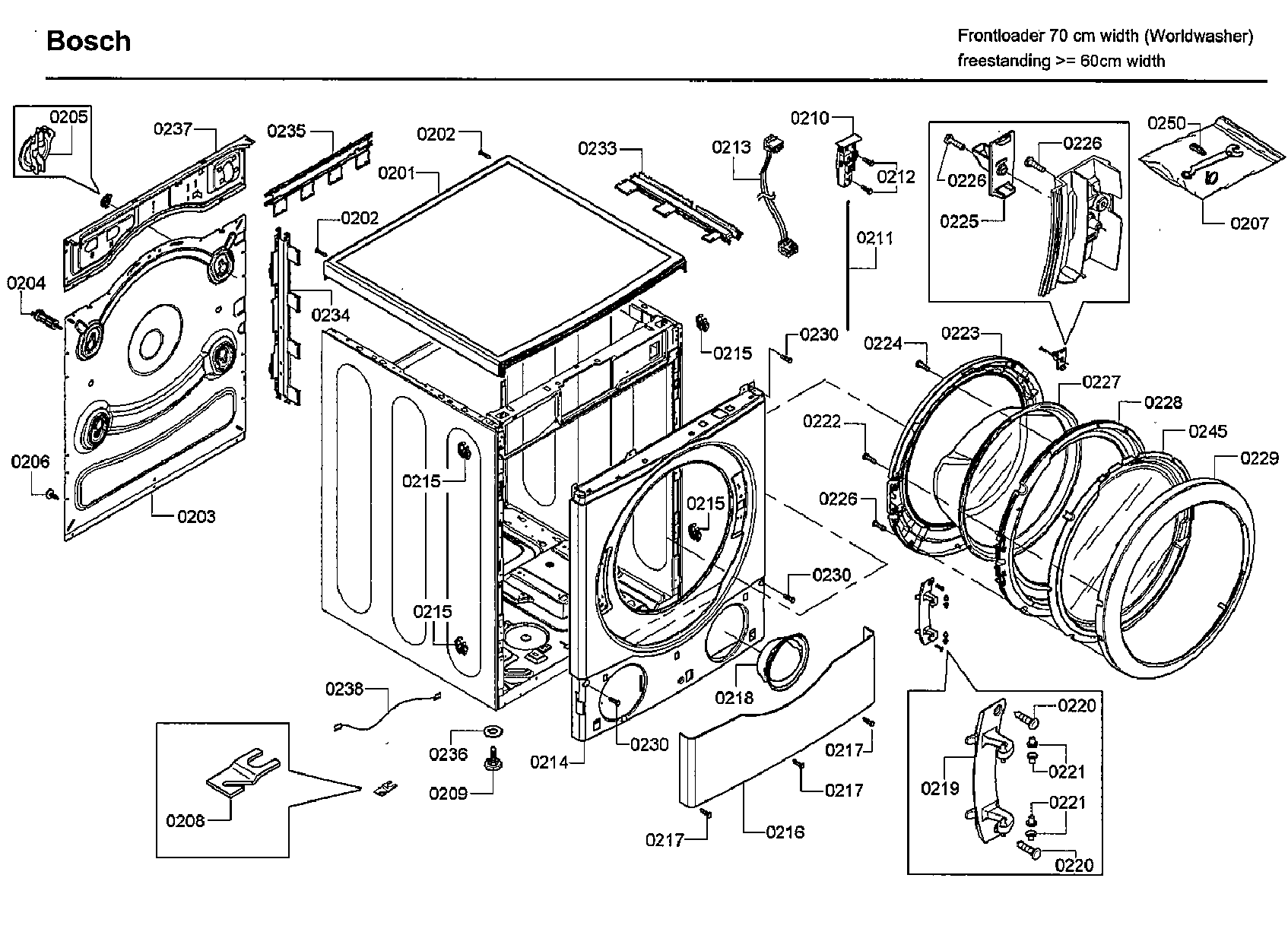

Cabinet diagram
Screw M4.2
Part #00615773
The manufacturer no longer makes this part, and there's no substitute part
Drum diagram
Cable Harness
Part #00609228
The manufacturer no longer makes this part, and there's no substitute part
Cabinet diagram
Case
Part #00685664
The manufacturer no longer makes this part, and there's no substitute part
Pump diagram
Washer Pump Drain Hose Assembly
Part #00665711
The manufacturer no longer makes this part, and there's no substitute part
Pump diagram
Installation
Part #00675284
The manufacturer no longer makes this part, and there's no substitute part
