Jenn-Air WM2720B/M167B wall oven with microwave Parts
Here are the diagrams and repair parts for Jenn-Air WM2720B/M167B wall oven with microwave, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

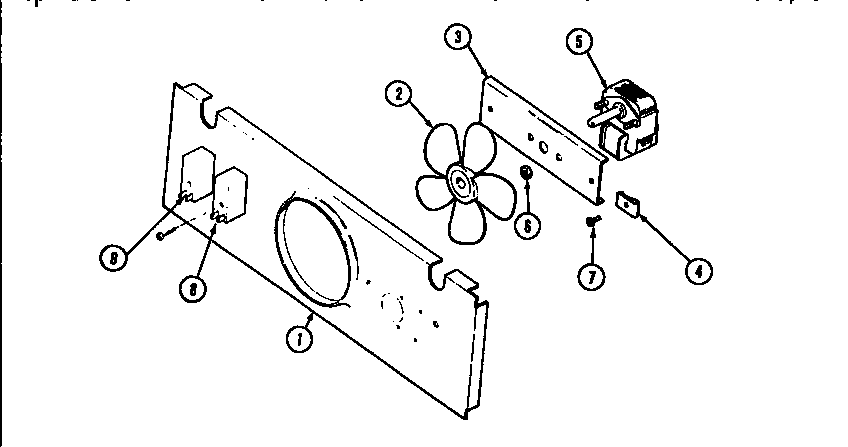

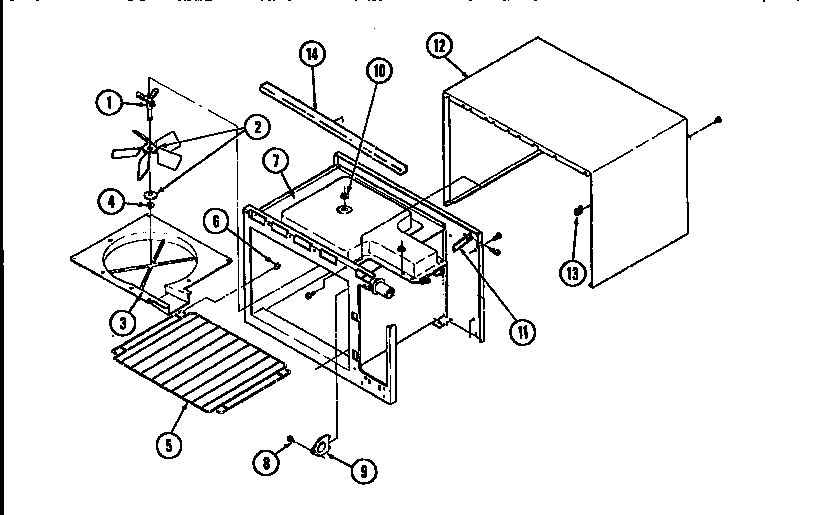

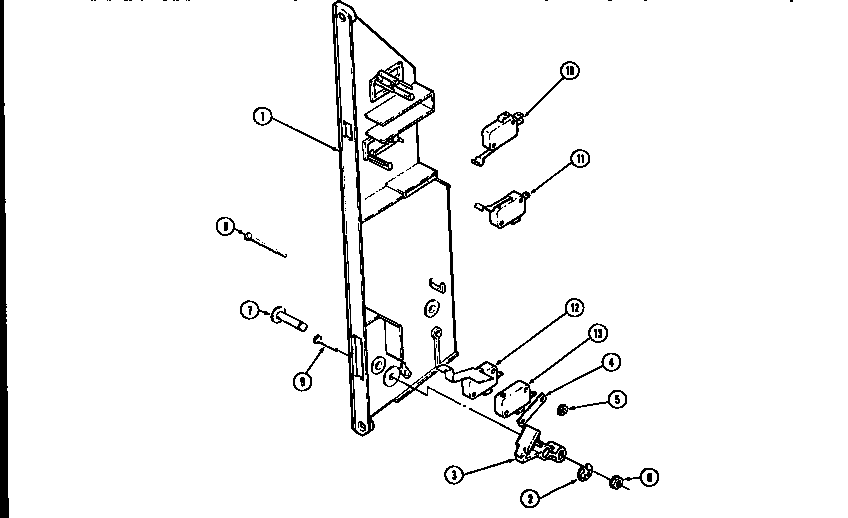

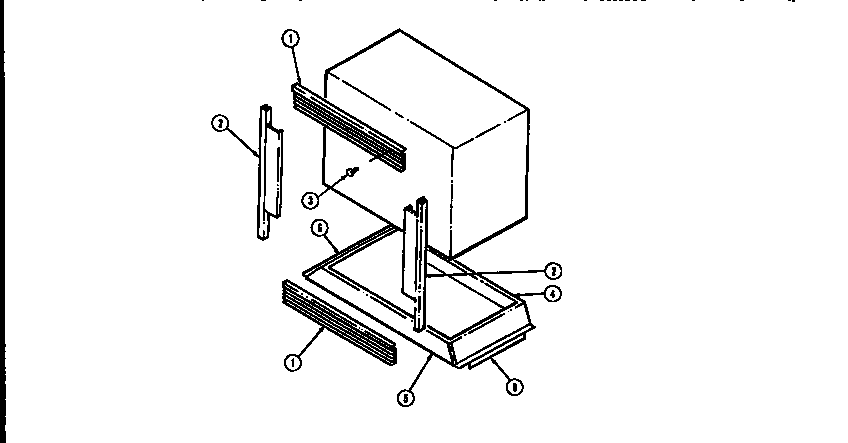

Browse Parts for WM2720B/M167B Wall Ovens

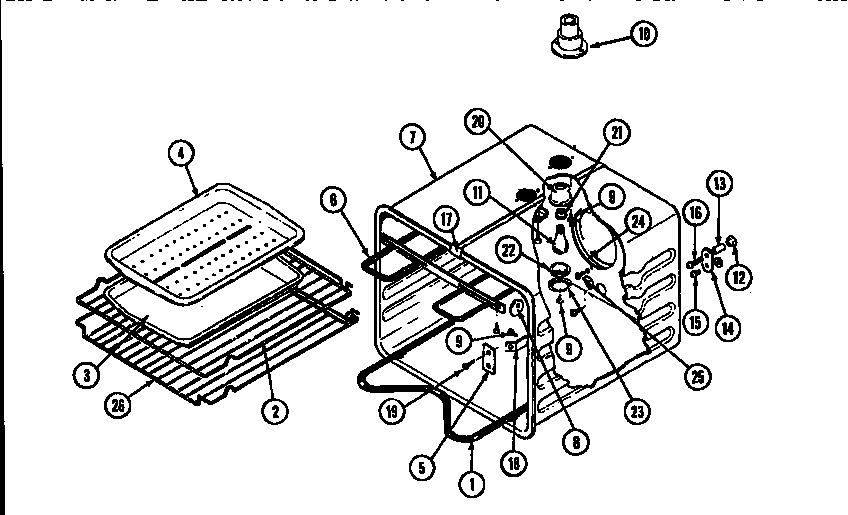

Oven liner-lower diagram
Flat Washer
Part #702592Replaced by #WP74003976
Manufacturer substitutionThis part replaces 702592. Substitute parts can look different from the original.This item is not returnableIn Stock$5.0617% OFF Phone Price : $6.06
Qty
Screw
Part #708733Replaced by #W11233072

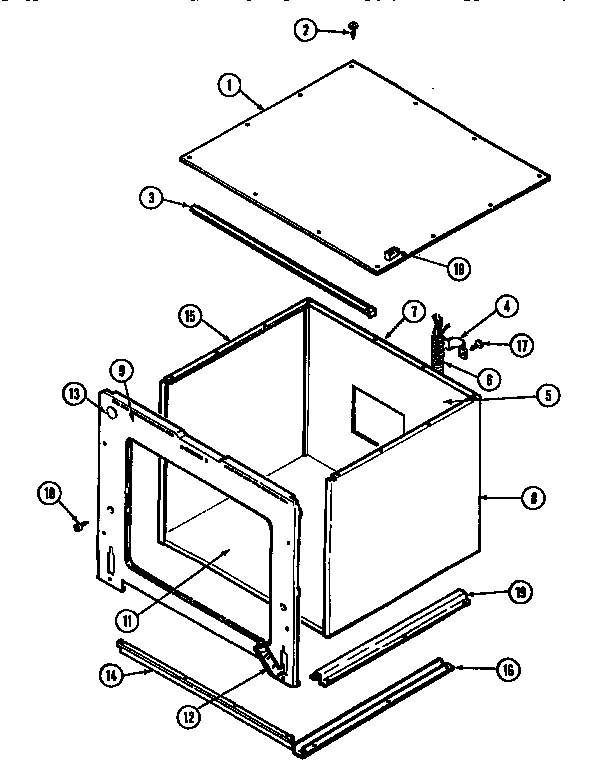

Manufacturer substitutionThis part replaces 708733. Substitute parts can look different from the original.In Stock$17.63QtyBody-lower diagram
Bracket
Part #04100566
The manufacturer no longer makes this part, and there's no substitute part
Oven liner-lower diagram
Oven Tee Nut
Part #715294
The manufacturer no longer makes this part, and there's no substitute part

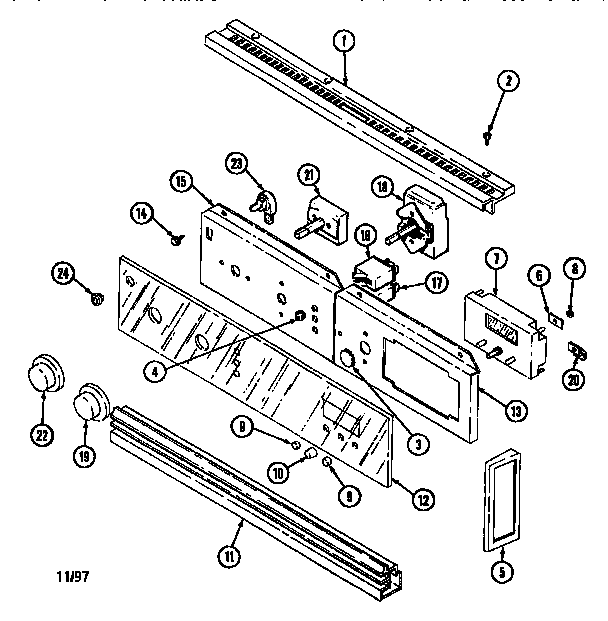

Control panel-lower diagram
Extrusion
Part #704255
The manufacturer no longer makes this part, and there's no substitute part

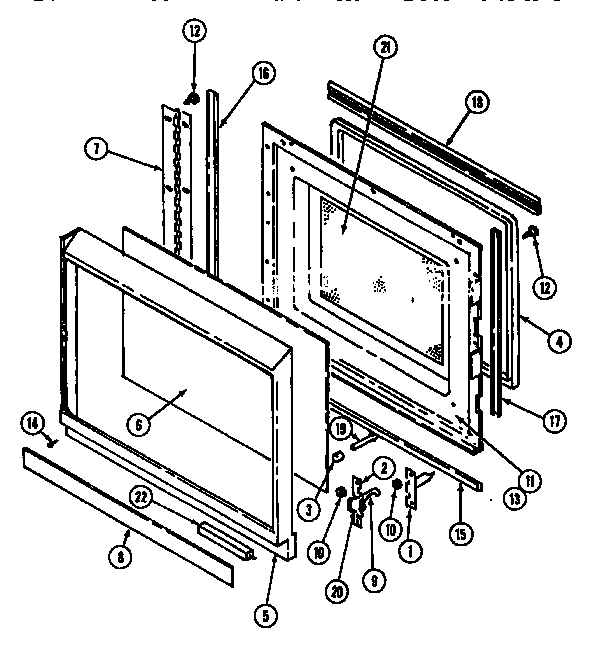

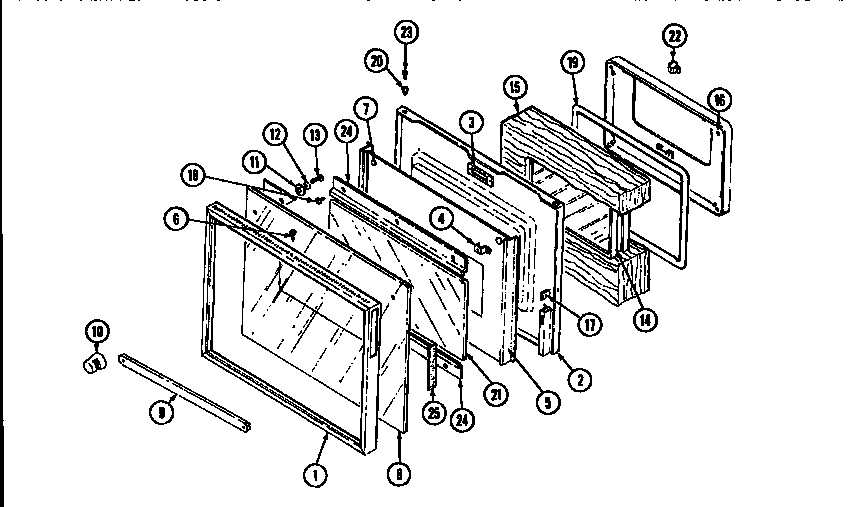

Door diagram
Door Latch Spring
Part #03180023
The manufacturer no longer makes this part, and there's no substitute part
Control panel-lower diagram
End Cap, Left
Part #704257
The manufacturer no longer makes this part, and there's no substitute part

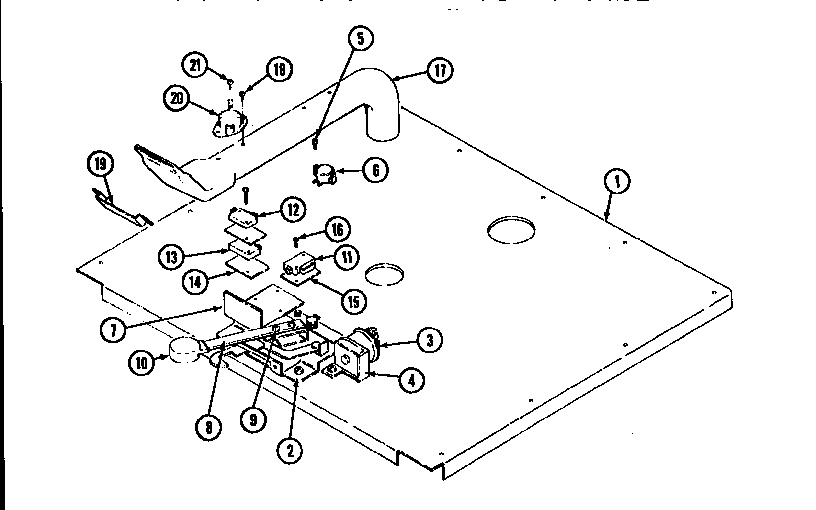

Internal controls-lower diagram
Switch
Part #702806
The manufacturer no longer makes this part, and there's no substitute part
Control panel-lower diagram
Switch
Part #704897
The manufacturer no longer makes this part, and there's no substitute part

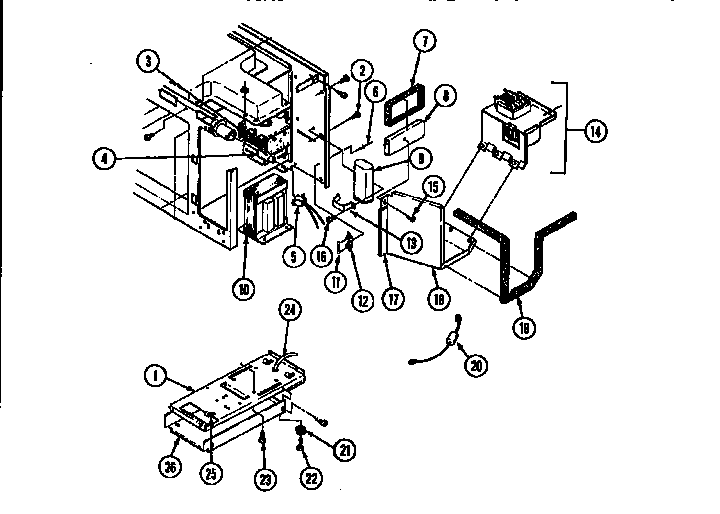

Internal controls-upper diagram
Capacitor
Part #0102-0023
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your wall oven
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Most common repair guides to help fix your wall oven
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
How to replace the thermal switch in a wall oven
If the oven won't heat after resetting the thermal switch, replace the thermal switch.…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven thermal fuse
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…
Repair time and Difficulty
60 minutes or less
How to replace a wall oven door outer glass panel
Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. …
Repair time and Difficulty
45 minutes or less
Effective articles & videos to help repair your wall oven
Use the advice and tips in these articles and videos to get the most out of your wall oven.
Oven looking grimy? Discover how to clean a greasy oven using safe, effective methods like baking soda and more.…
Learn how to decipher symbols so you can buy the right part for your problem.…
If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…
