Model # JGP336BEV2BB Official GE gas cooktop

Here are the diagrams and repair parts for Official GE JGP336BEV2BB gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |

Gas Valve Switch WB24K5047
#323

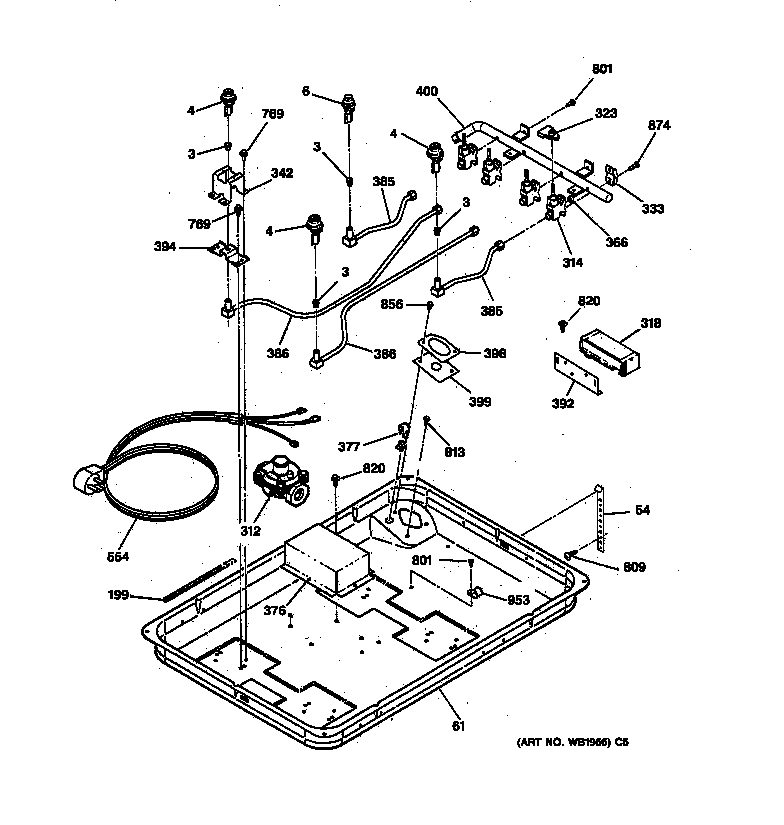

Burner diagram

Gas valve switch

Part #WB24K5047

Replaced by #WB24T10071

?
Manufacturer substitution
This part replaces WB24K5047. Substitute parts can look different from the original.
BEST SELLER
$30.80
14% OFF Phone Price : $35.80
In Stock
Dryer Screw WH2X930

#NI

All parts diagram

Dryer screw

Part #WH2X930

This item is not returnable
$7.88
11% OFF Phone Price : $8.88
In Stock
Screw WB1K5150

#NI

All parts diagram

Screw

Part #WB1K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB1K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09
14% OFF Phone Price : $7.09
In Stock
Screw-4-pk WB1M01
#801

Burner diagram

Screw-4-pk

Part #WB1M01

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB1M01. Substitute parts can look different from the original.
This item is not returnable
$6.09
14% OFF Phone Price : $7.09
In Stock
Range Drip Pan WB31K5080
#60B

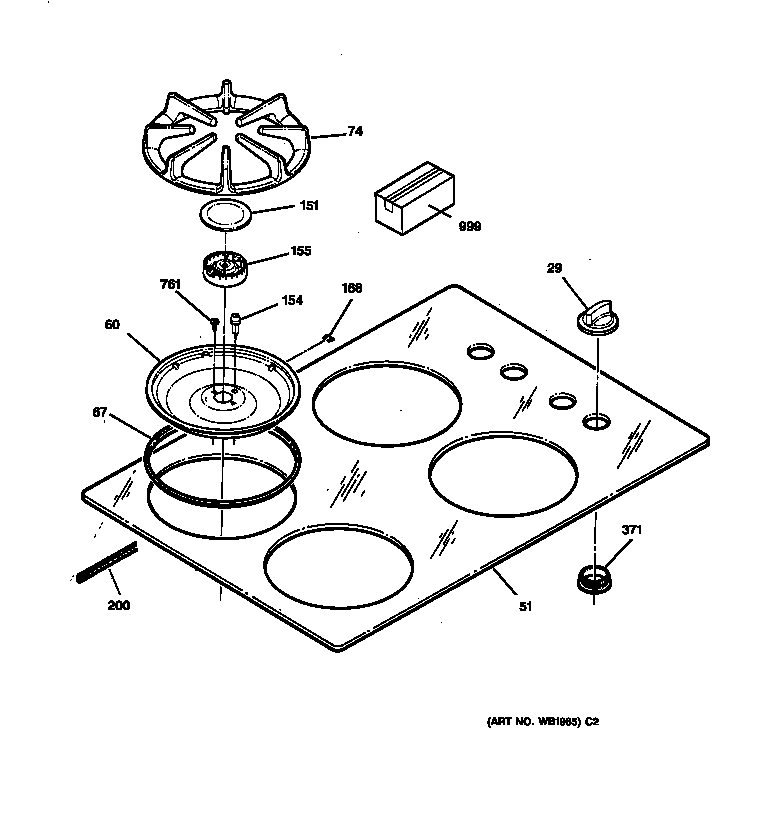

Cooktop diagram

Range drip pan

Part #WB31K5080

$26.69
16% OFF Phone Price : $31.69
In Stock
Cooktop Burner Box Support WB2K5328
#54

Burner diagram

Cooktop burner box support

Part #WB2K5328

$6.51
13% OFF Phone Price : $7.51
In Stock
Range Screw WB1X1137
#809

Burner diagram

Range screw

Part #WB1X1137

$7.88
11% OFF Phone Price : $8.88
In Stock
Cooktop Burner Grate WB31T10008
#74

Cooktop diagram

Cooktop burner grate

Part #WB31T10008

$127.90
7% OFF Phone Price : $137.90
In Stock
Screw WB1X500

#NI

All parts diagram

Screw

Part #WB1X500

Replaced by #WB1X500D

?
Manufacturer substitution
This part replaces WB1X500. Substitute parts can look different from the original.
This item is not returnable
$8.50
11% OFF Phone Price : $9.50
In Stock
Gas Vlv Med WB21K5028
#314A

Burner diagram

Gas vlv med

Part #WB21K5028

Replaced by #WB21X22069

?
Manufacturer substitution
This part replaces WB21K5028. Substitute parts can look different from the original.
$70.26
7% OFF Phone Price : $75.26
In Stock
