Frigidaire
Side-By-Side Refrigerator

Model #FFSS2325TP0 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Frigidaire FFSS2325TP0 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 233 parts

Refrigerator Ice Maker (replaces 241798220, 241798224, 5304456671)#2

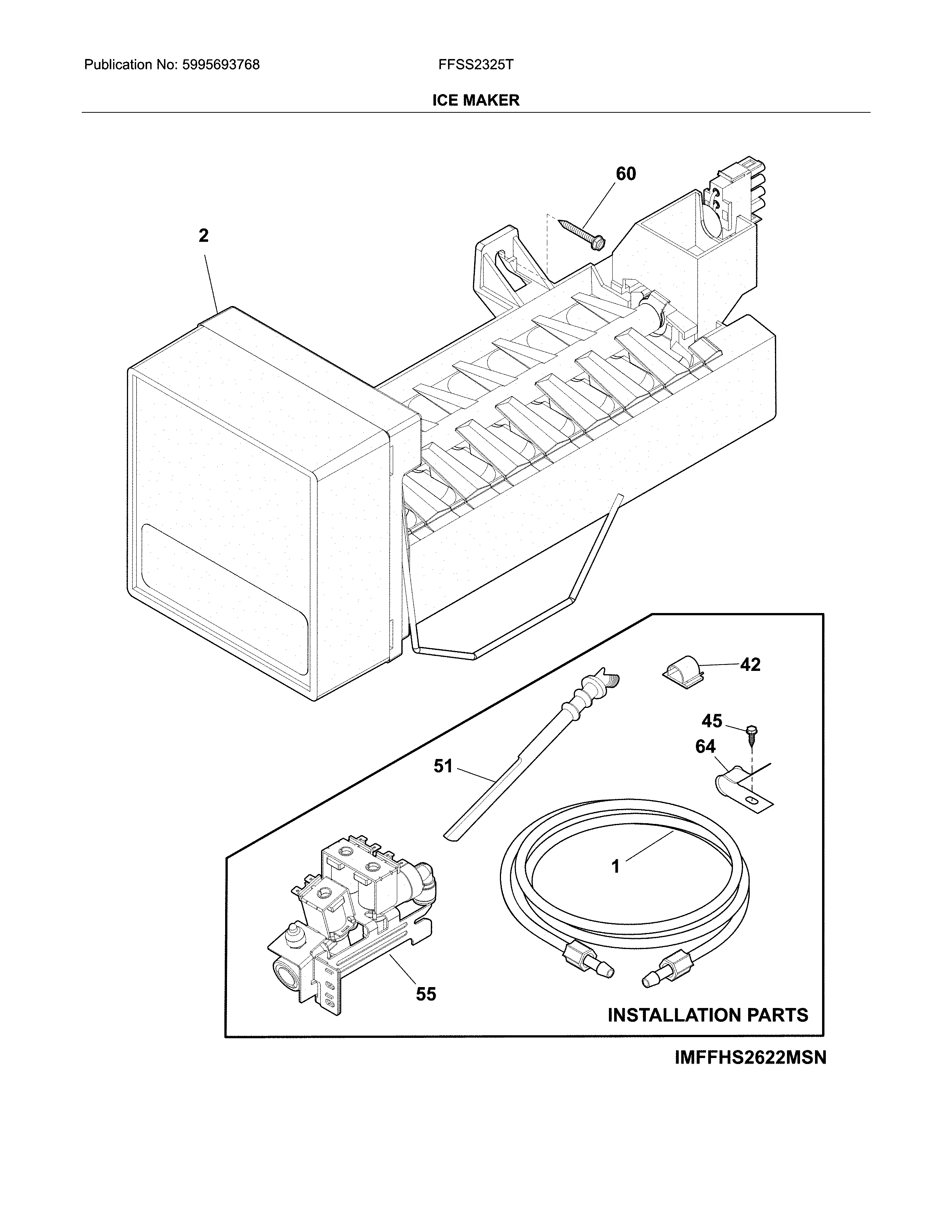

Ice maker Diagram

Refrigerator ice maker

Part #241798211
Replaced by #241798231
?
Manufacturer substitution
This part replaces 241798211. Substitute parts can look different from the original.
BEST SELLER
In Stock
$142.62 |
7% OFF
Phone Price: $152.62
Refrigerator Water Inlet Valve Assembly (replaces 241734302)#55

Ice maker Diagram

In Stock
$83.99 |
6% OFF
Phone Price: $88.99
Refrigerator Crisper Drawer Cover Support Stud (replaces 240423701, 7241993101)#100

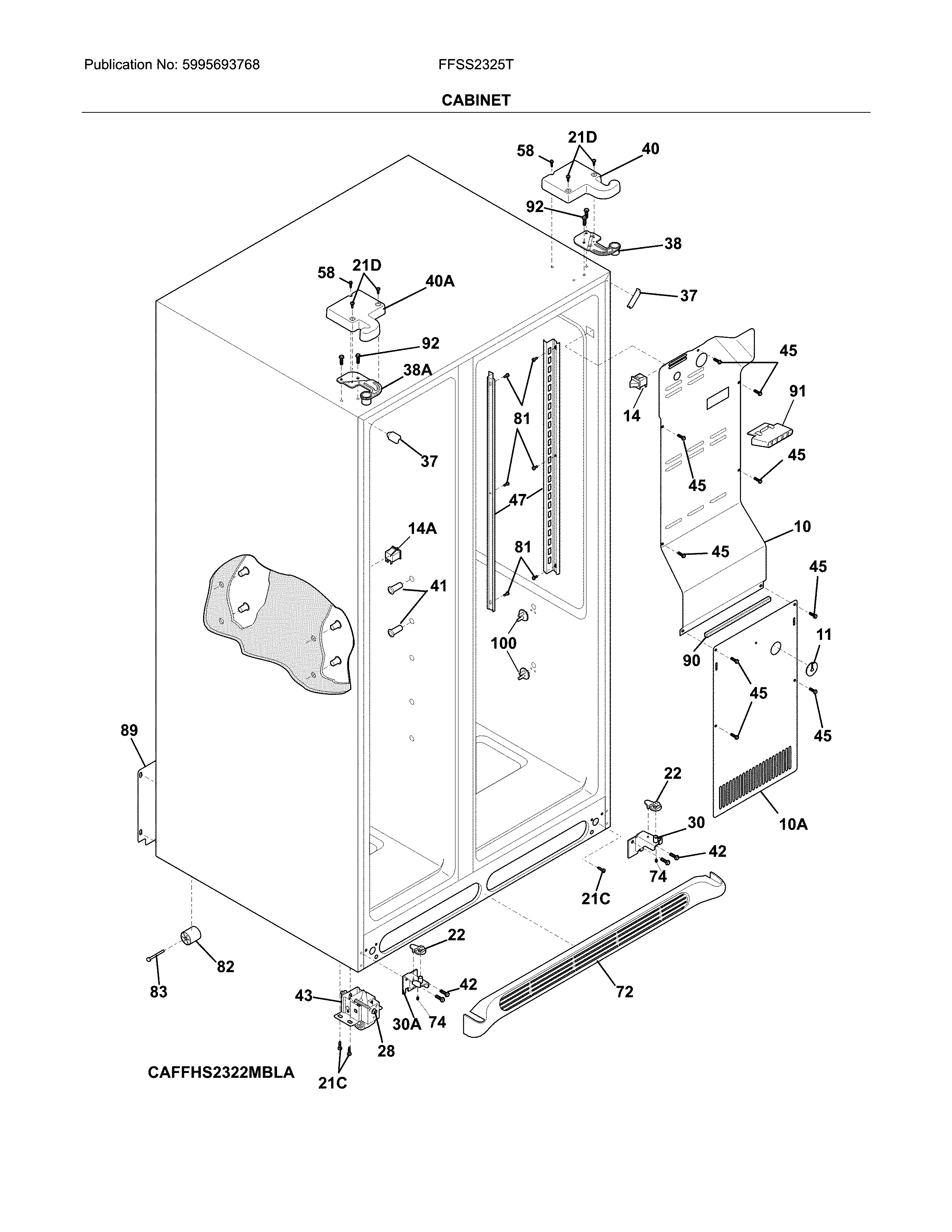

Cabinet Diagram

Refrigerator crisper drawer cover support stud (replaces 240423701, 7241993101)

Part #241993101
BEST SELLER
This item is not returnable
In Stock
$5.86 |
15% OFF
Phone Price: $6.86
Refrigerator Crisper Drawer Cover Support Stud (replaces 240350802, 7240350802, 7240423701, 7241993001)#100

Cabinet Diagram

In Stock
$5.71 |
15% OFF
Phone Price: $6.71
Refrigerator Ice Container Assembly (replaces 240323813)#NI

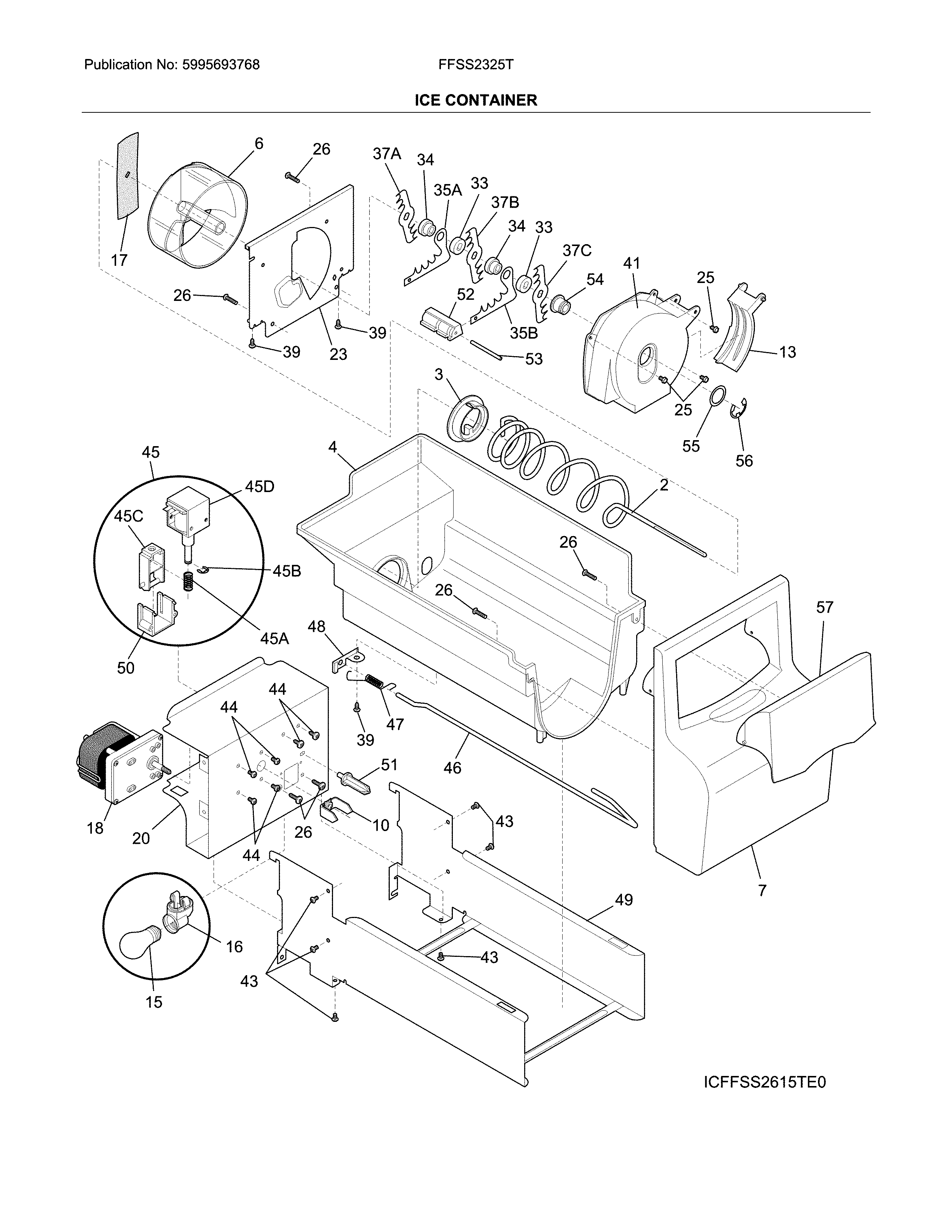

Ice container Diagram

In Stock
$169.33 |
6% OFF
Phone Price: $179.33
Refrigerator Air Damper Control Assembly#115

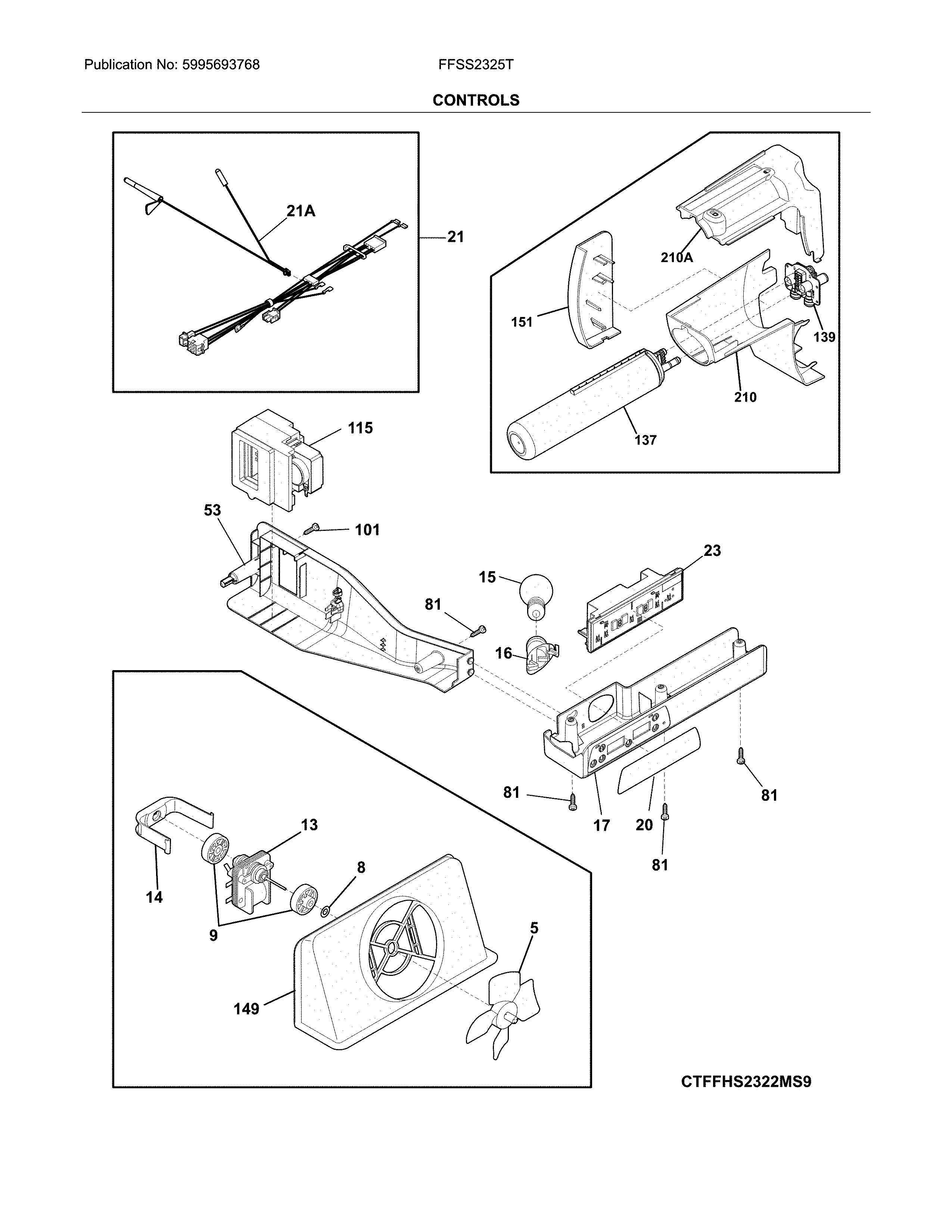

Controls Diagram

In Stock
$138.49 |
13% OFF
MSRP: $160.00
Refrigerator Evaporator Fan Blade#5

Controls Diagram

Refrigerator evaporator fan blade

Part #5308000010
BEST SELLER
In Stock
$39.39 |
11% OFF
Phone Price: $44.39
Refrigerator Door Bin (replaces 240324510, 240324511, 240324514, 240430303, 240430310, 240430313, 241808203, 241808233)#49

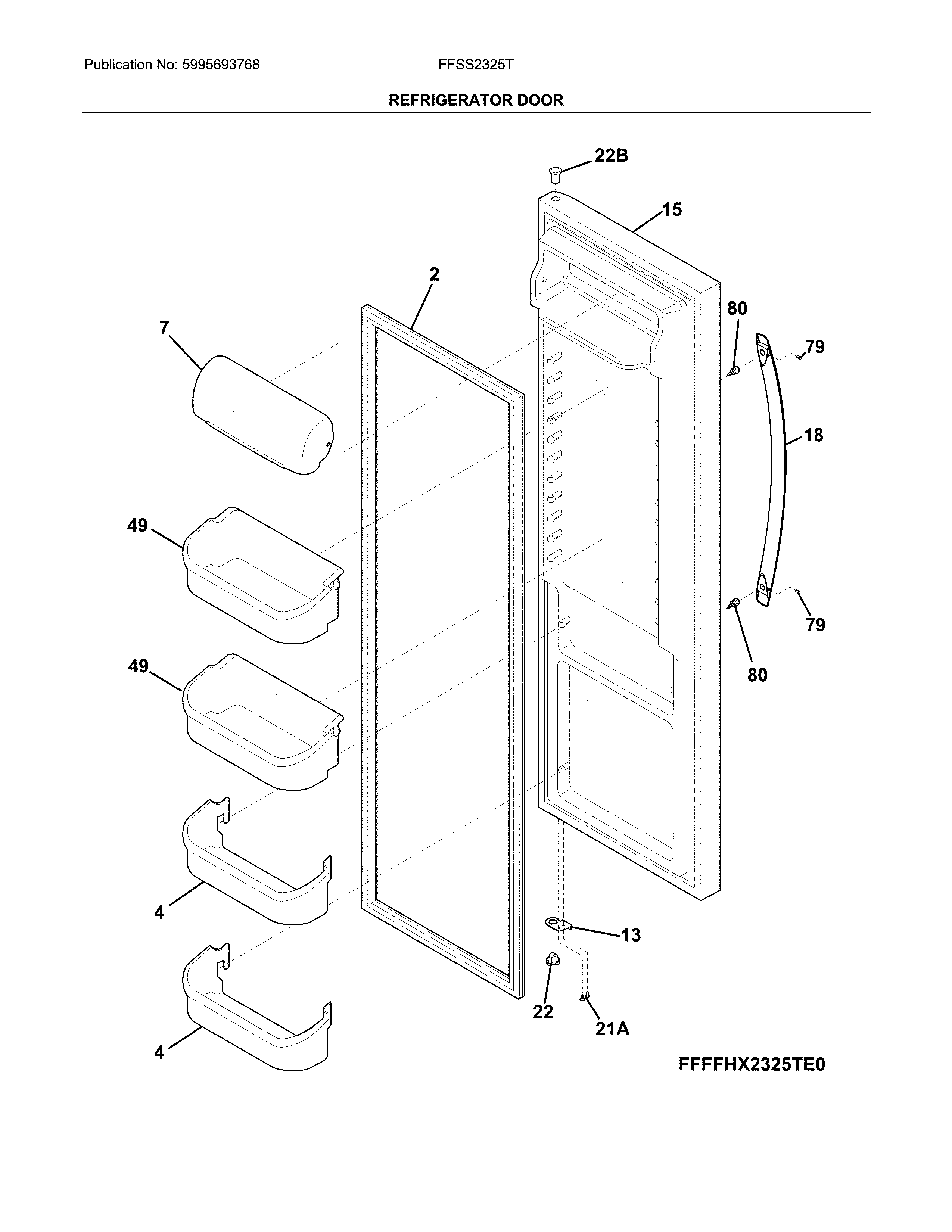

Refrigerator door Diagram

In Stock
$80.92 |
6% OFF
Phone Price: $85.92
Refrigerator Freezer Door Shelf Rail (replaces 240359007)#4B

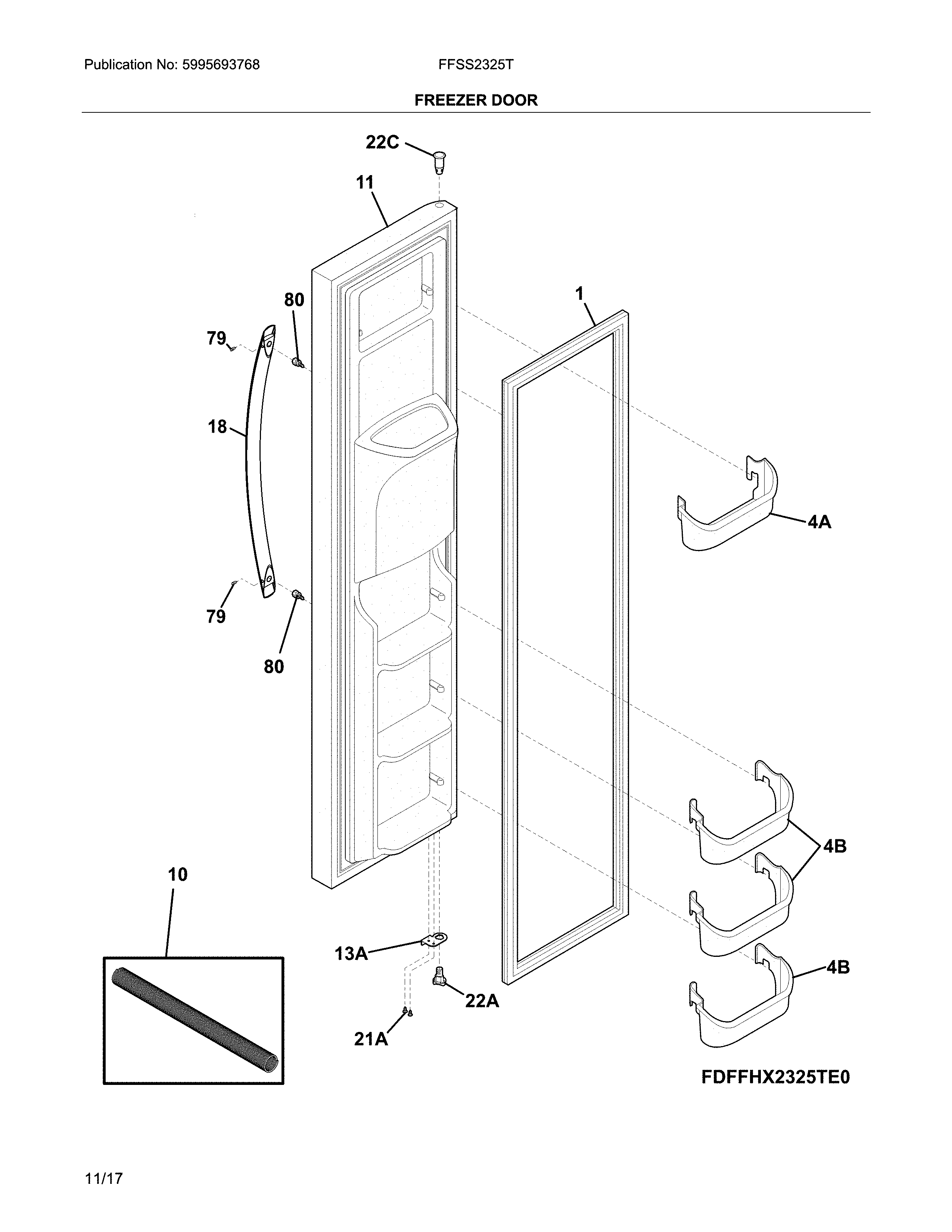

Freezer door Diagram

In Stock
$44.00 |
10% OFF
Phone Price: $49.00
Refrigerator Condenser Fan Motor (replaces 242018301)#60

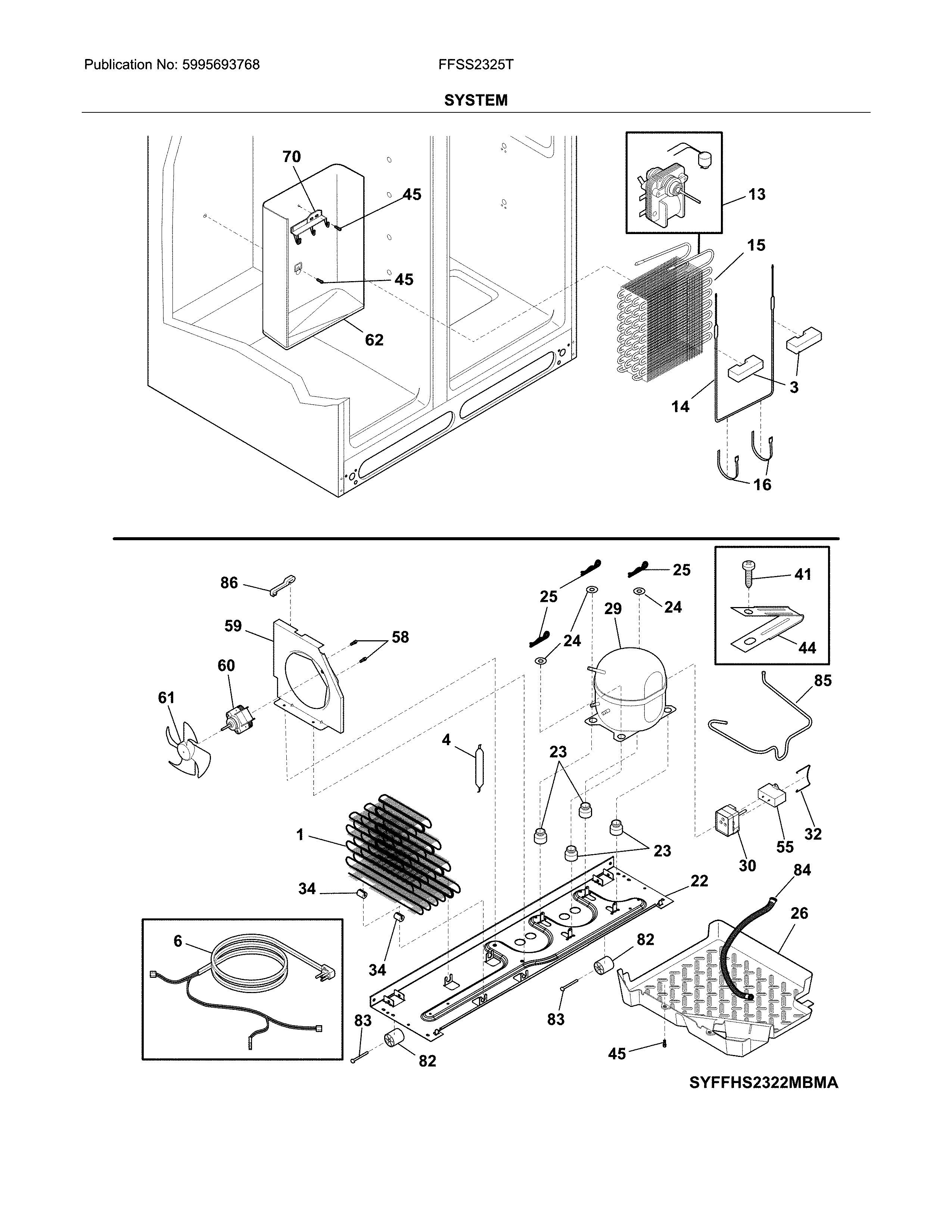

System Diagram

Refrigerator condenser fan motor

Part #242018301
Replaced by #242018304
?
Manufacturer substitution
This part replaces 242018301. Substitute parts can look different from the original.
BEST SELLER
In Stock
$90.09 |
10% OFF
MSRP: $100.00

Symptoms common to all refrigerators

Choose a symptom to see related refrigerator repairs.

Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan not running
Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, clean the drain pan
Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freezer not cold enough
Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer or control board
Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost timer problems
Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, sensor problems
Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condenser fan not working
Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubing, leaking door seal
