Modern Maid FDU2482WW-ALL electric slide-in range Parts
Here are the diagrams and repair parts for Modern Maid FDU2482WW-ALL electric slide-in range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part

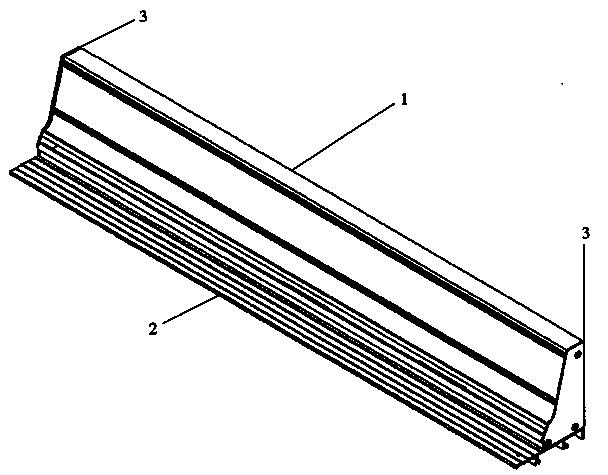

SELECT DIAGRAM
Browse Parts for FDU2482WW-ALL Ranges

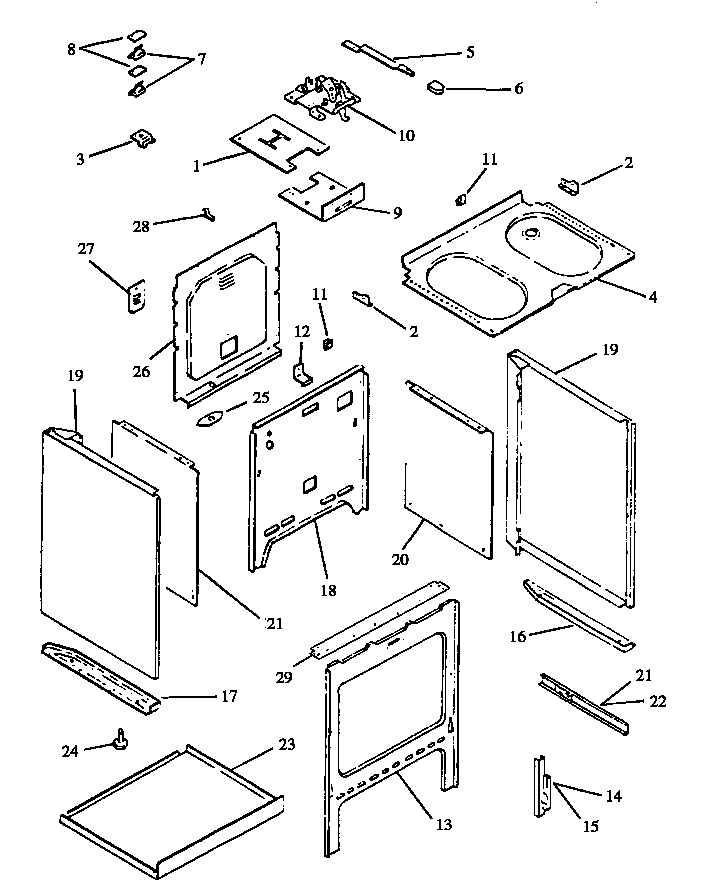

Cabinet assembly (fdu2482b/p1130613nb) (fdu2482b/p1130630nb) (fdu2482d/all) (fdu2482k/p1130625nk) (fdu2482k/p1130630nk) (fdu2482ww/all) (fdu2492b/p1130625nb) (fdu2492ww/p1130626n) (fdu2492ww/p1130630nww) diagram
Track Storage Drawer, L.h.
Part #0300475
The manufacturer no longer makes this part, and there's no substitute part

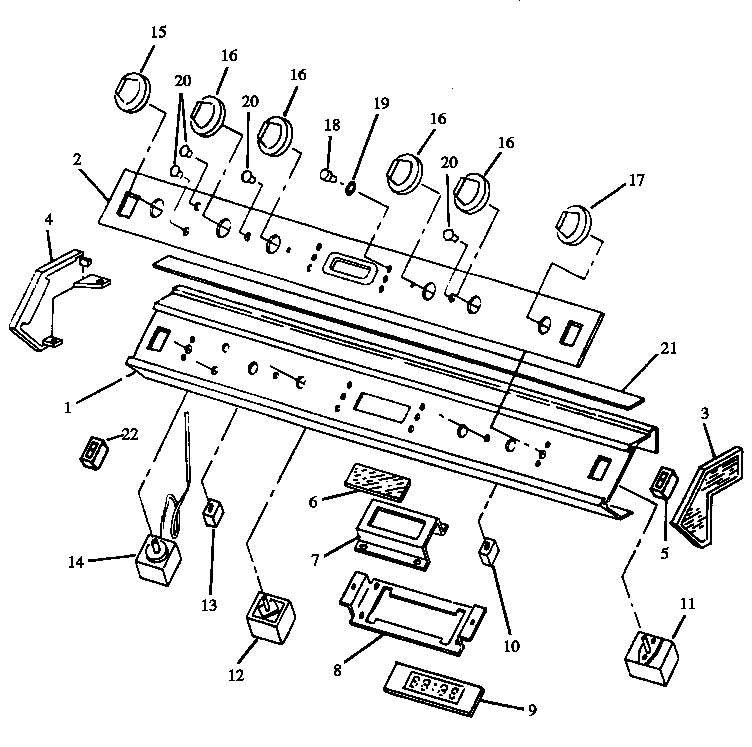

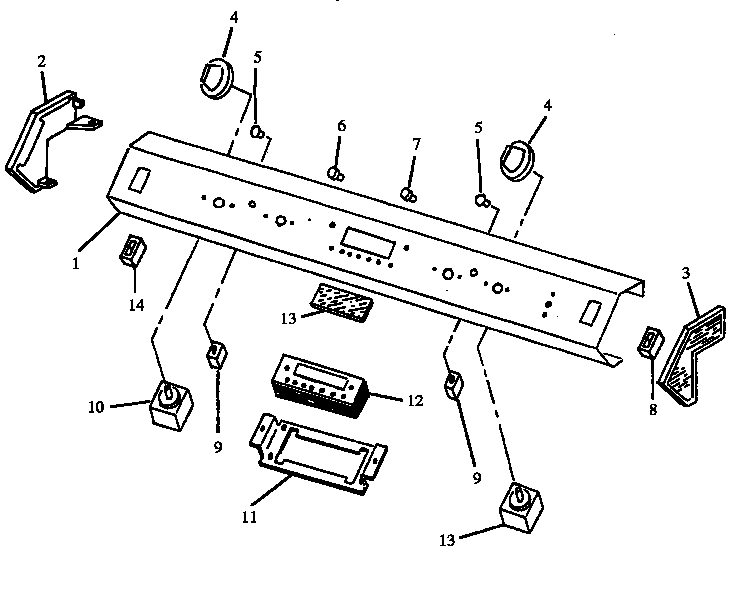

Control panel (fdu2482b/p1130630nb) (fdu2482k/p1130625nk) (fdu2482k/p1130630nk) (fdu2492b/p1130625nb) (fdu2492ww/p1130626n) (fdu2492ww/p1130630nww) diagram
End Cap, R.h. - Black
Part #308172B
The manufacturer no longer makes this part, and there's no substitute part

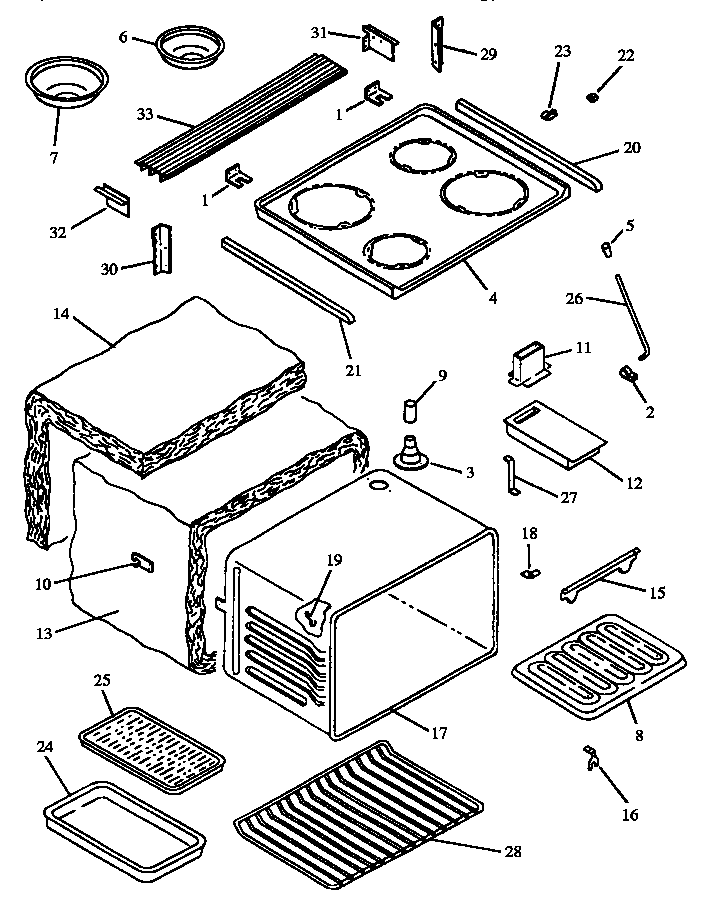

Main top and oven assembly (fdu2482b/p1130613nb) (fdu2482b/p1130630nb) (fdu2482d/all) (fdu2482k/p1130625nk) (fdu2482k/p1130630nk) (fdu2482ww/all) (fdu2492b/p1130625nb) (fdu2492ww/p1130626n) (fdu2492ww/p1130630nww) diagram
Bracket, Broil Element Mounting
Part #0061556
The manufacturer no longer makes this part, and there's no substitute part
Storage drawer (fdu2482b/p1130613nb) (fdu2482b/p1130630nb) (fdu2482d/all) (fdu2482k/p1130625nk) (fdu2482k/p1130630nk) (fdu2482ww/all) (fdu2492b/p1130625nb) (fdu2492ww/p1130626n) (fdu2492ww/p1130630nww) diagram
Frame, Glass Panel, Black
Part #0059498
The manufacturer no longer makes this part, and there's no substitute part

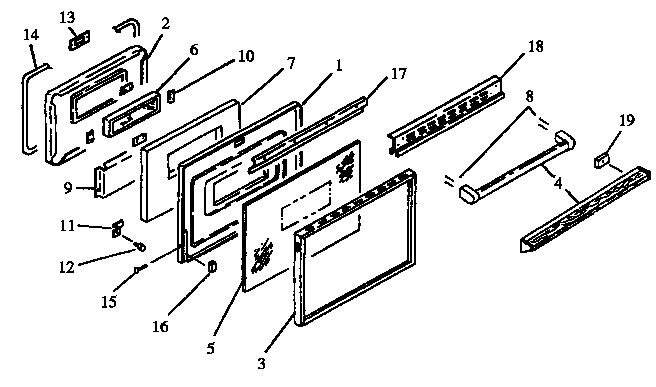

Oven door assembly (fdu2482b/p1130613nb) (fdu2482b/p1130630nb) (fdu2482d/all) (fdu2482k/p1130625nk) (fdu2482k/p1130630nk) (fdu2482ww/all) (fdu2492b/p1130625nb) (fdu2492ww/p1130626n) (fdu2492ww/p1130630nww) diagram
Oven Door Handle (white)
Part #301507W
The manufacturer no longer makes this part, and there's no substitute part

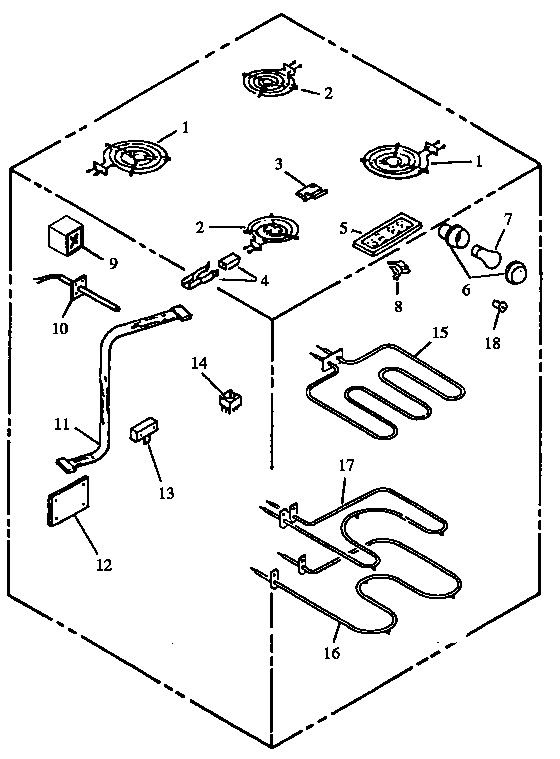

Electrical components (fdu2482b/p1130613nb) (fdu2482b/p1130630nb) (fdu2482d/all) (fdu2482k/p1130625nk) (fdu2482k/p1130630nk) (fdu2482ww/all) (fdu2492b/p1130625nb) (fdu2492ww/p1130626n) (fdu2492ww/p1130630nww) diagram
Circuit Board, Erc
Part #0301277
The manufacturer no longer makes this part, and there's no substitute part
Storage drawer (fdu2482b/p1130613nb) (fdu2482b/p1130630nb) (fdu2482d/all) (fdu2482k/p1130625nk) (fdu2482k/p1130630nk) (fdu2482ww/all) (fdu2492b/p1130625nb) (fdu2492ww/p1130626n) (fdu2492ww/p1130630nww) diagram
Runner Drawer, L.h. (at Date Code 9211)
Part #0306404
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Nut, 10-32, Terminal Block
Part #0306381
The manufacturer no longer makes this part, and there's no substitute part
Main top and oven assembly (fdu2482b/p1130613nb) (fdu2482b/p1130630nb) (fdu2482d/all) (fdu2482k/p1130625nk) (fdu2482k/p1130630nk) (fdu2482ww/all) (fdu2492b/p1130625nb) (fdu2492ww/p1130626n) (fdu2492ww/p1130630nww) diagram
Oven Shell Assembly (cavity)
Part #303359E
The manufacturer no longer makes this part, and there's no substitute part
Cabinet assembly (fdu2482b/p1130613nb) (fdu2482b/p1130630nb) (fdu2482d/all) (fdu2482k/p1130625nk) (fdu2482k/p1130630nk) (fdu2482ww/all) (fdu2492b/p1130625nb) (fdu2492ww/p1130626n) (fdu2492ww/p1130630nww) diagram
Panel, Side Almond
Part #306081W
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
