Kenmore
Canister Vacuum

Model # 11622940 Official Kenmore vacuum cleaner & attachment parts

Here are the diagrams and repair parts for Official Kenmore 11622940 vacuum cleaner & attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |

Housing 764341
#83

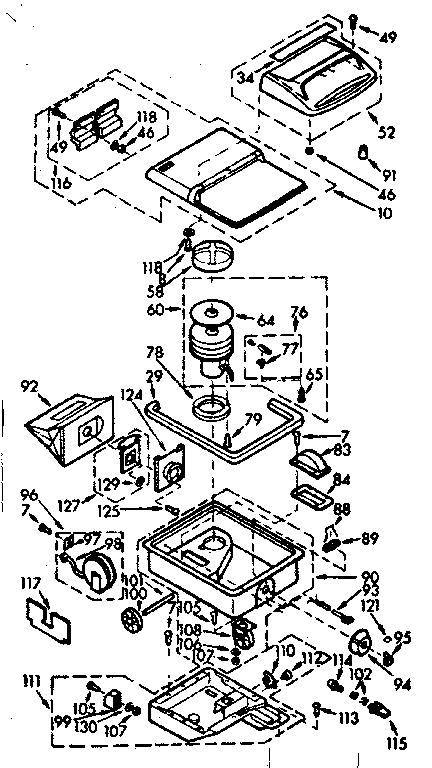

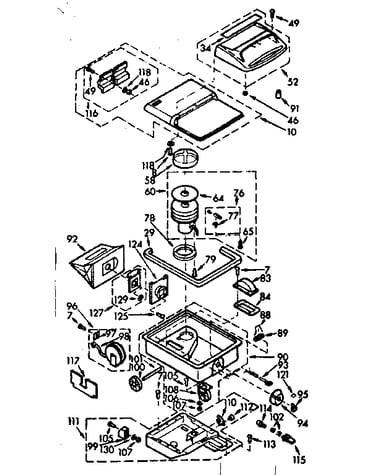

Base assembly diagram

Housing

Part #764341

The manufacturer no longer makes this part, and there's no substitute part

Screw 674038
#65

Base assembly diagram

Screw

Part #674038

The manufacturer no longer makes this part, and there's no substitute part

Intake Port 763808
#94

Base assembly diagram

Intake port

Part #763808

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Brush 721458
#29

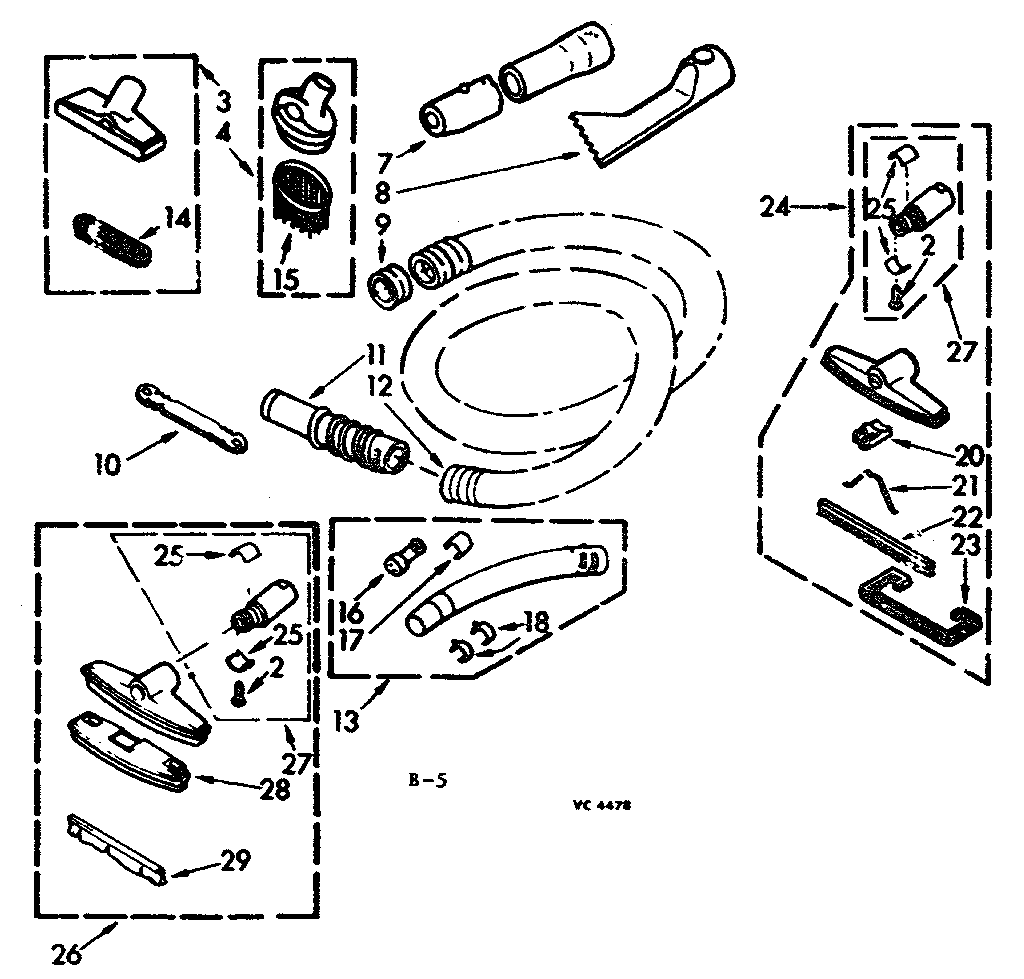

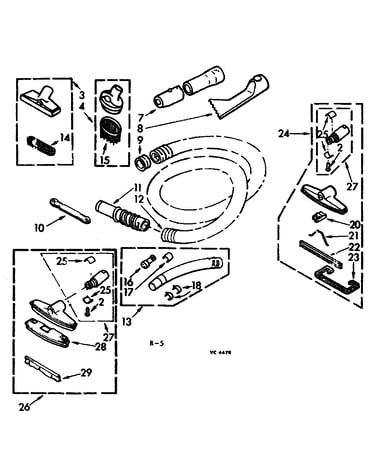

Attachment parts diagram

Vacuum brush

Part #721458

The manufacturer no longer makes this part, and there's no substitute part

Terminal 722410
#11

Attachment parts diagram

Terminal

Part #722410

The manufacturer no longer makes this part, and there's no substitute part

Mount 763746
#124

Base assembly diagram

Mount

Part #763746

The manufacturer no longer makes this part, and there's no substitute part

Retainer Ring 722411
#9

Attachment parts diagram

Retainer ring

Part #722411

The manufacturer no longer makes this part, and there's no substitute part

Diffuser 763776
#110

Base assembly diagram

Diffuser

Part #763776

The manufacturer no longer makes this part, and there's no substitute part

Dstng Brush 721447
#15

Attachment parts diagram

Dstng brush

Part #721447

The manufacturer no longer makes this part, and there's no substitute part

Leg 763775
#99

Base assembly diagram

Leg

Part #763775

The manufacturer no longer makes this part, and there's no substitute part
