Jenn-Air JUIFX15HX01 ice maker Parts

Here are the diagrams and repair parts for Jenn-Air JUIFX15HX01 ice maker, as well as links to manuals and error code tables, if available.

Jenn-Air JUIFX15HX01 ice maker
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JUIFX15HX01 ICE MAKER

  • Refrigerator Filter Dryer for Jenn-Air JUIFX15HX01 - Part W10843121

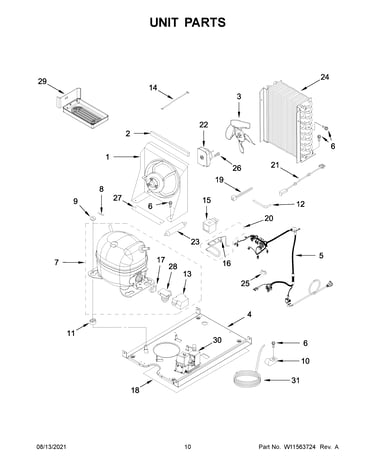

    Unit parts diagram

    Drier Tube

    Part #W10200037

    Replaced by #W10843121

    Info Icon
    Manufacturer substitution
    This part replaces W10200037. Substitute parts can look different from the original.
    In Stock
    $34.57
    15% OFF Phone Price : $40.57Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Ice Maker Bin Temperature Sensor for Jenn-Air JUIFX15HX01 - Part WPW10511923

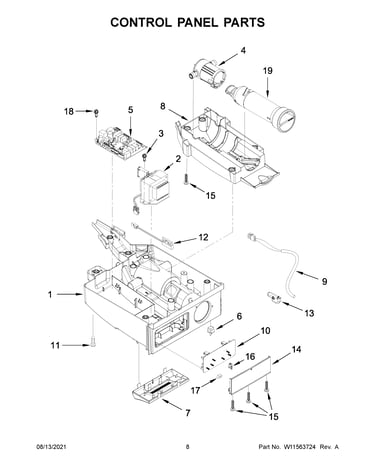

    Control panel parts diagram

    Thermistor

    Part #W10511923

    Replaced by #WPW10511923

    Info Icon
    Manufacturer substitution
    This part replaces W10511923. Substitute parts can look different from the original.
    In Stock
    $61.91
    9% OFF Phone Price : $67.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Spray Paint (white) for Jenn-Air JUIFX15HX01 - Part 350930

    Optional parts diagram

    Spray Paint (white)

    Part #350930

    Replaced by #350930

    Info Icon
    Manufacturer substitution
    This part replaces 350930. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.00
    19% OFF Phone Price : $32.00Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Ice Maker Recirculation Pump for Jenn-Air JUIFX15HX01 - Part W11542867

    Pump parts diagram

    Pump-recircu

    Part #W11439191

    Replaced by #W11542867

    Info Icon
    Manufacturer substitution
    This part replaces W11439191. Substitute parts can look different from the original.
    In Stock
    $199.66
    6% OFF Phone Price : $211.66Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for Jenn-Air JUIFX15HX01 - Part W11573574

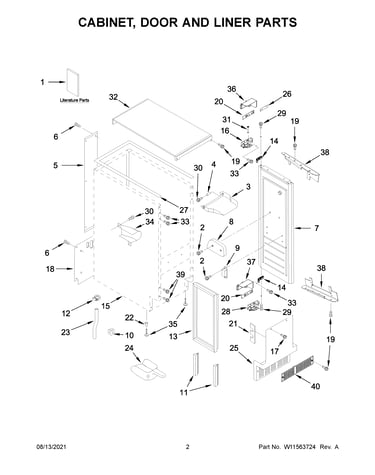

    Cabinet, door and liner parts diagram

    Screw

    Part #357640

    Replaced by #W11573574

    Info Icon
    Manufacturer substitution
    This part replaces 357640. Substitute parts can look different from the original.
    In Stock
    $48.64
    Minus Item
    Qty
    Plus Item
  • Ice Maker Drain Pump for Jenn-Air JUIFX15HX01 - Part W11542868

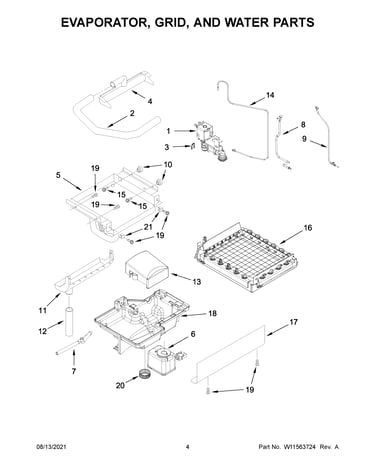

    Evaporator, grid, and water parts diagram

    Pump, Reservoir Drain

    Part #W11439192

    Replaced by #W11542868

    Info Icon
    Manufacturer substitution
    This part replaces W11439192. Substitute parts can look different from the original.
    In Stock
    $75.41
    7% OFF Phone Price : $81.41Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Ice Maker Condensate Drain Pump Assembly for Jenn-Air JUIFX15HX01 - Part W11539855

    Unit parts diagram

    Pump Assembly

    Part #W10702856

    Replaced by #W11539855

    Info Icon
    Manufacturer substitution
    This part replaces W10702856. Substitute parts can look different from the original.
    In Stock
    $387.24
    $12.00 OFF Phone Price : $399.24Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Door Switch for Jenn-Air JUIFX15HX01 - Part W11291138

    Control panel parts diagram

    Switch- Rock

    Part #W10847852

    Replaced by #W11291138

    Info Icon
    Manufacturer substitution
    This part replaces W10847852. Substitute parts can look different from the original.
    In Stock
    $29.59
    17% OFF Phone Price : $35.59Info Icon
    Minus Item
    Qty
    Plus Item
  • Appliance Silicone Lubricant for Jenn-Air JUIFX15HX01 - Part WP542638

    Optional parts diagram

    Appliance Silicone Lubricant

    Part #542638

    Replaced by #WP542638

    Info Icon
    Manufacturer substitution
    This part replaces 542638. Substitute parts can look different from the original.
    In Stock
    $37.39
    14% OFF Phone Price : $43.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Compressor Service Kit Without Jumper for Jenn-Air JUIFX15HX01 - Part W11735041

    Unit parts diagram

    Compressor

    Part #W10536005

    Replaced by #W11735041

    Info Icon
    Manufacturer substitution
    This part replaces W10536005. Substitute parts can look different from the original.
    In Stock
    $485.98
    Minus Item
    Qty
    Plus Item

Jenn-Air ICE MAKER JUIFX15HX01 FAQs

Yes. Most ice makers are designed to run continuously and cycle on and off as the bin fills, so leaving your Jenn-Air JUIFX15HX01 on all the time is normal for everyday use. For best hygiene and to reduce wear, we recommend shutting it down, emptying it, and drying it out when you will not need ice for a while.

Best practices if you run it 24/7
  • Keep the condenser area clear so the unit can shed heat efficiently.
  • Dump old ice regularly so it does not absorb odors or clump together.
  • Clean and sanitize on a routine schedule to prevent slime or scale.
  • Watch for slow fills or dripping that can point to a water valve issue.
  • Listen for new noises that can signal a pump or fan problem.
When you should turn it off

Turn the ice maker off and empty the bin when:

  • You are leaving home for several days or longer.
  • You notice a musty smell, cloudy ice, or heavy mineral buildup.
  • The unit is repeatedly melting and refreezing ice (clumping).
  • You see water in the bin area or under the cabinet.
Common wear items to check (and why)
Symptom What it often points to Example part for JUIFX15HX01
Runs but makes little or no ice Temperature sensing or control issue Thermistor WPW10511923
Water leaking or overfilling Inlet valve not sealing Valve W10897719
Loud humming, weak water flow over evaporator Recirculation pump wearing out Pump-recircu W11542867
Warm cabinet, long run times Airflow problem at condenser Refrigerator condenser fan motor W11613295
Why it matters

Running continuously is convenient, but ice makers are wet appliances. Regular dumping, cleaning, and airflow checks help prevent odor, scale buildup, and premature failures in components like the recirculation pump, water valve, and electronic control.

For symptom-based help, use our DIY guide: freestanding ice maker troubleshooting.

Last updated: February 2026

For your Jenn-Air JUIFX15HX01 freestanding ice maker, most “not making ice” problems come from low water flow, a drain or recirculation issue, or a cooling/temperature sensing problem. Start by confirming the water supply line is not kinked and the unit is getting steady water pressure.

Quick checks we recommend first
  • Make sure the shutoff valve is fully open and the supply line is not pinched behind the unit.
  • Confirm the ice maker is powered on (rocker switch on) and the bin is seated correctly.
  • Clean the condenser area and verify the condenser fan is running; a stalled fan reduces cooling.
  • Look for water in the reservoir and listen for the recirculation pump during a freeze cycle.
  • Check for a slow drain or standing water that can interrupt cycling.
Common causes and the parts that match this model

If basic checks do not restore ice production, these model-matched parts are common fixes:

Symptom What it usually points to Model-matched part to check
Runs but makes little or no ice Weak recirculation or poor water movement over the evaporator Pump-recircu W11542867
Not cooling well, long freeze times Condenser fan not moving air across the condenser Refrigerator condenser fan motor W11613295
Erratic cycling, wrong temps Temperature sensor reading incorrectly Thermistor WPW10511923
Won’t fill or fills inconsistently Water inlet valve not opening/closing correctly Valve W10897719
Why it matters

A freestanding ice maker like the Jenn-Air JUIFX15HX01 depends on three things working together: consistent water supply, strong circulation over the evaporator, and reliable cooling. When any one of those drops off, the unit can run but never complete a proper freeze and harvest cycle.

When to stop and use a guided troubleshooting path

If the unit powers on but still will not produce ice after the checks above, follow a symptom-based guide so you test in the right order and avoid replacing good parts. We recommend starting with ice maker runs but no ice or freestanding ice maker troubleshooting.

Last updated: February 2026

If your Jenn-Air JUIFX15HX01 freestanding ice maker runs but makes no ice, the most common causes are a water supply problem, a failed recirculation/drain pump, a temperature-sensing issue, or a control failure. Start with water flow and basic airflow checks before replacing parts.

Quick checks (fastest fixes first)
  • Confirm the water shutoff valve is fully open and the supply line is not kinked.
  • Make sure the inlet screen is not clogged with debris.
  • Verify the unit is level; poor leveling can affect water distribution and freeze pattern.
  • Check that the condenser area is not blocked by dust or tight cabinetry.
  • Listen for water movement during a cycle; silence often points to a pump or fill issue.
Parts that commonly stop ice production

These parts on this model are frequently involved when the machine runs but does not freeze or circulate water correctly:

What the symptoms usually mean
What you notice Most likely area What to do next
Runs, no water sound, no ice Water supply or inlet valve Check supply, then test/replace valve W10897719
Water present, but not circulating Recirculation pump Inspect/replace pump-recircu W11542867
Thin ice sheet or inconsistent freeze Thermistor or airflow Clean condenser area; test thermistor WPW10511923
Random stopping, odd cycle behavior Electronic control Follow how to replace a freestanding ice maker electronic control board and consider control-elek W11034363
Why it matters

A freestanding ice maker depends on steady water fill, continuous recirculation over the evaporator, and accurate temperature sensing. When any one of those fails, the unit can keep “running” but never complete a proper freeze and harvest cycle.

Last updated: February 2026
