Model #SGR341AQ4 White-Westinghouse dryer

Here are the repair parts and diagrams for your White-Westinghouse SGR341AQ4 dryer.

The diagram(s) below can help you find the right part.  If you’d like help, we invite you to call our customer service number at the top of the page, or click chat.

On this page, you can also find any manuals, installation guides and error code tables associated with this model.

For advice on diagnosing problems with appliances, lawn & garden equipment and other products, check out the videos, repair guides and articles in our DIY section.

Save to my profile

Showing 10 of 117 parts

Dryer Door Catch

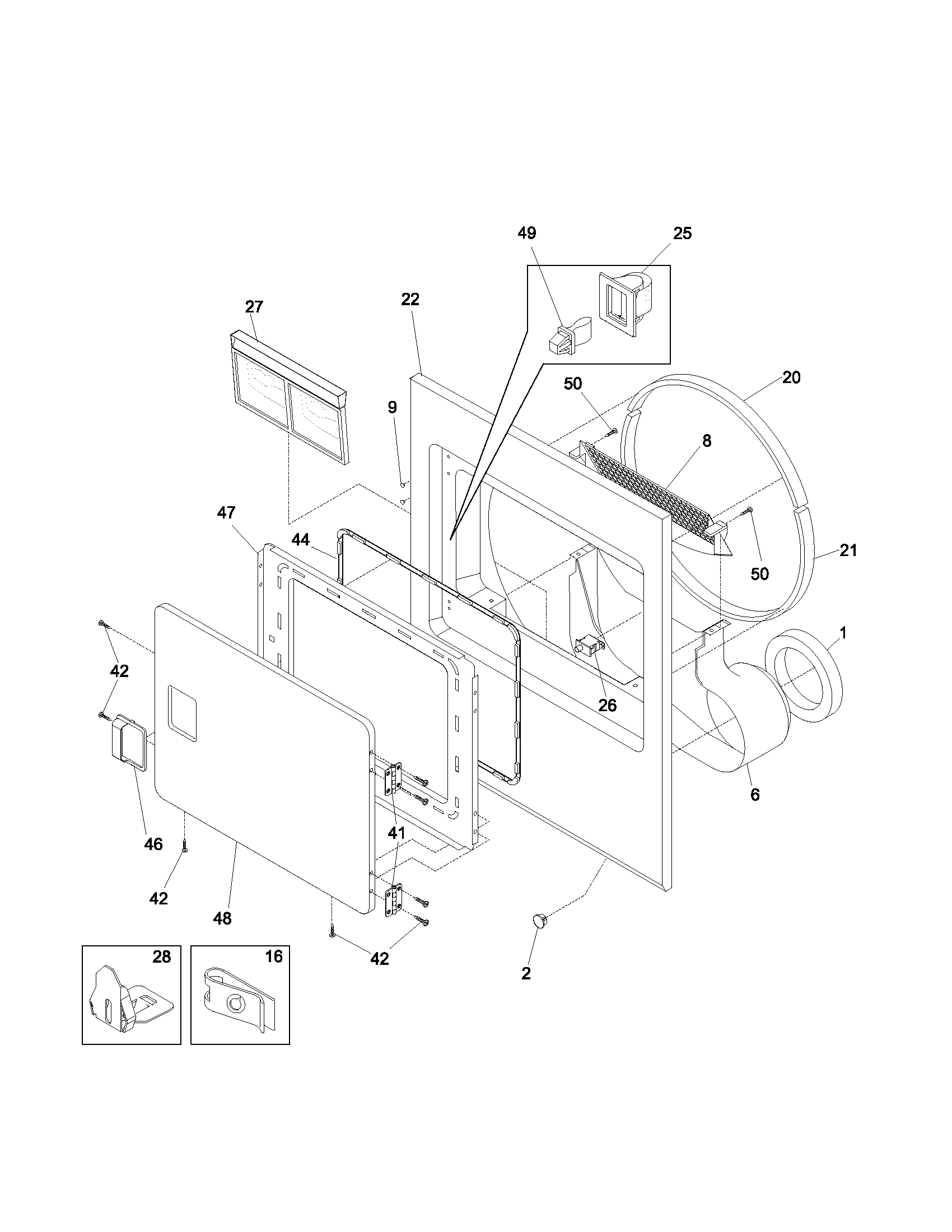

Front Diagram

Dryer door catch

Part #131658800

In Stock

Dryer Drum Bearing Kit

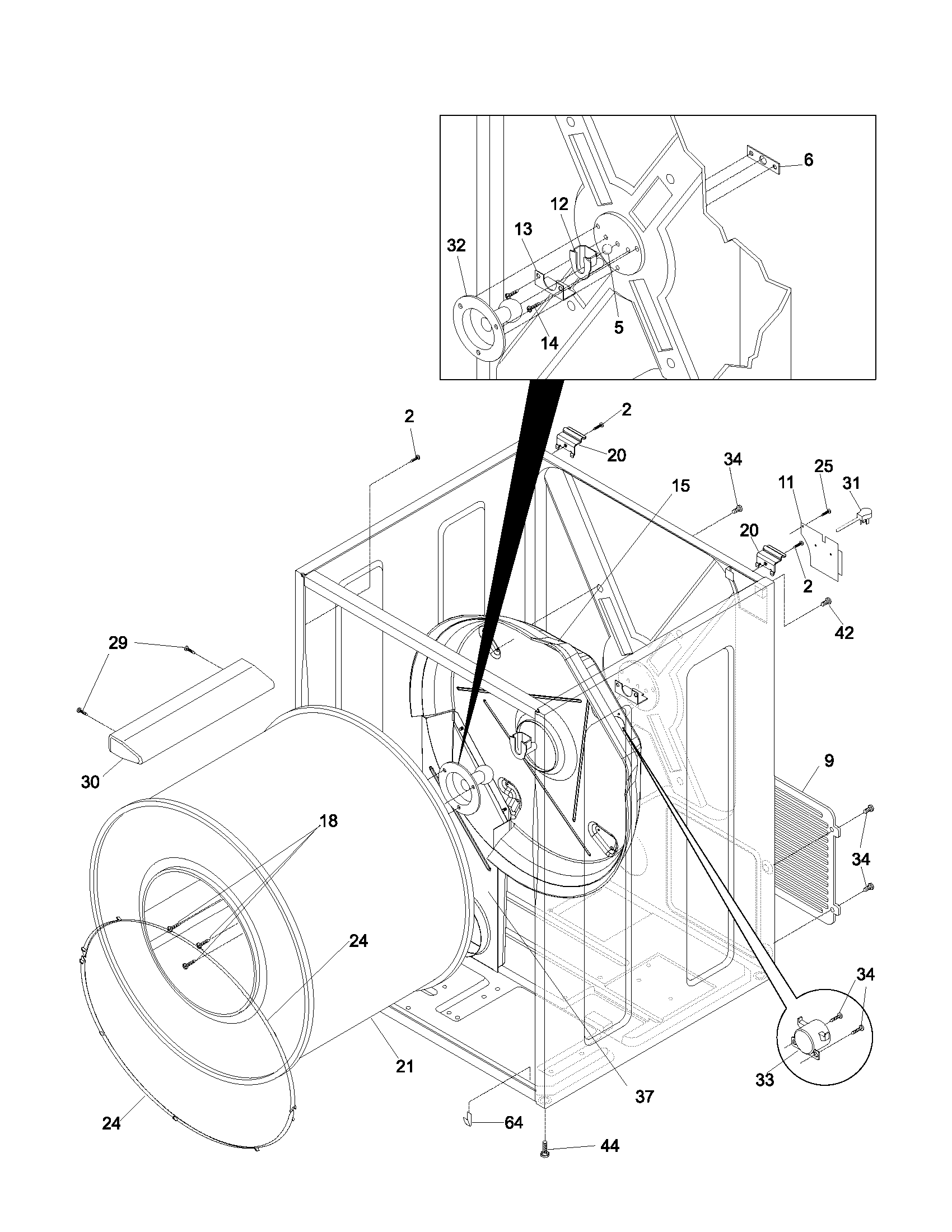

Cabinet Diagram

Dryer drum bearing kit

Part #5303281153
31% OFFMSRP:$29.85

In Stock

Dryer Grounding Ball


Cabinet Diagram

Dryer grounding ball

Part #5303281019

In Stock

Laundry Appliance Screw, #8-18 x 31/100-in


Cabinet Diagram

10% OFFMSRP:$9.20

In Stock

Dryer High-Temperature Lubricant


Cabinet Diagram

14% OFFMSRP:$21.00

In Stock

Dryer Door Seal


Front Diagram

Dryer door seal

Part #131129900
33% OFFMSRP:$46.00

In Stock

Dryer Idler Spring

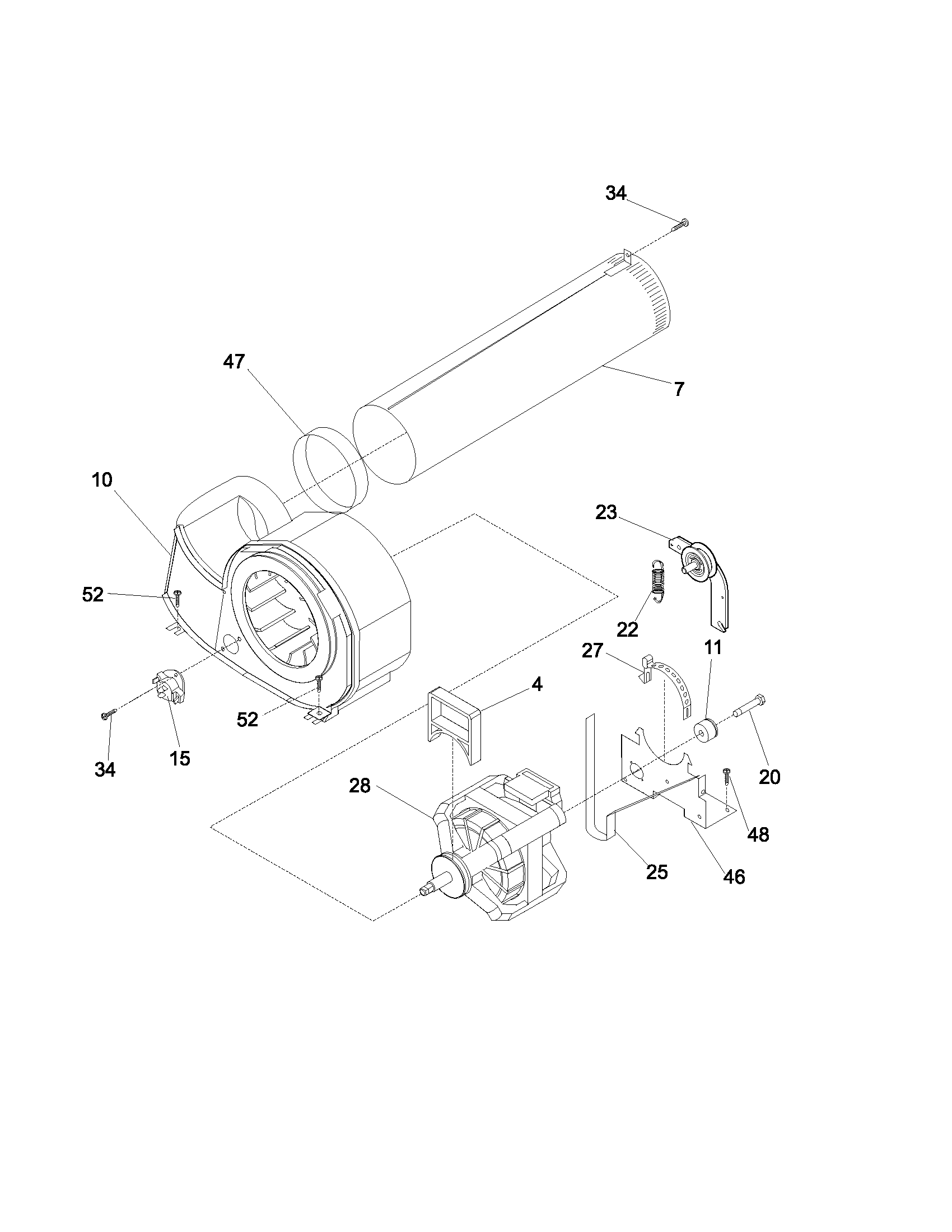

Motor Diagram

Dryer idler spring

Part #131601000
37% OFFMSRP:$32.00

In Stock

Dryer Exhaust Duct Seal


Motor Diagram

Dryer exhaust duct seal

Part #131633300
34% OFFMSRP:$47.00

In Stock

Dryer Safety Thermostat


Cabinet Diagram

Dryer safety thermostat

Part #5308015399
30% OFFMSRP:$160.00

In Stock

Dryer Cabinet Clip


Front Diagram

Dryer cabinet clip

Part #5303281074
6% OFFMSRP:$11.00

In Stock

Symptoms common to all dryers

Choose a symptom to see related dryer repairs.

Main causes: door switch failure, lack of power, broken belt, blown thermal fuse, bad drive motor, control system failure
Main causes: clogged exhaust system, heating system failure, deposits on moisture sensor, control system failure
Main causes: lack of electrical power, bad power cord, wiring failure, bad control board, blown thermal fuse, bad door switch
Main causes: bad drum support roller, damaged idler pulley, broken blower fan blade, worn drum glide bearing, bad drive motor
Main causes: bad gas valve coils, broken heating element, tripped safety thermostat or fuse, bad operating thermostat, control failure
Main causes: bad timer or electronic control board, door switch failure
Main causes: clogged exhaust vent, bad motor relay, loose dryer door catch, bad door switch, control system failure, faulty drive motor
Main causes: damaged door strike, worn door catch

Repair guides common to all dryers

These step-by-step repair guides will help you safely fix what’s broken on your dryer.

August 1, 2014
By Lyle Weischwill
How to replace a dryer blower wheel

A rattling noise or lack of air flow through the dryer could indicate that the blower wheel is damaged. Follow the steps in this repair guide to replace the blower wheel in your dryer.

Repair difficulty
Time required
 60 minutes or less
August 1, 2014
By Lyle Weischwill
How to install a dryer gas valve coil kit

If the dryer heats initially but then stops heating, the problem is usually the gas valve coils. This step-by-step guide explains how to replace the gas valve coils in a gas dryer.

Repair difficulty
Time required
 90 minutes or less
August 1, 2014
By Lyle Weischwill
How to replace a dryer drum glide bearing

Replace the drum glide bearing if the drum makes a scraping noise and doesn't turn smoothly. Just follow the steps in this repair guide.

Repair difficulty
Time required
 60 minutes or less

Articles and videos common to all dryers

Use the advice and tips in these articles and videos to get the most out of your dryer.

August 4, 2020

Dryer not drying clothes? Could be fabric softener!

By Sears PartsDirect staff

If your dryer isn't drying clothes, it could be the lint screen is clogged with fabric softener. See how to wash the lint filter to get your dryer drying again.

October 26, 2016

How to repair broken or damaged wires video

By Sears PartsDirect staff

Learn how to repair broken, frayed or damaged wires in your appliances.

February 23, 2015

Where to find the model number on a kitchen or laundry appliance

By Sears PartsDirect staff

See where you should look when trying to locate the model tag on a kitchen or laundry appliance.
