Frigidaire FRS6HR45KS0 refrigerator Parts

On the Frigidaire FRS6HR45KS0, defrosting is automatic: the refrigerator periodically enters a defrost cycle (about 30 minutes), the compressor and fans stop, and the defrost heater melts frost so water can drain to the pan. For model-specific operating details, see the FRS6HR45KS0 use & care manual.

How the defrost cycle works on FRS6HR45KS0

During a normal defrost cycle, you may notice changes that are expected:

• The compressor shuts off temporarily.
• Airflow from the evaporator fan may stop.
• You may hear sizzling or hissing as water drips onto the defrost heater.
• After defrosting, you may hear popping or clicking as components cycle back on.
• Melted frost drains to the drain pan (the pan is not removable).

If you need to manually defrost (heavy frost or airflow blocked)

If frost buildup is severe (for example, the freezer back wall is packed with frost and airflow is weak), you can do a manual defrost to restore cooling while you troubleshoot the cause.

1. Move food to a cooler.
2. Turn the unit off using the temperature controls (set both controls to 0) and unplug the power cord.
3. Leave doors open; place towels to catch water.
4. Let ice melt naturally; do not chip ice with sharp tools.
5. Dry the compartment, restart, and allow 8 to 12 hours to cool before reloading.

When defrost becomes a repair issue

If frost returns quickly (within days) or the refrigerator stops cooling, a defrost system problem is likely. Common components involved include:

Symptom	What it often points to	What to check next
Thick frost on freezer back panel	Defrost system not melting frost	Defrost heater, defrost thermostat, control/timer
Warm fridge, freezer still cold-ish	Airflow blocked by frost	Evaporator fan operation, vents, frost pattern
Repeated icing after door left ajar	Moist air entering	Door gasket seal and door alignment

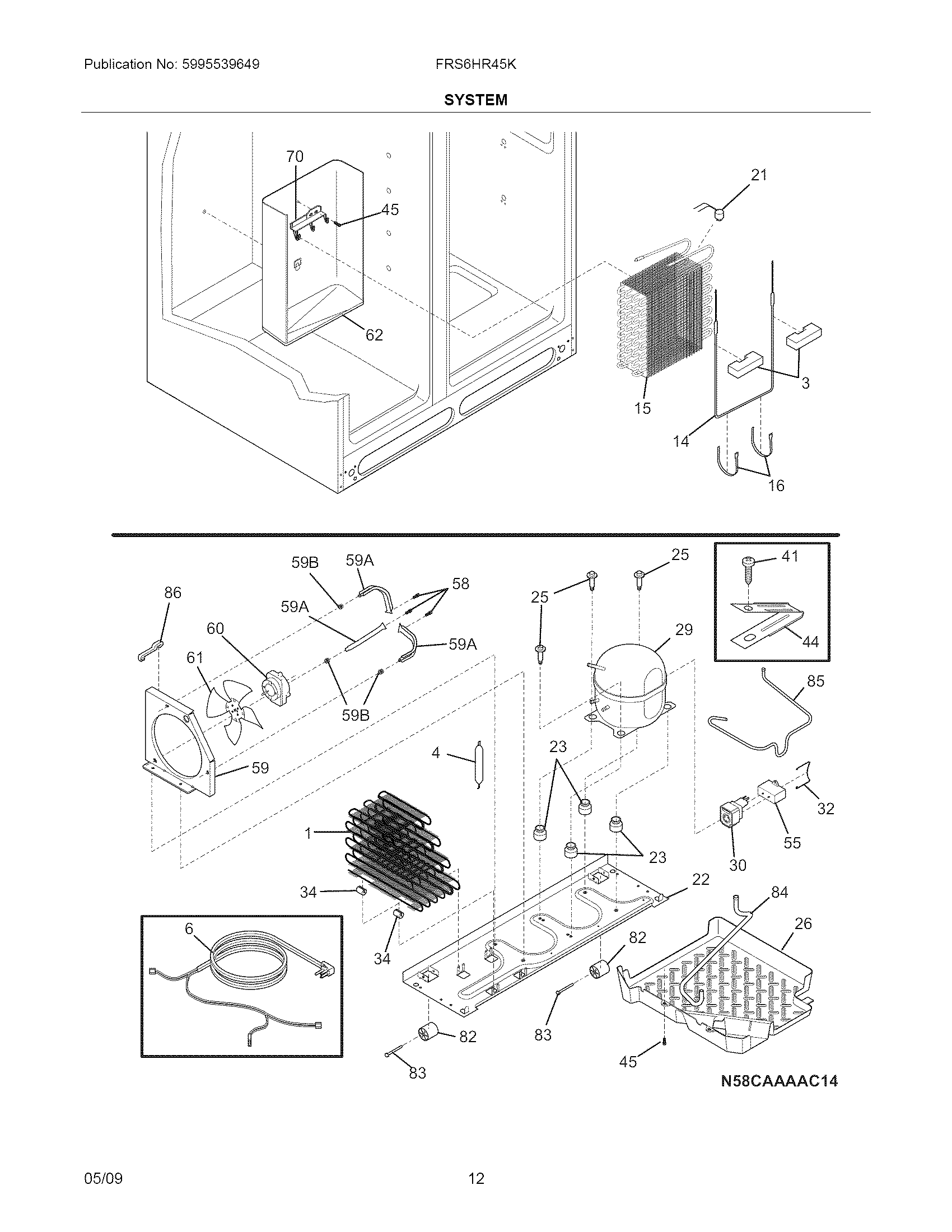

For this model, a common defrost component is the refrigerator defrost heater 242044113.

Why it matters

A working defrost system keeps air moving across the evaporator coil. When frost blocks airflow, temperatures rise, the compressor runs longer, and food can spoil.

Last updated: January 2026

On the Frigidaire FRS6HR45KS0, the most reliable “reset” is a power reset: unplug the refrigerator (or switch off the breaker) for about 5 minutes, then restore power and allow the controls to reboot. For control-related issues, use the cooling system On/Off button described in the FRS6HR45KS0 use & care manual.

Reset options for FRS6HR45KS0

Use the option that matches what you are trying to fix.

• Power reset (recommended first step): Unplug for ~5 minutes, then plug back in.
• Cooling system On/Off (control reset): Press and hold the On/Off button on the temperature control panel for 3 seconds to turn cooling off; press and hold 3 seconds again to turn cooling back on.
• Filter status reset (after changing filter): Press and hold FILTER RESET for 10 to 15 seconds until the indicator lights flash.
• Door ajar alarm reset: Close the door; the alarm resets when the door is fully shut.

Step-by-step: power reset

1. Move any items that could block the doors from closing.
2. Unplug the refrigerator (or turn off the circuit breaker).
3. Wait 5 minutes.
4. Restore power.
5. Wait 8 to 12 hours for full cool-down after a full shutdown, then fine-tune temperatures if needed.

What “reset” does (and does not) do

Reset type	What it helps	What it won’t fix
Power reset	Control glitches, odd display behavior, temporary dispenser issues	Failed parts, sealed system problems
Cooling system On/Off	Turning cooling off/on without unplugging	Power supply issues, wiring faults
Filter reset	Clears filter status light after replacement	Low water pressure, clogged valve

Why it matters

A reset clears temporary control logic issues and restarts the cooling and dispenser controls. If symptoms return quickly, we treat it as a troubleshooting clue that a component (like a filter or valve) may need attention.

If the issue is water or ice related after a reset

If water flow is slow, tastes off, or ice production is poor, a clogged filter is a common cause. For this model, check and replace the Frigidaire puresource plus refrigerator water filter WFCB if it is due, then run water for several minutes to purge air.

Last updated: January 2026

On the Frigidaire FRS6HR45KS0, beeping is usually an alarm condition, not automatically a failed part. This model uses audible tones for a door-ajar alarm (a 5-beep sequence when a door is left open about 5 minutes) and a 3-beep power-on reset after a power loss or low-voltage event; see the alarm chart in the FRS6HR45KS0 use & care manual.

What the beeps mean on FRS6HR45KS0

Match the pattern you hear:

• Door ajar alarm: you hear 5 beeps in a row, then it stops; that 5-beep sequence repeats about once every minute until the door is closed
• Power-on reset: you hear 3 beeps after a power interruption or low voltage
• No consistent pattern: verify doors are fully closed and temperatures are stable; then consider a control or sensor issue

Quick checks we recommend first

These steps fix most beeping complaints without replacing parts:

• Close both doors firmly; reopen and re-close to ensure the door switch resets
• Check for food packages, bins, or shelves preventing a full close
• Wipe the gasket and cabinet sealing surface; residue can hold a door slightly open
• Confirm the refrigerator is level and slightly tilted back so doors self-close
• If the beeping started after an outage, allow several hours for temperatures to recover

When a door gasket is the likely cause

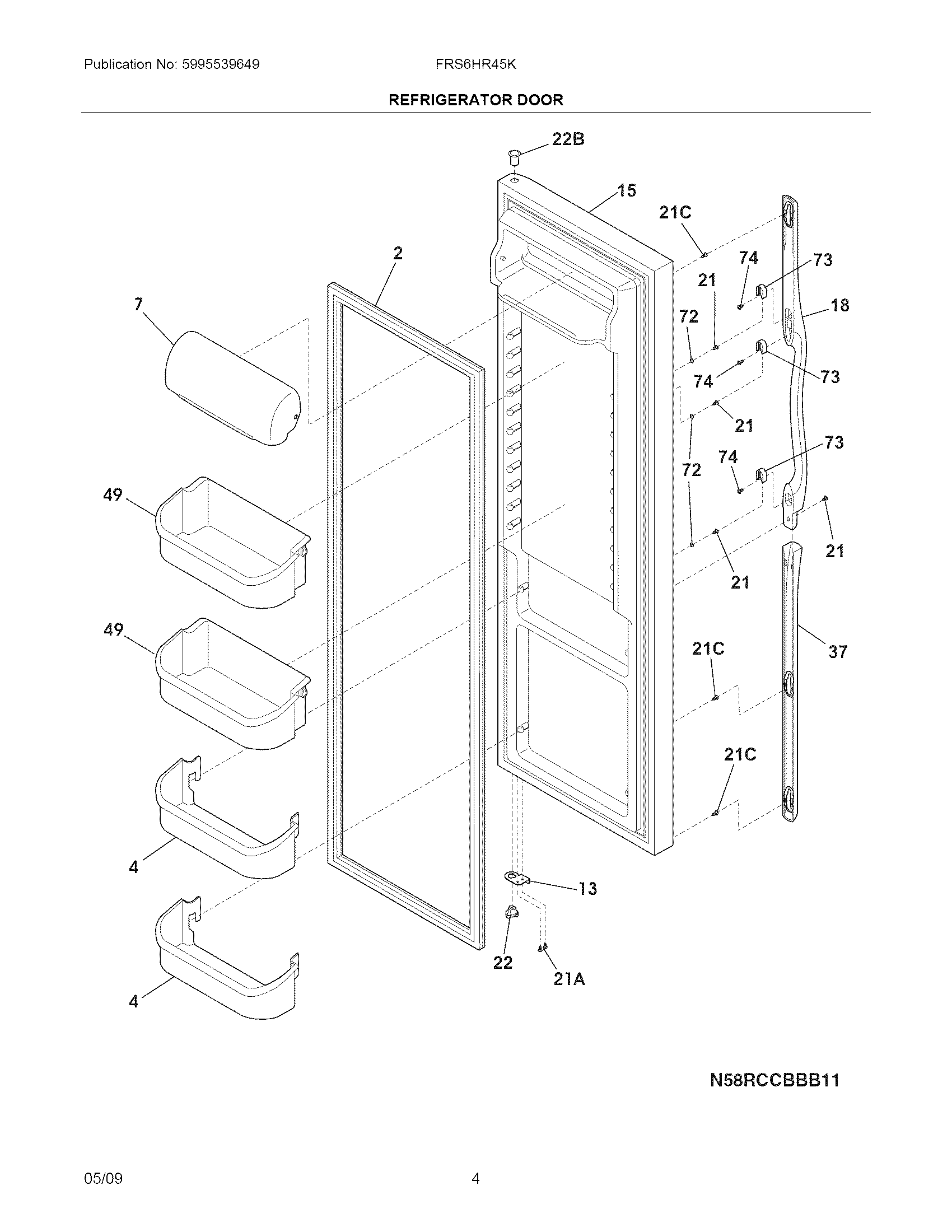

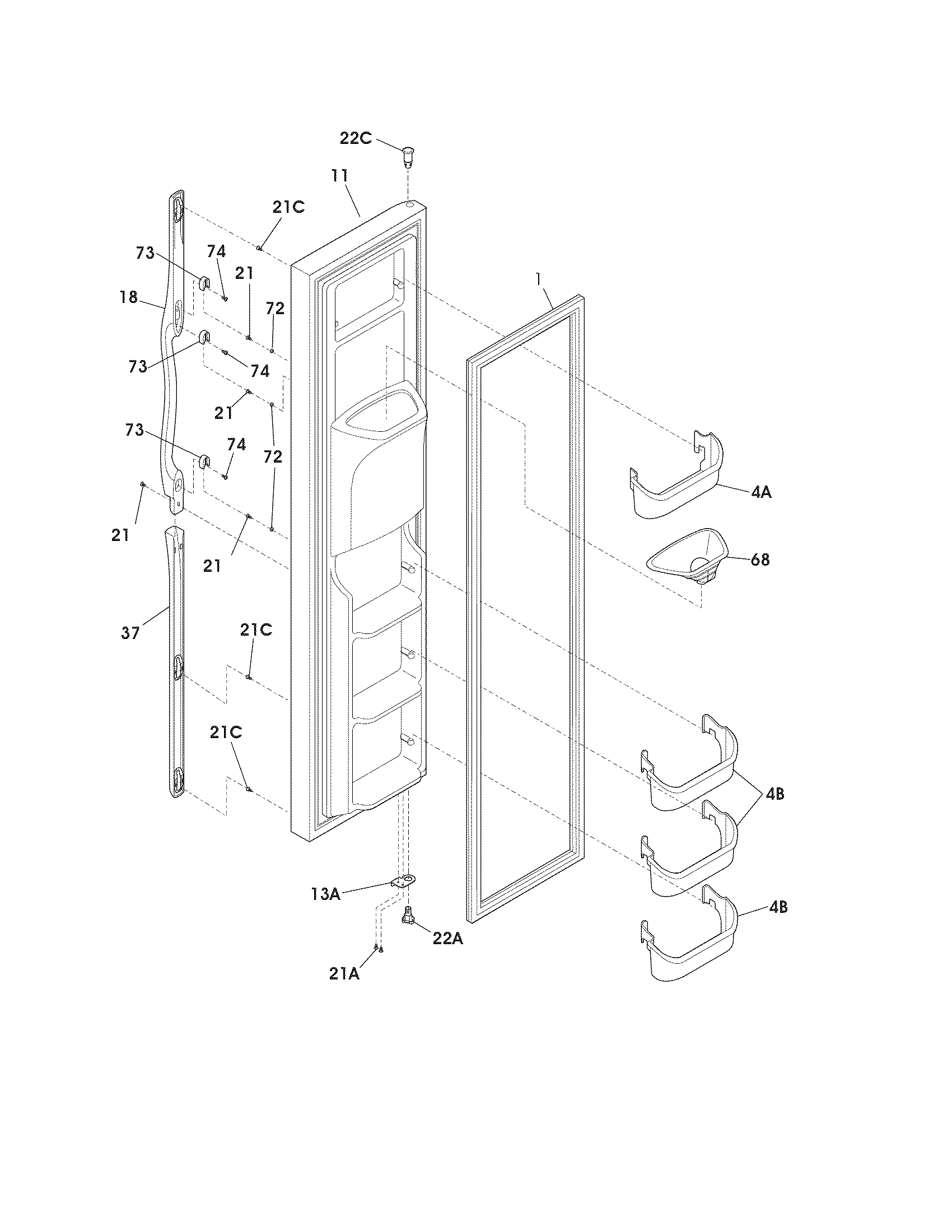

If the beeps match the door-ajar alarm but the doors look shut, a poor seal is a common cause. This model can use different gasket colors depending on the door finish.

If your gasket color is	Compatible replacement
White	Refrigerator door gasket (white) 241786013
Dark/black/gray	Frigidaire refrigerator freezer door gasket, black 241786014

Why it matters

A door that is slightly open can trigger alarms, warm the fresh food and freezer sections, increase frost, and make the compressor run longer. Fixing the seal or obstruction quickly helps protect food and reduce energy use.

Last updated: January 2026
