KitchenAid KERC601HWH1 electric freestanding range

KitchenAid KERC601HWH1 electric freestanding range Parts

Here are the diagrams and repair parts for KitchenAid KERC601HWH1 electric freestanding range, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for KERC601HWH1 Ranges

  • Range Surface Element Control Switch for KitchenAid KERC601HWH1 - Part 8203536

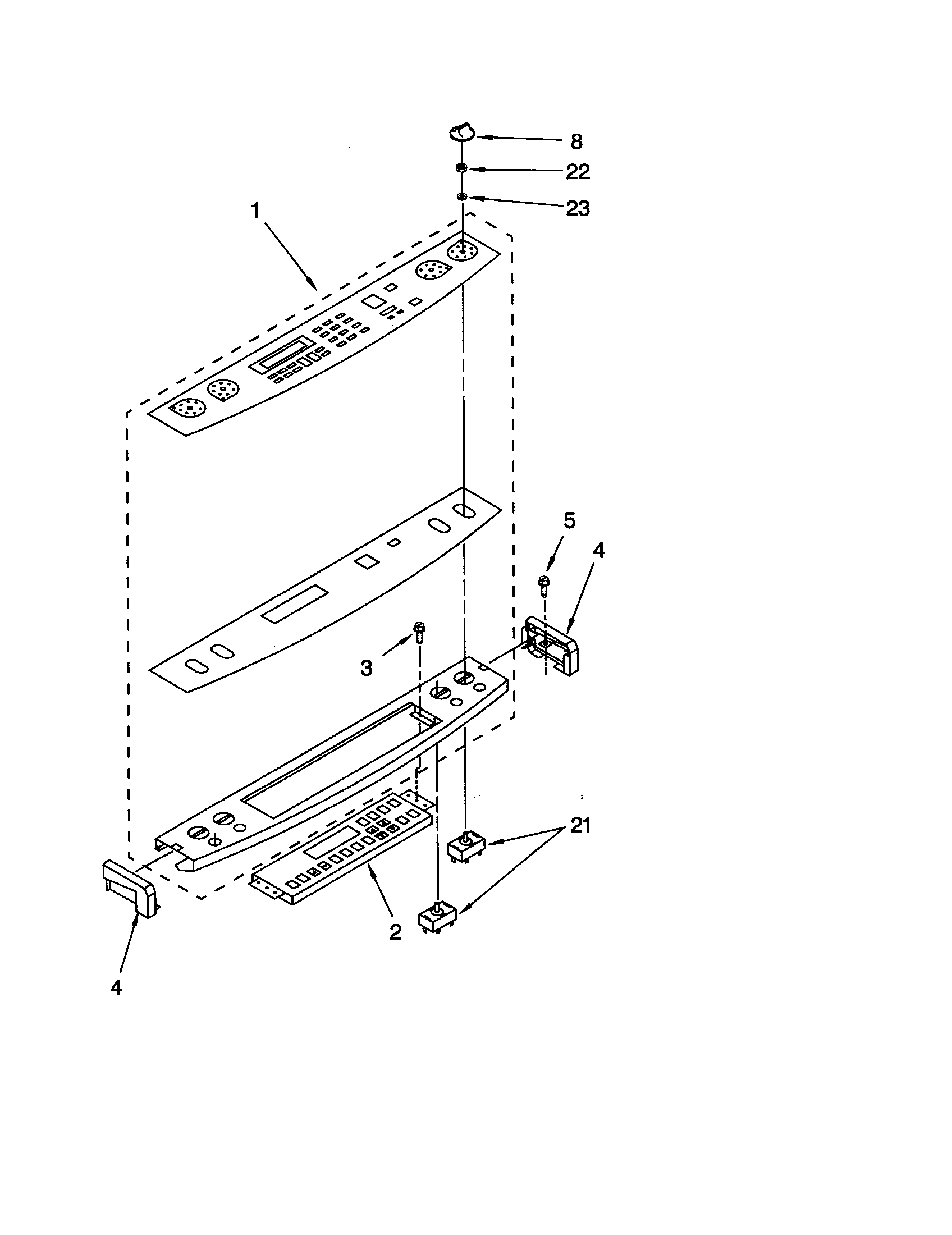

    Control panel diagram

    Range Infinite Switch

    Part #9751758

    Replaced by #8203536

    Info Icon
    Manufacturer substitution
    This part replaces 9751758. Substitute parts can look different from the original.
    In Stock
    $120.82
    9% OFF Phone Price : $132.82Info Icon
    Minus Item
    Qty
    Plus Item
  • Oven Liner Touch-up Paint, 2-oz for KitchenAid KERC601HWH1 - Part 8212471

    #NI

    All parts diagram

    Paint Bz

    Part #242756

    Replaced by #8212471

    Info Icon
    Manufacturer substitution
    This part replaces 242756. Substitute parts can look different from the original.
    In Stock
    $100.19
    Minus Item
    Qty
    Plus Item
  • Cooktop Scraper for KitchenAid KERC601HWH1 - Part WA906B

    #NI

    All parts diagram

    Scraper

    Part #3183488

    Replaced by #WA906B

    Info Icon
    Manufacturer substitution
    This part replaces 3183488. Substitute parts can look different from the original.
    This item is not returnable
    Get free shipping with Automatic Reorder
    In Stock
    $7.41
    Minus Item
    Qty
    Plus Item
  • Refrigerator Screw for KitchenAid KERC601HWH1 - Part WPW10001180

    Door and drawer diagram

    Screw

    Part #9781072

    Replaced by #WPW10001180

    Info Icon
    Manufacturer substitution
    This part replaces 9781072. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.33
    Minus Item
    Qty
    Plus Item
  • Appliance Porcelain Touch-up Paint, 1-qt (white) for KitchenAid KERC601HWH1 - Part 799344

    #NI

    All parts diagram

    Paint 1qt

    Part #799344

    Replaced by #799344

    Info Icon
    Manufacturer substitution
    This part replaces 799344. Substitute parts can look different from the original.
    In Stock
    $131.86
    8% OFF Phone Price : $143.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Sears Appliance Touch-up Paint, 0.6-oz (new Avocado) for KitchenAid KERC601HWH1 - Part 72109

    #NI

    All parts diagram

    Touchup Na

    Part #72109

    Replaced by #72109

    Info Icon
    Manufacturer substitution
    This part replaces 72109. Substitute parts can look different from the original.
    In Stock
    $16.59
    11% OFF Phone Price : $18.59Info Icon
    Minus Item
    Qty
    Plus Item
  • Insert Knob for KitchenAid KERC601HWH1 - Part WP9750372FW

    Control panel diagram

    Cooktop Control Knob (white)

    Part #9750372FW

    Replaced by #WP9750372FW

    Info Icon
    Manufacturer substitution
    This part replaces 9750372FW. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $43.59
    Minus Item
    Qty
    Plus Item
  • Laundry Appliance Screw, #10-16 X 1-1/2-in for KitchenAid KERC601HWH1 - Part 340184

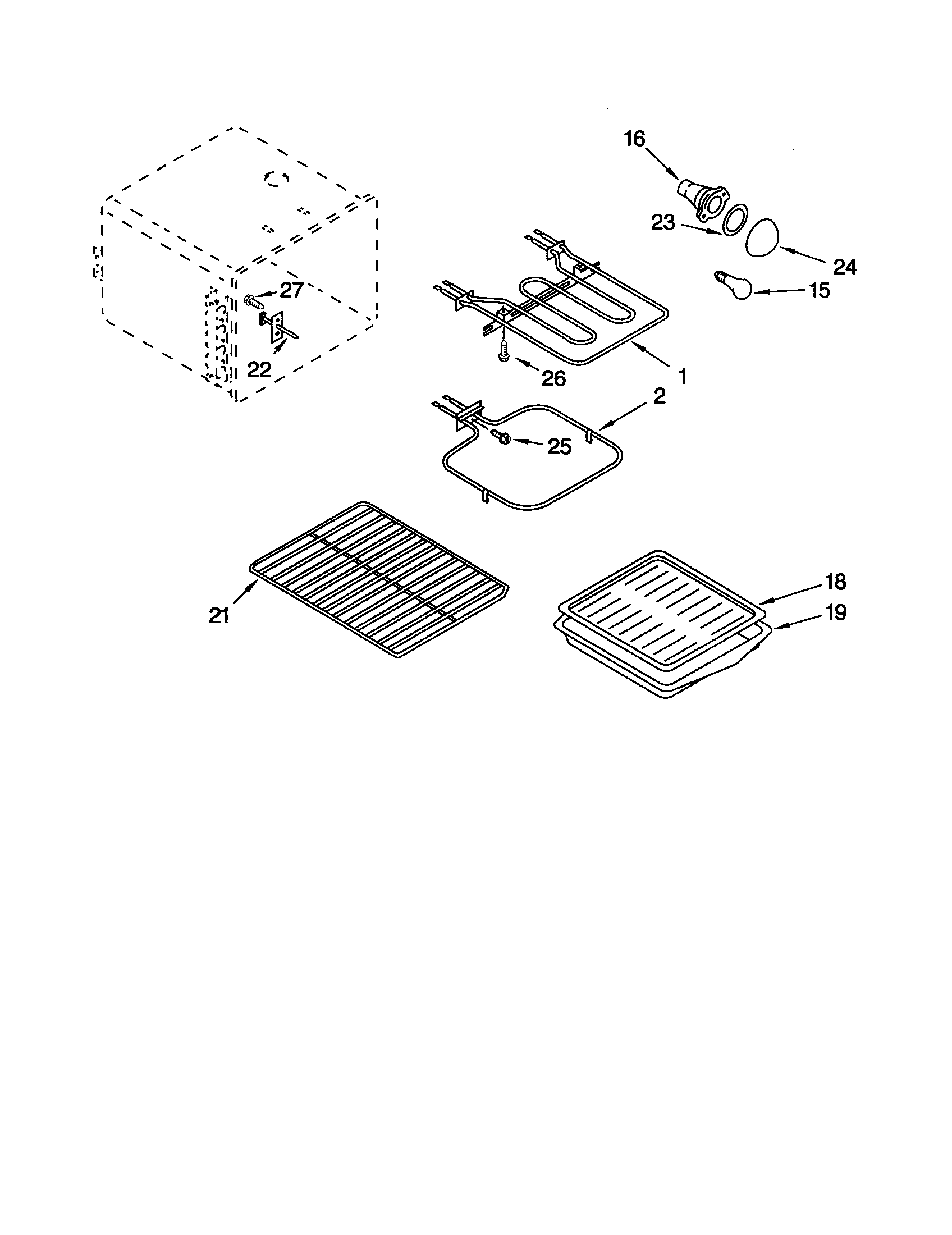

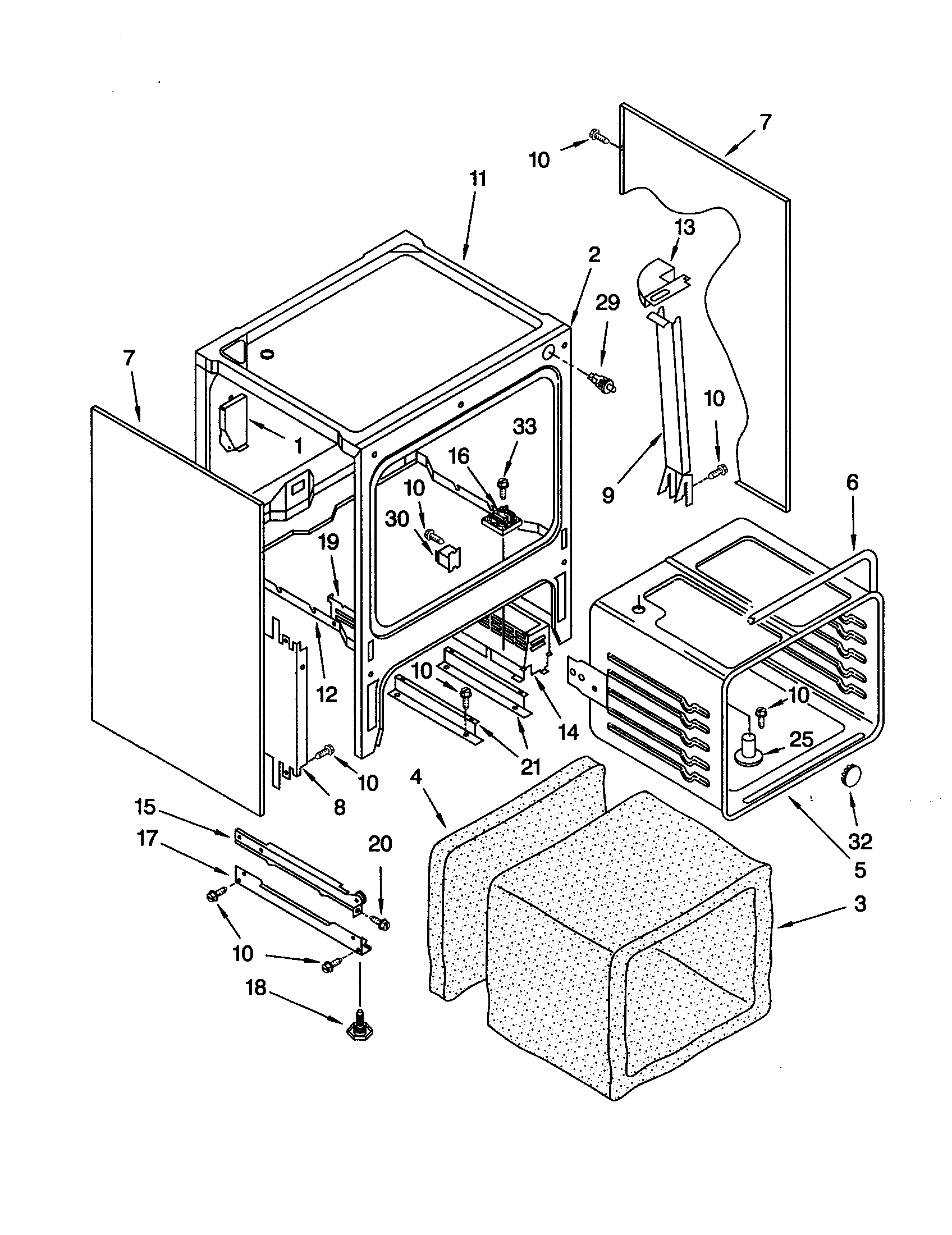

    Oven diagram

    Range Screw, #10-16 X 1.5-in

    Part #340184

    Replaced by #340184

    Info Icon
    Manufacturer substitution
    This part replaces 340184. Substitute parts can look different from the original.
    In Stock
    $38.25
    Minus Item
    Qty
    Plus Item
  • Dryer Terminal Block Hex Nut for KitchenAid KERC601HWH1 - Part WP112432

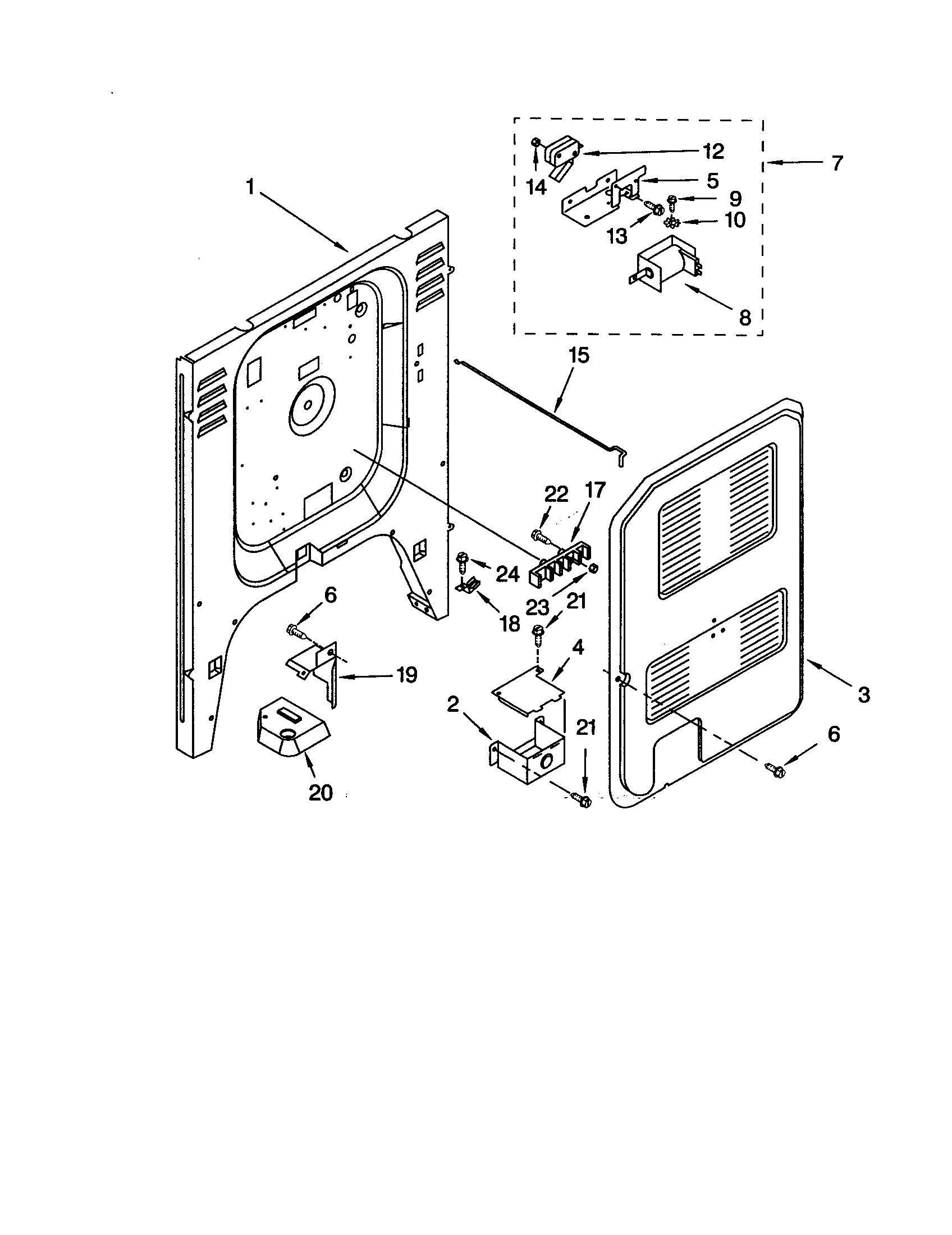

    Rear chassis diagram

    Nut

    Part #112432

    Replaced by #WP112432

    Info Icon
    Manufacturer substitution
    This part replaces 112432. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.88
    17% OFF Phone Price : $5.88Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Radiant Surface Element, 8-in for KitchenAid KERC601HWH1 - Part W10823697

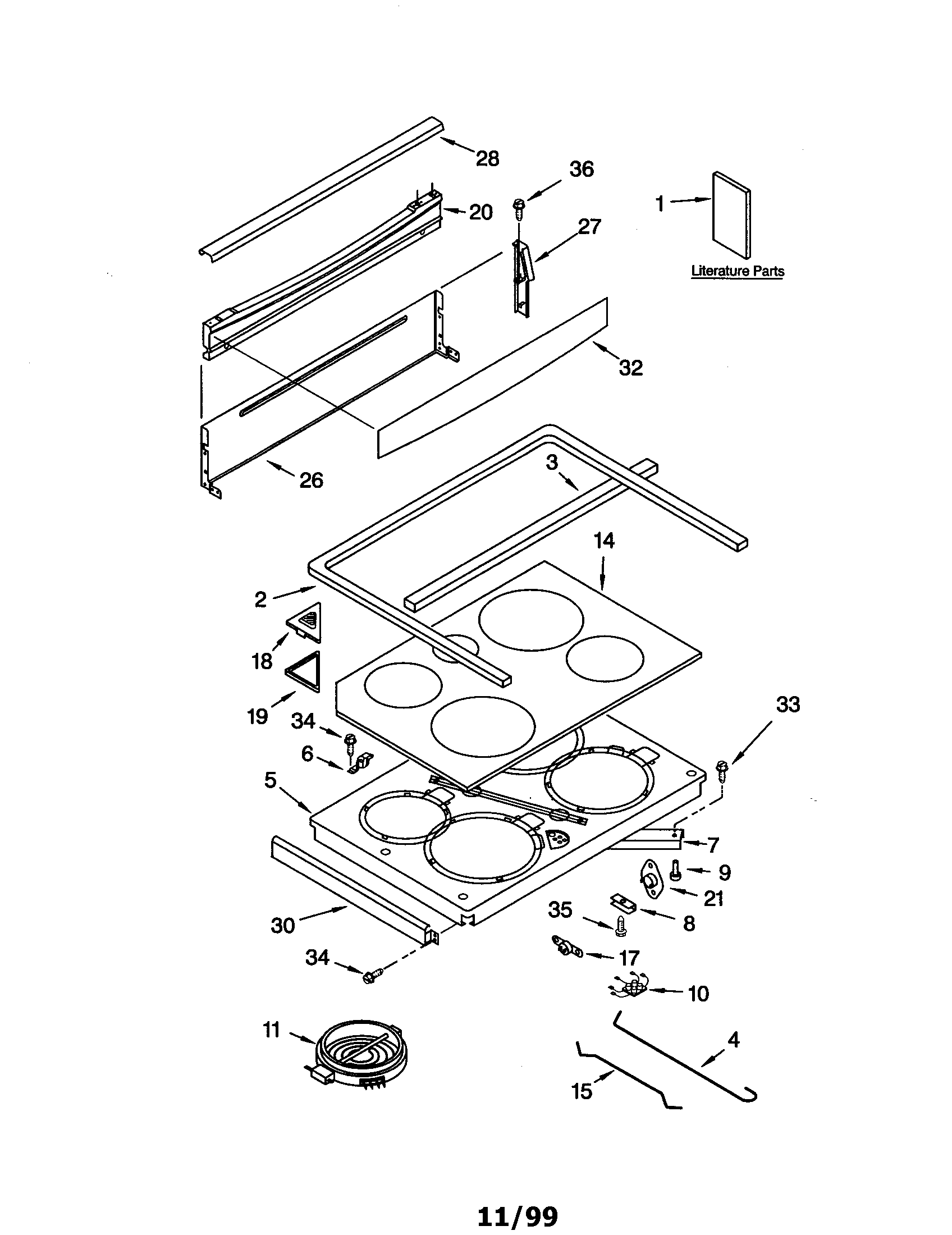

    Cooktop diagram

    Surface Element

    Part #9753997

    Replaced by #W10823697

    Info Icon
    Manufacturer substitution
    This part replaces 9753997. Substitute parts can look different from the original.
    In Stock
    $190.16
    6% OFF Phone Price : $202.16Info Icon
    Minus Item
    Qty
    Plus Item
