Model # FGP305BW0 Official Roper 30" gas freestanding range

Here are the diagrams and repair parts for Official Roper FGP305BW0 30" gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 117 parts  |

Insulation 261514

#NI

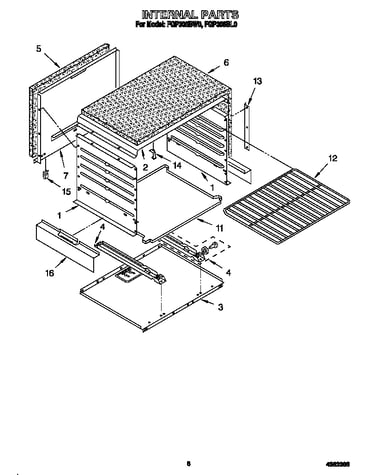

All parts diagram

Insulation

Part #261514

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 261514. Substitute parts can look different from the original.
$37.65
12% OFF Phone Price : $42.65
In Stock
Insulation 240132

#NI

All parts diagram

Insulation

Part #240132

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 240132. Substitute parts can look different from the original.
$37.65
12% OFF Phone Price : $42.65
In Stock
Igniter Switch 4157180
#31

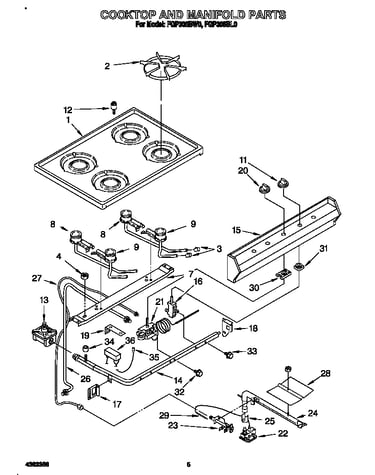

Cooktop and manifold diagram

Igniter switch

Part #4157180

Replaced by #WP4157180

?
Manufacturer substitution
This part replaces 4157180. Substitute parts can look different from the original.
$47.09
10% OFF Phone Price : $52.09
In Stock
Burner 4363106
#8

Cooktop and manifold diagram

Burner

Part #4363106

The manufacturer no longer makes this part, and there's no substitute part

Aluminum Foil 241430

#NI

All parts diagram

Aluminum foil

Part #241430

The manufacturer no longer makes this part, and there's no substitute part

Bumper, Cooktop (2) 4315408
#27

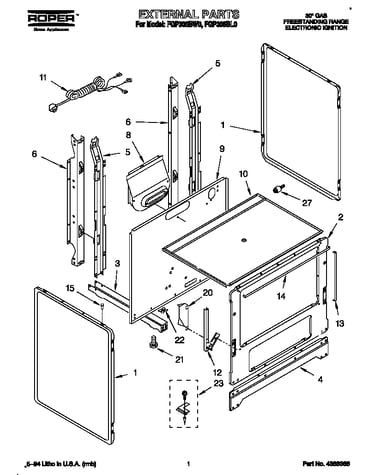

External diagram

Bumper, cooktop (2)

Part #4315408

The manufacturer no longer makes this part, and there's no substitute part

Almond 4320816
#18B

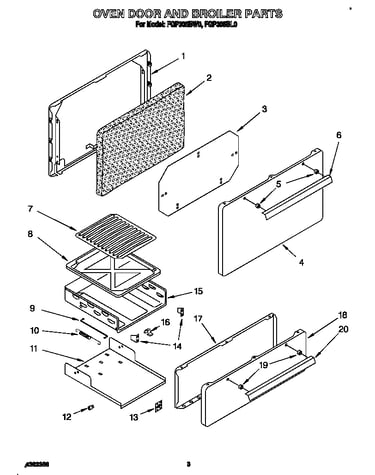

Oven door and broiler diagram

Almond

Part #4320816

The manufacturer no longer makes this part, and there's no substitute part

Front Frame 4321257
#2

External diagram

Front frame

Part #4321257

The manufacturer no longer makes this part, and there's no substitute part

Regulator 4157084
#13

Cooktop and manifold diagram

Regulator

Part #4157084

The manufacturer no longer makes this part, and there's no substitute part

Locator Stud (2), Stud Screw (2) 4315409
#27A

External diagram

Locator stud (2), stud screw (2)

Part #4315409

The manufacturer no longer makes this part, and there's no substitute part
