Bosch DHD905AUC downdraft ventilation system Parts
Here are the diagrams and repair parts for Bosch DHD905AUC downdraft ventilation system, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for DHD905AUC Downdraft Ventilation System

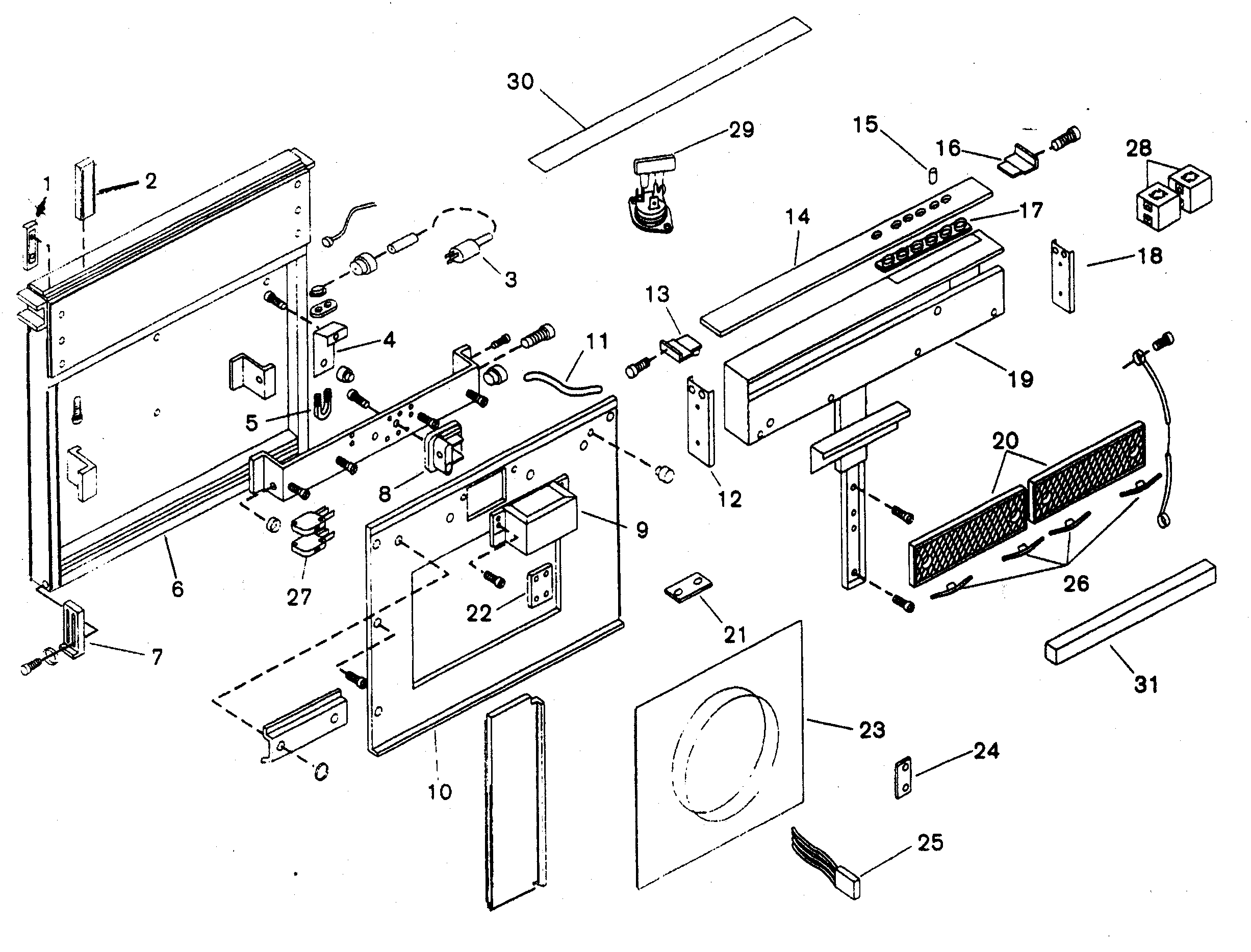

Down draft assy diagram
Box Cover
Part #840028
The manufacturer no longer makes this part, and there's no substitute part

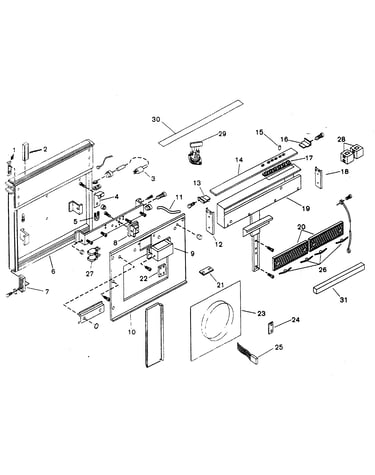

Down draft assy diagram
Crank
Part #840023
The manufacturer no longer makes this part, and there's no substitute part
Down draft assy diagram
Limit Switch
Part #840049
The manufacturer no longer makes this part, and there's no substitute part
Down draft assy diagram
Airbox Cover
Part #840027
The manufacturer no longer makes this part, and there's no substitute part
Down draft assy diagram
Endcap, R
Part #840021
The manufacturer no longer makes this part, and there's no substitute part
Down draft assy diagram
Slidestrip
Part #840037
The manufacturer no longer makes this part, and there's no substitute part
Down draft assy diagram
Interferen
Part #840051
The manufacturer no longer makes this part, and there's no substitute part
Down draft assy diagram
Wire Plug
Part #840043
The manufacturer no longer makes this part, and there's no substitute part
Down draft assy diagram
Filter
Part #840030
The manufacturer no longer makes this part, and there's no substitute part
Down draft assy diagram
Chimney Assembly
Part #840007
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your downdraft ventilation systems
Choose a symptom to see related downdraft vent repairs.
Main causes: lack of electrical power, up/down activation switch failure, bad vent gear motor…
Main causes: clogged grease filters, air duct problems, fan motor failure, broken blower wheel…
Main causes: electrical power failure, up/down activation switch problems, vent gear motor failure…
Main causes: fan control switch failure, bad blower fan motor, broken blower wheel, wiring failure…
Main causes: problems with the vent limit switches, up/down activation switch failure…
Most common repair guides to help fix your downdraft ventilation systems
These step-by-step repair guides will help you safely fix what’s broken on your downdraft vent.
How to replace a downdraft vent up/down switch
The up/down switch starts the gear motor to raise and lower the air vent. Replace the up/down switch if defective.…
Repair time and Difficulty
15 minutes or less
How to replace a downdraft vent gear motor
The gear motor raises and lowers the air vent when you push the activating switch. Replace the gear motor if defective.…
Repair time and Difficulty
15 minutes or less
How to replace a downdraft vent fan control switch
The fan control switch activates the blower motor and controls the fan speed. Replace the fan control switch if it's not…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your downdraft ventilation systems
Use the advice and tips in these articles to get the most out of your downdraft vent.
Get answers to frequently asked questions about Sears and Sears PartsDirect.…
The most commonly asked questions about downdraft vents are answered by our experts.…
See what to check if you are having a problem with a retractable downdraft vent.…
