Maytag MVWB765FC3 washer Parts

Most Maytag washers last 10 to 13 years with normal household use. For your Maytag MVWB765FC3 top-load washer, consistent maintenance (especially hose care and proper detergent use) is what most directly determines whether you land closer to 10 years or push beyond it; see the MVWB765FC3 owner's manual.

Typical lifespan and what changes it

A washer’s service life is mainly driven by load size, cycle frequency, water quality, and how quickly small issues are corrected.

• Normal use: 10 to 13 years
• Heavy use (large family, daily loads): closer to 10 years
• Light use + good care: often beyond 13 years

Maintenance that extends life (high impact)

These steps match the MVWB765FC3 care guidance and common top-load best practices.

• Replace water inlet hoses every 5 years; inspect for bulges, kinks, cuts, wear, or leaks.
• Use HE detergent and do not exceed the dispenser max line.
• Keep the washer level; an unlevel cabinet increases vibration and wear.
• Avoid chronic overloading; it strains the drive system and suspension.
• Address draining or filling problems early (slow drain, long fill, standing water).

Quick “wear item” timeline

Item	When to check	When to replace
Water inlet hoses	Every few months	Every 5 years
Drain performance	Monthly awareness	When slow/no drain symptoms appear
Suspension/vibration	Any time it bangs/shakes	When out-of-balance becomes frequent

Why it matters

A washer that is maintained tends to fail later and more predictably. For example, replacing inlet hoses on schedule helps prevent sudden leaks, and using the right detergent reduces oversudsing that can lead to poor rinsing and extra mechanical stress.

Last updated: February 2026

The most common Maytag washer problems (including the Maytag MVWB765FC3 top-load washer) are “won’t drain” and “won’t spin,” which usually show up as wet clothes at the end of the cycle. In many cases, the root cause is a drain restriction, a failing drain pump, or a load that is out of balance.

What we check first (fast, no-parts steps)

• Make sure the load is evenly distributed; bulky items can throw off balance and stop or limit spin.
• Verify the drain hose is not kinked, crushed, or shoved too far down the standpipe.
• Confirm both water faucets are fully open; some cycles will not advance correctly with poor fill.
• Run a Rinse & Spin cycle and avoid interrupting the cycle for best results.
• Follow the care and maintenance steps in the MVWB765FC3 owner's manual.

Common symptoms and the most likely causes

Symptom	Most likely cause	What to do next
Won’t drain, water left in tub	Clog in drain path or failing pump	Check hose routing; inspect pump area; replace pump if noisy or weak
Won’t spin, clothes wet	Out-of-balance load, drive/clutch issue	Rebalance load; if grinding or slipping continues, inspect drive components
Loud banging or excessive vibration	Suspension/dampers worn, load issues	Rebalance; inspect suspension parts
Slow fill or no fill	Inlet screens clogged or inlet valve failing	Clean screens; test valve operation

Parts that commonly fix “no drain/no spin” complaints

If basic checks do not solve it, these model-matched parts are frequent fixes:

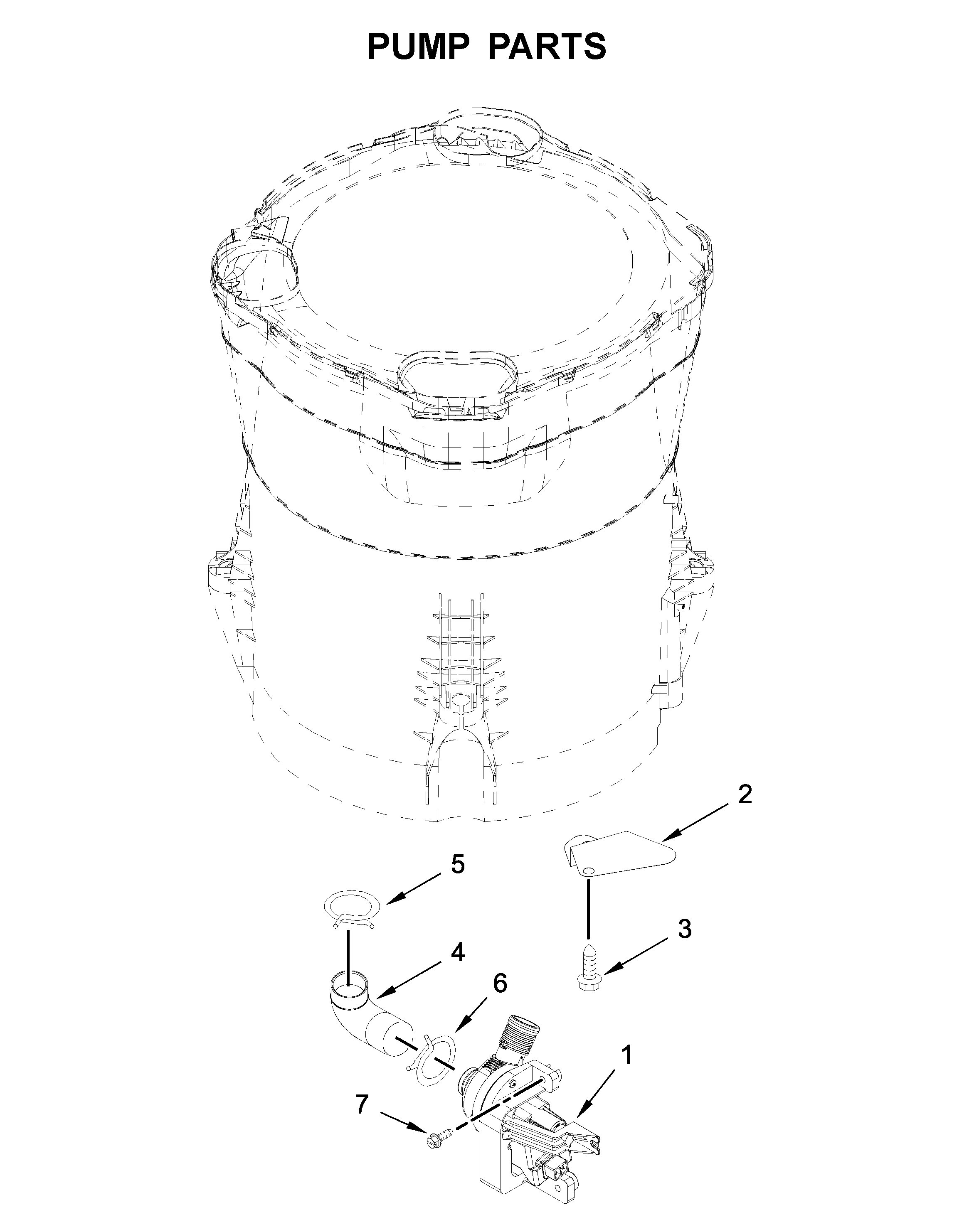

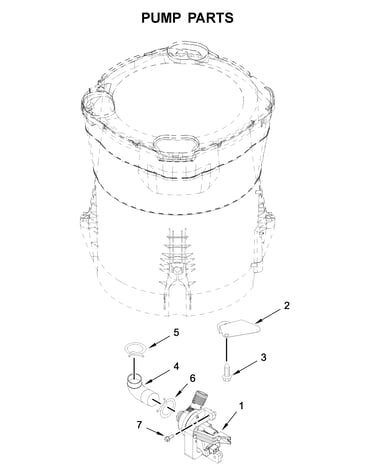

• Washer drain pump W10876600 if the washer hums, drains slowly, or leaves water behind.
• Washer water inlet valve W11165546 if filling is inconsistent or very slow.

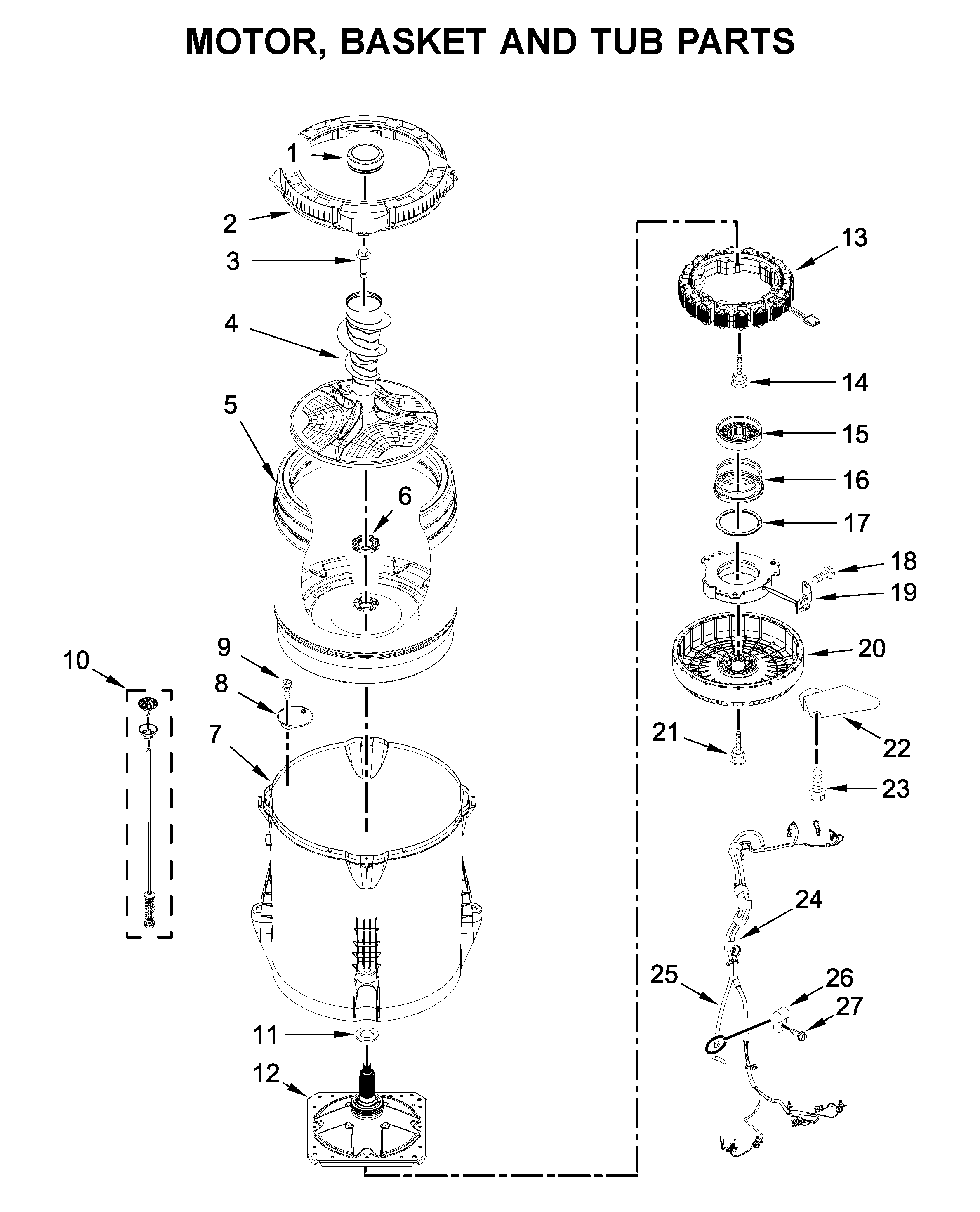

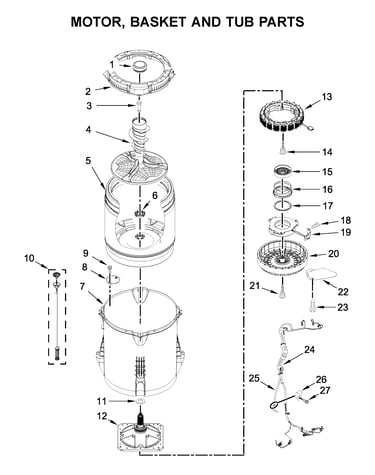

• Clutch assembly W10754448 or drive assembly W11393685 if the basket struggles to spin or you hear slipping/grinding.
• Damper asm-v W11130359 if the tub bounces excessively or the washer repeatedly goes out of balance.

Why it matters

Drain and spin problems are the issues customers notice immediately because they leave clothes wet and can trigger repeated cycle interruptions. Fixing the drain path, pump, or drive system early helps prevent extra wear on the motor, clutch, and suspension.

For display messages or beeping patterns, use the Maytag bravos vmw top load washer error codes reference to match the code to the most likely failure.

Last updated: February 2026

The Maytag MVWB765FC3 is a full-size top-load washer; most washers in this class are about 27 to 28 inches wide. For the exact cabinet dimensions and the clearances Maytag requires for your laundry space, use the measurements listed in the MVWB765FC3 owner's manual.

What “size” usually means (and what to check)

When customers ask for washer size, they typically mean one or more of these:

• Width, height, depth (to confirm fit through doorways and in the laundry area)
• Capacity (cu. ft.) (how much laundry it holds)
• Required clearances (space around the washer for noise reduction and service access)
• Drain standpipe or laundry tub height (to meet installation requirements)

Typical dimensions vs. installation clearances

The manual focuses heavily on installation spacing and drain requirements. Use this quick guide:

Item	What to expect for MVWB765FC3 class washers	Where to confirm
Width	About 27–28 in.	MVWB765FC3 owner's manual
Side clearance	Can be 0 in. tested; 1 in. recommended to reduce noise transfer	MVWB765FC3 owner's manual
Closet depth clearance note	27 in. wide units often call for about 19 in. clearance; 29 in. wide units about 22 in.	MVWB765FC3 owner's manual
Standpipe/laundry tub height	Top must be at least 39 in. high; install no higher than 96 in.	MVWB765FC3 owner's manual

Why it matters

Getting the correct width and required clearances prevents “washer walk,” reduces vibration noise, and avoids installation problems like siphoning or poor draining. It also helps you plan doorway clearance and hookups (hot/cold faucets, outlet location, and drain height).

Last updated: February 2026

For a Maytag MVWB765FC3 washer, it’s worth fixing when the problem is a common service item (drain, fill, lid, suspension) and the total repair cost stays well below the price of a comparable new washer. It’s usually not worth fixing when multiple major drive or tub components are failing at the same time.

Quick way to decide (cost, age, and what failed)

Use these practical checkpoints before you buy parts or schedule service:

• Repair cost target: keep the total repair (parts + labor) under about 50% of replacement cost.
• One failure vs. many: one clear failure is a good repair candidate; repeated breakdowns in a short period point toward replacement.
• Type of failure matters: water-handling and lid issues are typically straightforward; major mechanical failures can be expensive.
• Condition of the tub and basket: rust, severe leaks, or bearing noise often signals a bigger repair.
• Maintenance history: using HE detergent correctly and leaving the lid open between loads helps prevent odor and residue that can lead to performance complaints.

For model-specific safety, maintenance, and care guidance, use the MVWB765FC3 owner’s manual.

Common repairs on this model and what they usually mean

These are examples of repairs that often make sense on the MVWB765FC3 because they address frequent, isolated failures:

Symptom	Likely area	Example part for MVWB765FC3	Repair value
Won’t drain or leaves water	Drain system	Washer drain pump W10876600	Often worth fixing
Won’t fill or fills slowly	Water inlet	Washer water inlet valve W11165546	Often worth fixing
Excessive shaking or banging	Suspension	Damper asm-v W11130359	Often worth fixing
Won’t agitate properly	Agitation/drive	Washer agitator assembly W11550891	Depends on total cost

Why it matters

A targeted repair can extend the life of your Maytag washer and restore cleaning performance without the cost and hassle of replacement. On the other hand, stacking multiple high-cost repairs (especially in the drive system) can quickly exceed the value of the machine.

Helpful next step if you’re seeing an error code

If the washer is displaying a code, match the code to the likely failed system before ordering parts using Maytag bravos vmw top load washer error codes.

Last updated: February 2026
