Kenmore 9114674990 30" radiant slide-in range

Kenmore 9114674990 30" radiant slide-in range Parts

Here are the diagrams and repair parts for Kenmore 9114674990 30" radiant slide-in range, as well as links to manuals and error code tables, if available.

Owner's Manual Icon

Owner’s manual

By Schematic

By Part

SELECT DIAGRAM

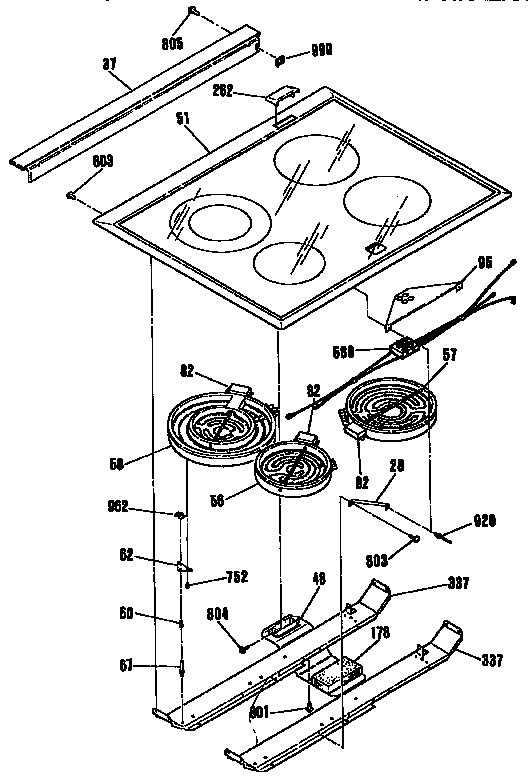

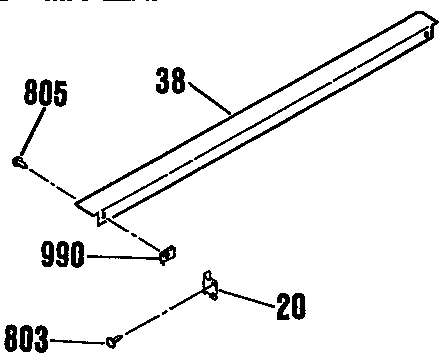

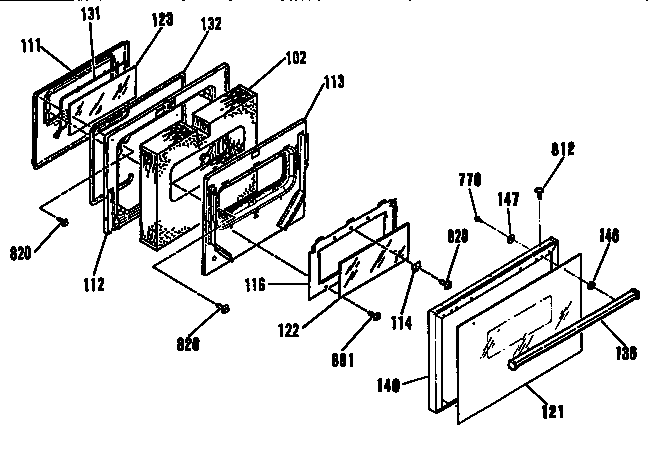

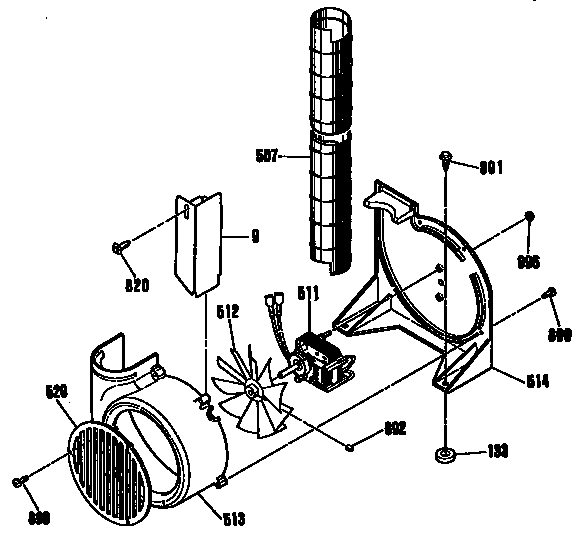

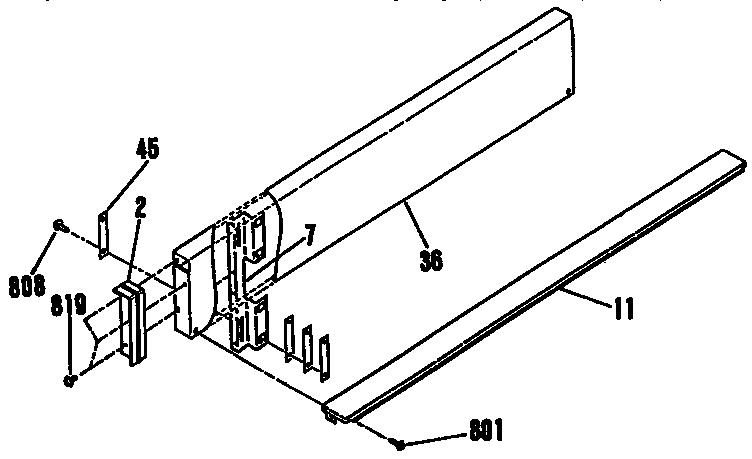

Browse Parts for 9114674990 Ranges

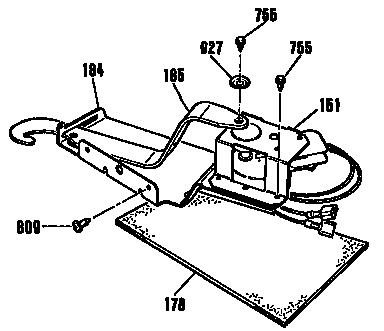

Door lock section diagram
Lock Lever
Part #WB15K5016
In Stock
$66.18
Qty
#NI
All parts diagram
Installation Instructions
Part #SR10056
This item is not returnable
In Stock
$6.13
14% OFF Phone Price : $7.13
Qty
#NI
All parts diagram
Range User's Manual
Part #SR10222
In Stock
$28.73
Qty

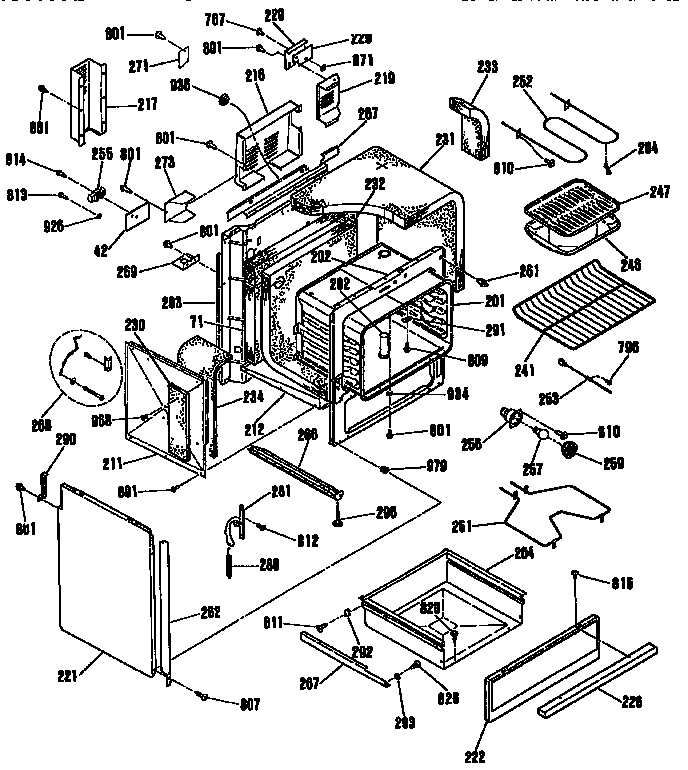

Body section diagram
Body
Part #WB63M0024
Replaced by #WB63K5195
Manufacturer substitution
This part replaces WB63M0024. Substitute parts can look different from the original.
In Stock
$156.42
Qty

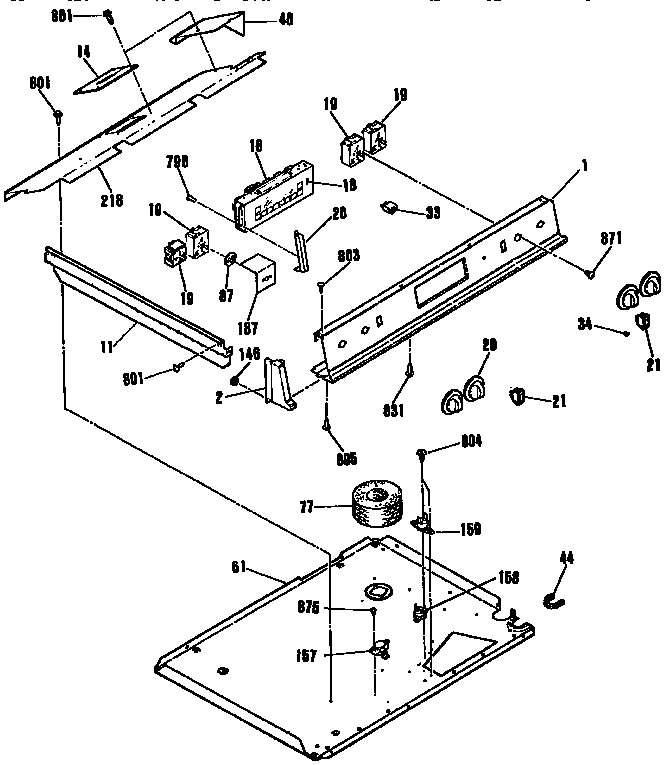

Control panel section diagram
Control
Part #WB23M0024
Replaced by #WB23M24
Manufacturer substitution
This part replaces WB23M0024. Substitute parts can look different from the original.
In Stock
$109.75
10% OFF Phone Price : $121.75
Qty
Body section diagram
Washer
Part #WB01X1260
Replaced by #WB1X1260
Manufacturer substitution
This part replaces WB01X1260. Substitute parts can look different from the original.
In Stock
$31.10
Qty
Body section diagram
Spacer
Part #WB01X1177
Replaced by #WB1X1177
Manufacturer substitution
This part replaces WB01X1177. Substitute parts can look different from the original.
In Stock
$47.64
Qty
Body section diagram
Screw (white)
Part #WB01X1133
Replaced by #WB1K5191
Manufacturer substitution
This part replaces WB01X1133. Substitute parts can look different from the original.
In Stock
$32.52
Qty
Body section diagram
Body
Part #WB63M0058
Replaced by #WB63K5192
Manufacturer substitution
This part replaces WB63M0058. Substitute parts can look different from the original.
In Stock
$156.42
Qty
Body section diagram
Cover
Part #WB02X9152
Replaced by #WB2X9152
Manufacturer substitution
This part replaces WB02X9152. Substitute parts can look different from the original.
In Stock
$32.48
16% OFF Phone Price : $38.48
Qty

Most common symptoms to help you fix your ranges

Choose a symptom to see related range repairs.

Why isn't my range working?

Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…

Why doesn't my range's oven broiler work?

Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…

Why won't my range's oven heat?

Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…

Why can't I unlock my range's oven door?

Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…

Why is my range's oven temperature wrong?

Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…

Why won't my range's oven bake?

Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…

How do I get rid of streaks on my range's oven window?

Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
