Maytag MBR1956KES bottom-mount refrigerator Parts
Here are the diagrams and repair parts for Maytag MBR1956KES bottom-mount refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual

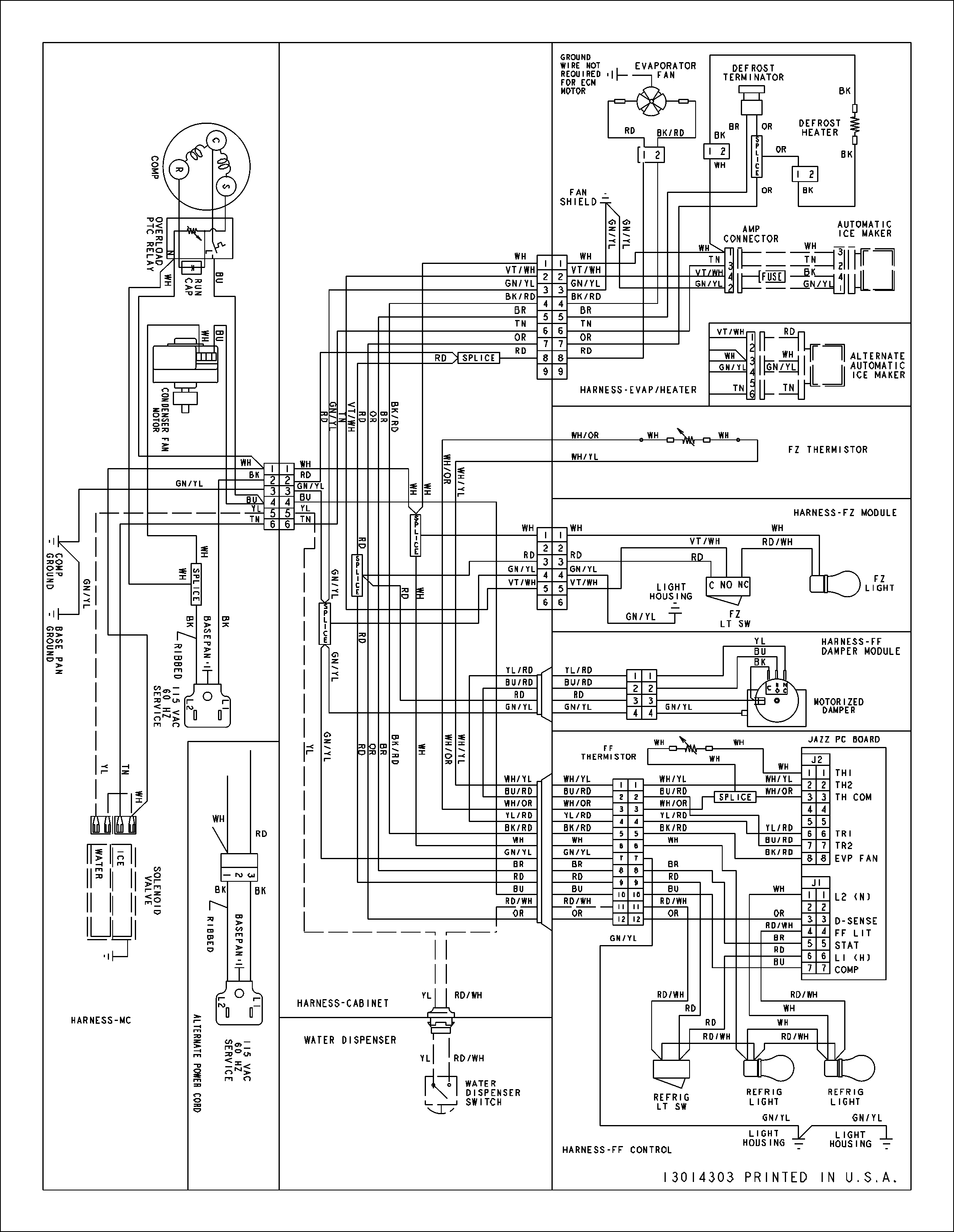

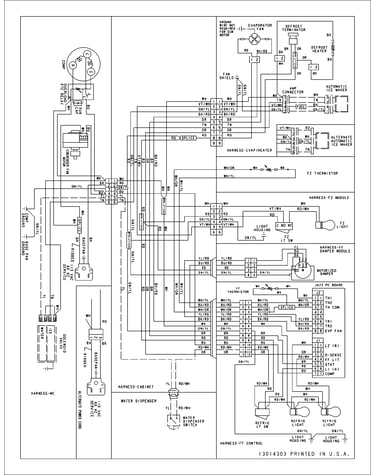

Error CodesBy Schematic
By Part

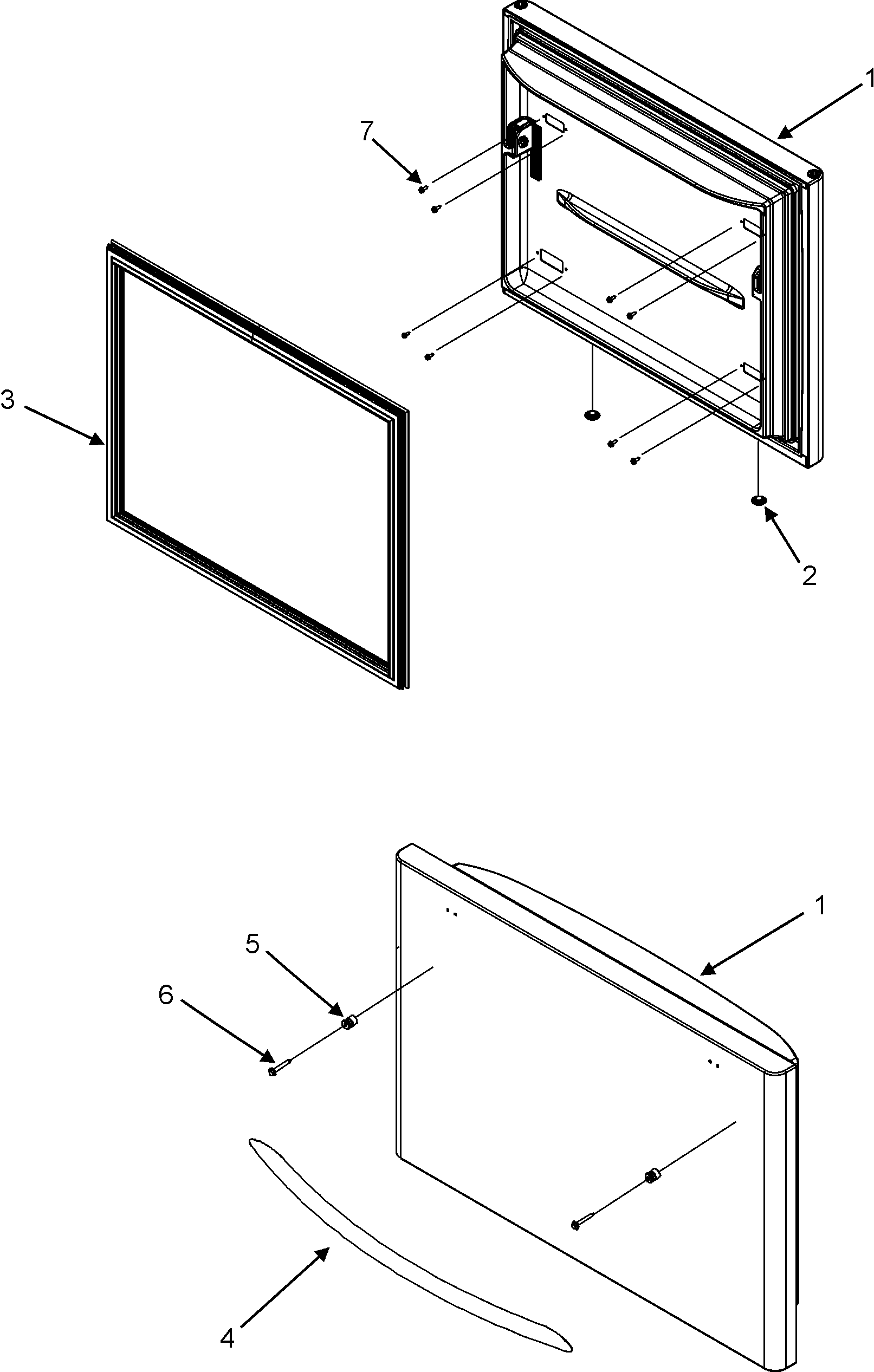

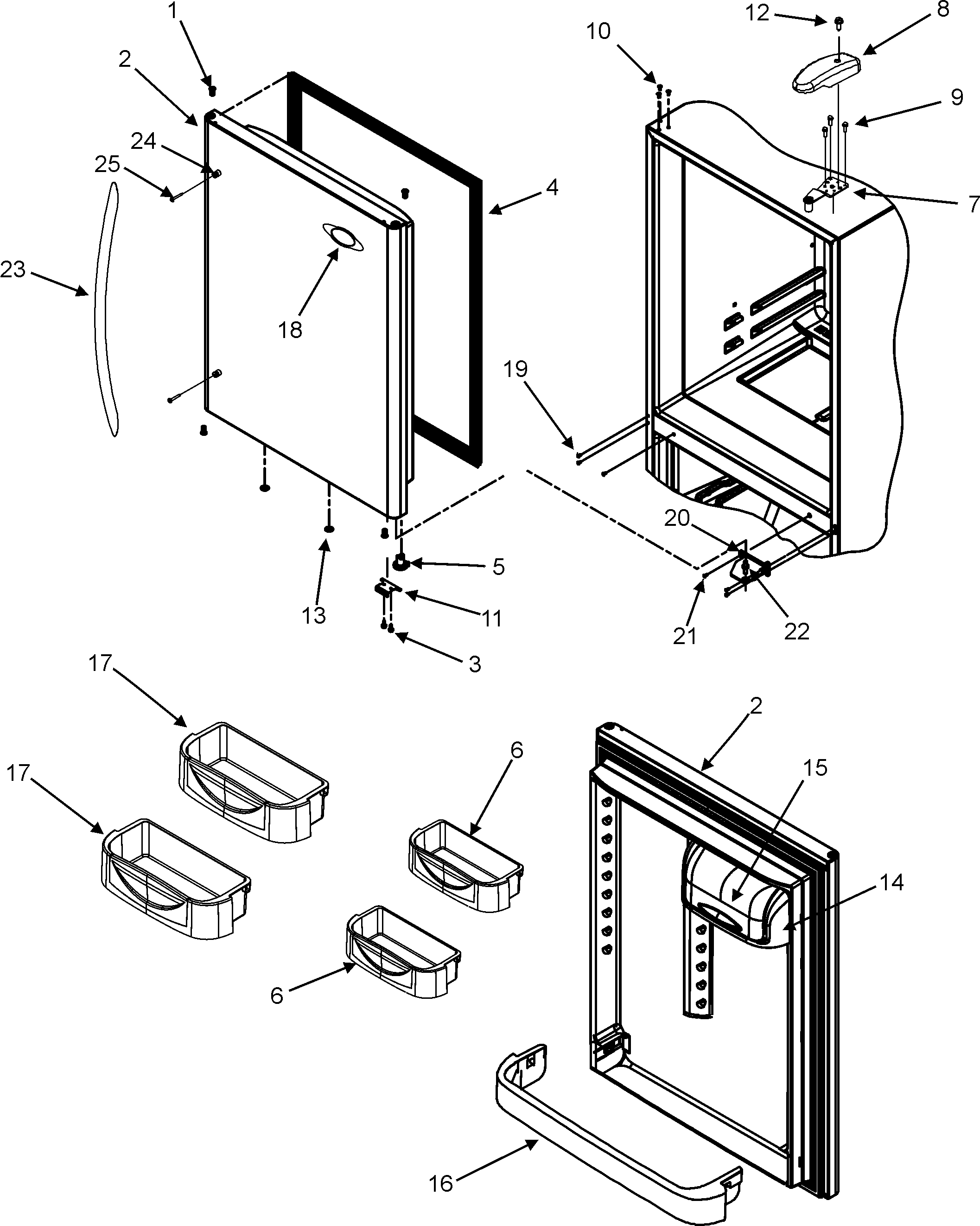

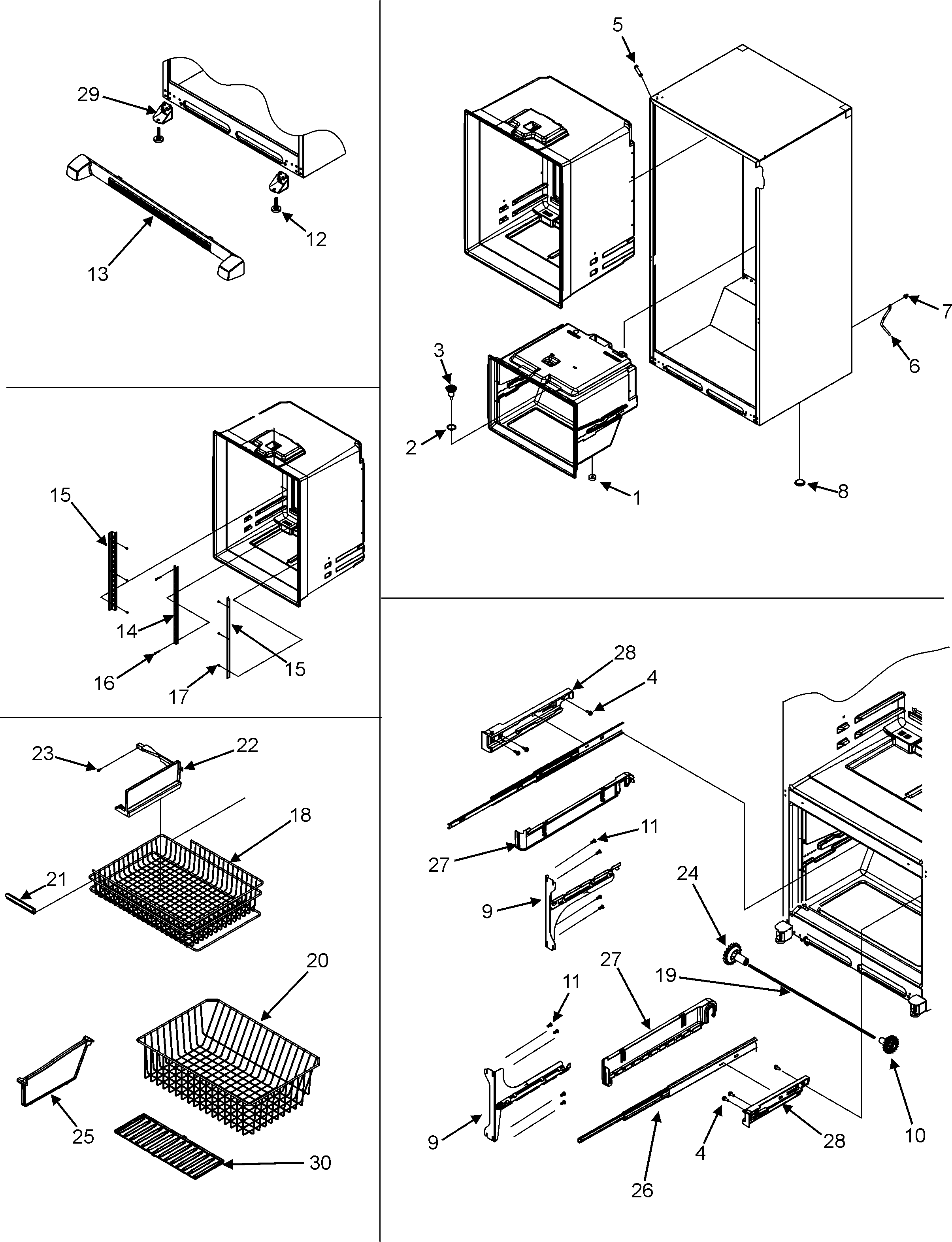

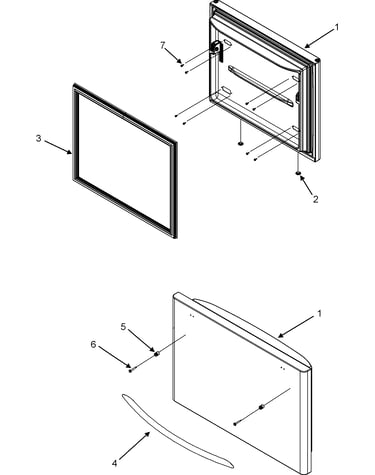

SELECT DIAGRAM

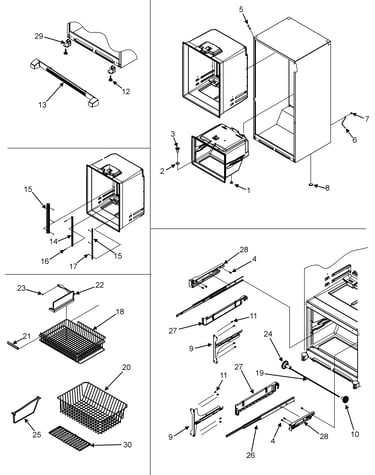

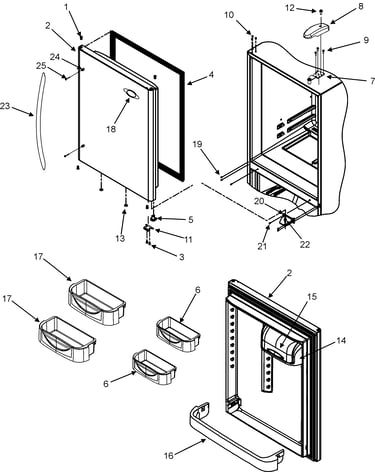

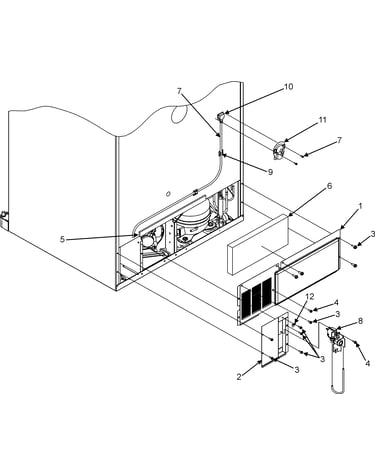

Browse Parts for MBR1956KES Refrigerators

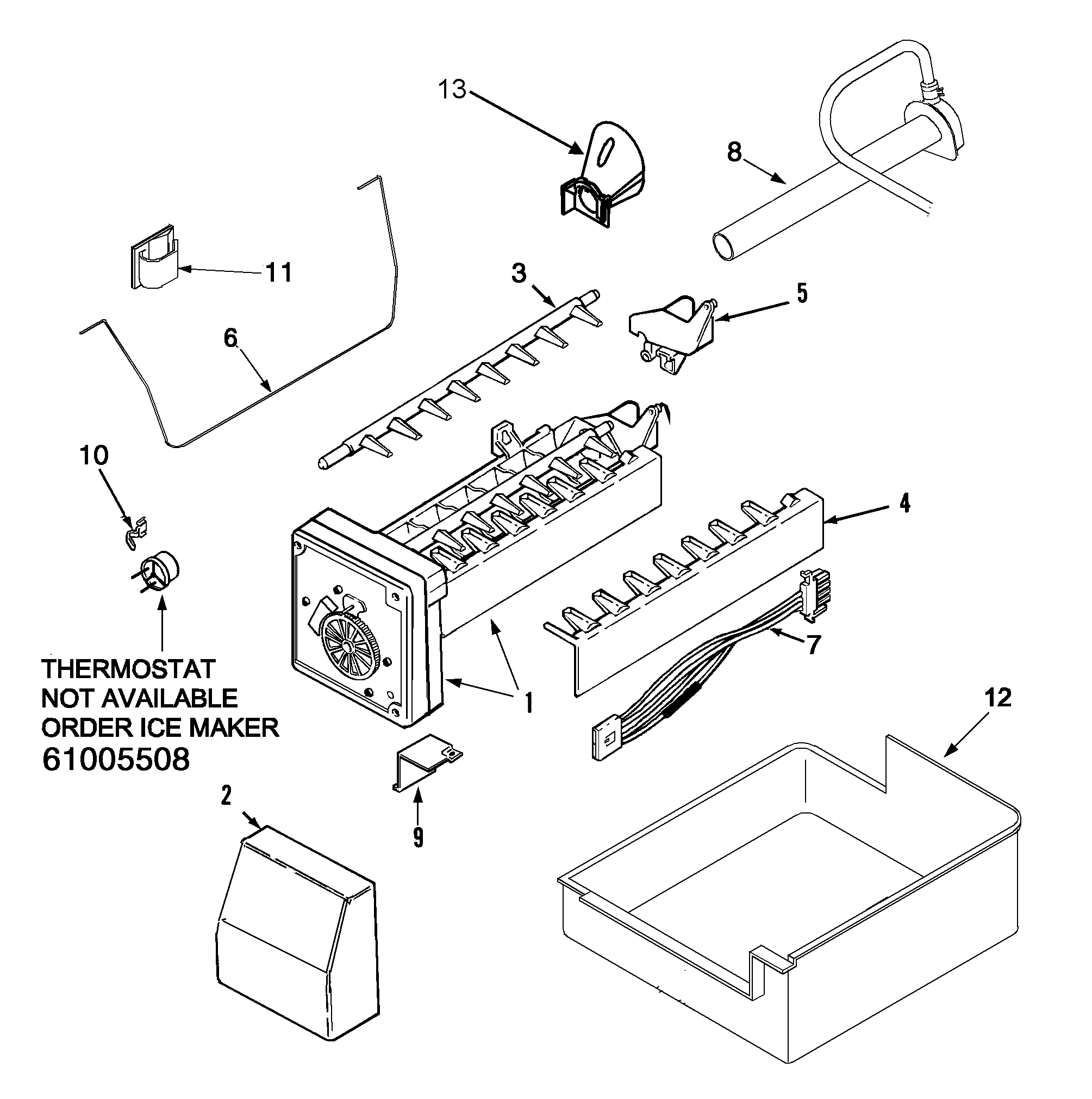

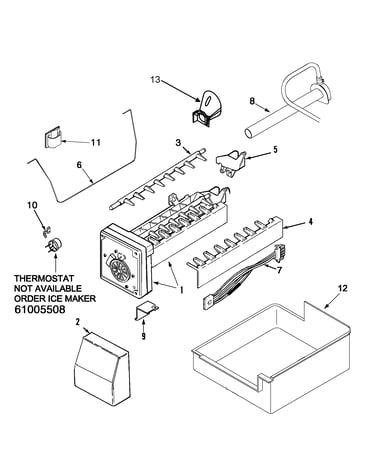

Ice maker diagram
Refrigerator Ice Maker
Part #61005508Replaced by #D7824706Q
Manufacturer substitutionThis part replaces 61005508. Substitute parts can look different from the original.In Stock$101.8611% OFF Phone Price : $113.86
Qty
Evaporator/evap motor/front rollers diagram
Refrigerator Evaporator Fan Blade
Part #12217201Replaced by #WP2169142

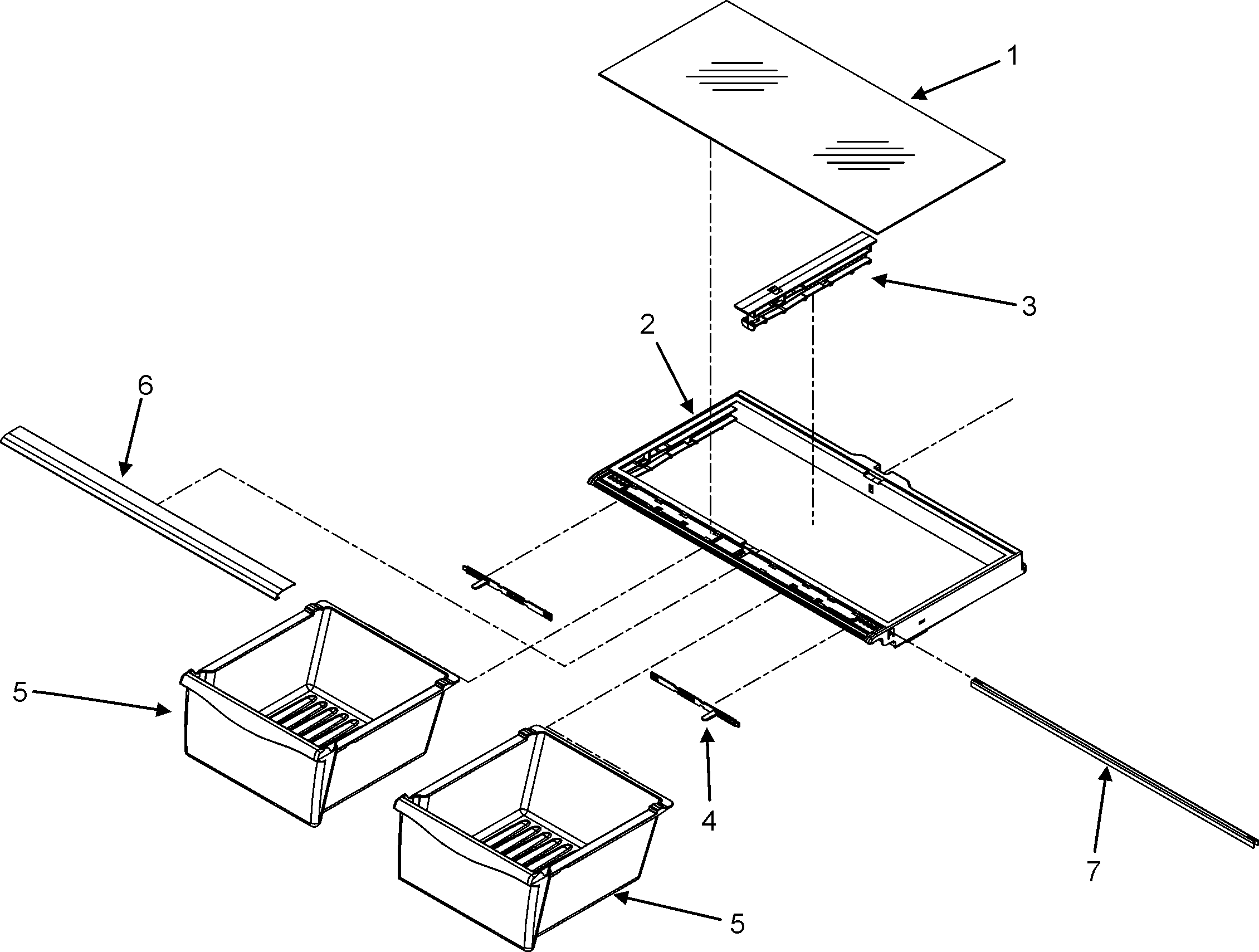

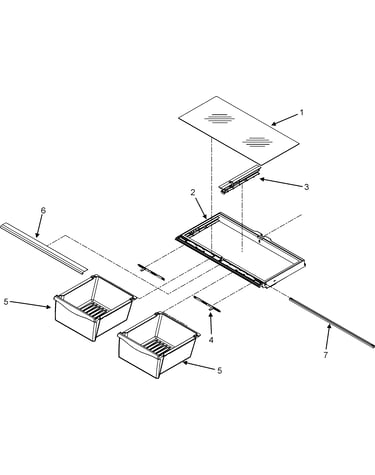

Manufacturer substitutionThis part replaces 12217201. Substitute parts can look different from the original.In Stock$24.2520% OFF Phone Price : $30.25QtyCrisper assembly diagram

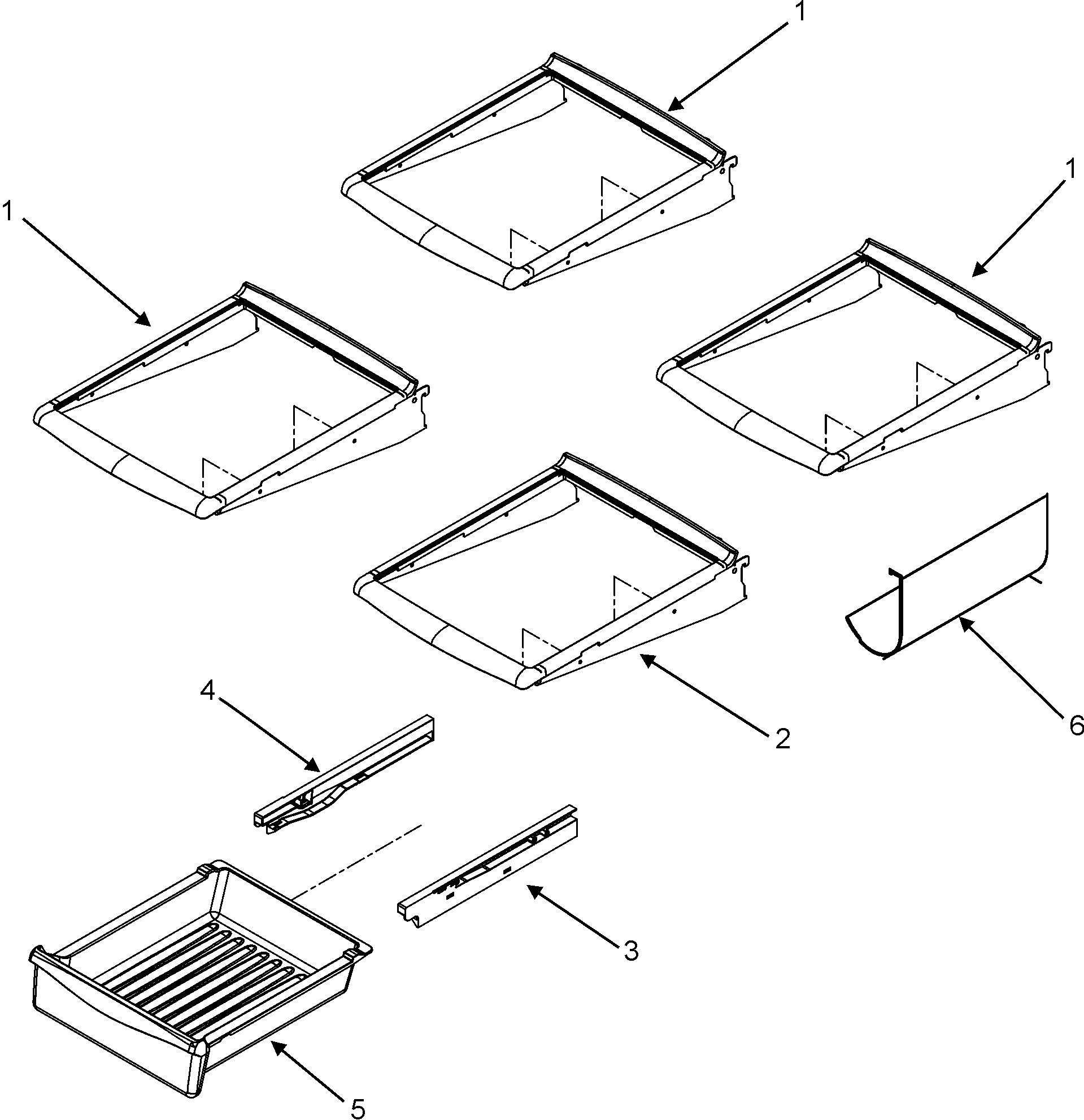

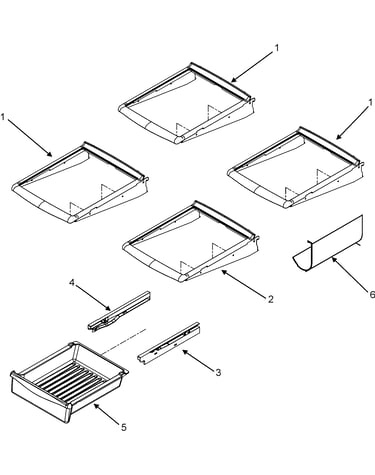

Refrigerator Crisper Drawer Support Rail, Center
Part #67001057Replaced by #WPW10671238

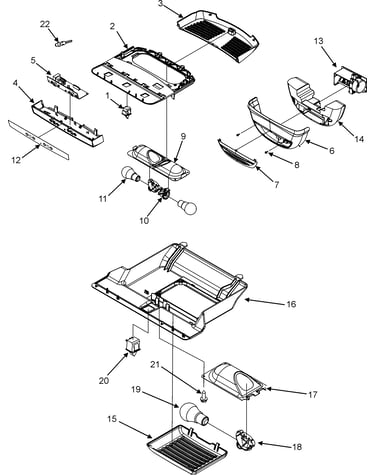

Manufacturer substitutionThis part replaces 67001057. Substitute parts can look different from the original.In Stock$48.5511% OFF Phone Price : $54.55QtyControls diagram
Refrigerator Electronic Control Board
Part #67006740Replaced by #WPW10503278
Manufacturer substitutionThis part replaces 67006740. Substitute parts can look different from the original.In Stock$167.207% OFF Phone Price : $179.20QtyControls diagram
Refrigerator Light Switch
Part #C3680310Replaced by #W11384469
Manufacturer substitutionThis part replaces C3680310. Substitute parts can look different from the original.In Stock$25.1319% OFF Phone Price : $31.13QtyEvaporator/evap motor/front rollers diagram
Evaporator Motor
Part #67003636Replaced by #WPW10128551

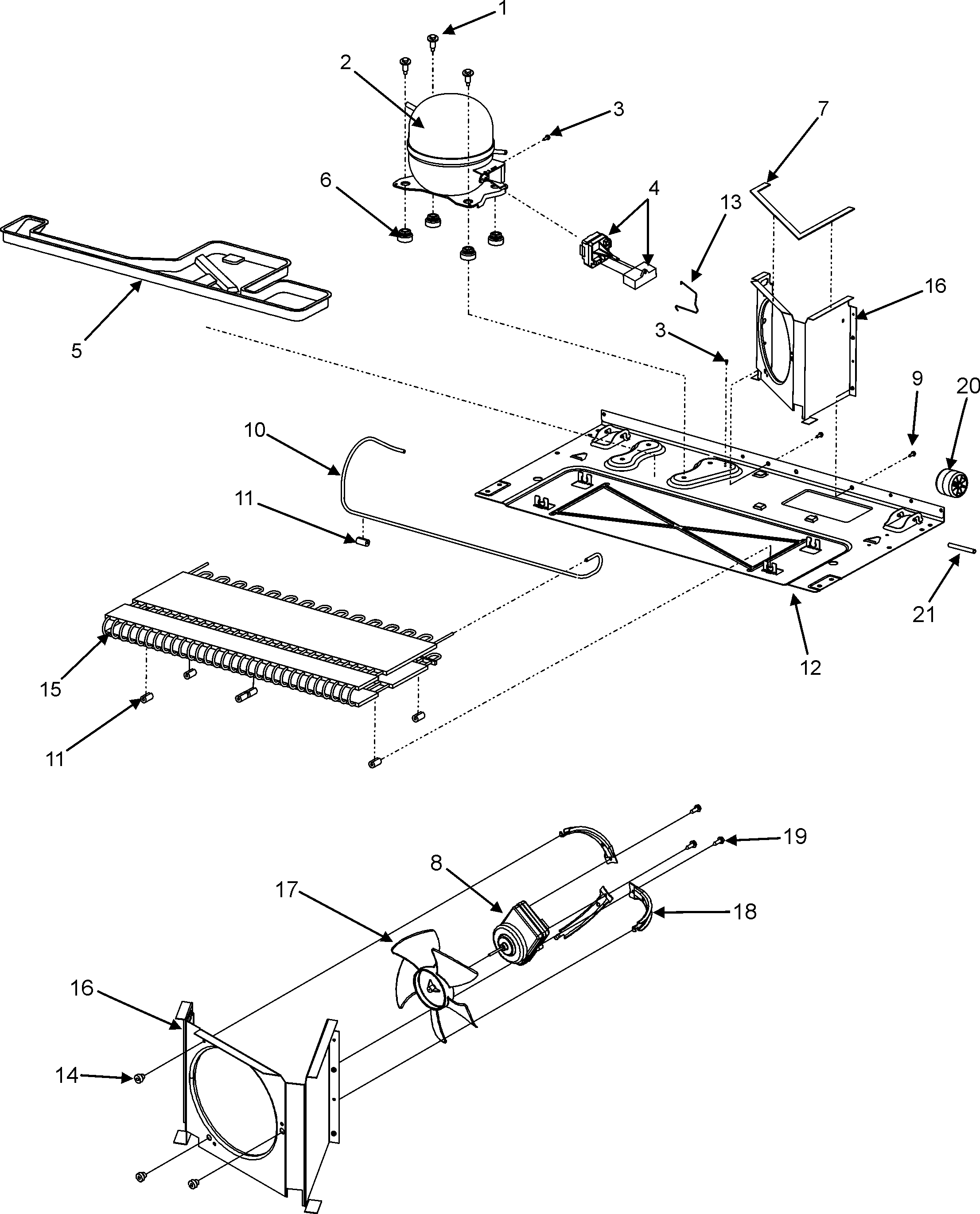

Manufacturer substitutionThis part replaces 67003636. Substitute parts can look different from the original.In Stock$56.5810% OFF Phone Price : $62.58QtyCompressor/cond motor/rear rollers diagram

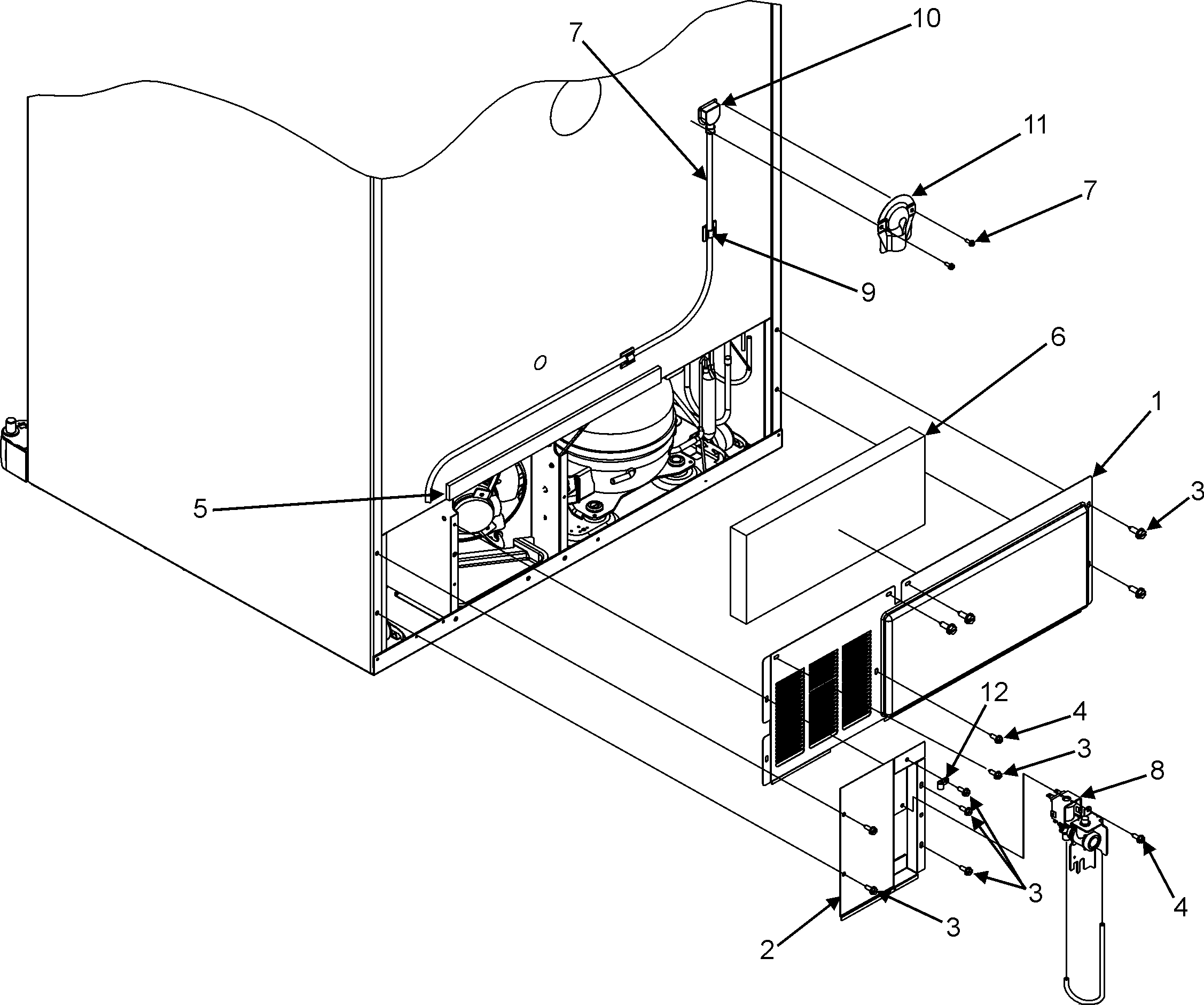

Refrigerator Start Device
Part #67005560Replaced by #W10613606
Manufacturer substitutionThis part replaces 67005560. Substitute parts can look different from the original.In Stock$52.9710% OFF Phone Price : $58.97QtyCompressor/cond motor/rear rollers diagram
Refrigerator Compressor
Part #12002634Replaced by #W10160407
Manufacturer substitutionThis part replaces 12002634. Substitute parts can look different from the original.In Stock$508.47QtyRefrigerator Light Bulb
Part #67003883Replaced by #W11679940
Manufacturer substitutionThis part replaces 67003883. Substitute parts can look different from the original.In Stock$39.4313% OFF Phone Price : $45.43QtyCompressor/cond motor/rear rollers diagram
Blade, Cond
Part #67004952Replaced by #W10156818
Manufacturer substitutionThis part replaces 67004952. Substitute parts can look different from the original.In Stock$54.1810% OFF Phone Price : $60.18Qty
