Magic Chef B35HN-92W-EV electric range Parts
Here are the diagrams and repair parts for Magic Chef B35HN-92W-EV electric range, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for B35HN-92W-EV Ranges

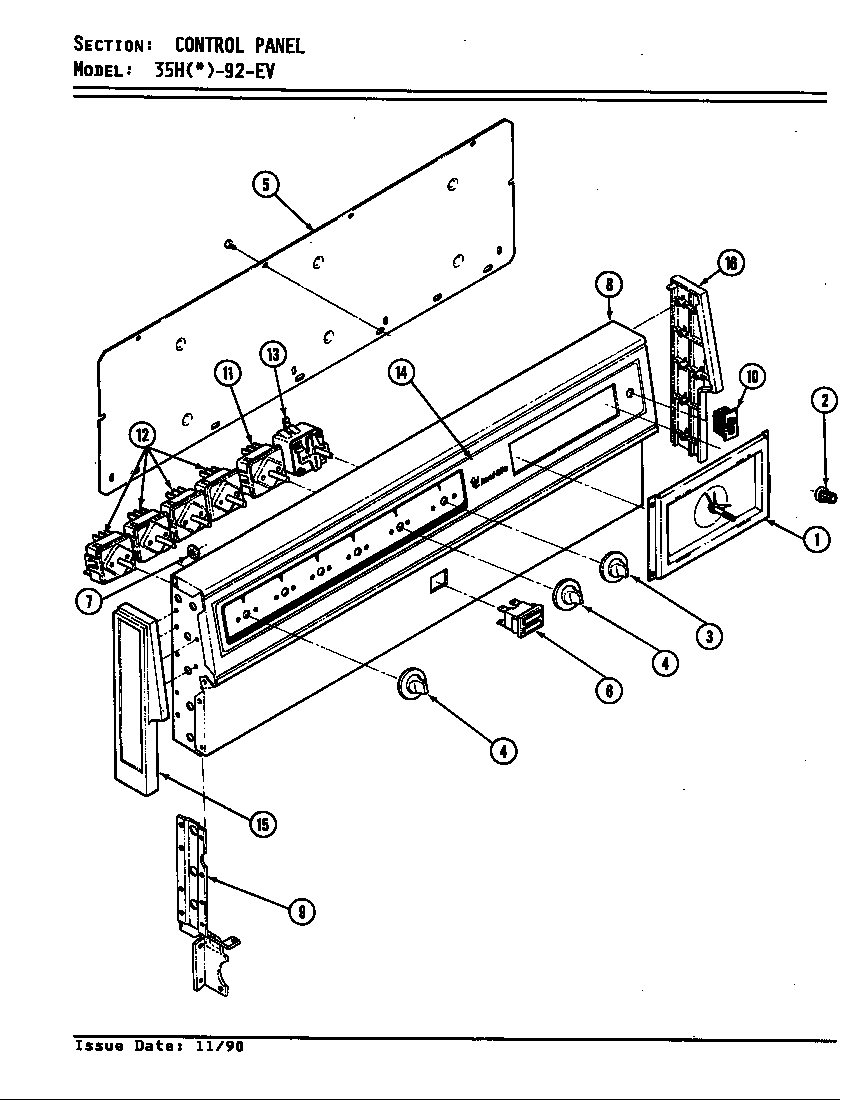

Control panel diagram
Screw
Part #7101P074-60Replaced by #WPW10068250
Manufacturer substitutionThis part replaces 7101P074-60. Substitute parts can look different from the original.This item is not returnableIn Stock$5.8915% OFF Phone Price : $6.89
Qty

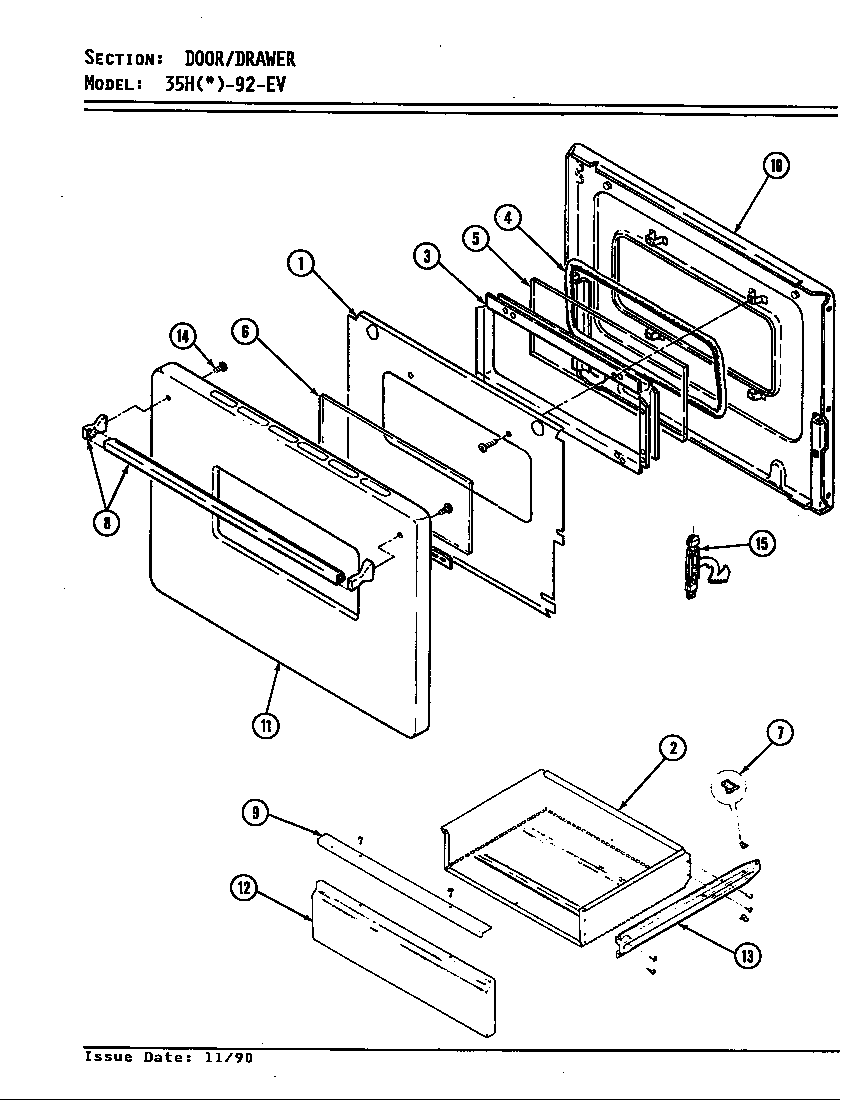

Door parts diagram
Strap Tube
Part #8019P003-60Replaced by #WPW10339879
Manufacturer substitutionThis part replaces 8019P003-60. Substitute parts can look different from the original.This item is not returnableIn Stock$4.8817% OFF Phone Price : $5.88QtyBody diagram

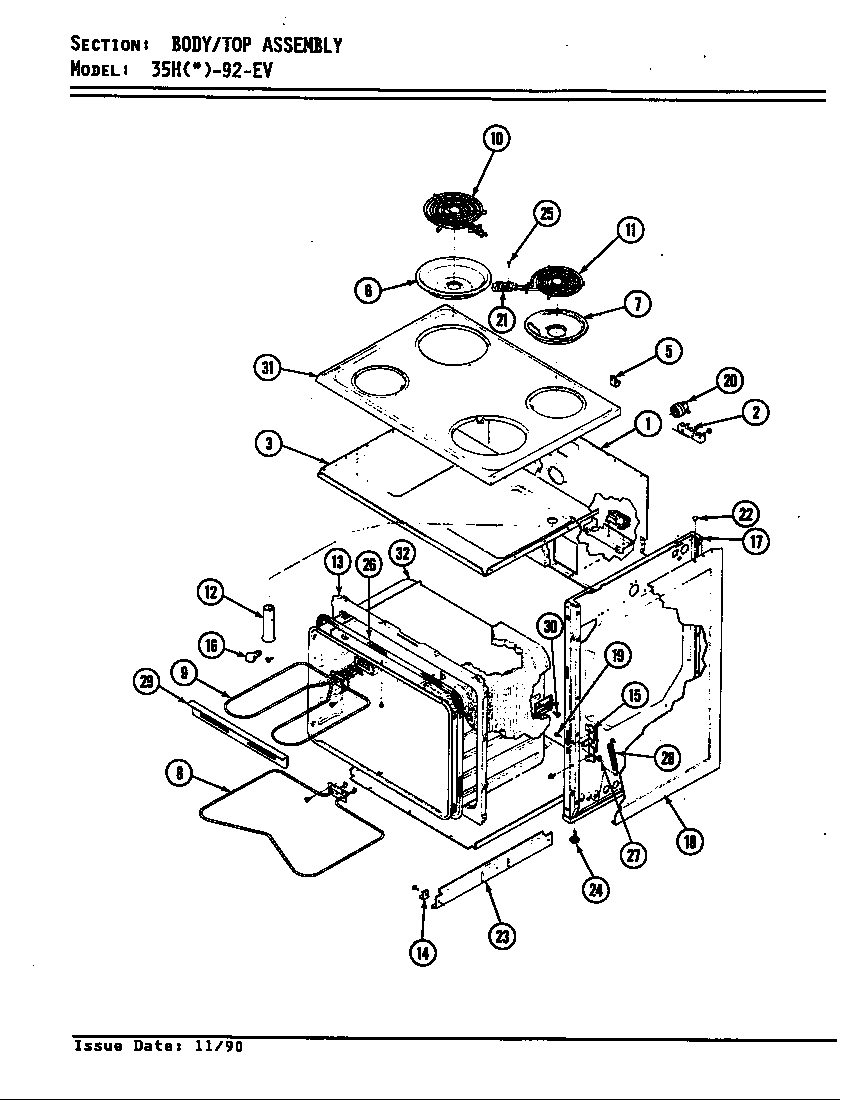

Element, Gia
Part #7406P015-60Replaced by #WP3191454
Manufacturer substitutionThis part replaces 7406P015-60. Substitute parts can look different from the original.In Stock$112.5710% OFF Phone Price : $124.57QtyBody diagram
Broiler Pan
Part #3401F020-19Replaced by #4396923
Manufacturer substitutionThis part replaces 3401F020-19. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56QtyControl panel diagram
Infinite Switch
Part #7403P262-60Replaced by #WP7403P238-60
Manufacturer substitutionThis part replaces 7403P262-60. Substitute parts can look different from the original.In Stock$53.6410% OFF Phone Price : $59.64QtyBody diagram
Terminal Nut
Part #7103P027-60Replaced by #WP7103P027-60
Manufacturer substitutionThis part replaces 7103P027-60. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyDoor parts diagram
Door Glass
Part #7902P326-60
The manufacturer no longer makes this part, and there's no substitute part
Body diagram
Oven Rack
Part #7801P030-60
The manufacturer no longer makes this part, and there's no substitute part
Door parts diagram
Hand Spacer
Part #8010P002-60
The manufacturer no longer makes this part, and there's no substitute part
Door parts diagram
Panel, Servi
Part #2416F006-71
The manufacturer no longer makes this part, and there's no substitute part
