Model #GLD5664V00SS Official GE dishwasher
Here are the diagrams and repair parts for GE GLD5664V00SS dishwasher, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

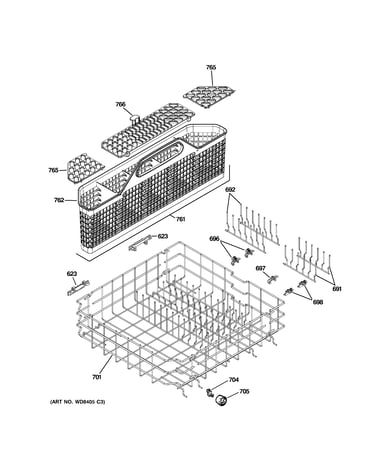

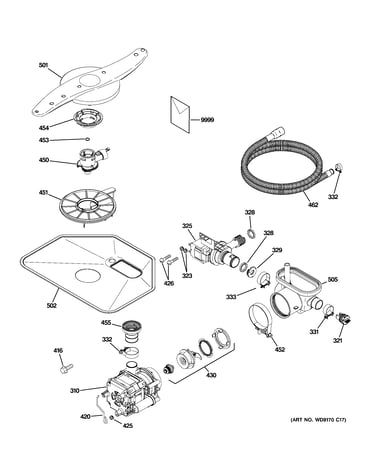

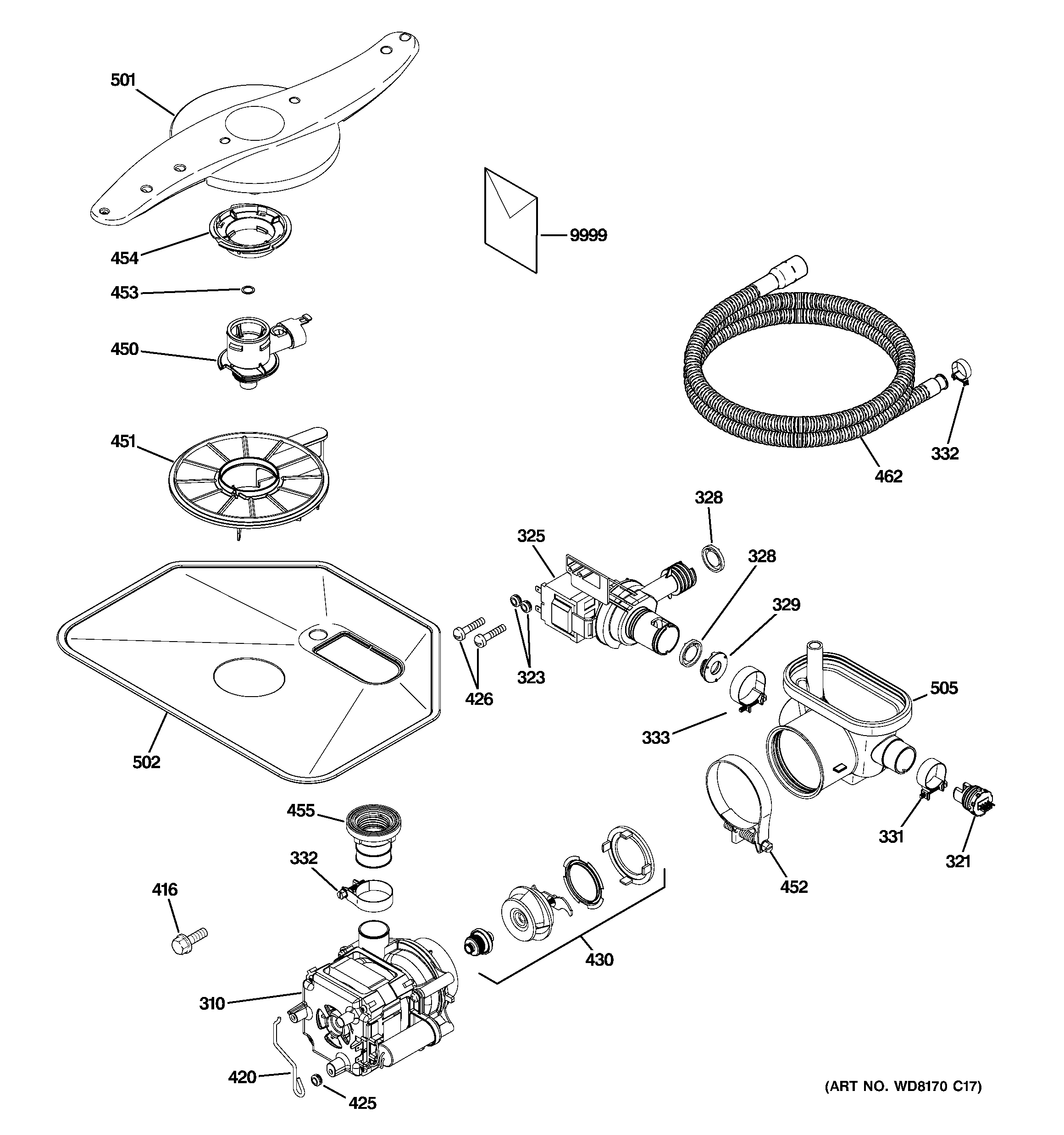

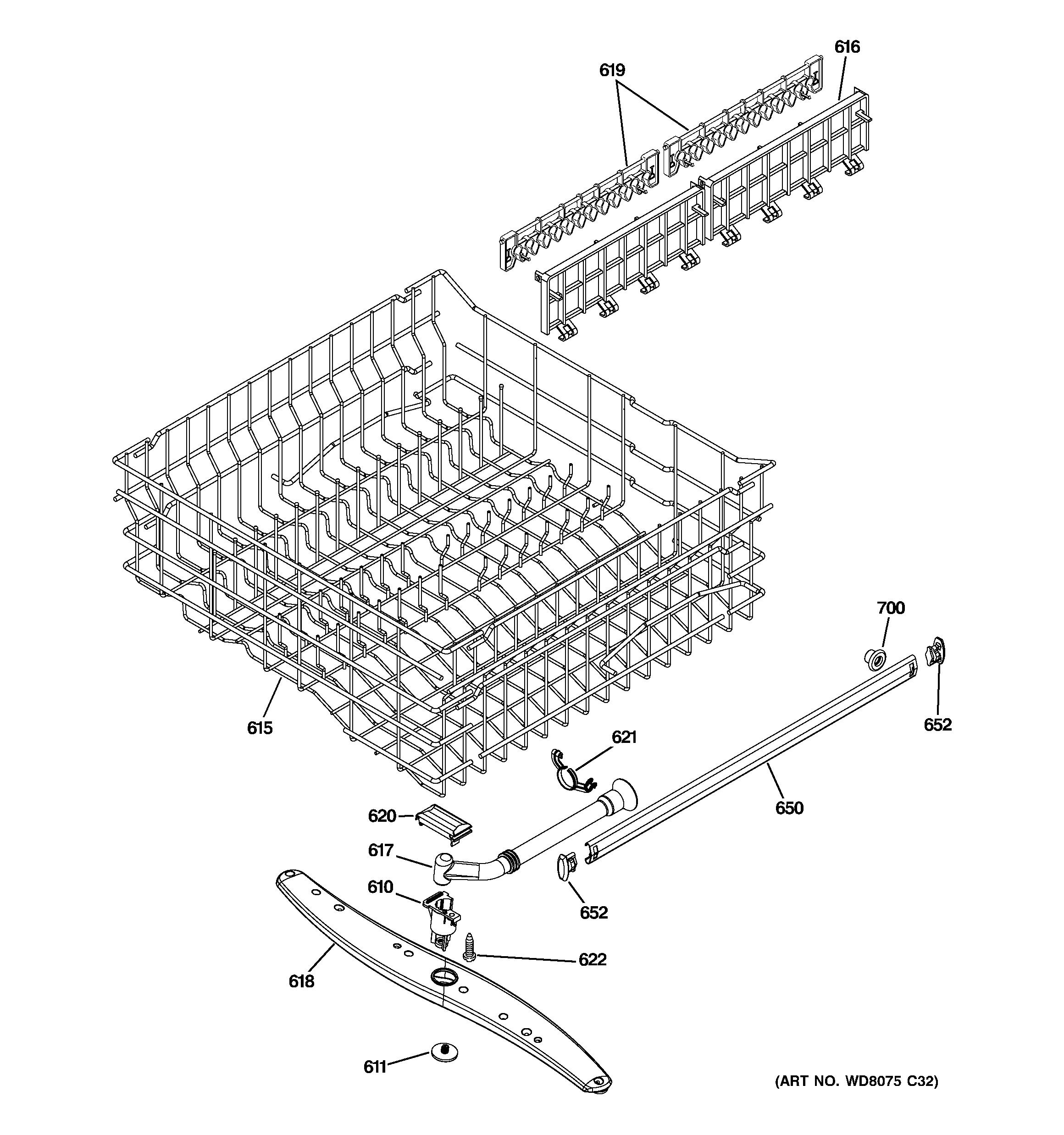

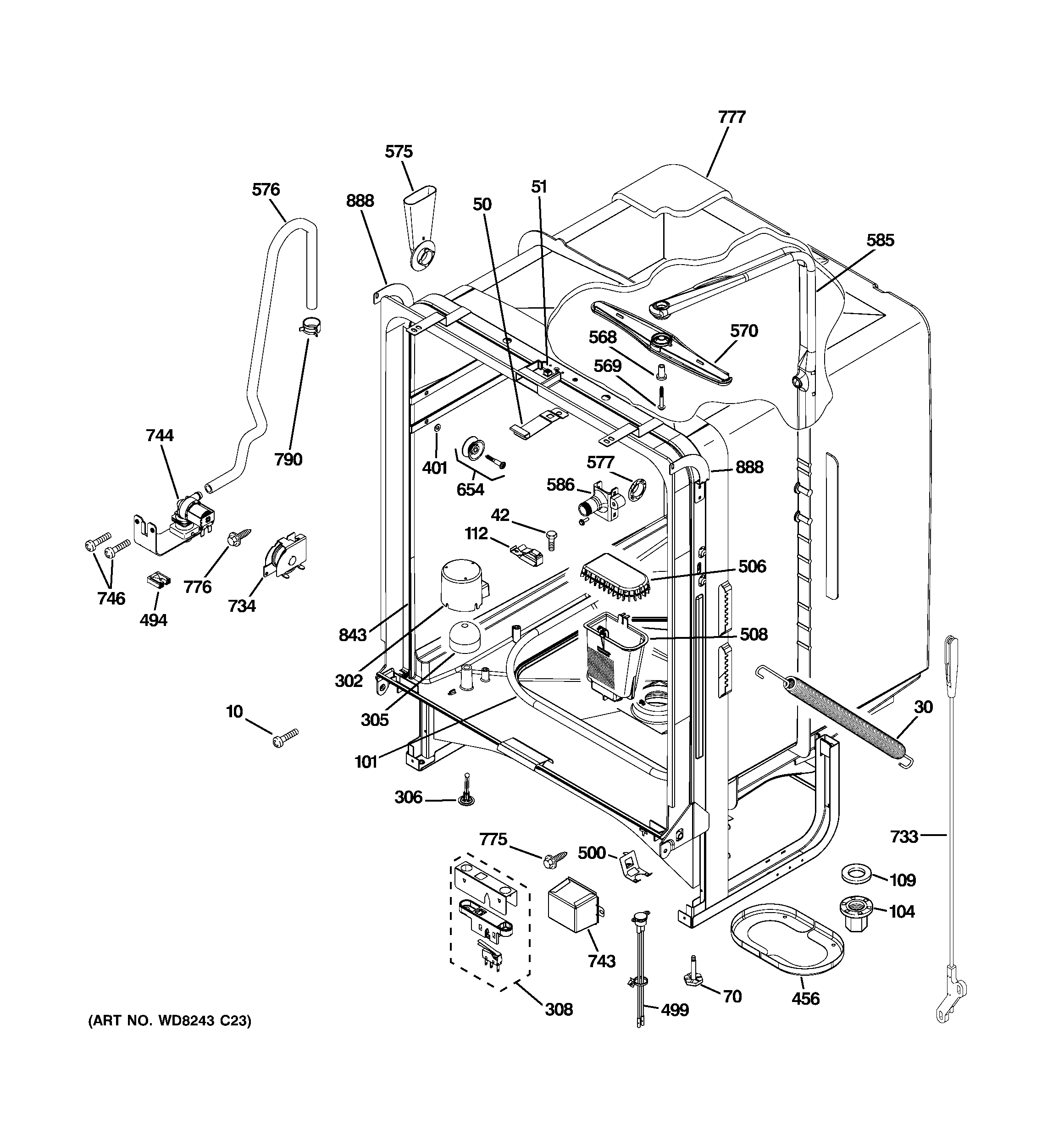

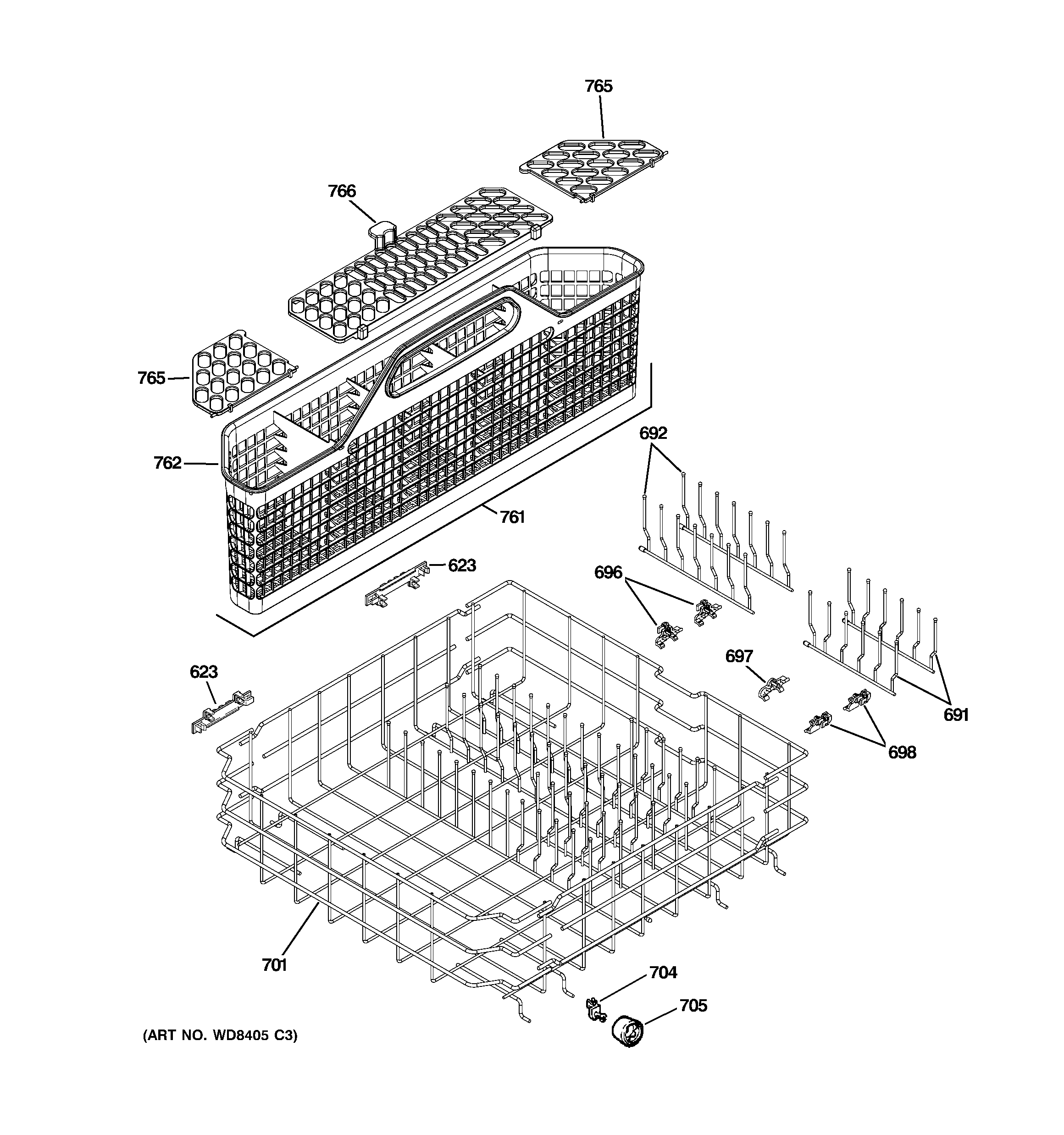

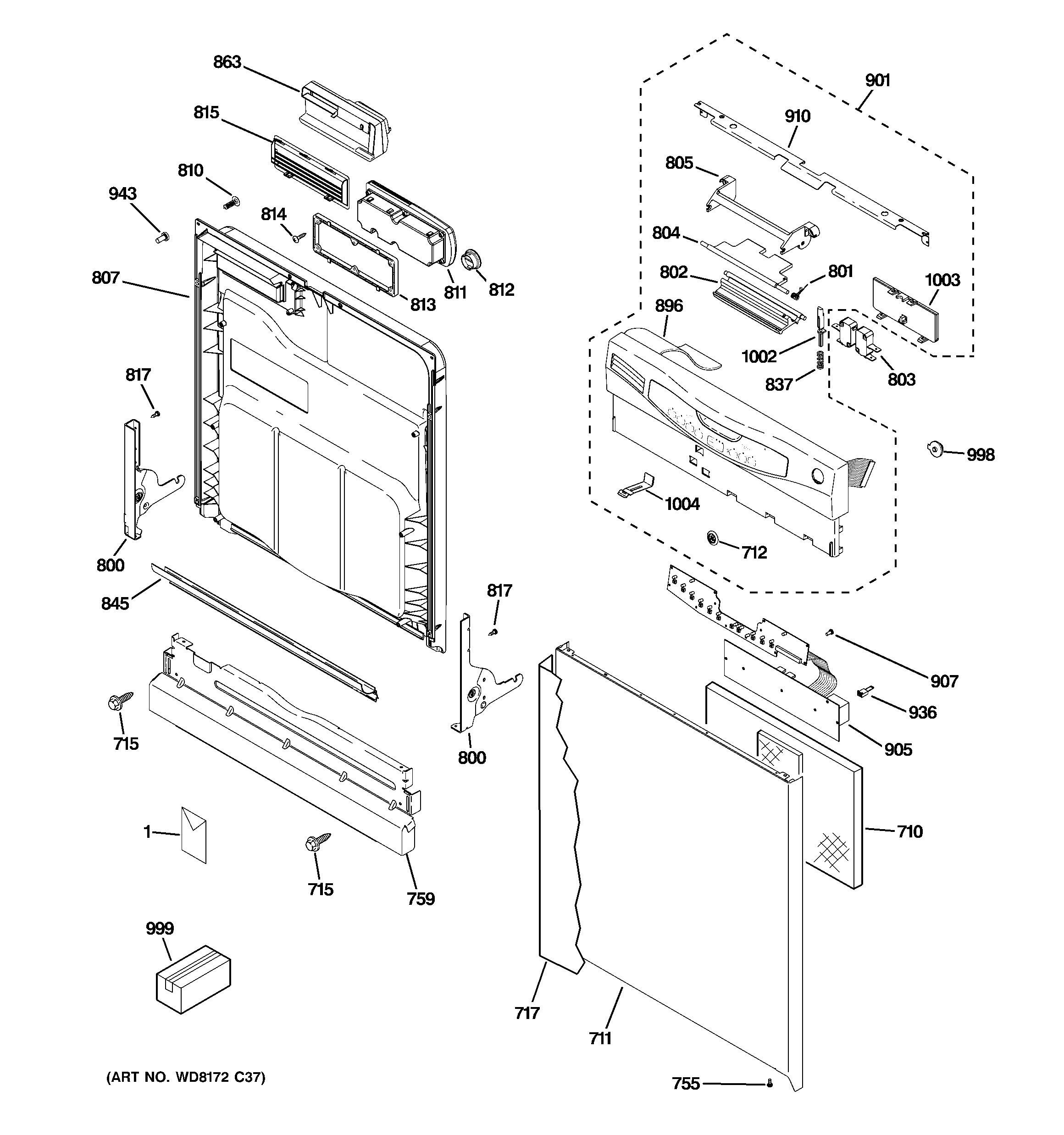

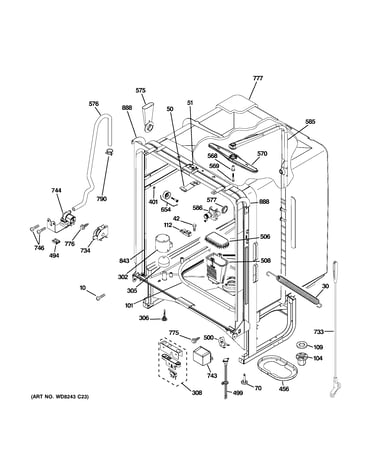

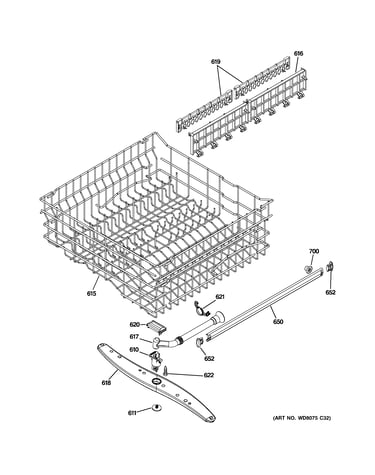

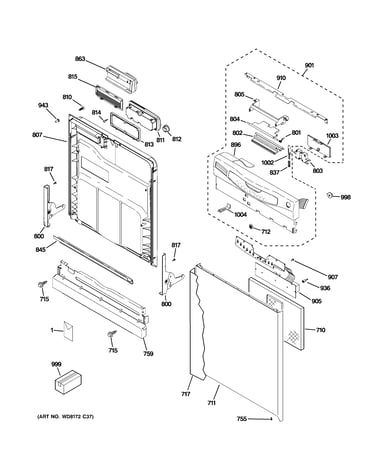

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic
Parts List
Showing 10 of 131 parts
Lower roller
Part #WD12X10107
Replaced by #WD35X21041
?
Manufacturer substitution
This part replaces WD12X10107. Substitute parts can look different from the original.
In Stock
$21.00 |
19% OFF
Phone Price: $26.00
Dishwasher dishrack roller bracket, lower
Part #WD12X10277
Replaced by #WD35X21041
?
Manufacturer substitution
This part replaces WD12X10277. Substitute parts can look different from the original.
In Stock
$21.00 |
19% OFF
Phone Price: $26.00
Rinse module
Part #WD12X10205
The manufacturer no longer makes this part, and there's no substitute part
Dishwasher door switch
Part #WD21X10224
In Stock
$7.88 |
11% OFF
Phone Price: $8.88
Back Order
$7.88 |
11% OFF
Phone Price: $8.88
Dishwasher door switch cover (replaces wd12x10194, wd12x10323)
Part #WD12X10401
In Stock
$7.88 |
11% OFF
Phone Price: $8.88
Dishwasher pump impeller kit
Part #WD19X10038
In Stock
$52.07 |
9% OFF
Phone Price: $57.07
In Stock
$7.88 |
11% OFF
Phone Price: $8.88
In Stock
$7.88 |
11% OFF
Phone Price: $8.88
In Stock
$7.59 |
12% OFF
Phone Price: $8.59
