Kenmore Elite
Electric Range

Model # 79098033800 Official Kenmore Elite electric range

Here are the diagrams and repair parts for Official Kenmore Elite 79098033800 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

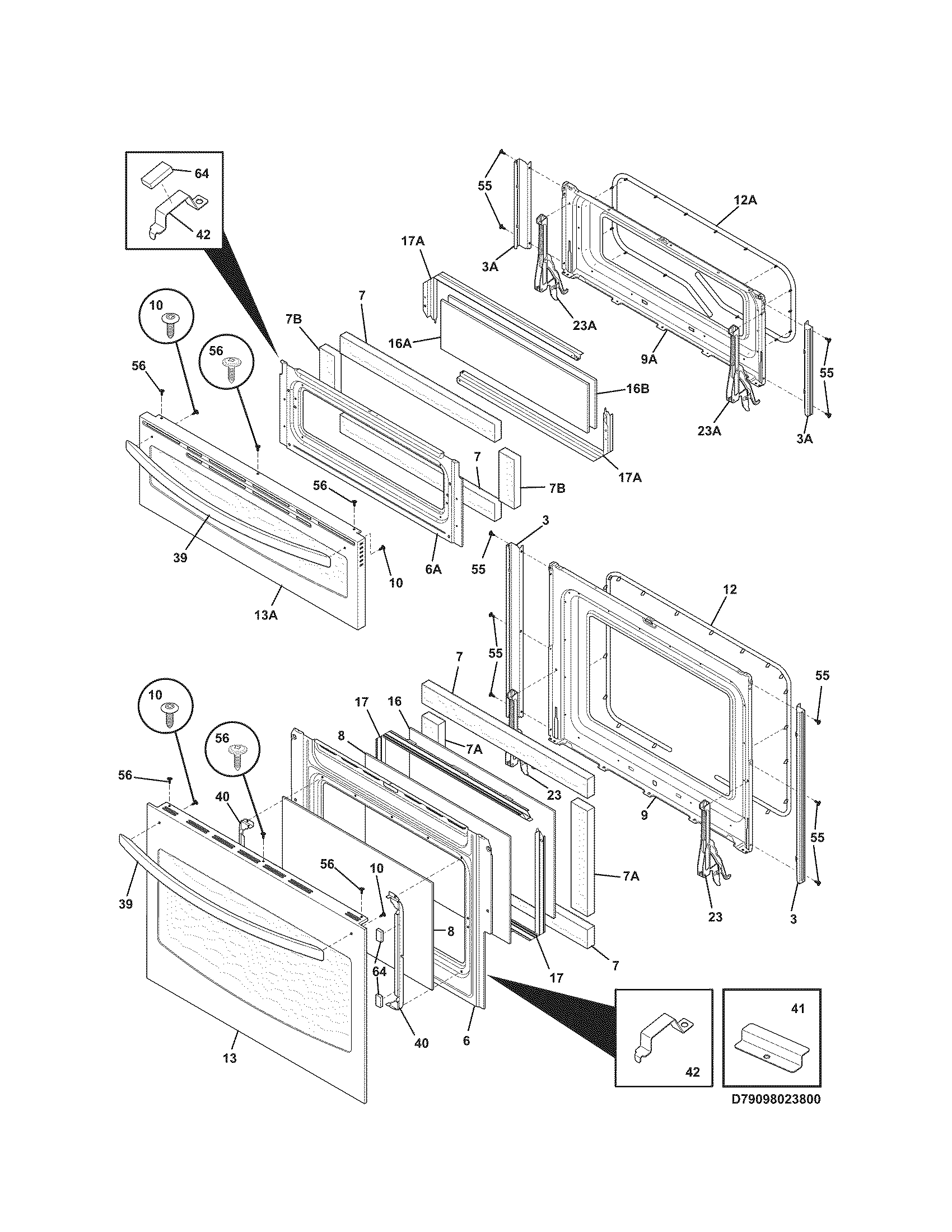

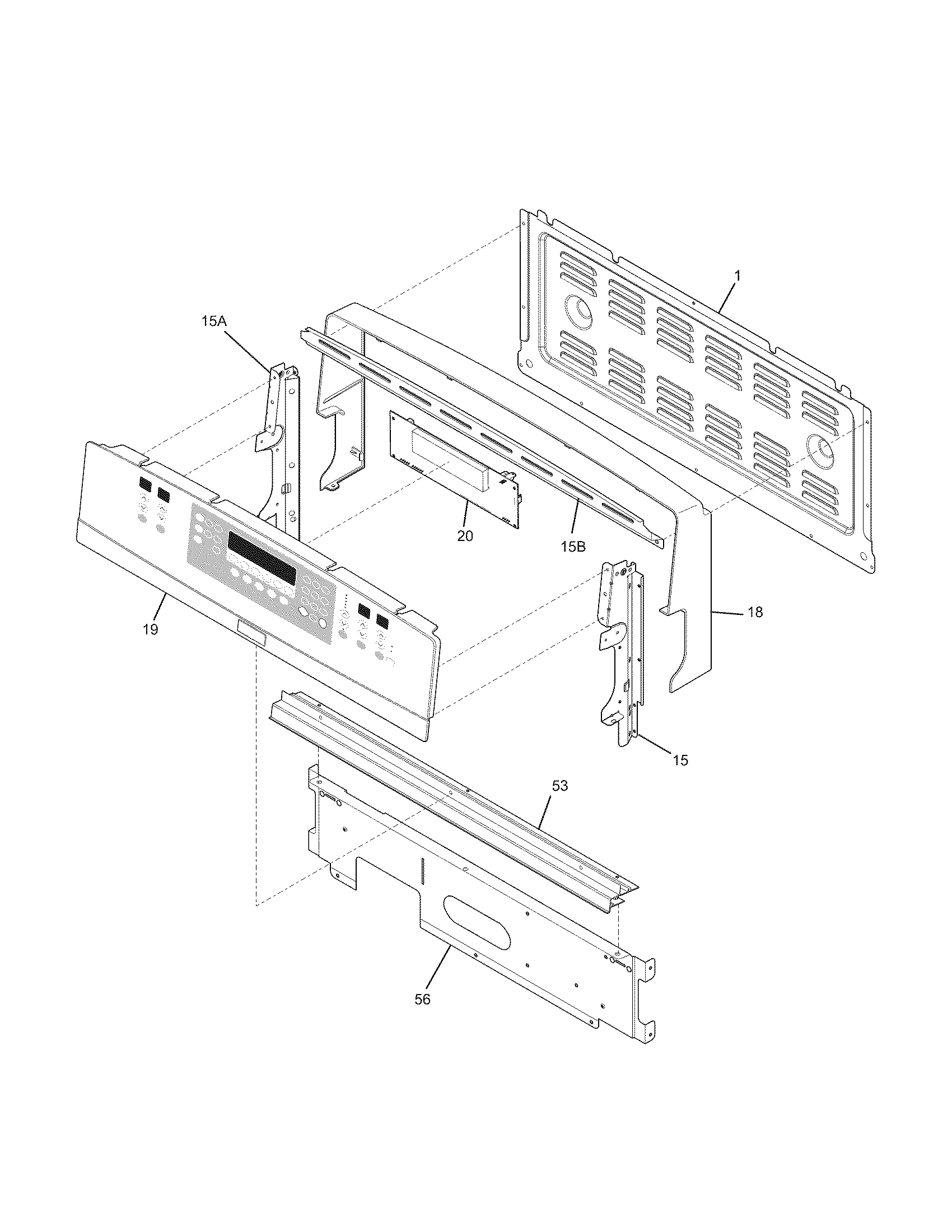

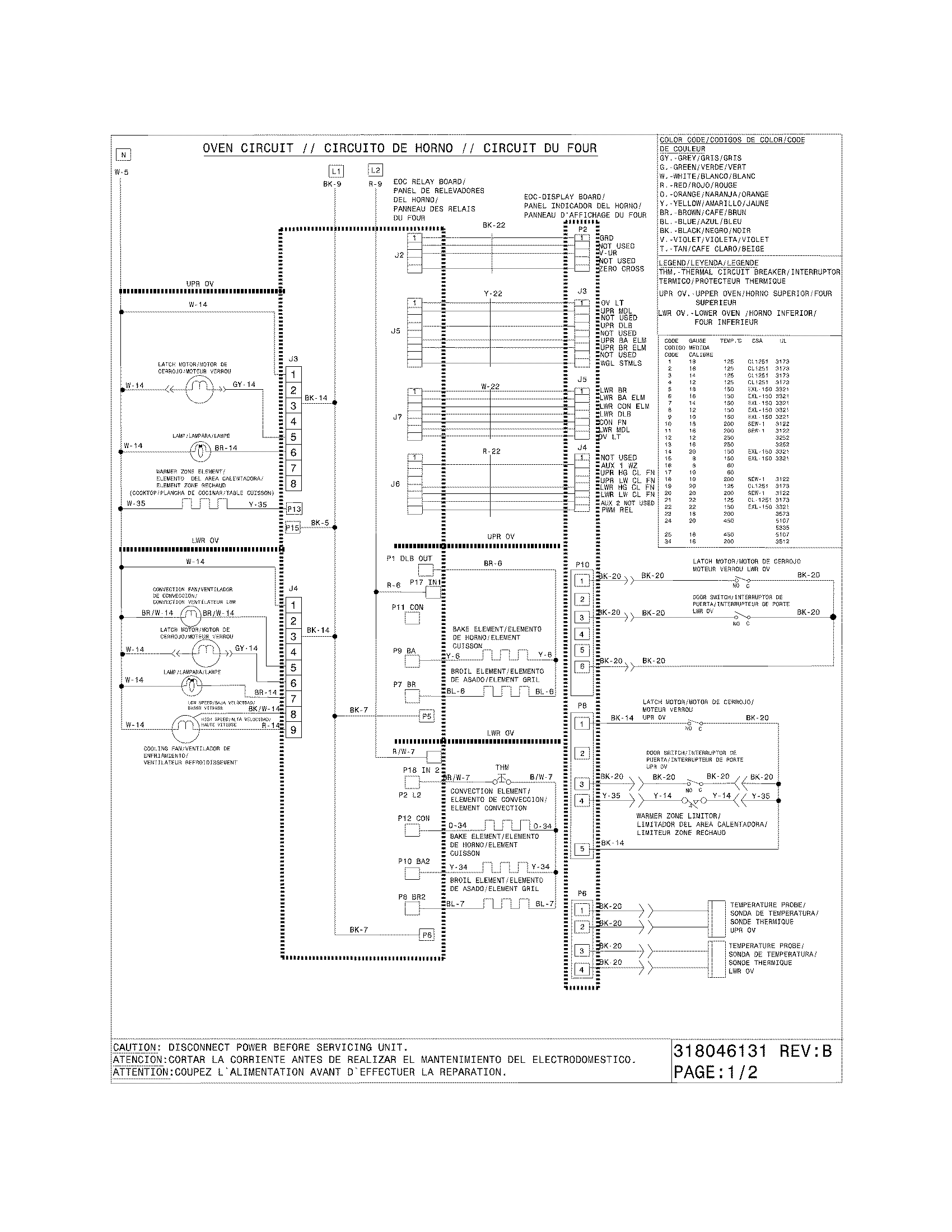

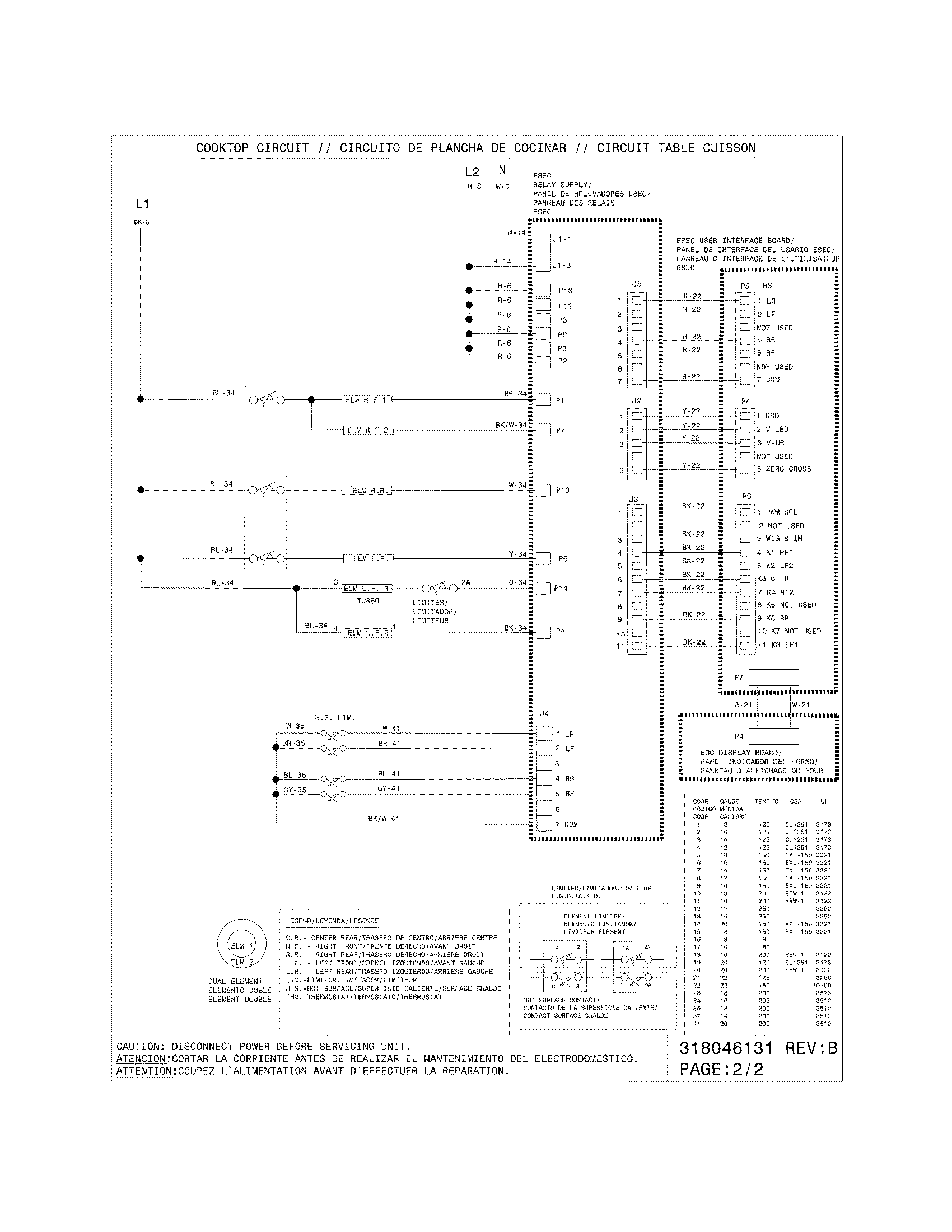

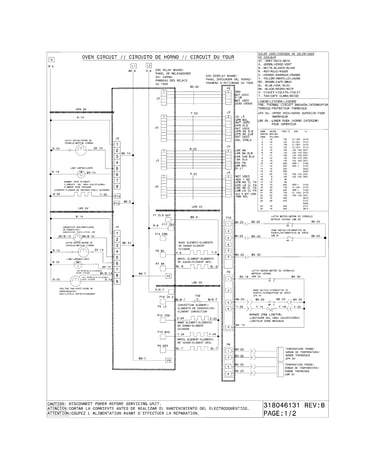

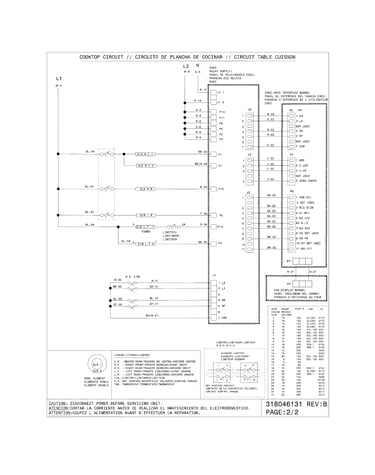

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 193 parts  |
Range Oven Light Bulb 5303013071
#15

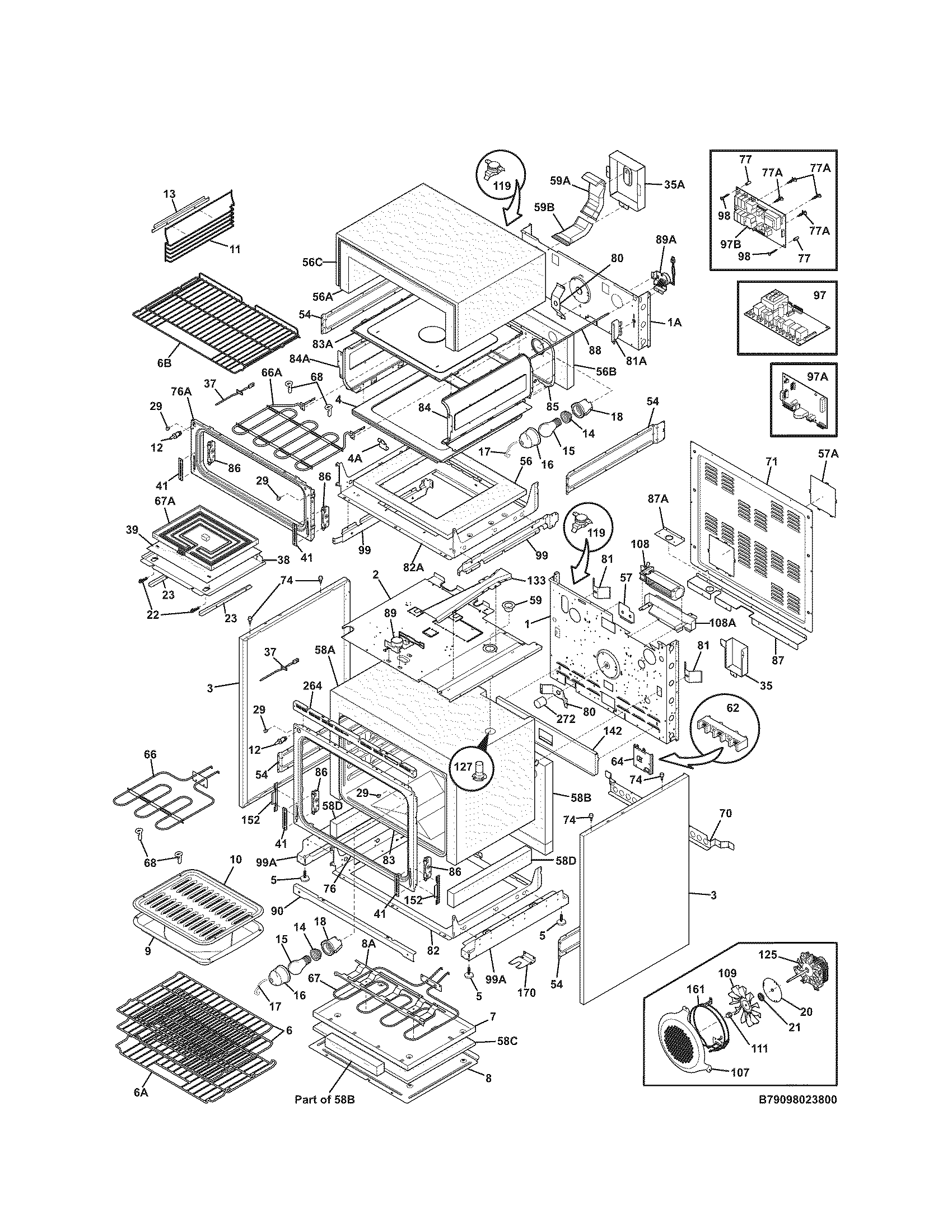

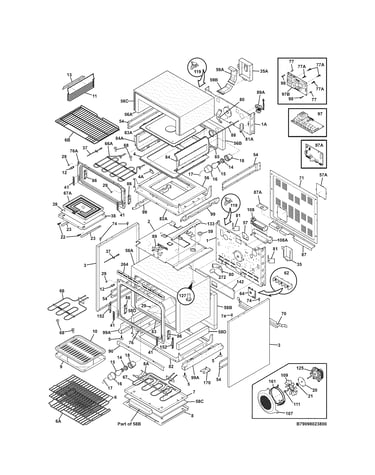

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.63 |
12% OFF Phone Price : $16.63
In Stock
Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

Body diagram

Range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$45.36 |
12% OFF Phone Price : $51.36
In Stock
Element 318198830
#15

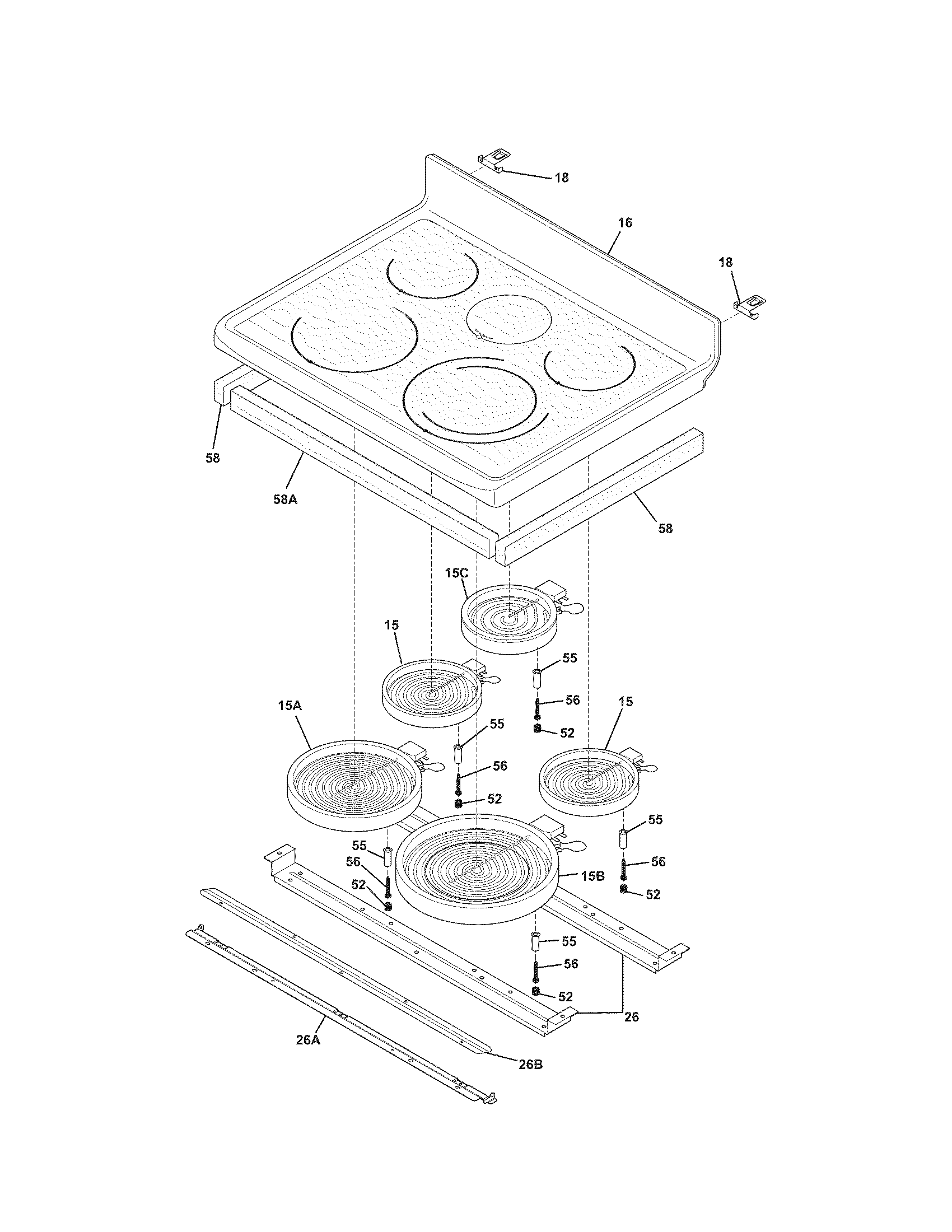

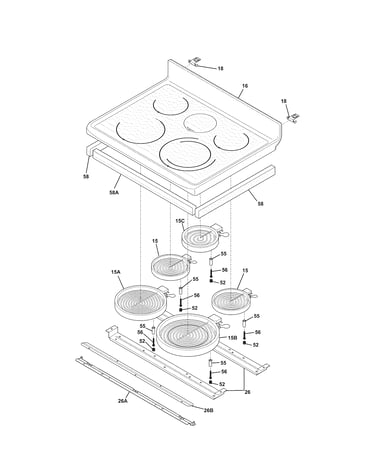

Maintop diagram

Element

Part #318198830

Replaced by #318178110

?
Manufacturer substitution
This part replaces 318198830. Substitute parts can look different from the original.
BEST SELLER
$134.19 |
11% OFF Was : $150.00
In Stock
Oven Element 318601601
#67A

Body diagram

Oven element

Part #318601601

Replaced by #318601604

?
Manufacturer substitution
This part replaces 318601601. Substitute parts can look different from the original.
BEST SELLER
$197.46 |
6% OFF Phone Price : $209.46
In Stock
Fan Blade 318398300
#109

Body diagram

Fan blade

Part #318398300

Replaced by #318398302

?
Manufacturer substitution
This part replaces 318398300. Substitute parts can look different from the original.
BEST SELLER
$23.89 |
20% OFF Phone Price : $29.89
In Stock
Range Dual Radiant Surface Element 318198935
#15B

Maintop diagram

Range dual radiant surface element

Part #318198935

Replaced by #316282101

?
Manufacturer substitution
This part replaces 318198935. Substitute parts can look different from the original.
BEST SELLER
$169.01 |
10% OFF Was : $187.79
In Stock
Range Surface Unit Power Relay Board 316442119
#97

Body diagram

Range surface unit power relay board

Part #316442119

BEST SELLER
$198.21 |
10% OFF Was : $220.07
In Stock
Nut Fan Retainer 318399801
#111

Body diagram

Nut fan retainer

Part #318399801

Replaced by #316136600

?
Manufacturer substitution
This part replaces 318399801. Substitute parts can look different from the original.
BEST SELLER
$19.99 |
9% OFF Phone Price : $21.99
In Stock
Cover 08011086
#16

Body diagram

Cover

Part #08011086

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 08011086. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Range Oven Cooling Fan Assembly (replaces 318073018, 7318073018, 7318073028) 318073028
#108

Body diagram

Range oven cooling fan assembly (replaces 318073018, 7318073018, 7318073028)

Part #318073028

BEST SELLER
$205.71 |
6% OFF Was : $218.85
In Stock
