Bissell
Upright Vacuum

Model # 81M9 Official Bissell vacuum

Here are the diagrams and repair parts for Official Bissell 81M9 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Foot Hose 2031523
#26

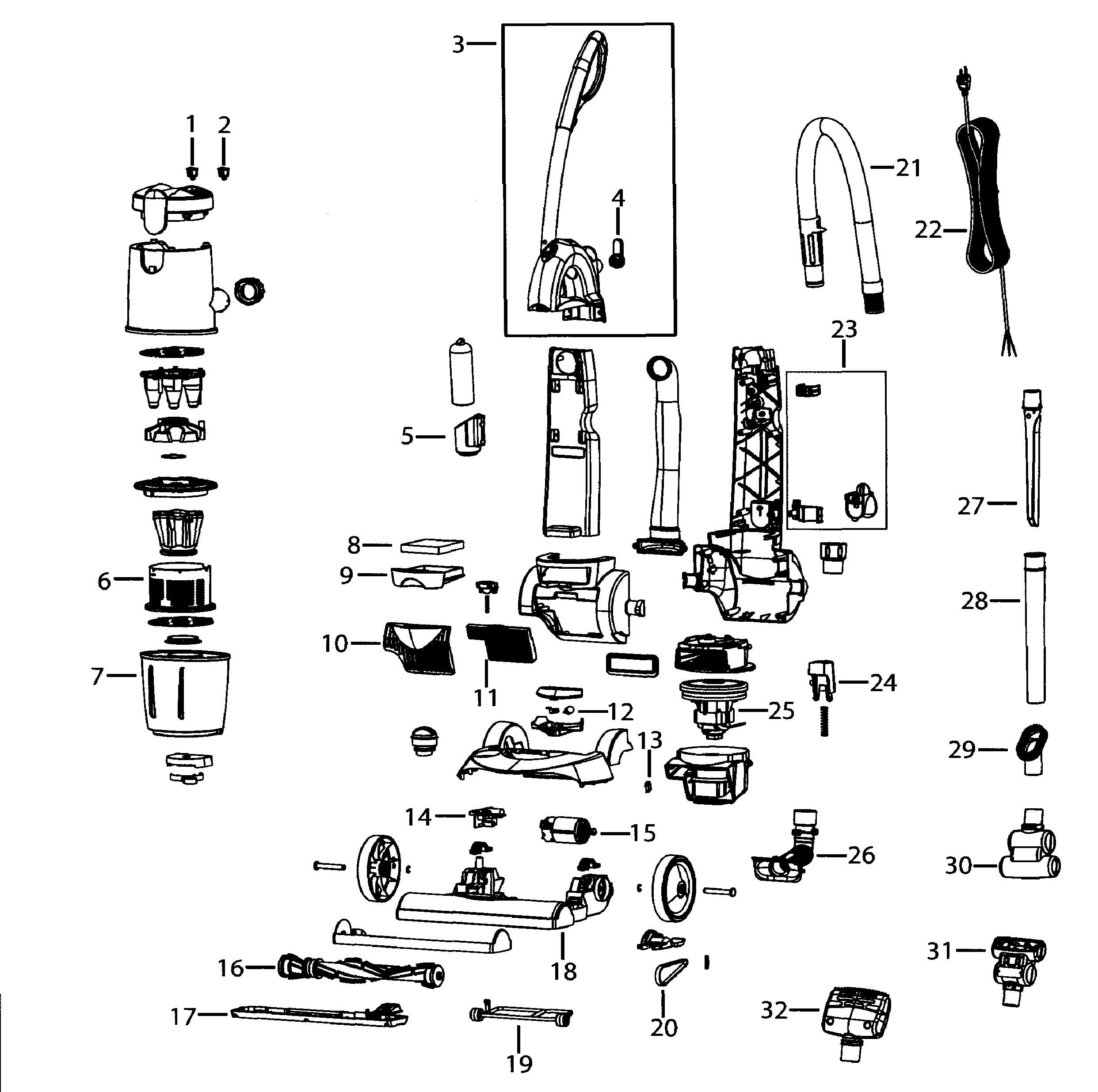

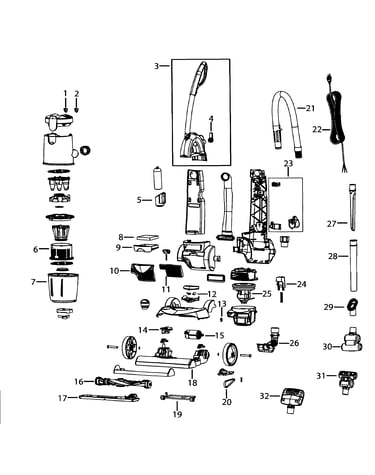

Vacuum diagram

Foot hose

Part #2031523

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Extension Wand 2031068
#28

Vacuum diagram

Vacuum extension wand

Part #2031068

The manufacturer no longer makes this part, and there's no substitute part

Turbo Brush 2031429
#30

Vacuum diagram

Turbo brush

Part #2031429

The manufacturer no longer makes this part, and there's no substitute part

Cyclone 2031501
#6

Vacuum diagram

Cyclone

Part #2031501

The manufacturer no longer makes this part, and there's no substitute part

Handle 2037931
#3

Vacuum diagram

Handle

Part #2037931

The manufacturer no longer makes this part, and there's no substitute part

Motor 2031513
#25

Vacuum diagram

Motor

Part #2031513

The manufacturer no longer makes this part, and there's no substitute part

Power Switch 2031525
#1

Vacuum diagram

Power switch

Part #2031525

The manufacturer no longer makes this part, and there's no substitute part

Sole Plate 2031519
#17

Vacuum diagram

Sole plate

Part #2031519

The manufacturer no longer makes this part, and there's no substitute part

Brush 2037936
#31

Vacuum diagram

Brush

Part #2037936

The manufacturer no longer makes this part, and there's no substitute part

Holder 2037930
#5

Vacuum diagram

Holder

Part #2037930

The manufacturer no longer makes this part, and there's no substitute part
