Frigidaire
Top-Mount Refrigerator

Model # FRT18S6JQ7 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FRT18S6JQ7 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

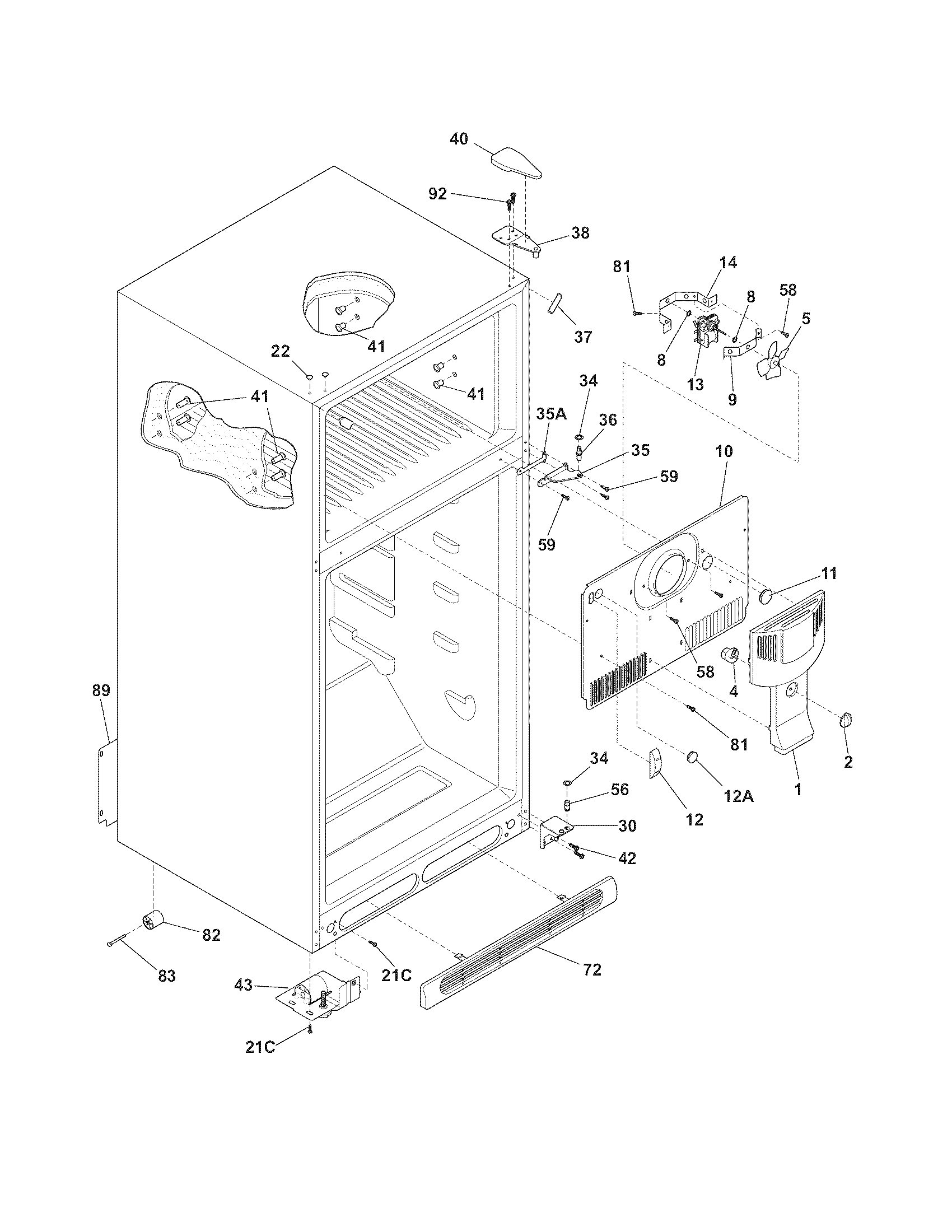

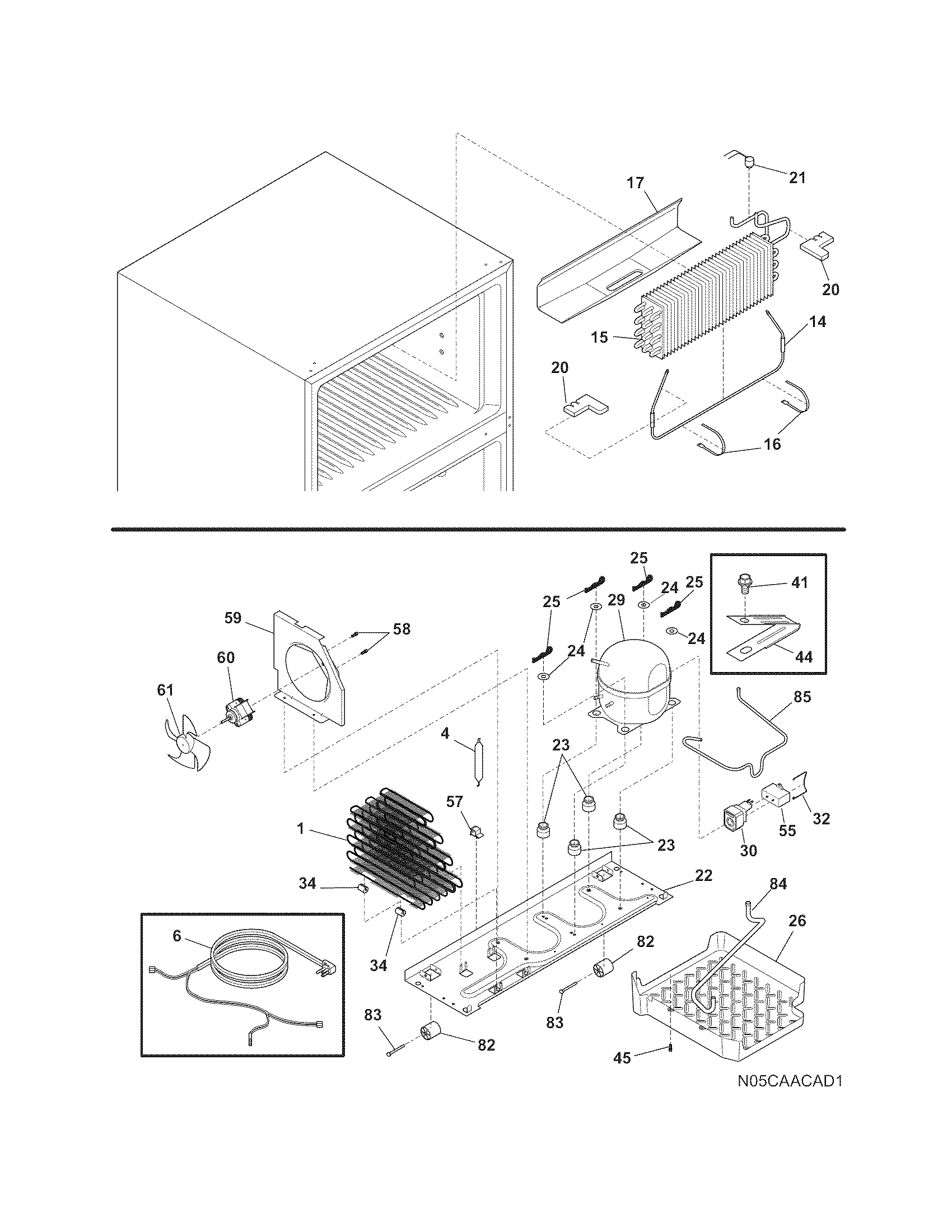

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 162 parts  |

Refrigerator Crisper Drawer (replaces 240337107, 240337108, 240337109)
#26

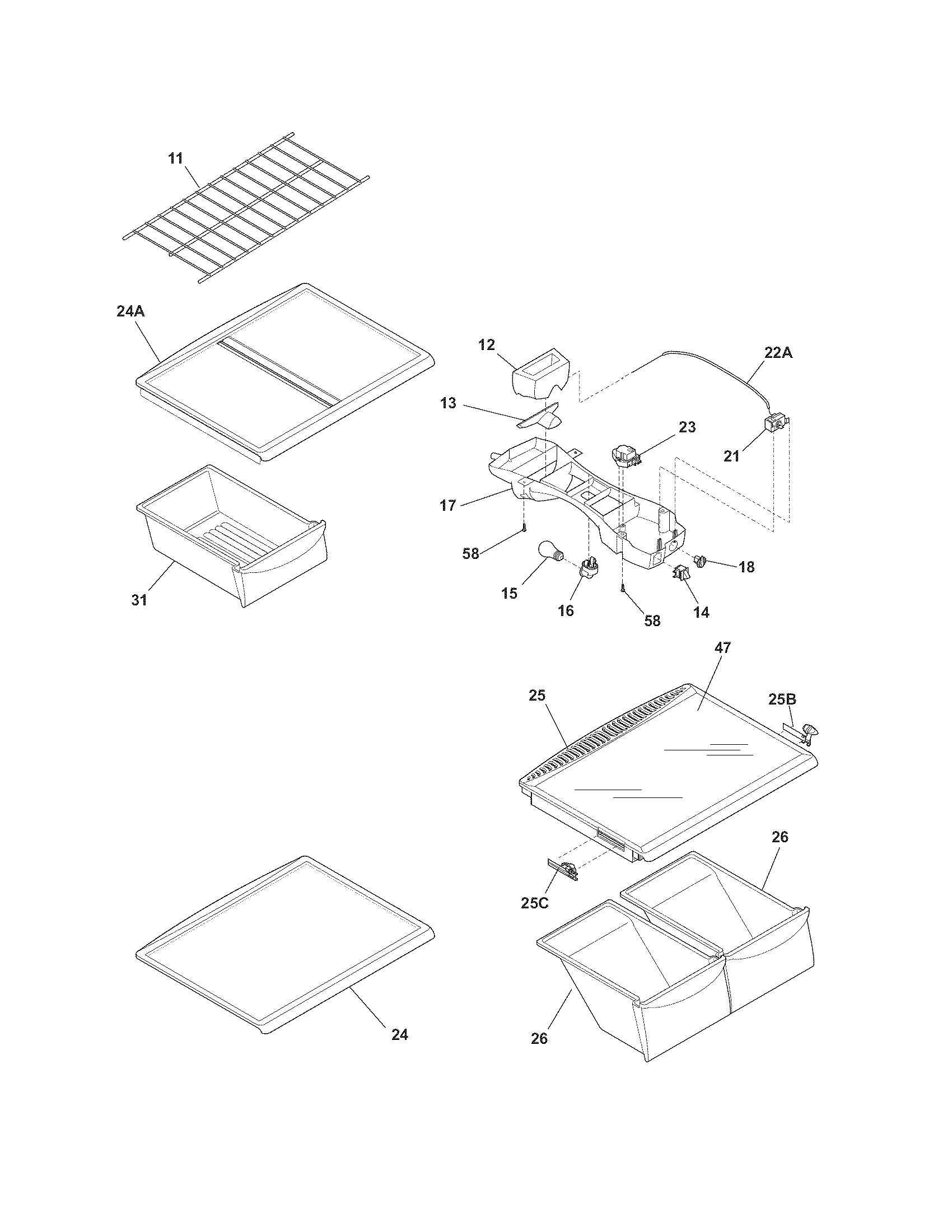

Shelves diagram

Refrigerator crisper drawer (replaces 240337107, 240337108, 240337109)

Part #240337103

BEST SELLER
$103.25
9% OFF Phone Price : $113.25
In Stock
Refrigerator Door Bin
#48A

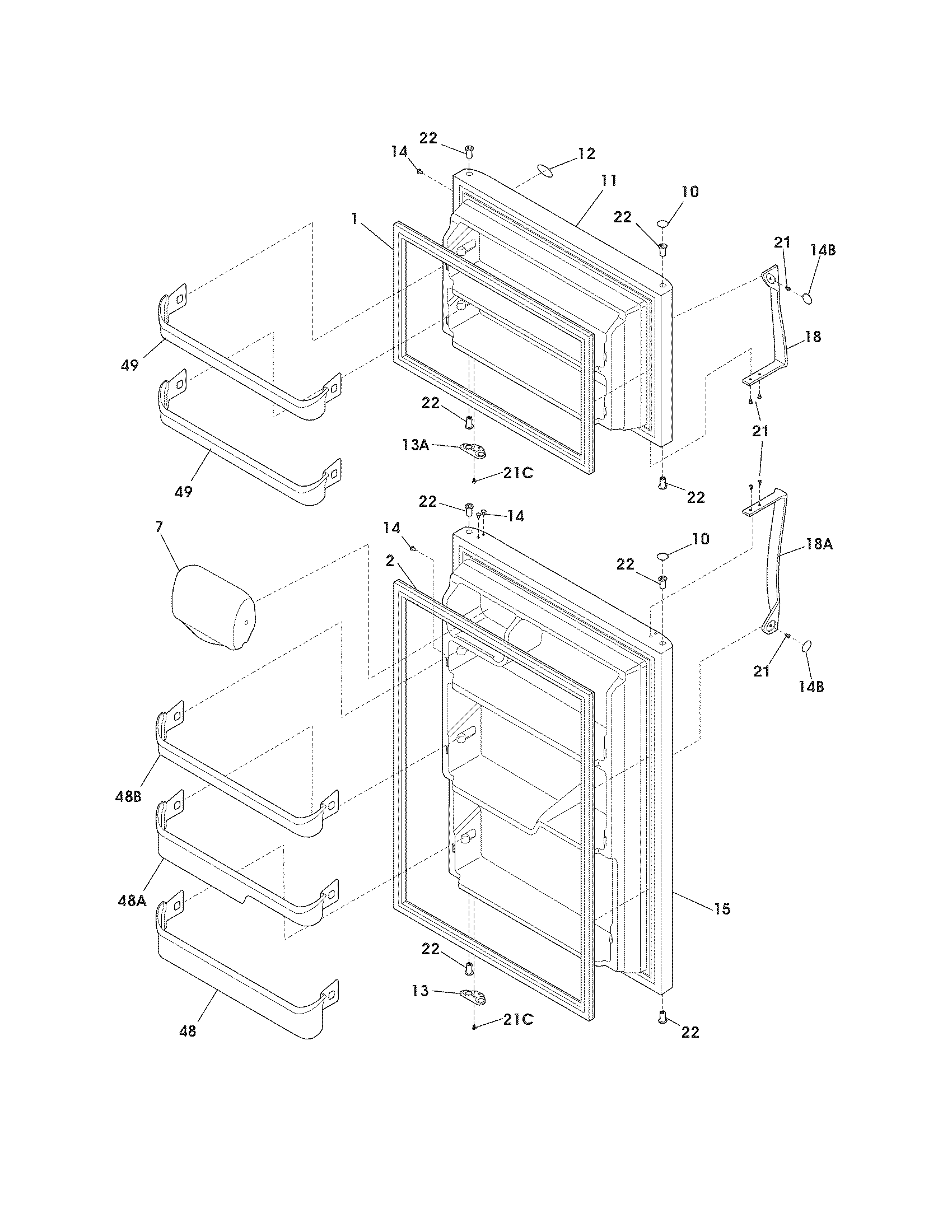

Door diagram

Refrigerator door bin

Part #240337901

BEST SELLER
$44.96
10% OFF Phone Price : $49.96
In Stock
Refrigerator Door Gasket (White) (replaces 241872506, 5304439521)
#2

Door diagram

Refrigerator gasket

Part #241872506

Replaced by #241872513

?
Manufacturer substitution
This part replaces 241872506. Substitute parts can look different from the original.
BEST SELLER
$105.04
9% OFF Phone Price : $115.04
In Stock
Refrigerator Door Gallon Bin
#48B

Door diagram

Refrigerator door gallon bin

Part #240338001

BEST SELLER
$35.36
12% OFF Phone Price : $40.36
In Stock
Refrigerator Door Bin (replaces 240338104)
#48

Door diagram

Refrigerator door bin (replaces 240338104)

Part #240338101

BEST SELLER
$46.40
10% OFF Phone Price : $51.40
In Stock
Refrigerator Crisper Drawer Cover Insert (replaces 240350655, 241711220, 241711270, 297194400)
#47

Shelves diagram

Refrigerator insert control panel

Part #241711219

Replaced by #240350608

?
Manufacturer substitution
This part replaces 241711219. Substitute parts can look different from the original.
BEST SELLER
$104.12
13% OFF MSRP : $120.00
In Stock
Refrigerator Crisper Drawer Cover Frame (replaces 240364714, 240364725, 240364778, 240364794)
#25

Shelves diagram

Refrigerator crisper drawer cover frame

Part #240364714

Replaced by #240364787

?
Manufacturer substitution
This part replaces 240364714. Substitute parts can look different from the original.
BEST SELLER
$90.61
9% OFF MSRP : $100.00
In Stock
Refrigerator Freezer Door Gasket (replaces 240370905, 240542115)
#1

Door diagram

Refrigerator freezer door gasket (replaces 240370905, 240542115)

Part #241872503

BEST SELLER
$110.53
8% OFF Phone Price : $120.53
In Stock
Refrigerator Dairy Bin Cover (replaces 240337703, 240337707, 240337713, 240337714, 240337715, 240337717, 240337718, 240337719, 240337720)
#7

Door diagram

Refrigerator dairy bin cover (replaces 240337703, 240337707, 240337713, 240337714, 240337715, 240337717, 240337718, 240337719, 240337720)

Part #240337712

BEST SELLER
$51.26
9% OFF Phone Price : $56.26
In Stock
Refrigerator Spill-Safe Shelf (replaces 240358907, 240358911, 240358929, 241730401)
#24

Shelves diagram

Refrigerator bottom drawer shelf

Part #240358905

Replaced by #240358925

?
Manufacturer substitution
This part replaces 240358905. Substitute parts can look different from the original.
BEST SELLER
$114.15
8% OFF Phone Price : $124.15
In Stock
