Craftsman
Gas Line Trimmer

Model # 316791700 Official Craftsman trimmer

Here are the diagrams and repair parts for Official Craftsman 316791700 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |

Lawn & Garden Equipment Engine Air Filter 753-05254
#26

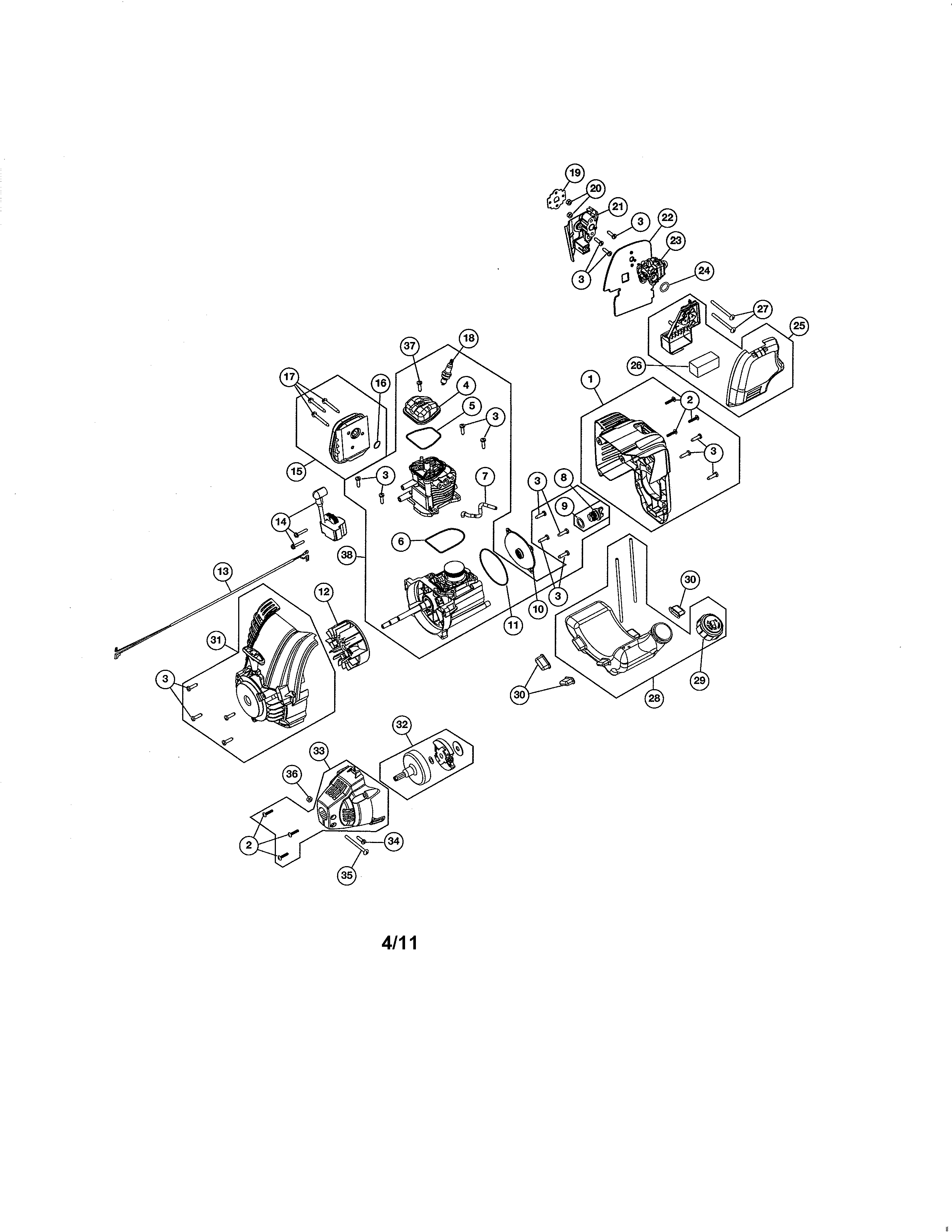

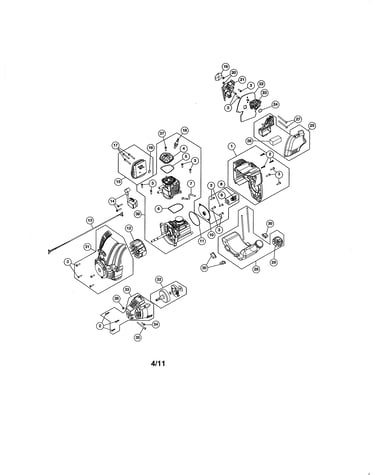

Short block/fuel tank diagram

Lawn & garden equipment engine air filter

Part #753-05254

BEST SELLER
$7.51
23% OFF MSRP : $9.70
In Stock
Lawn & Garden Equipment Clutch Assembly 753-06281
#32

Short block/fuel tank diagram

Lawn & garden equipment clutch assembly

Part #753-06281

BEST SELLER
$27.80
15% OFF Phone Price : $32.80
In Stock
Line Trimmer Throttle Trigger (replaces 791-00042, 791-00058) 753-04119
#2

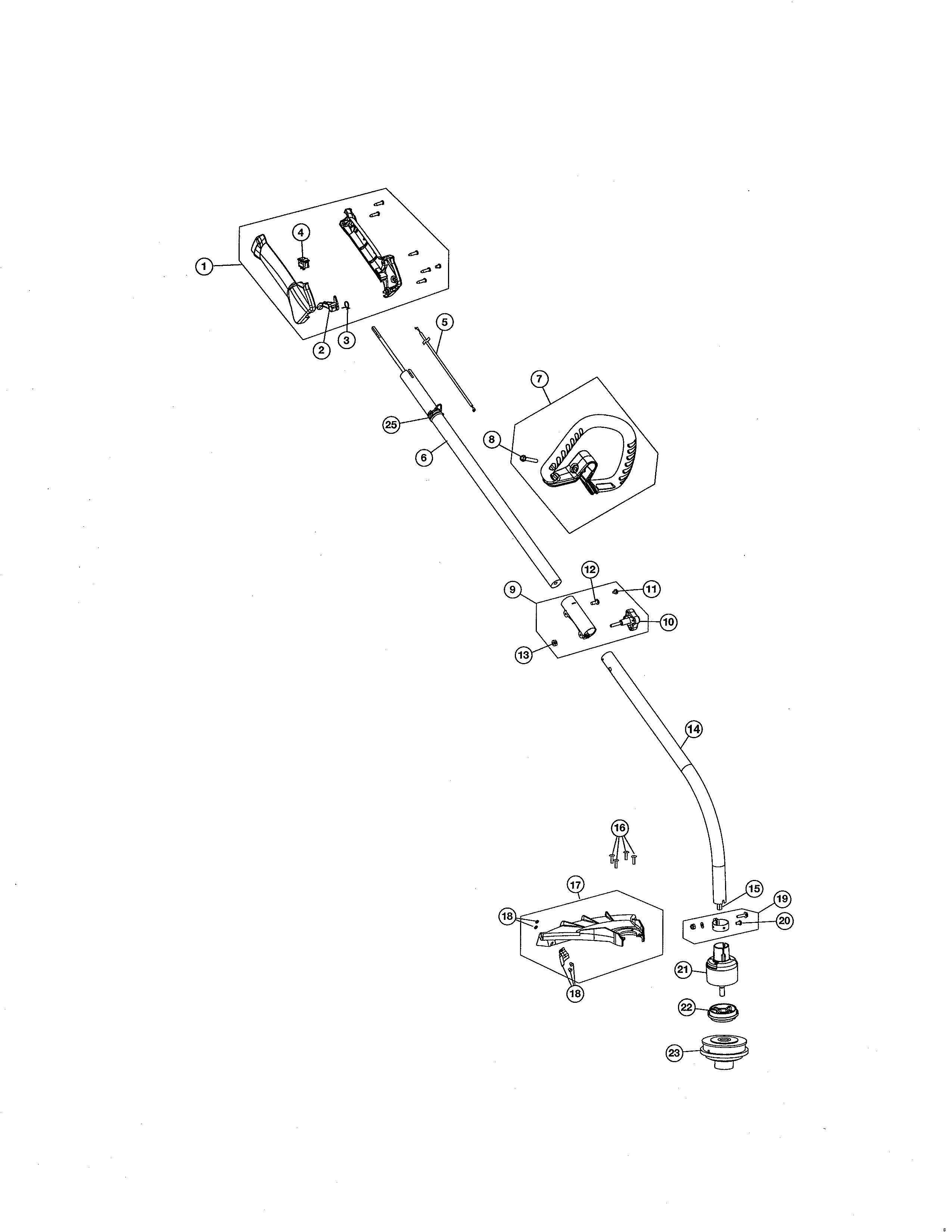

Drive shaft/handle/shield diagram

Line trimmer throttle trigger (replaces 791-00042, 791-00058)

Part #753-04119

BEST SELLER
$9.40
22% OFF MSRP : $12.00
In Stock
Line Trimmer Air Filter 753-05831
#25

Short block/fuel tank diagram

Line trimmer air filter

Part #753-05831

BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$19.01
34% OFF MSRP : $29.00
In Stock
Screw 753-05253
#27

Short block/fuel tank diagram

Screw

Part #753-05253

Replaced by #710-04517

?
Manufacturer substitution
This part replaces 753-05253. Substitute parts can look different from the original.
This item is not returnable
$8.30
11% OFF Phone Price : $9.30
In Stock
Lawn & Garden Equipment O-ring 791-181751
#24

Short block/fuel tank diagram

Lawn & garden equipment o-ring

Part #791-181751

This item is not returnable
$6.86
13% OFF Phone Price : $7.86
In Stock
Line Trimmer Flexible Drive Shaft, Lower (replaces 791-683608) 791-181852
#15

Drive shaft/handle/shield diagram

Line trimmer flexible drive shaft, lower (replaces 791-683608)

Part #791-181852

$55.09
30% OFF MSRP : $79.00
In Stock
Lawn & Garden Equipment Screw 791-182519
#34

Short block/fuel tank diagram

Lawn & garden equipment screw

Part #791-182519

This item is not returnable
$6.27
23% OFF MSRP : $8.10
In Stock
Line Trimmer Drive Shaft Coupler (replaces 753-08212, 791-160511, 791-181616b) 753-1190
#9

Drive shaft/handle/shield diagram

Line trimmer drive shaft coupler (replaces 753-08212, 791-160511, 791-181616b)

Part #753-1190

This item is not returnable
$29.42
15% OFF Phone Price : $34.42
In Stock
Lawn & Garden Equipment Engine Breather Tube 791-182379
#7

Short block/fuel tank diagram

Lawn & garden equipment engine breather tube

Part #791-182379

This item is not returnable
$7.17
12% OFF Phone Price : $8.17
In Stock
