Amana SXD25NP2-P1162433W refrigerator Parts
Here are the diagrams and repair parts for Amana SXD25NP2-P1162433W refrigerator, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for SXD25NP2-P1162433W Refrigerators
#NI

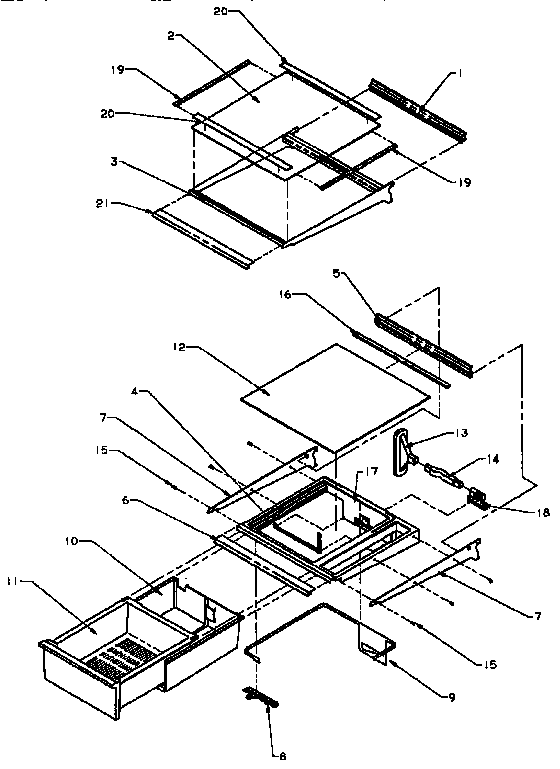

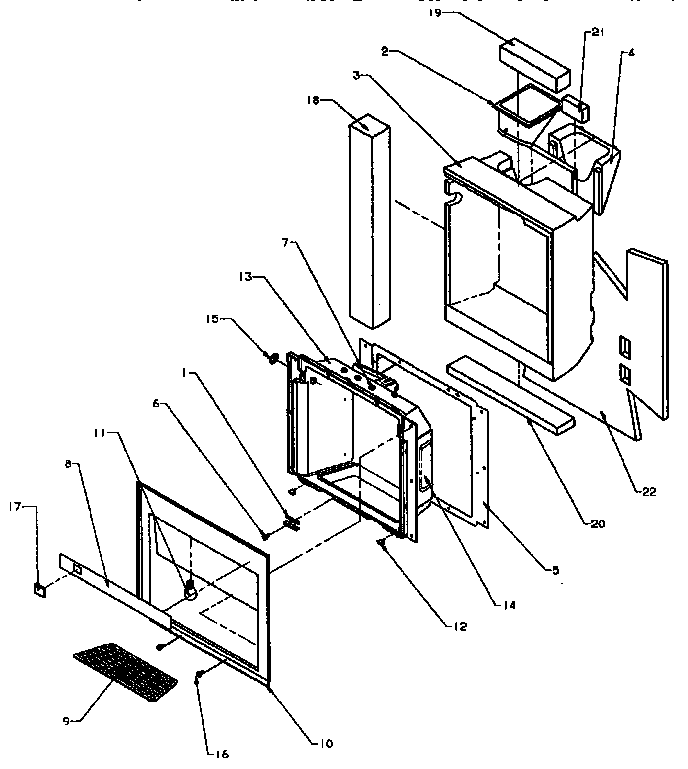

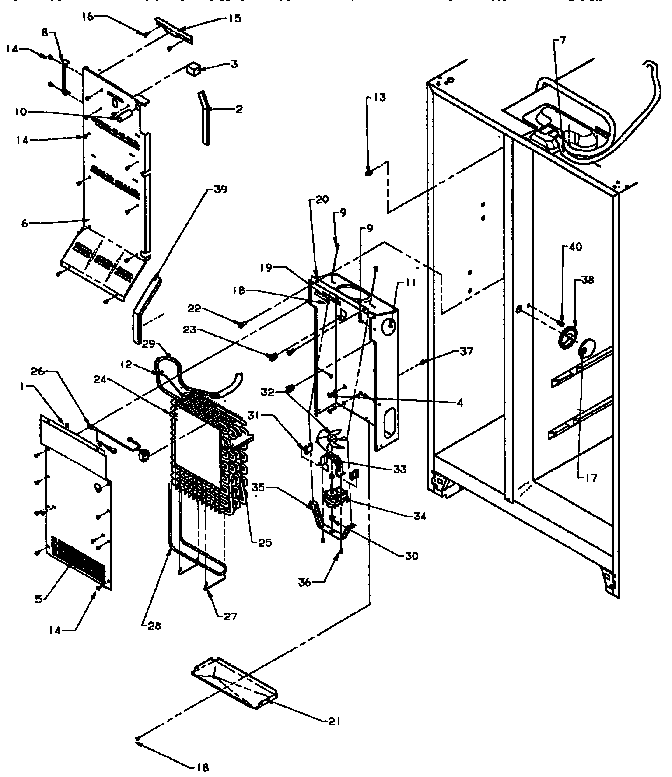

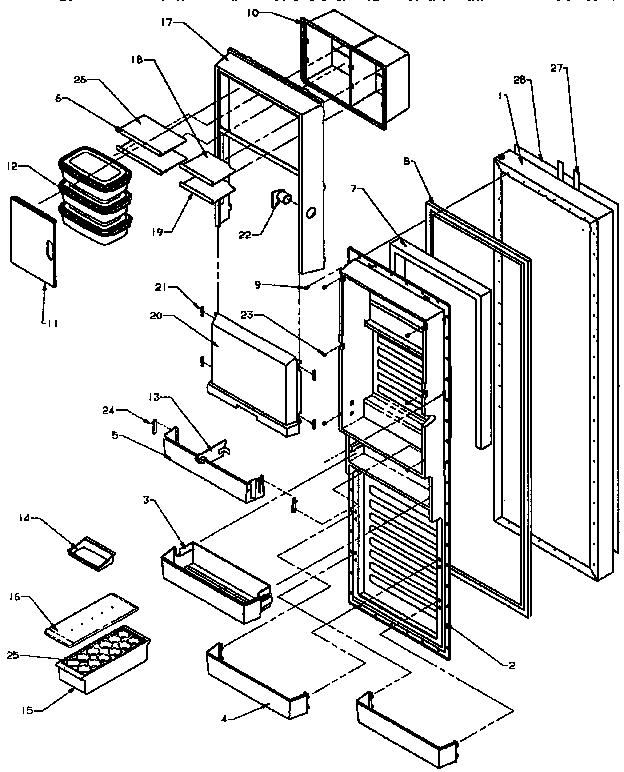

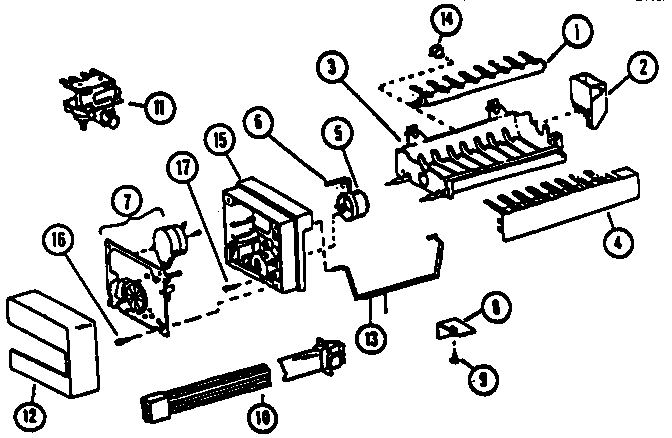

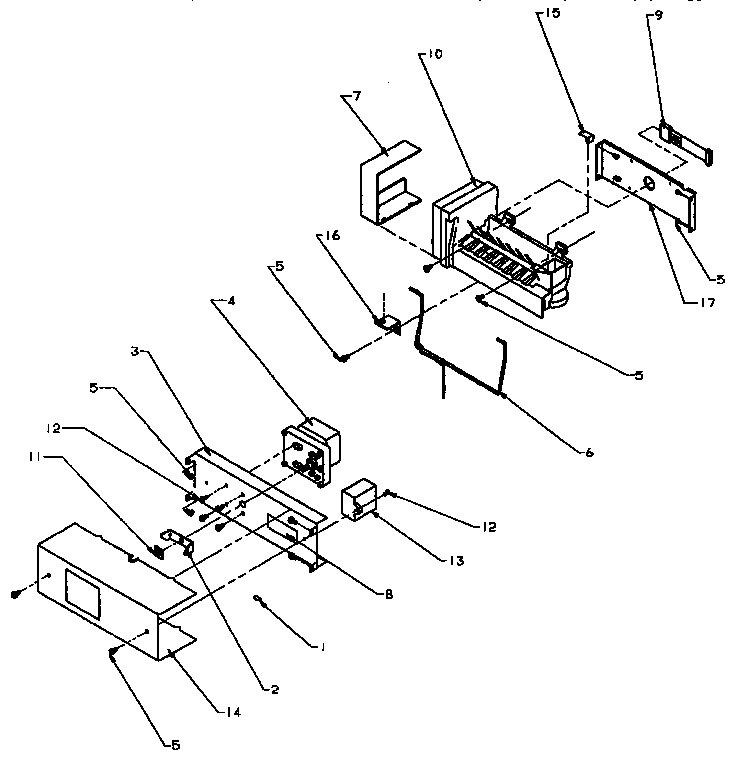

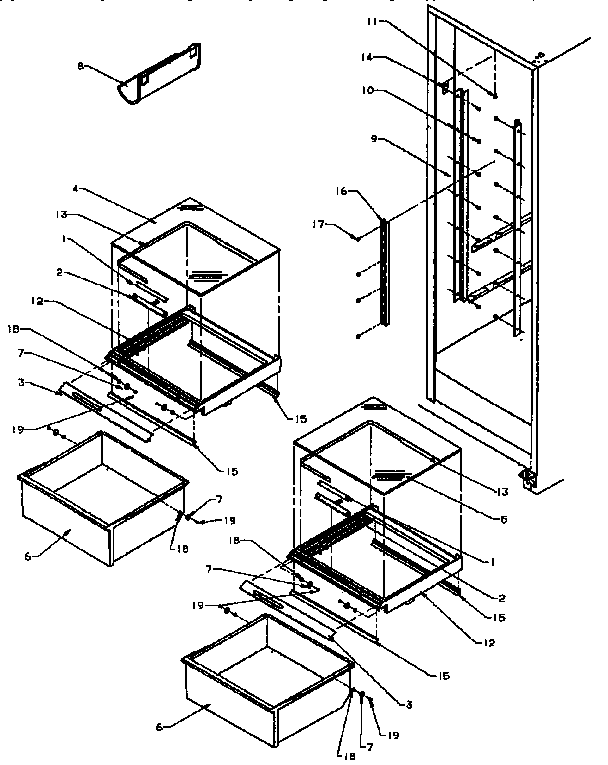

All parts diagram
Ice Agitator
Part #R0156803
The manufacturer no longer makes this part, and there's no substitute part

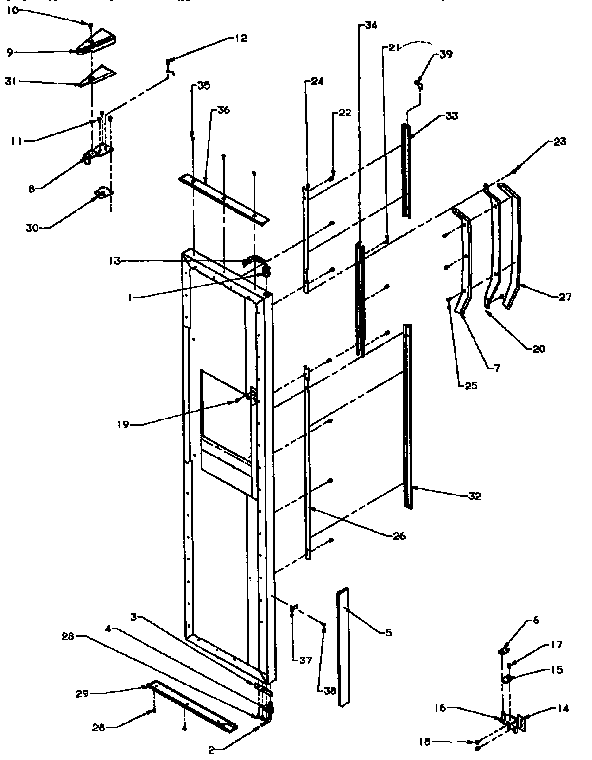

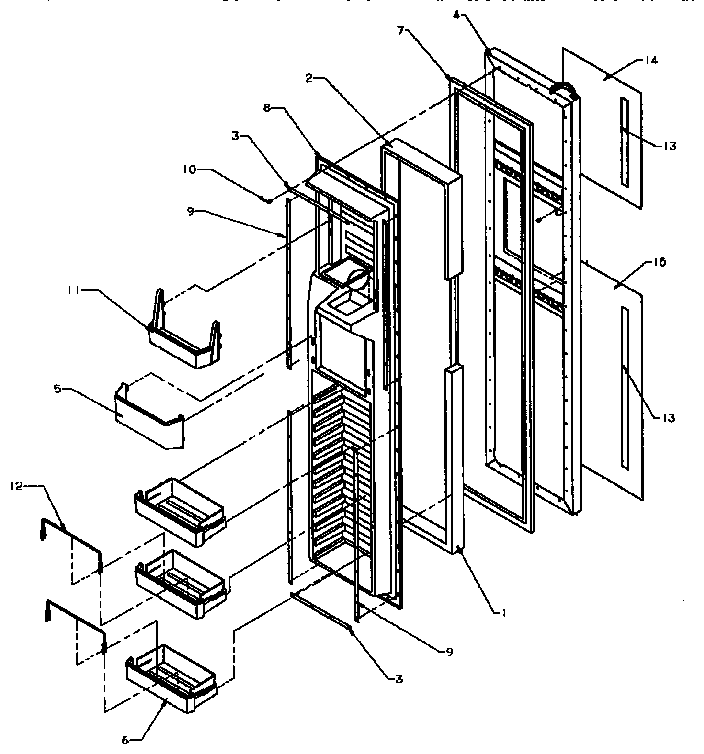

Freezer door hinge and trim parts diagram
Refrigerator Door Closure
Part #D7751401Replaced by #R0181181
Manufacturer substitutionThis part replaces D7751401. Substitute parts can look different from the original.This item is not returnableIn Stock$6.5313% OFF Phone Price : $7.53
Qty

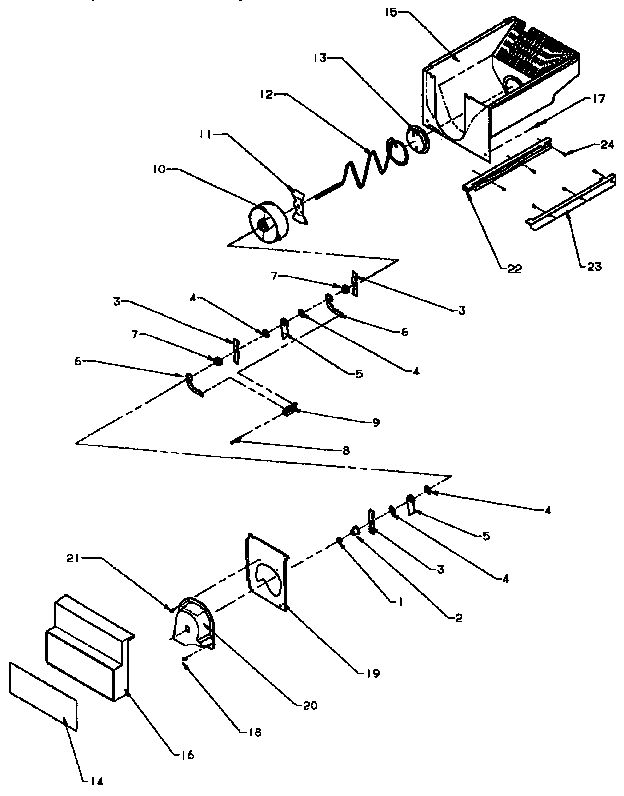

Crushed ice backet diagram
Refrigerator Screw
Part #M0254706Replaced by #67006692

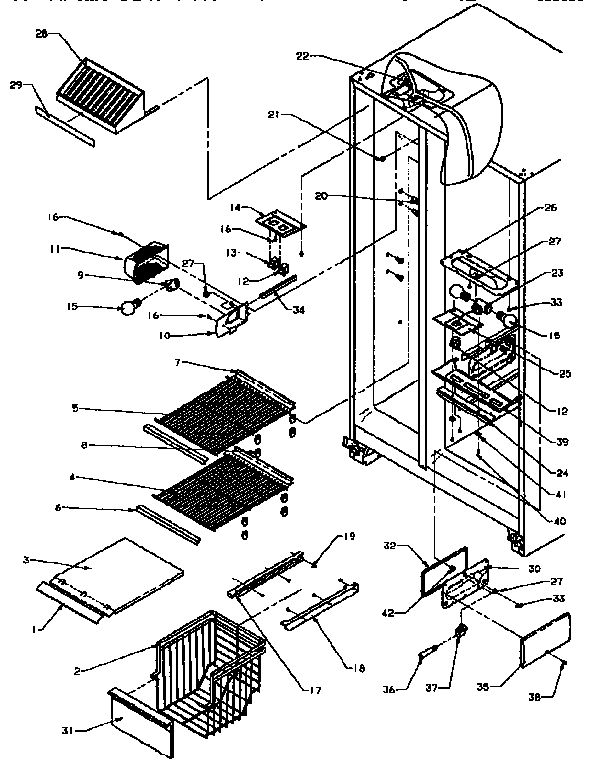

Manufacturer substitutionThis part replaces M0254706. Substitute parts can look different from the original.This item is not returnableIn Stock$8.8610% OFF Phone Price : $9.86QtyFreezer shelving and refrigerator light diagram

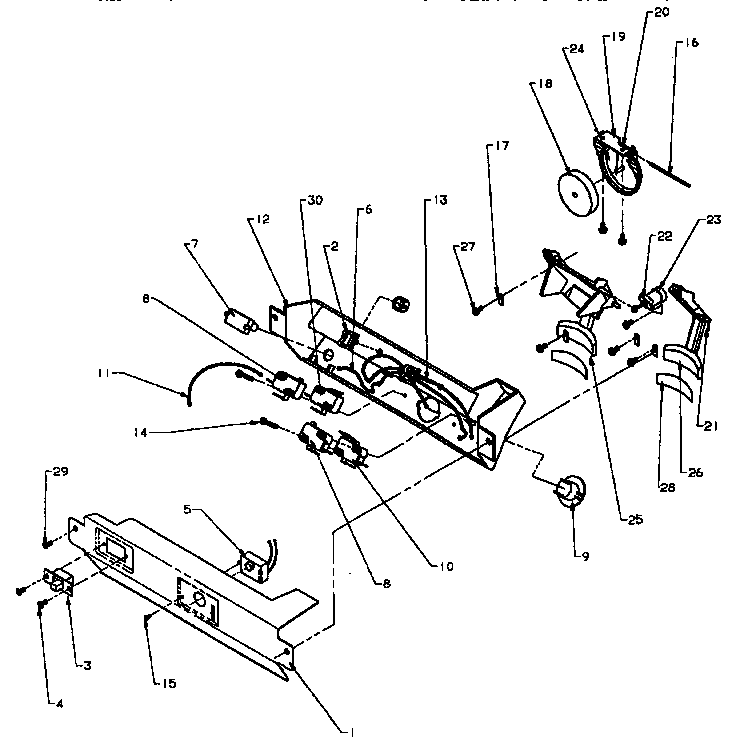

Switch
Part #C3680306
The manufacturer no longer makes this part, and there's no substitute part

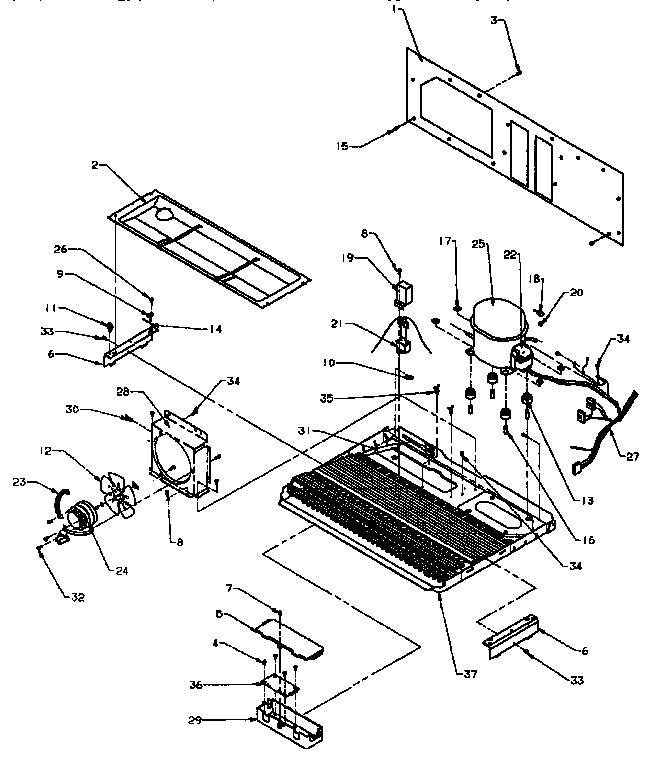

Machine compartment diagram

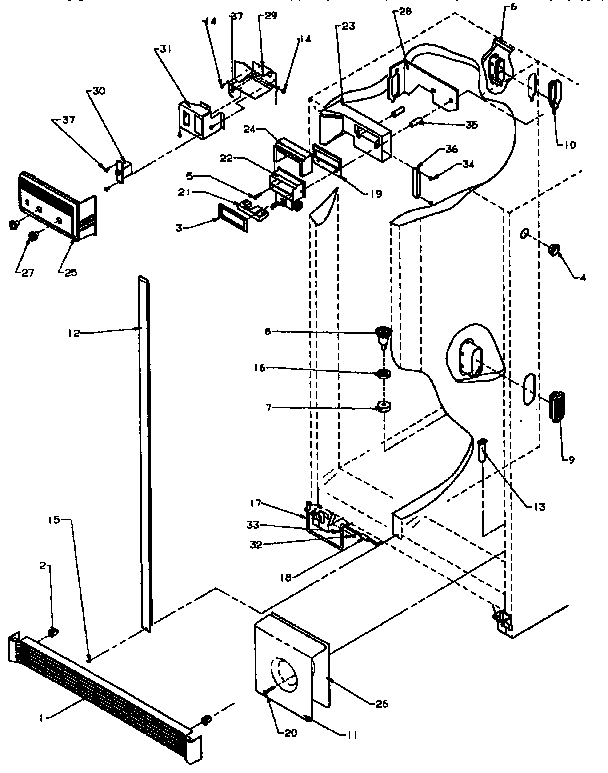

Refrigerator Harness
Part #10598001Replaced by #10893901
Manufacturer substitutionThis part replaces 10598001. Substitute parts can look different from the original.In Stock$55.70QtyRefrigerator Screw
Part #M0216515Replaced by #WP489349

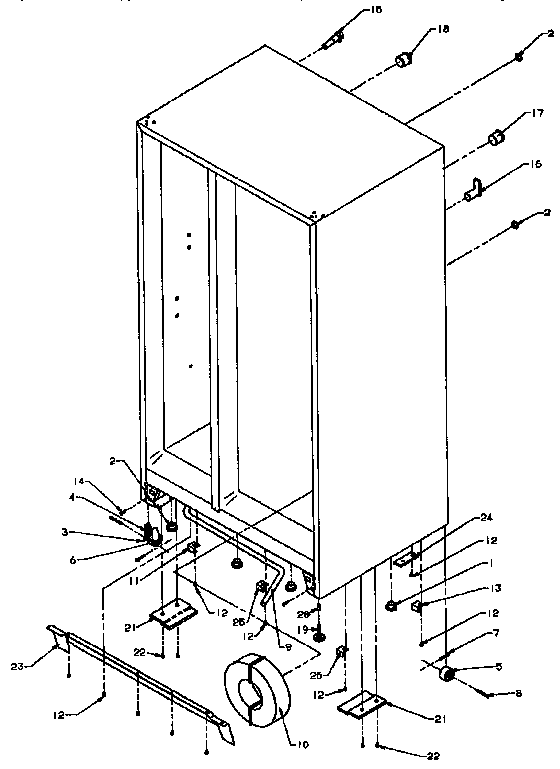

Manufacturer substitutionThis part replaces M0216515. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21QtyDrain and rollers diagram
Refrigerator Screw
Part #M0253942Replaced by #WP3400094

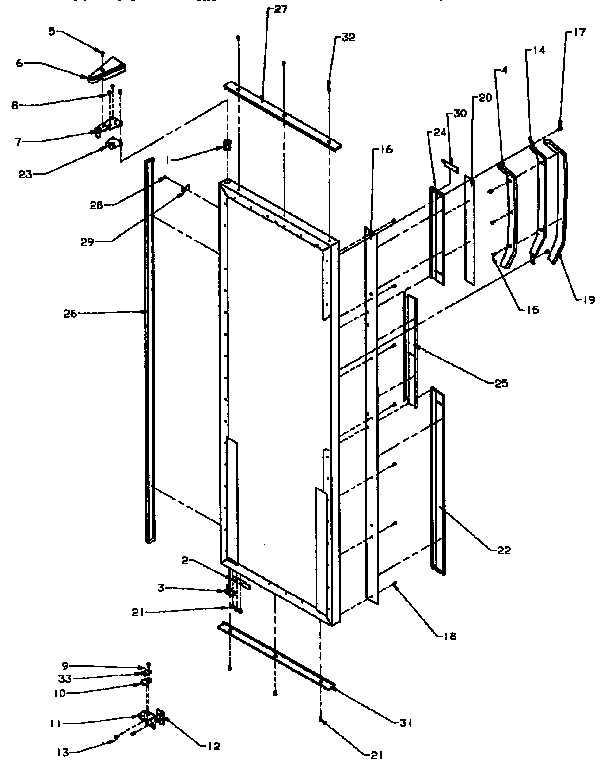

Manufacturer substitutionThis part replaces M0253942. Substitute parts can look different from the original.This item is not returnableIn Stock$4.4118% OFF Phone Price : $5.41QtyRefrigerator door hinge and trim parts diagram
Refrigerator Door Closure (black)
Part #D7751404Replaced by #R0181181
Manufacturer substitutionThis part replaces D7751404. Substitute parts can look different from the original.This item is not returnableIn Stock$6.5313% OFF Phone Price : $7.53QtyFreezer door hinge and trim parts diagram
Refrigerator Door Closure (black)
Part #D7751403Replaced by #R0181181

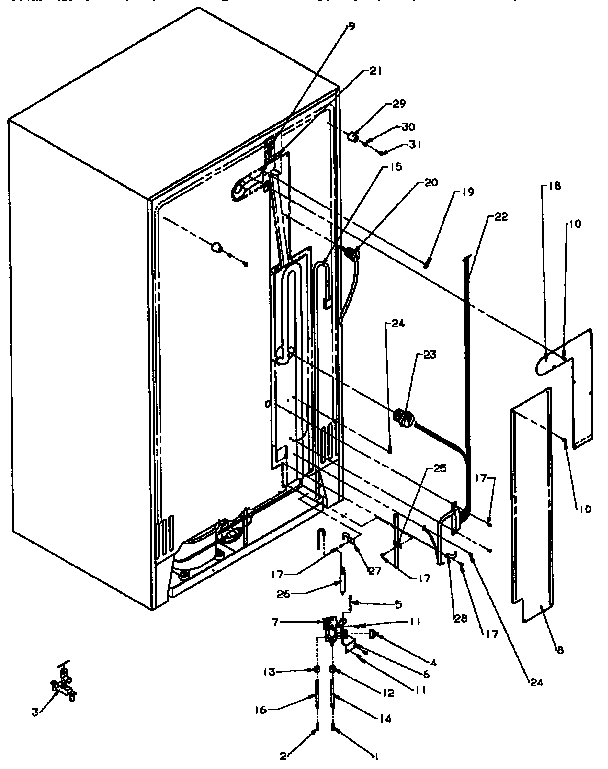

Manufacturer substitutionThis part replaces D7751403. Substitute parts can look different from the original.This item is not returnableIn Stock$6.5313% OFF Phone Price : $7.53QtyCabinet back diagram
Clip
Part #B8374701Replaced by #10798001
Manufacturer substitutionThis part replaces B8374701. Substitute parts can look different from the original.In Stock$27.79Qty
