Kenmore 79036932905 gas range Parts

A Kenmore gas range like model 79036932905 typically lasts 15 years with normal household use. Consistent cleaning, good kitchen ventilation, and fixing ignition or temperature issues early help you reach that lifespan and keep baking performance steady.

What affects lifespan the most

• Cleaning habits: wiping spills promptly reduces corrosion and smoke during high-heat cycles.
• Ventilation: using an exhaust hood helps control grease and heat buildup.
• Heat stress: frequent high-heat cooking and self-cleaning can accelerate wear.
• Wear items: light bulbs, igniters, and sensors are normal maintenance parts.
• Timely repairs: addressing weak ignition or uneven heating prevents bigger failures.

Maintenance checklist we recommend

Use your 79036932905 owner's manual for model-specific cleaning and operating guidance.

• Wipe up heavy spillovers before running self-clean to reduce smoke and odor.
• Run the exhaust fan or open a window during self-clean for better ventilation.
• Keep burner caps seated correctly so flames stay even.
• Replace a dim or failed oven light with the correct 40-watt bulb.
• If baking temperatures drift, calibrate the oven temperature setting.

Common “end-of-life” symptoms and likely fixes

Symptom	Most common cause	Typical next step
Oven will not ignite or takes too long	Weak igniter	Replace the frigidaire range oven burner igniter 5303935066
Oven temperature is inconsistent	Sensor drifting out of range	Test/replace the range oven temperature sensor 5304504897
Oven light out	Burned-out bulb or bad socket	Try the appliance light bulb, 40-watt 316538904 first

Why it matters

A 15-year lifespan assumes the range is installed correctly, operated as intended, and maintained regularly. Good ventilation and cleaning reduce grease buildup and overheating, which helps protect controls, wiring, and oven components over time.

Last updated: February 2026

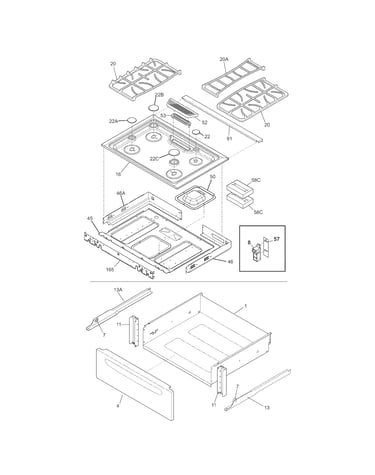

To lift the cooktop top on your Kenmore 79036932905 gas range, we remove the grates and burner caps first, then release any front hold-down screws or clips and raise the top (support it so it cannot fall). Always shut off power and gas before starting; follow the 79036932905 installation guide.

Safety first (do this before touching the cooktop)

• Turn all burner knobs to OFF and let the range cool completely.
• Shut off the manual gas shut-off valve.
• Turn off the circuit breaker (or unplug the power cord).
• Protect the countertop and cooktop surface with a towel or cardboard.
• Keep the range stable; do not strain or pinch the flexible gas line when moving it.

Steps to remove or lift the top (sealed burner style)

1. Remove the burner grates.
2. Lift off the burner caps.
3. If your model uses removable burner heads/bases, remove them (some are held by screws).
4. Look for mounting screws at the front edge under the cooktop lip or near burner bases; remove them.
5. Lift the cooktop from the front and raise it.
6. Support the top with the built-in prop rod (if equipped) or have a helper hold it.

What you may need to remove (varies by configuration)

Item	Usually removed first?	Why it matters
Burner grates	Yes	Access to caps and fasteners
Burner caps	Yes	Prevents damage and exposes screws
Burner heads/bases	Sometimes	Some tops are secured through these
Front hold-down screws/clips	Often	Releases the cooktop for lifting

Why it matters

Lifting the cooktop is the correct way to access surface burner igniters, wiring, and the spark system without forcing parts. It also helps prevent gas line strain and avoids damaging the enamel or control panel.

If you are lifting the top to fix ignition problems

A common cause of weak or no sparking is a failed spark module or a damaged igniter/orifice holder. For this model, the cooktop module 808608802 is the spark module used to generate ignition sparks.

Last updated: February 2026

Your Kenmore gas range model number is printed on the appliance’s rating label. On Kenmore model 79036932905, you’ll typically find that label around the oven door frame (door jamb) or on the frame behind the storage or warming drawer; some installations also place it on the back panel.

Where to look first (fastest checks)

• Open the oven door and check the door jamb and front frame edges
• Pull out the bottom drawer and look on the frame behind it
• Check the back panel near the lower area (use a flashlight)
• Look for a silver or white sticker with a long number (often starts with 790)
• Write the number exactly as shown, including any leading zeros

What the label looks like and what to copy

The rating label usually includes multiple identifiers. Copy the model number exactly; that is what we use to match Kenmore gas range parts and diagrams.

Label item	What it’s used for	Example format
Model number	Correct parts lookup	790XXXXXXXXX
Serial number	Manufacturing info	Letters and numbers
Gas type / electrical	Setup requirements	Natural gas, volts, Hz

Why it matters

Kenmore ranges can look similar across multiple model numbers, but burner parts, igniters, control overlays, and even the oven sensor can differ. Using the exact model number prevents ordering the wrong part and helps you follow the correct setup and safety instructions in the 79036932905 installation guide.

If the label is hard to read

• Take a clear photo with the flash on
• Wipe gently with a damp cloth (do not scrape)
• Try viewing from an angle to reduce glare
• If only part of the number is readable, focus on the first 3 to 5 digits and the full last 3 to 5 digits

Last updated: February 2026

If your Kenmore gas range model 79036932905 oven is not working, the most common causes are a power interruption (controls will not operate), an ignition failure (no heat), or a control fault showing an F-code. Start with safe reset checks, then focus on the oven igniter and temperature sensing.

Quick checks first (safe and fast)

• Confirm power is on: this range will not operate the oven controls during a power failure; if power was lost, turn the oven off, restore power, then reset the clock and cooking function per the 79036932905 owner's manual.
• Look for an error code: if the control beeps and shows an F-code (example: F11), follow the “Before you call” guidance in the manual.
• Make sure the oven is not in Self-Clean lockout: do not force the door; let the cycle finish and the door unlock normally.
• Check for gas supply issues: verify the main gas shutoff valve is on; if you suspect a gas leak, shut off the main valve immediately.

Most likely “no heat” cause on a gas oven: weak igniter

A weak igniter can glow but still fail to open the gas valve fully, so the burner never lights or takes a long time to light.

What you’ll typically see

• No bake flame, or delayed ignition
• Oven heats inconsistently
• Strong gas smell without ignition (turn oven off and ventilate)

Common repair part for this model

Symptom	Part to check	What it does
No bake heat or delayed ignition	Frigidaire range oven burner igniter 5303935066	Heats up to ignite gas and help the valve open

If it heats but temperature is wrong

If the oven runs but bakes too hot or too cool, the sensor circuit is a common place to check.

• Inspect the sensor wiring connection
• Test the sensor resistance (use the wiring diagram in the manual as your guide)
• Replace the sensor if it tests out of range

A common replacement is the range oven temperature sensor 5304504897.

Why it matters

An oven that will not ignite reliably can lead to poor cooking results and unsafe operating conditions. Starting with power, lockout status, and ignition components helps you pinpoint the failure quickly and avoid unnecessary parts.

Last updated: February 2026
