Magic Chef B31FK-7 gas range Parts
Here are the diagrams and repair parts for Magic Chef B31FK-7 gas range, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

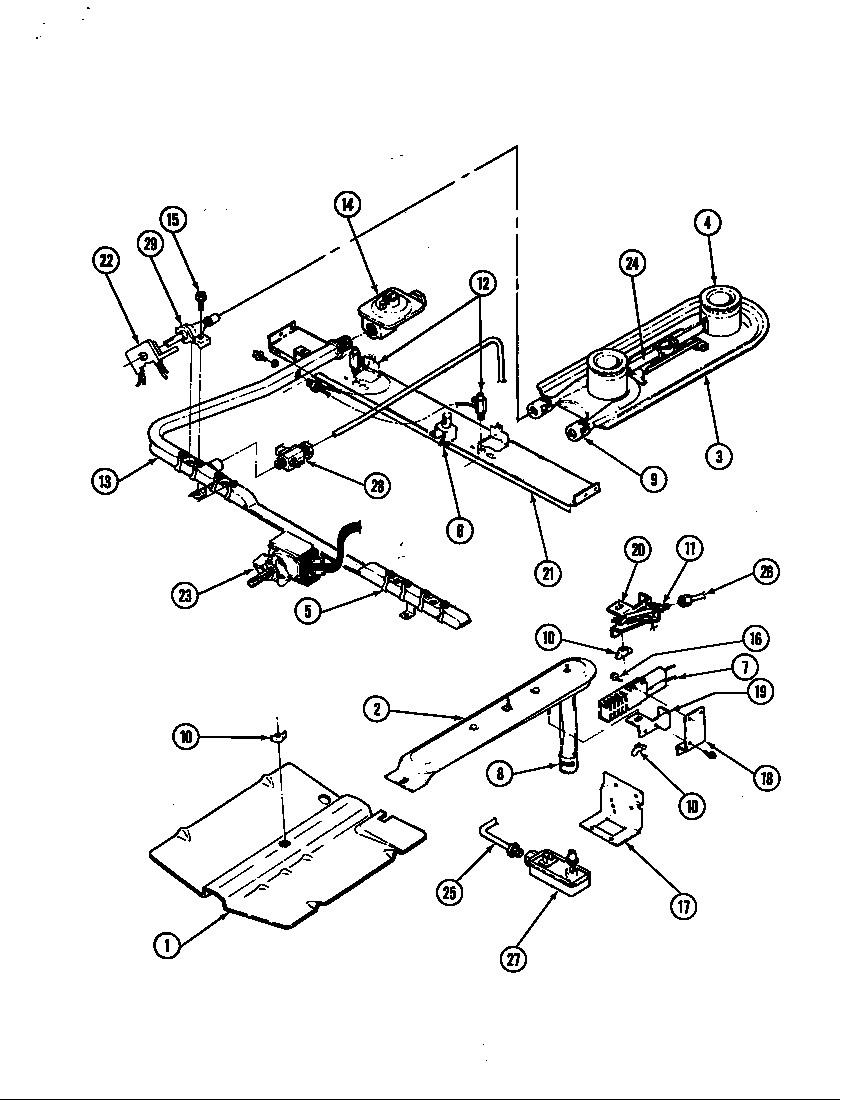

Browse Parts for B31FK-7 Ranges

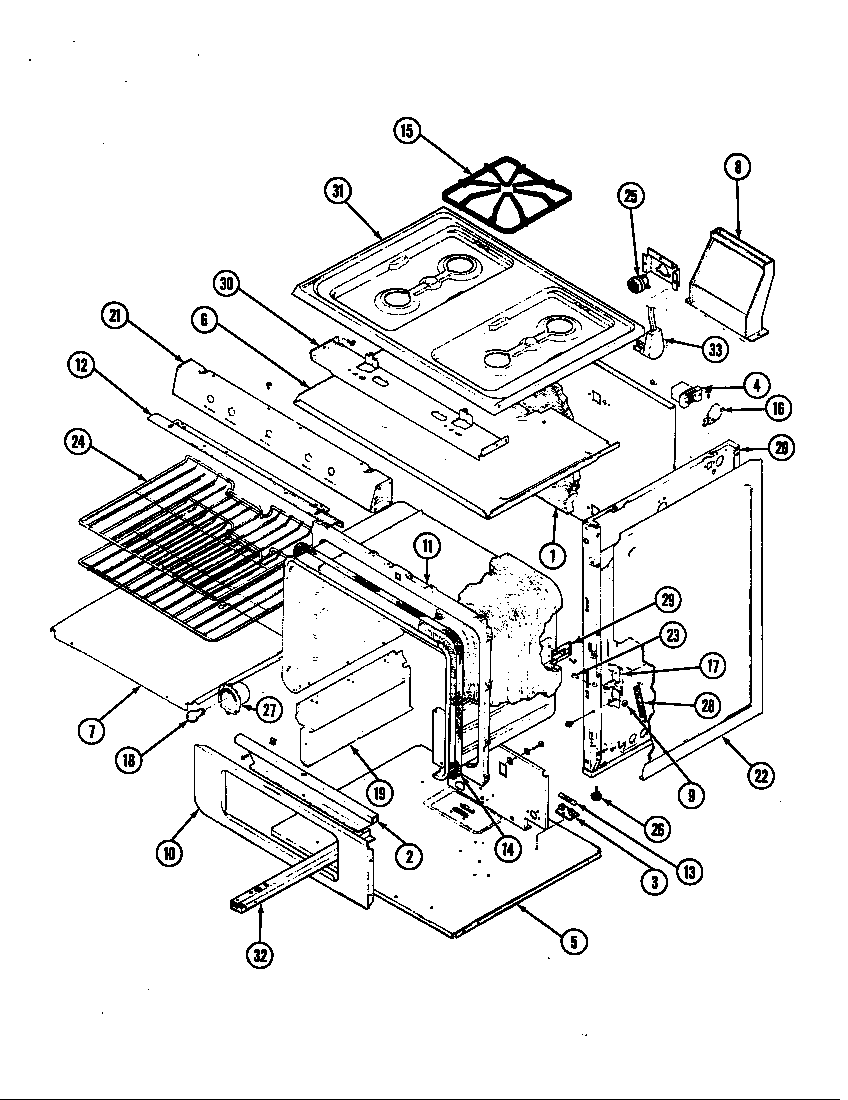

Body diagram
Thermostat Knob
Part #7731P053-60Replaced by #WP74002419
Manufacturer substitutionThis part replaces 7731P053-60. Substitute parts can look different from the original.This item is not returnableIn Stock$22.5121% OFF Phone Price : $28.51
Qty
Body diagram
Broiler Pan
Part #0663202Replaced by #4396923
Manufacturer substitutionThis part replaces 0663202. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56QtyBody diagram
Broiler Insert
Part #3413F016-19Replaced by #4396923
Manufacturer substitutionThis part replaces 3413F016-19. Substitute parts can look different from the original.In Stock$45.5612% OFF Phone Price : $51.56QtyBody diagram
Range Burner Control Knob
Part #7711P135-60Replaced by #WP7711P135-60

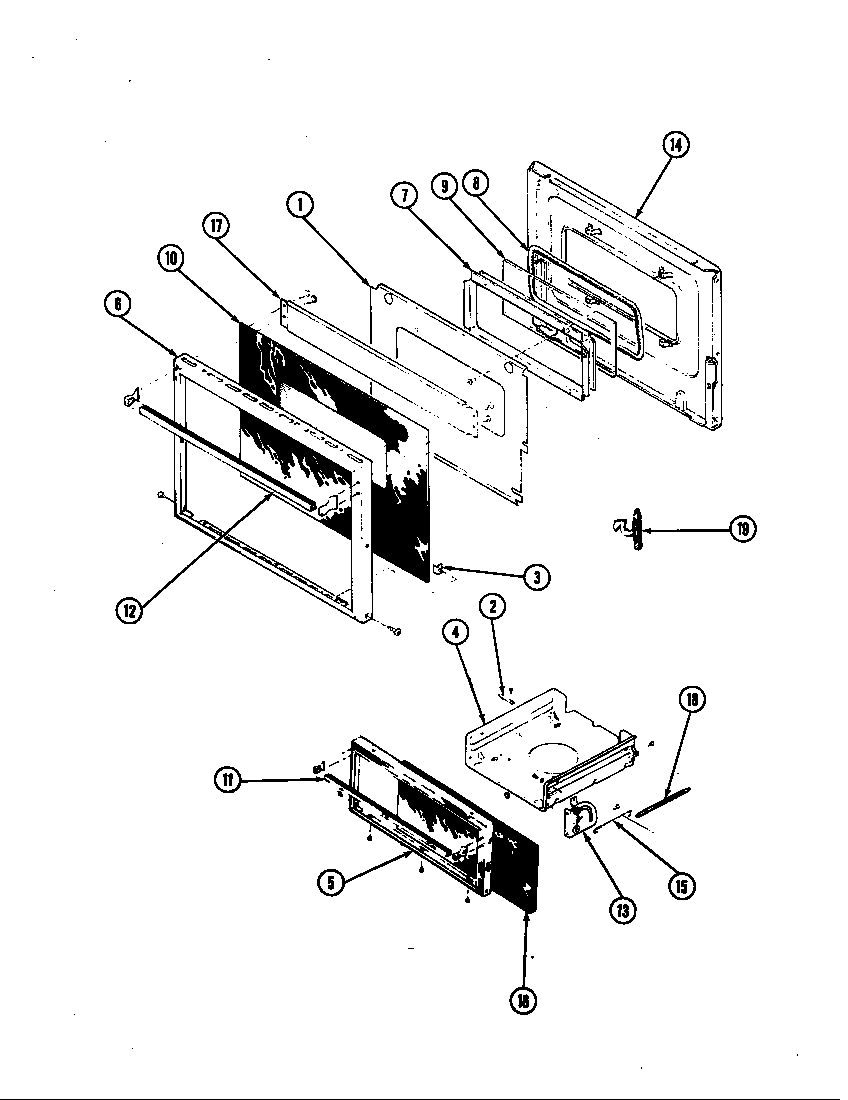

Manufacturer substitutionThis part replaces 7711P135-60. Substitute parts can look different from the original.This item is not returnableIn Stock$27.5218% OFF Phone Price : $33.52QtyDoor diagram
10 X 3/4 Ph
Part #1986238Replaced by #WP3387230
Manufacturer substitutionThis part replaces 1986238. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2316% OFF Phone Price : $6.23QtyBody diagram
Clip
Part #1141233Replaced by #WP7112P004-60
Manufacturer substitutionThis part replaces 1141233. Substitute parts can look different from the original.This item is not returnableIn Stock$9.979% OFF Phone Price : $10.97QtyBody diagram
Bottom, Broi
Part #4011F097-20
The manufacturer no longer makes this part, and there's no substitute part
Body diagram
Thermostat Knob
Part #7711P137-60
The manufacturer no longer makes this part, and there's no substitute part
Body diagram
Grate
Part #2003W001-00
The manufacturer no longer makes this part, and there's no substitute part
Support
Part #0862470
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
Most common repair guides to help fix your ranges
These step-by-step repair guides will help you safely fix what’s broken on your range.
How to replace a range oven door switch
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it …
Repair time and Difficulty
30 minutes or less
How to replace a range oven door lock assembly
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your ranges
Use the advice and tips in these articles and videos to get the most out of your range.
You might be surprised by these 4 tips for using your oven better.…
If your oven consistently undercooks or overcooks, it might need recalibration. You can reset it yourself.…
Take our quiz to see how well you treat your appliances. Then, find out what you can do to help them last longer.…
