Kenmore 25353322300 refrigerator Parts

Kenmore side-by-side refrigerator model 25353322300 is typically in the mid-20 cu. ft. range for total capacity. For the exact fresh food and freezer capacity breakdown for your specific configuration, we recommend confirming it in the 25353322300 owner's manual.

How to confirm the exact capacity for model 25353322300

Capacity is usually listed in the specifications section of the manual or on the model/serial data plate inside the refrigerator compartment.

• Check the specifications section in the 25353322300 owner's manual
• Look for the model/serial plate inside the fresh food compartment
• If your unit has a dispenser and front filter housing, verify you are matching the correct 253-series variant
• Use the capacity numbers to compare like-for-like when shopping for a replacement refrigerator

Typical capacity ranges (helpful for planning)

Most Kenmore 253-series side-by-side refrigerators fall into these common ranges:

What you need	Typical range	What to use it for
Total capacity	24 to 27 cu. ft.	Overall storage planning
Refrigerator section	15 to 18 cu. ft.	Shelf and drawer space
Freezer section	8 to 10 cu. ft.	Frozen food and ice storage

Why it matters

Knowing the correct cubic feet helps us match parts and accessories to your layout and helps you plan food storage. It also helps when troubleshooting cooling complaints, since an overfilled compartment can restrict airflow and affect temperature stability.

Last updated: February 2026

To find the “size” of your Kenmore refrigerator model 25353322300, we measure the outside dimensions (fit in your kitchen) and, separately, estimate storage capacity in cubic feet (usable space). The most accurate dimensions and capacity method for your unit are listed in the 25353322300 owner's manual.

Measure the outside dimensions (width, height, depth)

Use a tape measure and record in inches.

• Width: left to right across the cabinet (measure the widest point)
• Height: floor to top of hinge cover (or top of cabinet if no cover)
• Depth: front to back (measure cabinet depth and depth including handles)
• Door swing clearance: space needed for doors to open fully
• Ventilation clearance: space behind and above for airflow

Quick measurement checklist

What to measure	Where to measure	Why it matters
Width	cabinet at widest point	confirms fit between cabinets
Height	floor to top	confirms fit under soffits
Depth (cabinet)	back to front edge	confirms fit without handles
Depth (with handles)	back to handle front	prevents aisle blockage

Estimate storage capacity (cubic feet)

If you want a rough cubic-feet estimate, use this approach:

1. Convert interior measurements to inches (fresh food and freezer separately if possible).
2. For each section: (width × height × depth) ÷ 1,728 = cubic feet.
3. Add the sections together.

Most side-by-side refrigerators land in the 20 to 27 cu. ft. range, depending on interior layout, ice maker, and shelving.

Why it matters

Outside dimensions help you confirm installation fit and door clearance; cubic feet helps you compare storage capacity between models. Mixing the two is a common mistake, so we always measure both when planning a replacement or remodel.

Last updated: February 2026

The most common issues we see on Kenmore refrigerators like model 25353322300 are cooling problems (often airflow, dirty condenser coils, or defrost trouble), water leaks, ice maker or dispenser jams, and unusual noises from fans or the compressor area. Many of these are resolved with cleaning, basic inspections, and targeted part replacement.

Most common symptoms and what usually causes them

• Not cooling or warm temperatures: dirty condenser coils, evaporator fan issues, defrost system problems (ice buildup)
• Runs too much or too long: doors opened often, door not sealing, condenser coils dirty, controls set too cold
• Water leaking or puddles: clogged/iced defrost drain, loose water line connections, door left ajar causing excess frost melt
• Ice maker not making ice: water supply issue, ice maker assembly failure, frozen fill path
• Ice dispenser jammed: cubes melting and refreezing after a power outage, or dispenser not used often (cubes clump together)

For model-specific operating and troubleshooting guidance, follow the checks in the 25353322300 owner's manual.

Quick checks we recommend first (fast, no parts)

• Confirm the doors close fully and nothing inside is blocking them.
• Clean condenser coils and make sure airflow around the cabinet is not restricted.
• Listen for the evaporator fan in the freezer; a failed fan often causes warm temps and odd noises.
• If the ice dispenser is jammed, remove the bin and shake to loosen cubes (do not chip ice with sharp tools).
• After a long power outage, dump clumped ice and let the bin dry before reinstalling.

Common parts that fix these problems on 25353322300

Problem area	What fails most often	Example part for this model
Poor cooling, noise, weak airflow	Evaporator fan blade (and sometimes the motor)	Refrigerator evaporator fan blade 5308000010
Frost buildup, warm freezer	Defrost thermostat or heater	Refrigerator defrost bi-metal thermostat 5303918214
Bad taste/slow water, low ice output	Clogged water filter	Refrigerator filter WF2CB

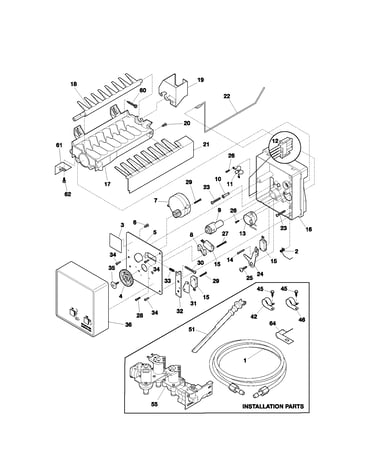

Ice not producing	Ice maker assembly	Refrigerator ice maker 5304458371

Why it matters

Cooling, ice, and leak complaints usually trace back to airflow (fans, coils, door seal) or defrost performance. Fixing those early helps prevent food spoilage, repeated ice jams, and compressor overwork.

Last updated: February 2026

Most Kenmore refrigerators average 10 to 15 years of service life. For your Kenmore 25353322300 side-by-side refrigerator, lifespan depends most on airflow (clean condenser area), tight door sealing, and keeping the sealed system healthy; follow the care guidance in the 25353322300 owner's manual.

Typical lifespan ranges (what to expect)

Kenmore refrigerators generally fall into these real-world ranges when used in a normal household kitchen:

• 10 to 15 years: typical for most refrigerators
• 15 to 20 years: common when coils are kept clean and door gaskets seal well
• Under 10 years: most often tied to poor ventilation, dirty condenser area, or deferred repairs

Lifespan range	What it usually means	What to do now
0 to 5 years	Early issues are often fixable	Address cooling, ice maker, or dispenser symptoms quickly
6 to 15 years	Normal wear period	Keep coils clean; monitor temps and door sealing
16+ years	High-mileage unit	Plan for proactive maintenance and occasional part replacement

Maintenance that adds years (high impact)

These steps reduce compressor run time and help prevent temperature swings:

• Vacuum dust from the condenser area and improve airflow around the cabinet
• Keep freezer and fresh food vents unblocked so the evaporator fan can circulate air
• Confirm doors close fully and the gasket seals all the way around
• Keep temperatures steady (avoid frequent warm-ups from long door openings)
• Replace water filters on schedule if you use the dispenser or ice maker

Water filter replacement timing (model-relevant)

Your manual notes that water conditions vary, but replacing the filter about every 6 to 9 months helps maintain water quality and flow. If flow slows or the filter has sat unused during a move, replace it before relying on ice and water again. For the correct replacement, use the refrigerator filter WF2CB.

Why it matters

A refrigerator’s most expensive wear items are in the cooling system. Good airflow, stable temperatures, and a solid door seal reduce strain on the compressor and sealed system, which is the difference between a fridge that lasts 10 years and one that pushes well beyond that.

Last updated: February 2026

On Kenmore side-by-side refrigerator model 25353322300, the model number is printed on the serial plate inside the fresh food (refrigerator) compartment. Open the refrigerator door and look along the interior walls near the top front area for the label that lists both the model and serial numbers (not on the back of the unit).

Where to look first (fast checklist)

• Open the refrigerator (fresh food) door, not the freezer door
• Check the upper interior side walls near the front opening
• Look for a serial plate or rating label with multiple lines of text
• Find the line that starts with Model Number (often shows 253 or 970 as the prefix)
• Record the full model number and the serial number for parts lookup and service

What the label typically shows

The serial plate usually includes both identifiers. Use this quick guide so you copy the right number.

Item on label	What it’s used for	What it looks like
Model number	Matching parts and diagrams	Often begins with 253 (or sometimes 970)
Serial number	Date/production tracking and service	A longer mix of letters and numbers

Why it matters

We use the exact model number to match the correct Kenmore parts (like a water filter, ice maker, or door gasket) because similar-looking side-by-side refrigerators can use different components.

Helpful reference

For the exact wording and location description used by Kenmore for this series, check the 25353322300 owner's manual.

Last updated: February 2026

Kenmore model 25353322300 is a Kenmore-branded refrigerator built by a third-party manufacturer for Sears. For this model family (the 253 prefix), the unit is made by Frigidaire/Electrolux.

How we identify the maker for Kenmore 253 models

Kenmore is a brand name; the actual manufacturer is typically tied to the model prefix.

• 253 prefix: commonly associated with Frigidaire/Electrolux manufacturing
• The maker matters most for parts compatibility and service procedures
• Your best confirmation points are the model tag and the parts list for your exact model

What this means for parts and repairs

Even though the badge says Kenmore, many replacement parts and assemblies cross to Frigidaire-built designs.

What you are doing	What to use	Why it helps
Ordering parts	Use the full model number 25353322300	Ensures correct fit across revisions
Looking up procedures	Use the 25353322300 owner's manual	Matches your control layout and features
Installing the refrigerator	Use the 25353322300 installation guide	Covers leveling, water line hookup, clearances

Why it matters

Knowing the manufacturer behind Kenmore 25353322300 helps prevent wrong-part orders and speeds up troubleshooting for common systems like the ice maker, water filter housing, and sealed refrigeration system.

Last updated: February 2026
