Admiral RFUA20FAAW freezer Parts

Here are the diagrams and repair parts for Admiral RFUA20FAAW freezer, as well as links to manuals and error code tables, if available.

Admiral RFUA20FAAW freezer
By Schematic
By Part

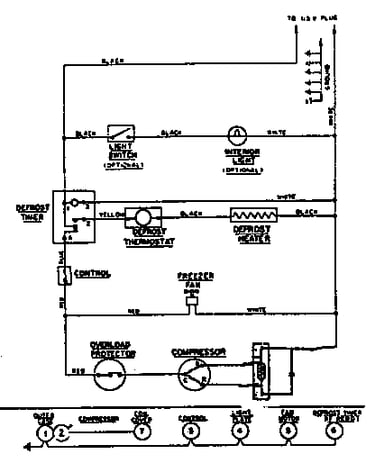

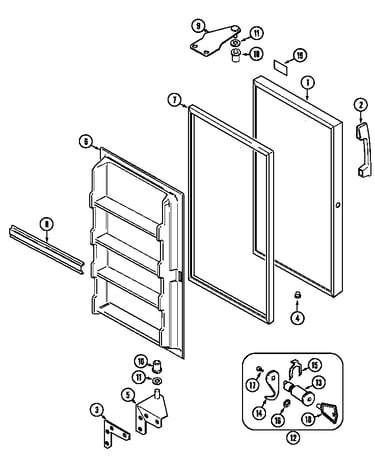

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for RFUA20FAAW Freestanding Freezers

  • Whirlpool Refrigerator Run Capacitor for Admiral RFUA20FAAW - Part WPW10662129

    Run Capacitor

    Part #09100156

    Replaced by #WPW10662129

    Info Icon
    Manufacturer substitution
    This part replaces 09100156. Substitute parts can look different from the original.
    In Stock
    $43.74
    12% OFF Phone Price : $49.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Door Switch for Admiral RFUA20FAAW - Part W11384469

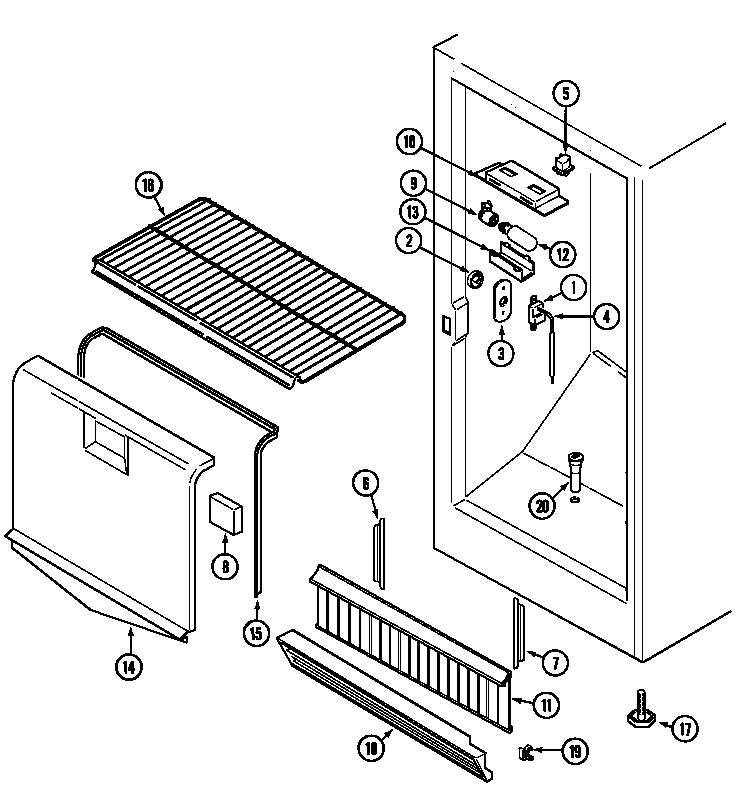

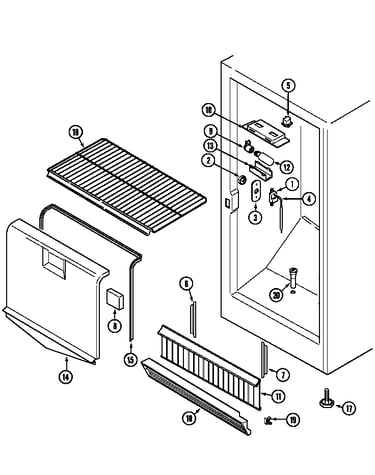

    Freezer compartment diagram

    Fan Switch

    Part #68001061

    Replaced by #W11384469

    Info Icon
    Manufacturer substitution
    This part replaces 68001061. Substitute parts can look different from the original.
    In Stock
    $25.13
    19% OFF Phone Price : $31.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Whirlpool Refrigerator Door Switch for Admiral RFUA20FAAW - Part W11384469

    Freezer compartment diagram

    Light Switch

    Part #68001324

    Replaced by #W11384469

    Info Icon
    Manufacturer substitution
    This part replaces 68001324. Substitute parts can look different from the original.
    In Stock
    $25.13
    19% OFF Phone Price : $31.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Light Bulb for Admiral RFUA20FAAW - Part WPA3073101

    Freezer compartment diagram

    Light Bulb

    Part #68001062

    Replaced by #WPA3073101

    Info Icon
    Manufacturer substitution
    This part replaces 68001062. Substitute parts can look different from the original.
    In Stock
    $13.11
    13% OFF Phone Price : $15.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Light Bulb for Admiral RFUA20FAAW - Part WPA3073101

    Freezer compartment diagram

    Light Bulb

    Part #09100073

    Replaced by #WPA3073101

    Info Icon
    Manufacturer substitution
    This part replaces 09100073. Substitute parts can look different from the original.
    In Stock
    $13.11
    13% OFF Phone Price : $15.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor Overload And Ptc Start Relay for Admiral RFUA20FAAW - Part WP2154697

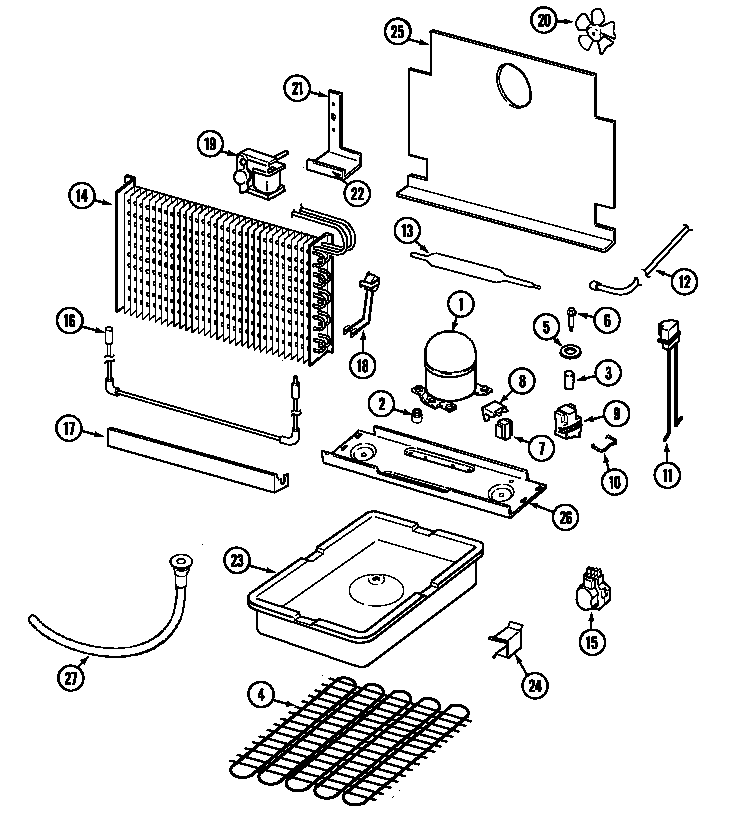

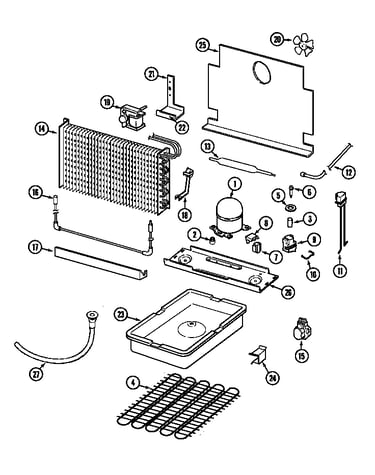

    Unit compartment & system diagram

    Overload

    Part #68001218

    Replaced by #WP2154697

    Info Icon
    Manufacturer substitution
    This part replaces 68001218. Substitute parts can look different from the original.
    In Stock
    $69.83
    8% OFF Phone Price : $75.83Info Icon
    Minus Item
    Qty
    Plus Item
  • Freezer Defrost Timer for Admiral RFUA20FAAW - Part WP3-81329

    Unit compartment & system diagram

    Defrost Timer

    Part #68001115

    Replaced by #WP3-81329

    Info Icon
    Manufacturer substitution
    This part replaces 68001115. Substitute parts can look different from the original.
    In Stock
    $112.39
    10% OFF Phone Price : $124.39Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Defrost Bi-metal Thermostat for Admiral RFUA20FAAW - Part WP1-81801-001

    Unit compartment & system diagram

    Thermostat

    Part #68001088

    Replaced by #WP1-81801-001

    Info Icon
    Manufacturer substitution
    This part replaces 68001088. Substitute parts can look different from the original.
    In Stock
    $60.92
    9% OFF Phone Price : $66.92Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Compressor Overload And Start Relay Cover for Admiral RFUA20FAAW - Part WP2162358

    Unit compartment & system diagram

    Terminal Cover

    Part #68001213

    Replaced by #WP2162358

    Info Icon
    Manufacturer substitution
    This part replaces 68001213. Substitute parts can look different from the original.
    In Stock
    $45.54
    12% OFF Phone Price : $51.54Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigeration Appliance Defrost Heater for Admiral RFUA20FAAW - Part W11175809

    Unit compartment & system diagram

    Defrost Heater

    Part #045329-01

    Replaced by #W11175809

    Info Icon
    Manufacturer substitution
    This part replaces 045329-01. Substitute parts can look different from the original.
    In Stock
    $105.67
    10% OFF Phone Price : $117.67Info Icon
    Minus Item
    Qty
    Plus Item
