Model #KFGU766VSS01 KitchenAid 36" gas cooktop

Here are the diagrams and repair parts for KitchenAid KFGU766VSS01 36" gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 87 parts

    Cooktop Owner's Manual

    #1D

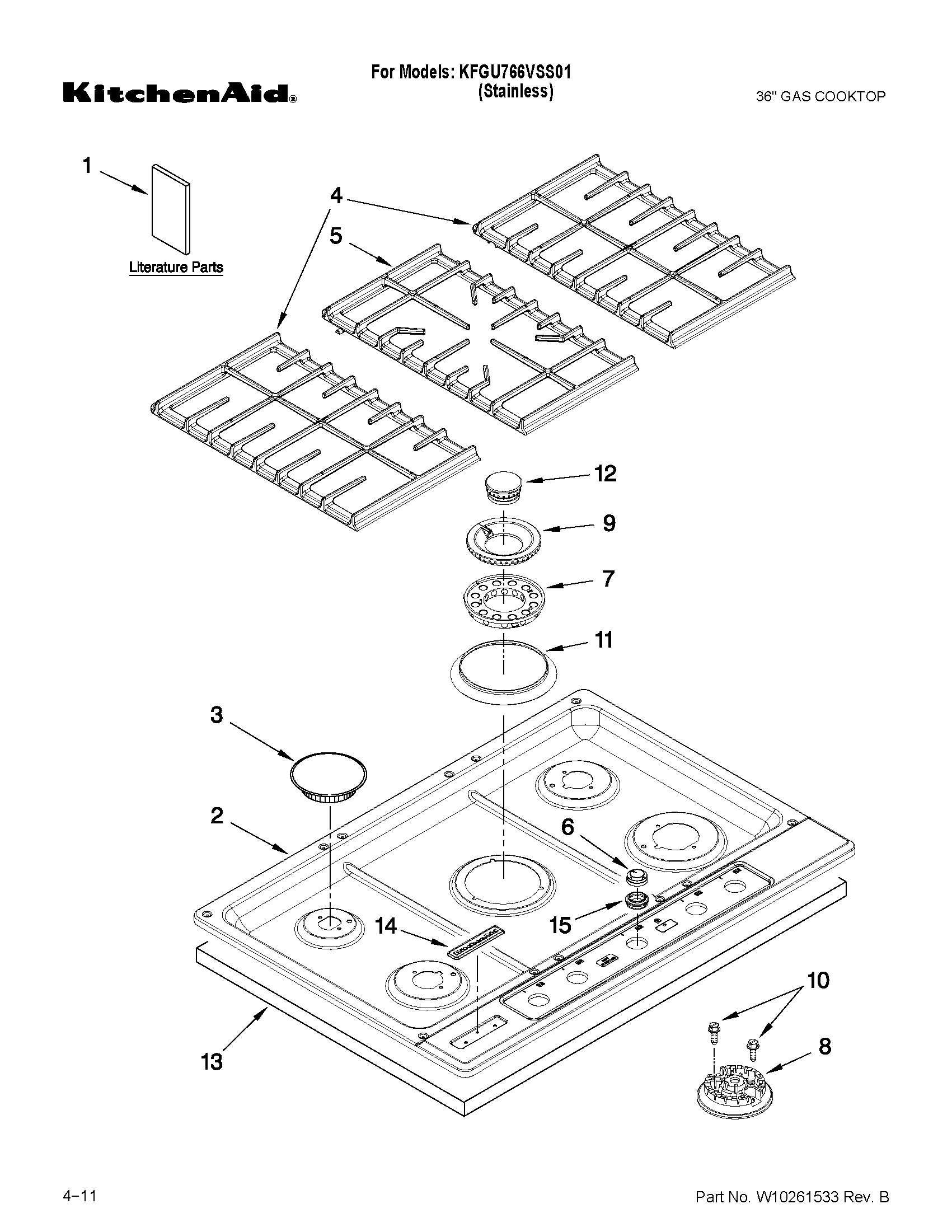

    Cooktop, burner and grate parts Diagram

    Cooktop owner's manual

    Part #9762761
    This item is not returnable
    $2.31 |
    55% OFF
    MSRP: $5.13

    In Stock

    Range Surface Burner Knob

    #6A

    Cooktop, burner and grate parts Diagram

    $48.95

    In Stock

    Cooktop Orifice Spud

    #39C

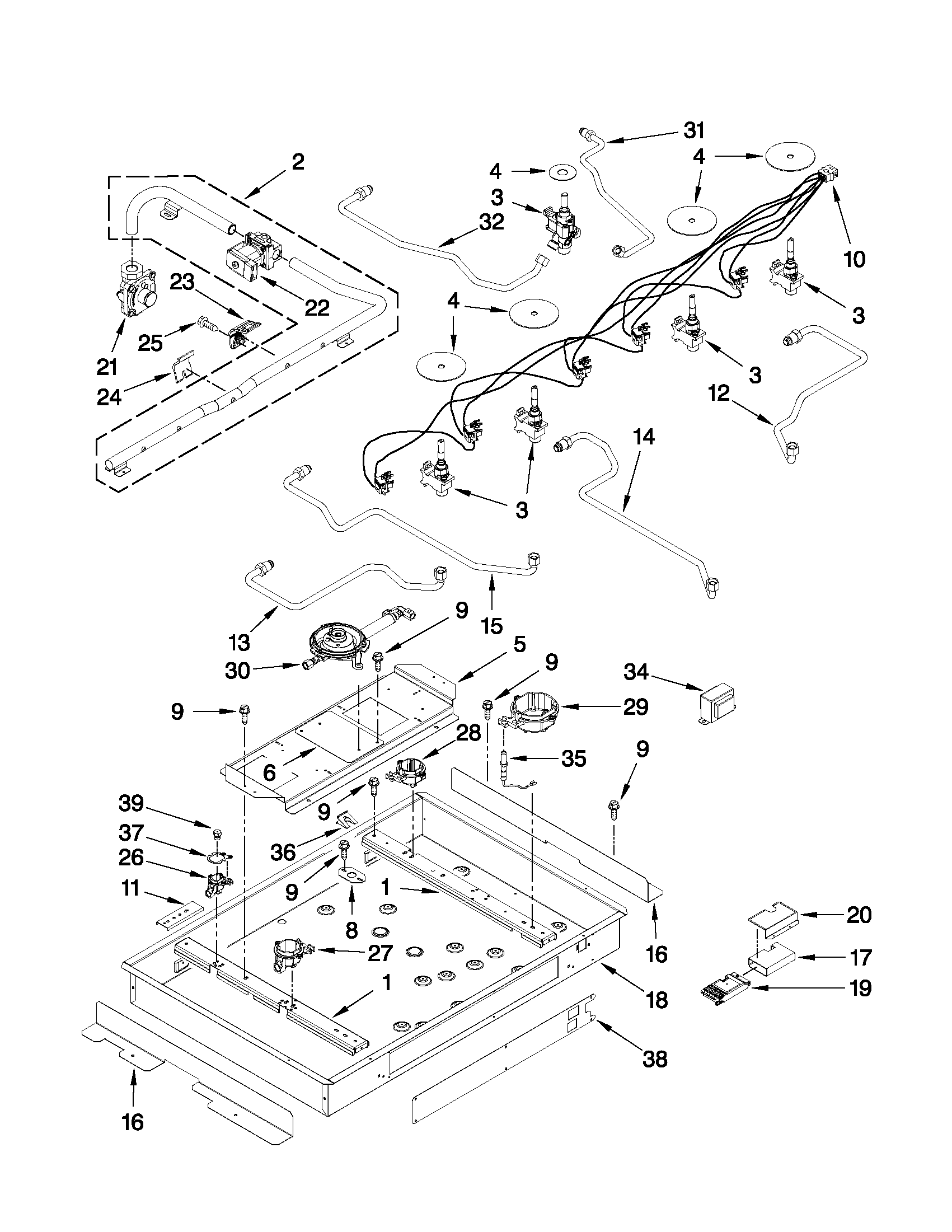

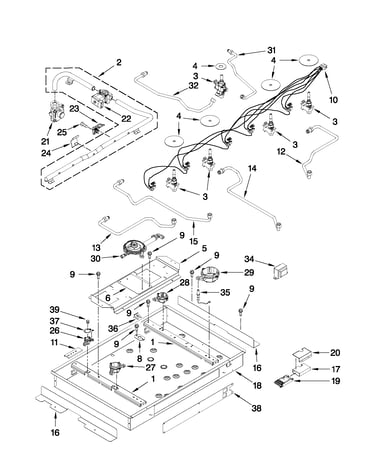

    Burner box, gas valves, and switches Diagram

    Cooktop orifice spud

    Part #W10151346
    $28.54

    In Stock

    Seal Switch

    #4A

    Burner box, gas valves, and switches Diagram

    Seal switch

    Part #W10140577
    $7.80

    In Stock

    Gas Tubing

    #32

    Burner box, gas valves, and switches Diagram

    Gas tubing

    Part #W10132185
    $25.48

    In Stock

    Cooktop Gasket

    #37

    Burner box, gas valves, and switches Diagram

    Cooktop gasket

    Part #8286930
    $36.61

    In Stock

    Cover Plate

    #8

    Burner box, gas valves, and switches Diagram

    Cover plate

    Part #8286858
    $8.59

    In Stock

    Cooktop Wire Harness

    #NI

    Optional parts (not included) Diagram

    Cooktop wire harness

    Part #8286987
    $47.62

    In Stock

    Cooktop Wire Harness

    #NI

    Optional parts (not included) Diagram

    Cooktop wire harness

    Part #8286684
    $53.94

    In Stock

    Cooktop Gasket

    #37B

    Burner box, gas valves, and switches Diagram

    Cooktop gasket

    Part #8286932
    $36.61

    In Stock

    Symptoms common to all cooktops

    Choose a symptom to see related cooktop repairs.

    Main causes: lack of electrical power, gas supply failure, bad pressure regulator, control system failure

    Repair guides for gas cooktops

    How to replace a spark igniter switch on a gas cooktop

    Follow these step-by-step instructions to fix the surface burner ignition system on your gas cooktop by replacing the spark igniter switches.
