Model # LSC9355EZ1 Official Whirlpool direct-drive washer

Here are the diagrams and repair parts for Official Whirlpool LSC9355EZ1 direct-drive washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

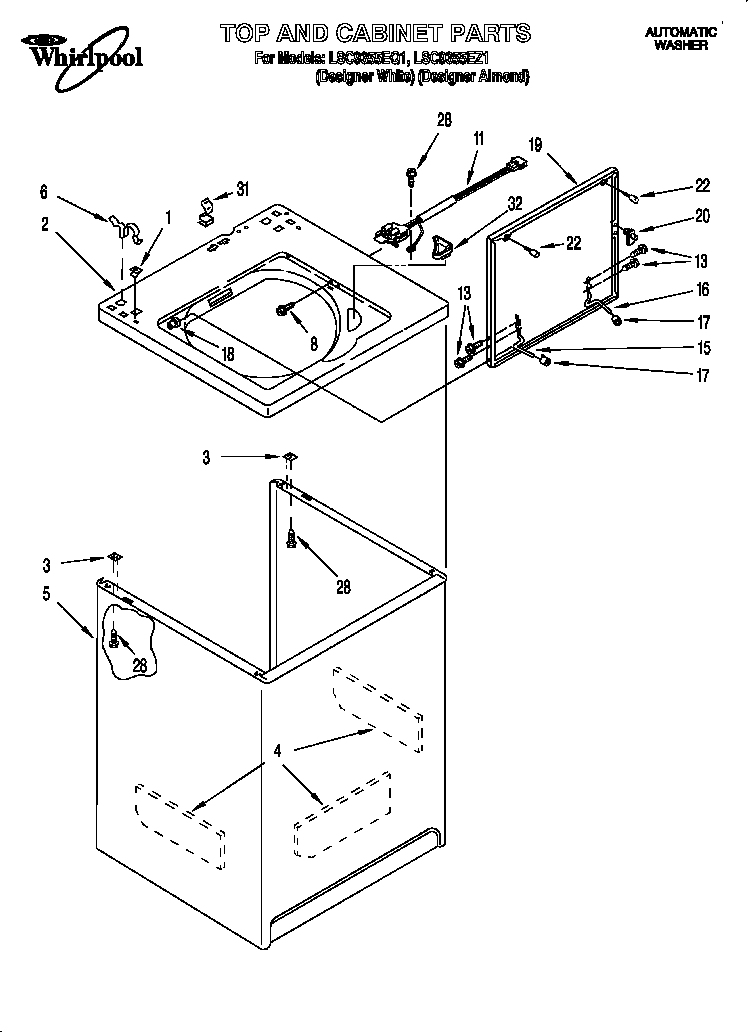

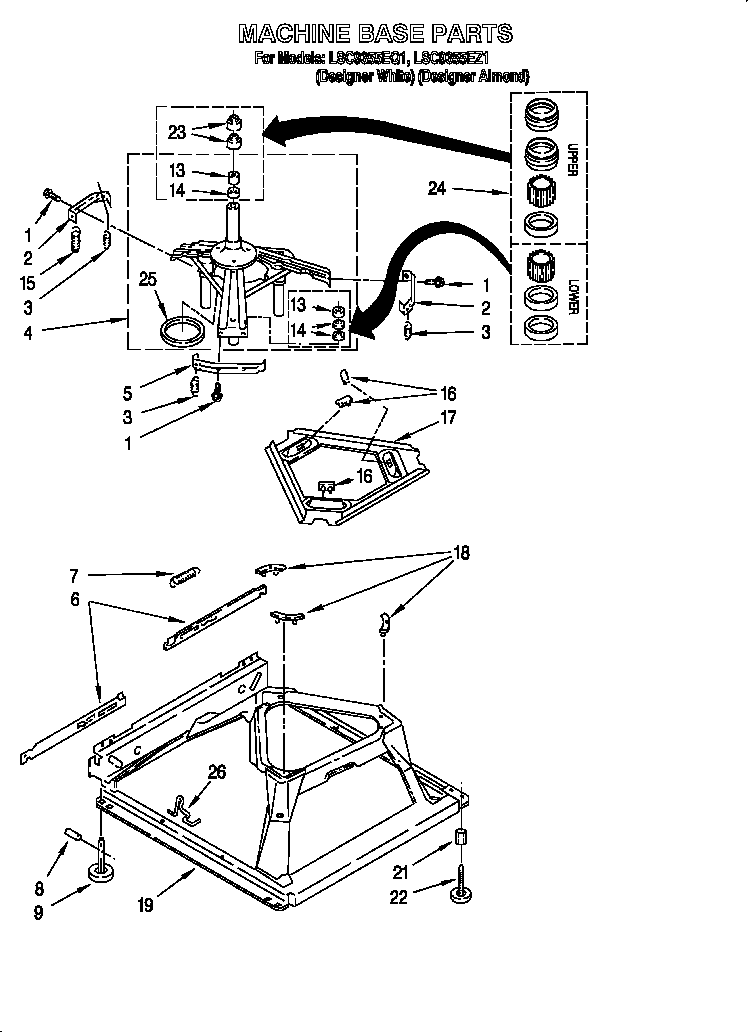

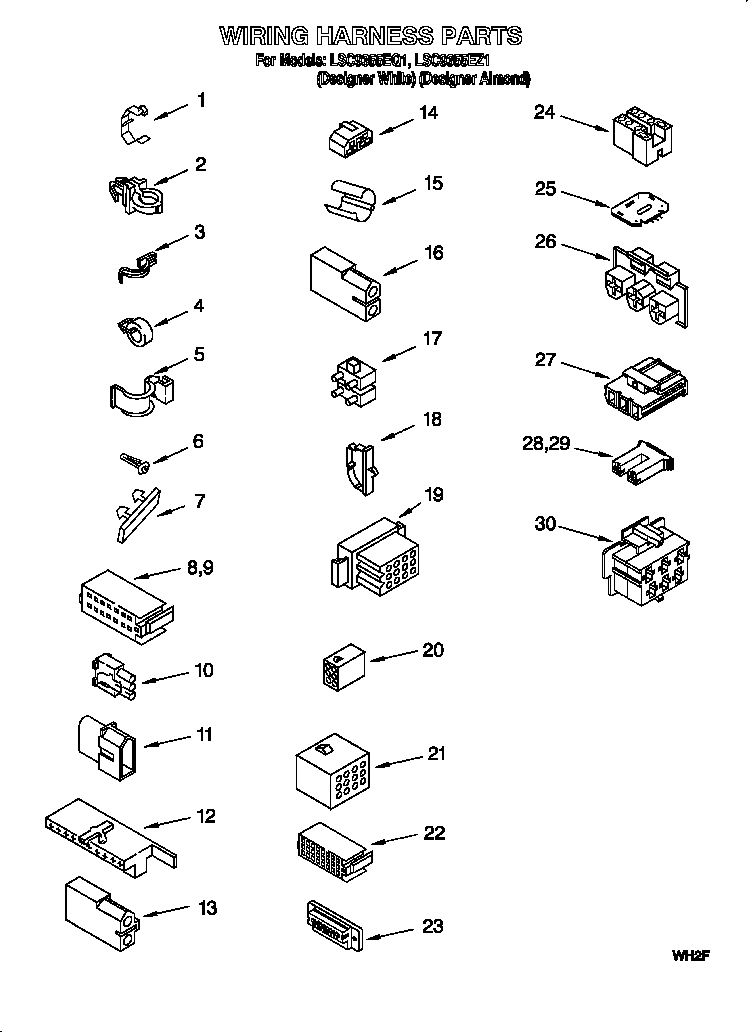

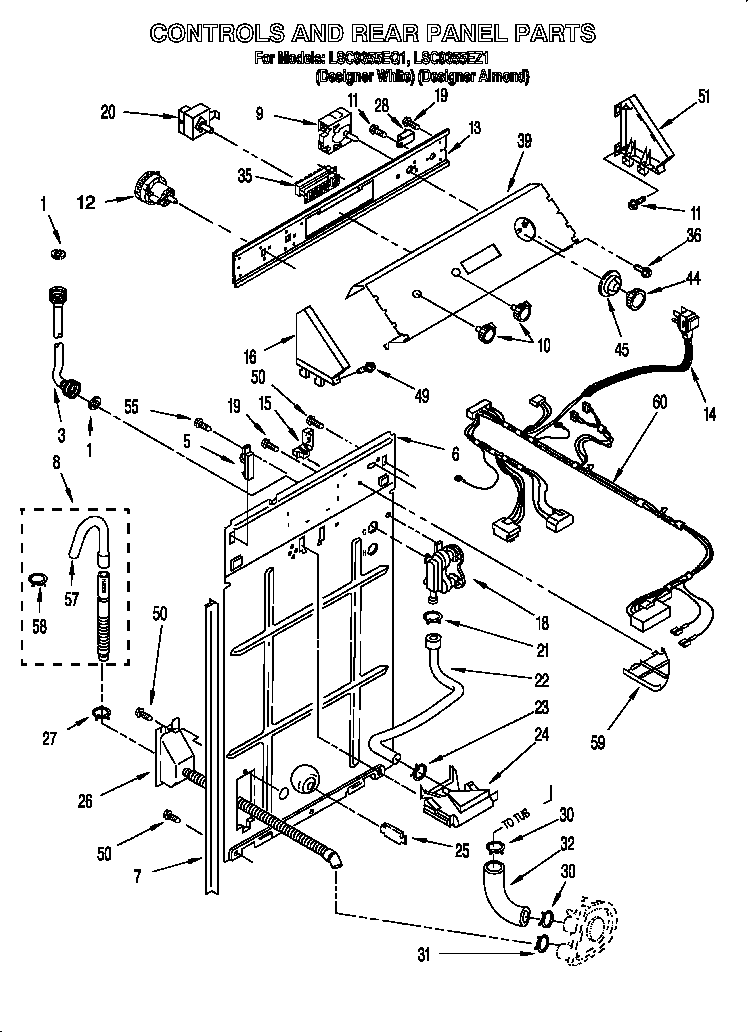

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forLSC9355EZ1 Direct-Drive Washer

  • Agitator Dog 3366877
    #10

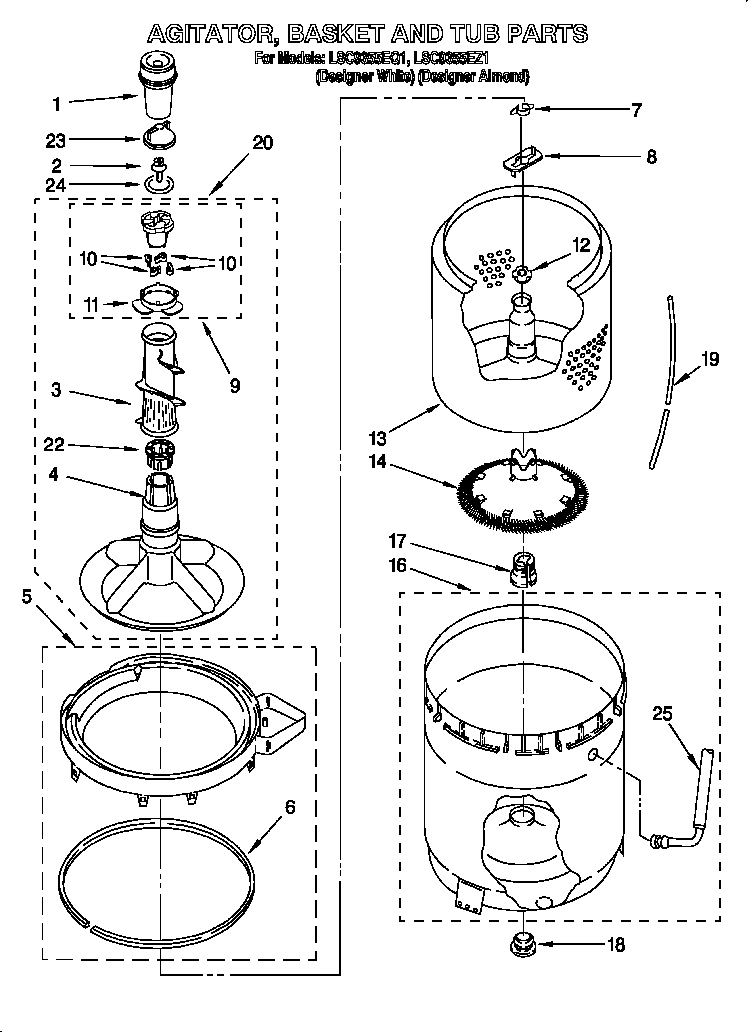

    Agitator, basket & tub diagram

    Agitator dog

    Part #3366877

    Replaced by #80040

    ?
    Manufacturer substitution
    This part replaces 3366877. Substitute parts can look different from the original.
    BEST SELLER
    $6.84 |
    13% OFF Phone Price : $7.84
    In Stock
  • Coupling 3364003
    #13

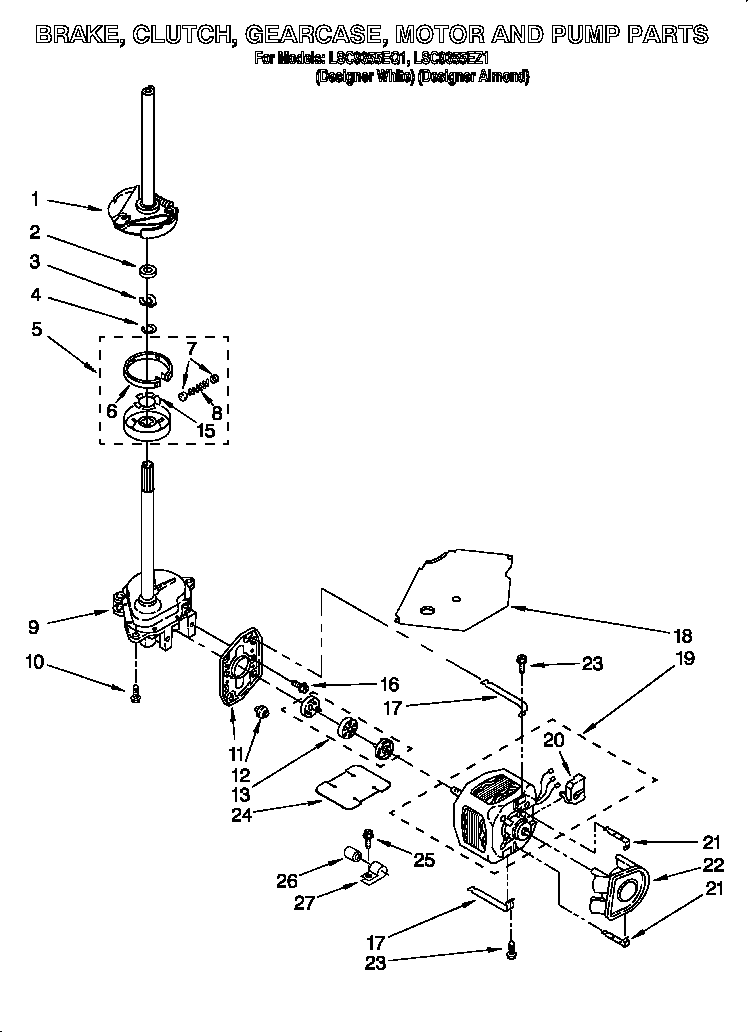

    Brake, clutch, gearcase, motor & pump diagram

    Coupling

    Part #3364003

    Replaced by #285753A

    ?
    Manufacturer substitution
    This part replaces 3364003. Substitute parts can look different from the original.
    BEST SELLER
    $20.74 |
    22% OFF Phone Price : $26.74
    In Stock
  • Pinion 63320
    #5

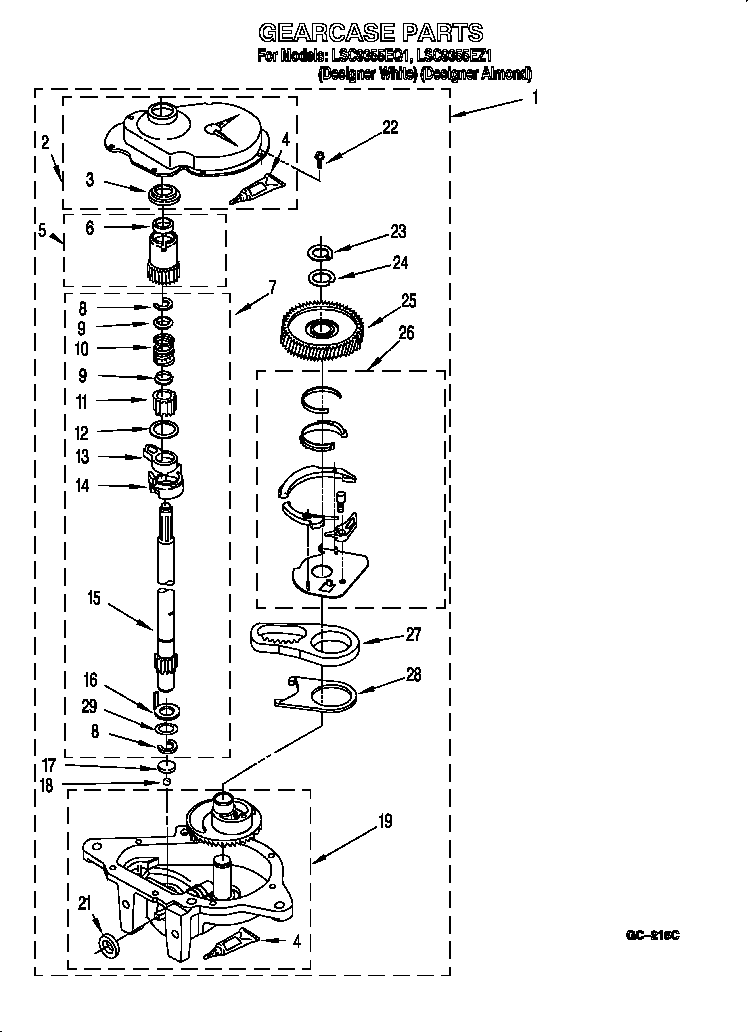

    Gearcase diagram

    Pinion

    Part #63320

    Replaced by #3360629

    ?
    Manufacturer substitution
    This part replaces 63320. Substitute parts can look different from the original.
    BEST SELLER
    $199.44 |
    6% OFF Phone Price : $211.44
    In Stock
  • Gear 62570
    #25

    Gearcase diagram

    Gear

    Part #62570

    Replaced by #3360629

    ?
    Manufacturer substitution
    This part replaces 62570. Substitute parts can look different from the original.
    BEST SELLER
    $199.44 |
    6% OFF Phone Price : $211.44
    In Stock
  • Gear Case 3360630
    Gear case

    Part #3360630

    Replaced by #3360629

    ?
    Manufacturer substitution
    This part replaces 3360630. Substitute parts can look different from the original.
    BEST SELLER
    $199.44 |
    6% OFF Phone Price : $211.44
    In Stock
  • Actuator 62621
    #28

    Gearcase diagram

    Actuator

    Part #62621

    Replaced by #3360629

    ?
    Manufacturer substitution
    This part replaces 62621. Substitute parts can look different from the original.
    BEST SELLER
    $199.44 |
    6% OFF Phone Price : $211.44
    In Stock
  • Rack 3349296
    #27

    Gearcase diagram

    Rack

    Part #3349296

    Replaced by #3360629

    ?
    Manufacturer substitution
    This part replaces 3349296. Substitute parts can look different from the original.
    BEST SELLER
    $199.44 |
    6% OFF Phone Price : $211.44
    In Stock
  • Clutch 3946794
    #5

    Brake, clutch, gearcase, motor & pump diagram

    Clutch

    Part #3946794

    Replaced by #285785

    ?
    Manufacturer substitution
    This part replaces 3946794. Substitute parts can look different from the original.
    BEST SELLER
    $30.32 |
    17% OFF Phone Price : $36.32
    In Stock
  • Drive Basket 388952
    Drive basket

    Part #388952

    Replaced by #W10820043

    ?
    Manufacturer substitution
    This part replaces 388952. Substitute parts can look different from the original.
    BEST SELLER
    $110.26 |
    10% OFF Phone Price : $122.26
    In Stock
  • Washer Drive Block 389140
    #17

    Agitator, basket & tub diagram

    Washer drive block

    Part #389140

    Replaced by #WP389140

    ?
    Manufacturer substitution
    This part replaces 389140. Substitute parts can look different from the original.
    BEST SELLER
    $21.77 |
    22% OFF Phone Price : $27.77
    In Stock
