KitchenAid KP25M0XMC5 mixer Parts

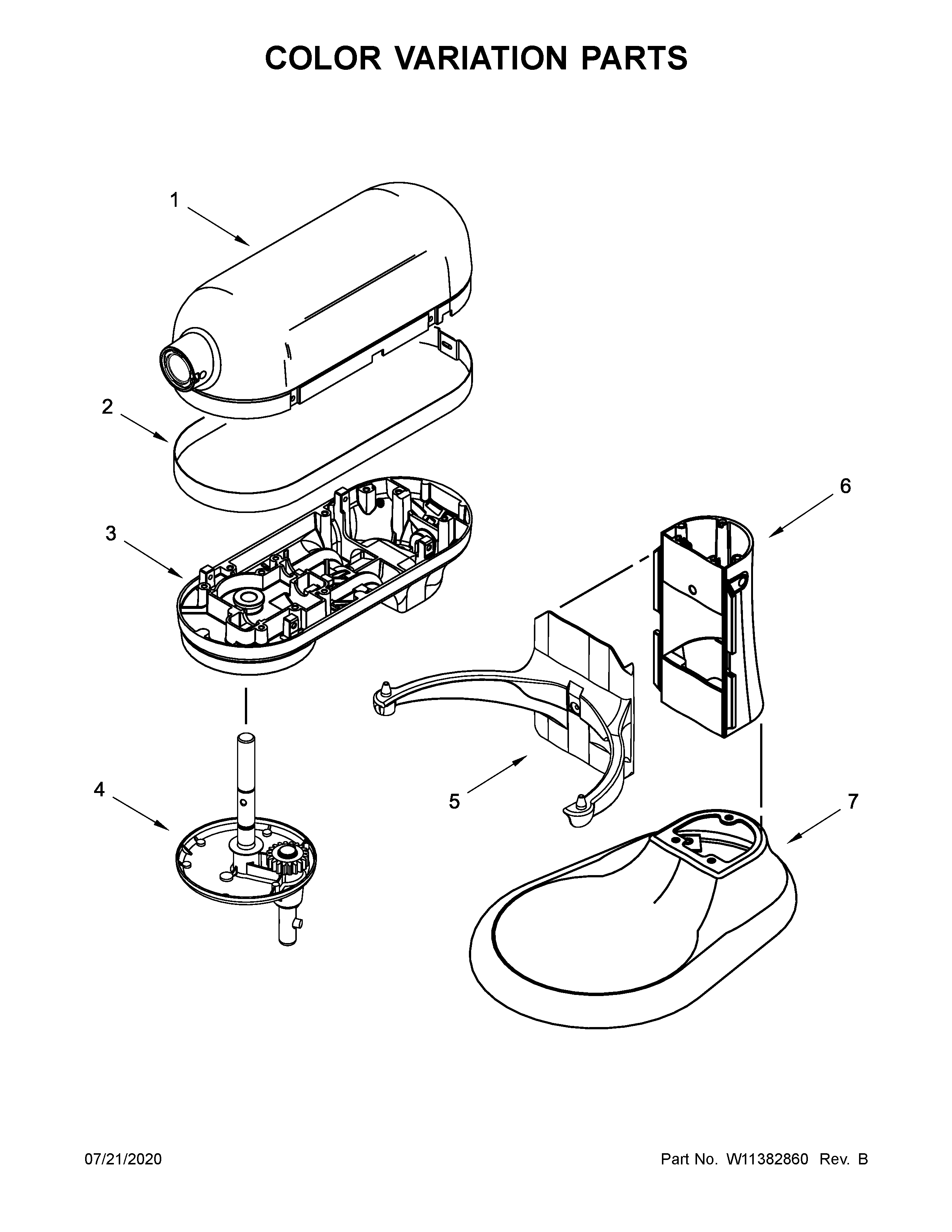

KitchenAid’s 2025 Color of the Year is Butter, a soft, energizing yellow with a creamy, satin look. It’s a brand color trend (not a KP25M0XMC5-SPECIFIC part), but it can help you match finishes when choosing cosmetic stand mixer components.

Color-of-the-year is mainly about exterior styling. For KP25M0XMC5, the parts that most affect the visible look are typically housings and gearcase or planetary finishes.

Common appearance-related parts customers replace include:

• Motor housing (changes the main exterior color)
• Lower gearcase (visible base/gearcase finish)
• Planetary (the rotating hub where attachments connect)
• Speed control knob area (if the knob is worn or broken)

If your goal is to refresh the look or replace a damaged control, a good starting point is the stand mixer speed control board and knob (black) WP9706648.

Matching color and finish helps avoid a “patched” look after a repair, especially when replacing exterior pieces like a motor housing or planetary. It also helps you choose the right cosmetic variant when multiple color options exist for the same stand mixer design.

Last updated: February 2026

The most common issues we see with the KitchenAid KP25M0XMC5 stand mixer are beater-to-bowl clearance problems, grease leakage or noisy operation from aging gearcase lubricant, and drive problems when the worm gear wears. Many symptoms are fixable with adjustment, cleaning, or replacing worn drive parts like the stand mixer worm follower gear W11086780.

• Beater hits the bowl: scraping, clicking, or metal-on-metal sound.
• Beater misses ingredients: batter stays at the bottom or sides.
• Grease drips or “oil” smell: lubricant separates and leaks after storage or heavy use.
• Loud grinding or clunking: worn gears, damaged bearing, or loose internal hardware.
• Mixer shuts off under load: thermal overload trips from heavy dough, long run time, or drag in the gearcase.

1. Unplug the mixer and remove the bowl and attachment.
2. Check beater clearance (a simple height adjustment usually fixes bowl contact).
3. Run on low speed with no load: listen for grinding that changes with speed.
4. Look for grease at the planetary area (under the head where attachments mount).
5. Test with a lighter batch: if it only shuts off on stiff dough, reduce load and mixing time.

Running a bowl-lift mixer like the KP25M0XMC5 with incorrect beater clearance or worn gears can damage the bowl, strip gears, and overload the motor. Catching the issue early usually keeps the repair limited to a gear, seal, or control part instead of a full motor or gearcase replacement.

Last updated: February 2026

There is not one universal “#1 rated” stand mixer because rankings depend on what you make most (cookies, bread dough, large batches, attachments). For many home kitchens, KitchenAid models like your KitchenAid KP25M0XMC5 (a bowl-lift style) are commonly top-rated for power, durability, and long-term parts support.

We recommend choosing based on workload and bowl style, not just a single overall rating:

• Heavy dough and frequent use: bowl-lift mixers (like KP25M0XMC5) handle dense loads better
• Everyday baking and smaller batches: tilt-head mixers are often lighter and easier to store
• Attachments and versatility: consider what hubs and accessories you will actually use
• Noise and speed control: smooth low-speed mixing matters for flour control and kneading
• Serviceability: availability of gears, seals, and controls makes ownership easier over time

Different publications score different criteria. Here is how “best” typically breaks down:

A mixer that surges, won’t hold speed, leaks grease, or clicks under load often needs a targeted repair rather than replacement. Common service parts for this model family include:

• Stand mixer speed control board and knob (black) WP9706648 (speed hunting, dead speeds)
• Stand mixer worm follower gear W11086780 (grinding, skipping, no drive under load)
• Seal WP9706247 and gasket WP9709511 (grease leaks, contamination)

“#1 rated” is only useful if the mixer matches your recipes and can be maintained. A well-supported model like KP25M0XMC5 can stay high-performing for years because key drivetrain and control parts are replaceable.

Last updated: February 2026

Yes. You can buy replacement parts for your KitchenAid KP25M0XMC5 stand mixer from the parts list for this model, including common wear items (gears, seals, gaskets) and electrical parts (speed control components) to fix performance, noise, or leaking issues.

These are some of the most frequently needed stand mixer parts when you have slipping, grinding, leaking grease, or speed problems:

• Speed issues or surging: stand mixer speed control board and knob (black) WP9706648
• Grinding or clicking under load: stand mixer worm follower gear W11086780
• Grease leak at the gearcase: seal WP9706247
• Gearcase seepage after service: gasket WP9709511
• Bowl or accessory fit issues: stand mixer stainless steel bowl, 5-qt WPW10717235

Using the exact model number matters because KitchenAid stand mixers can look similar but use different gears, housings, and control parts.

• Confirm the model number is KP25M0XMC5 on the mixer’s model tag
• Compare the part name and part ID to what you’re replacing
• Match color-specific cosmetic parts carefully (for example, “matte Vintage Blue” housings)
• If you are repairing the gearcase, plan for seals and gaskets at the same time
• If you are troubleshooting electrical symptoms, inspect wiring and connections before replacing boards

Using model-matched parts helps your KP25M0XMC5 run at the correct speeds, reduces gear wear, and prevents repeat leaks after a gearcase repair. It also avoids ordering a similar-looking part that will not fit your mixer.

Last updated: February 2026

Yes; for some baking styles, there are stand mixers that outperform a KitchenAid KP25M0XMC5 in specific areas like dough capacity, kneading efficiency, or specialty attachments. “Better” depends on what you make most (bread dough, cookies, meringue) and how often you run the mixer under heavy load.

When customers compare stand mixers, they typically care about these factors:

• Dough performance: how well it kneads stiff bread or pizza dough without overheating
• Bowl capacity and clearance: how much you can mix at once and how easily you can add ingredients
• Speed control consistency: smooth low speeds for folding and controlled starts
• Durability and serviceability: gears, bearings, seals, and how repairable the unit is
• Accessory ecosystem: bowls, whips, and specialty tools you actually use

Here is a practical way to think about popular “KitchenAid alternatives”:

If your KitchenAid KP25M0XMC5 is surging, won’t change speeds, or starts inconsistently, the fix is often in the speed control components rather than the motor. A common replacement is the stand mixer speed control board and knob (black) WP9706648.

Other issues that can make a mixer feel “weak” or noisy are usually mechanical wear in the drive system:

• Worn gear teeth or slipping under load (check the stand mixer worm follower gear W11086780)
• Grease leaks or contamination from a failing seal (check the seal WP9706247)
• Vibration or rough operation from wear in rotating supports (check the bearing WPW10170080)

A mixer that is correctly controlling speed and transferring power through healthy gears will mix faster, run cooler, and produce more consistent dough and batters. Before upgrading, restoring performance with the right parts can get your KP25M0XMC5 back to “like new” results.

Last updated: February 2026
