Does a Kenmore Elite have a reset button?
No, the Kenmore Elite electric range model 79041313413 does not use a single dedicated “reset” button. Instead, you reset the control by restoring factory default settings from the keypad, or by power cycling the range at the breaker for a full control reboot (when safe to do so).
Your range includes a built-in keypad reset that restores user preferences back to factory defaults.
- Press and hold the 7 numeric keypad until you hear an acceptance tone (about 3 seconds)
- Press START
- Re-enter your preferred settings afterward (clock format, tones, temperature display, etc.)
- Use the steps in the owner's manual if your keypad layout differs slightly
This reset is meant for control preferences, not for fixing a failed heating circuit.
| Reset method | What it does | When to use it |
|---|---|---|
| Keypad factory reset (hold 7, then START) | Restores user preference settings to defaults | Odd control behavior, wrong tones, settings confusion |
| Power cycle at breaker (off, then on) | Reboots the electronic control | Frozen display, unresponsive keys, after a power surge |
If the oven temperature is inaccurate or the oven will not heat, a reset may not help because the issue is often a failed sensor, thermostat, or control.
Check these common causes first:
- Oven temperature drifting or error symptoms: consider the cooking appliance oven temperature sensor 5304504897
- Oven overheating or shutting down: check the frigidaire range high-limit thermostat 318578506
- Dead or intermittent power symptoms (burning smell, loose cord connection): inspect the terminal block 5304409888
- Surface element not regulating correctly: a bad infinite switch such as the frigidaire range small surface element control switch 316436000 can cause erratic burner heat
Using the correct “reset” method saves time and prevents unnecessary part replacement. A factory reset fixes settings and control logic issues; heating failures usually point to a component such as a temperature sensor, thermostat, wiring connection, or control board.
For ordering model-matched replacement parts, use the parts list for model 79041313413, or search by model number on Sears PartsDirect.
Last updated: February 2026
Where to find model number on Kenmore Elite Range?
On the Kenmore Elite electric range model 79041313413, the model and serial number are printed on the serial plate. You will typically find this label on the oven frame behind the door opening, or on the frame area behind the lower drawer, depending on how your range is configured (see the 79041313413 owner's manual).
- Open the oven door and check the frame around the door opening (door jamb area).

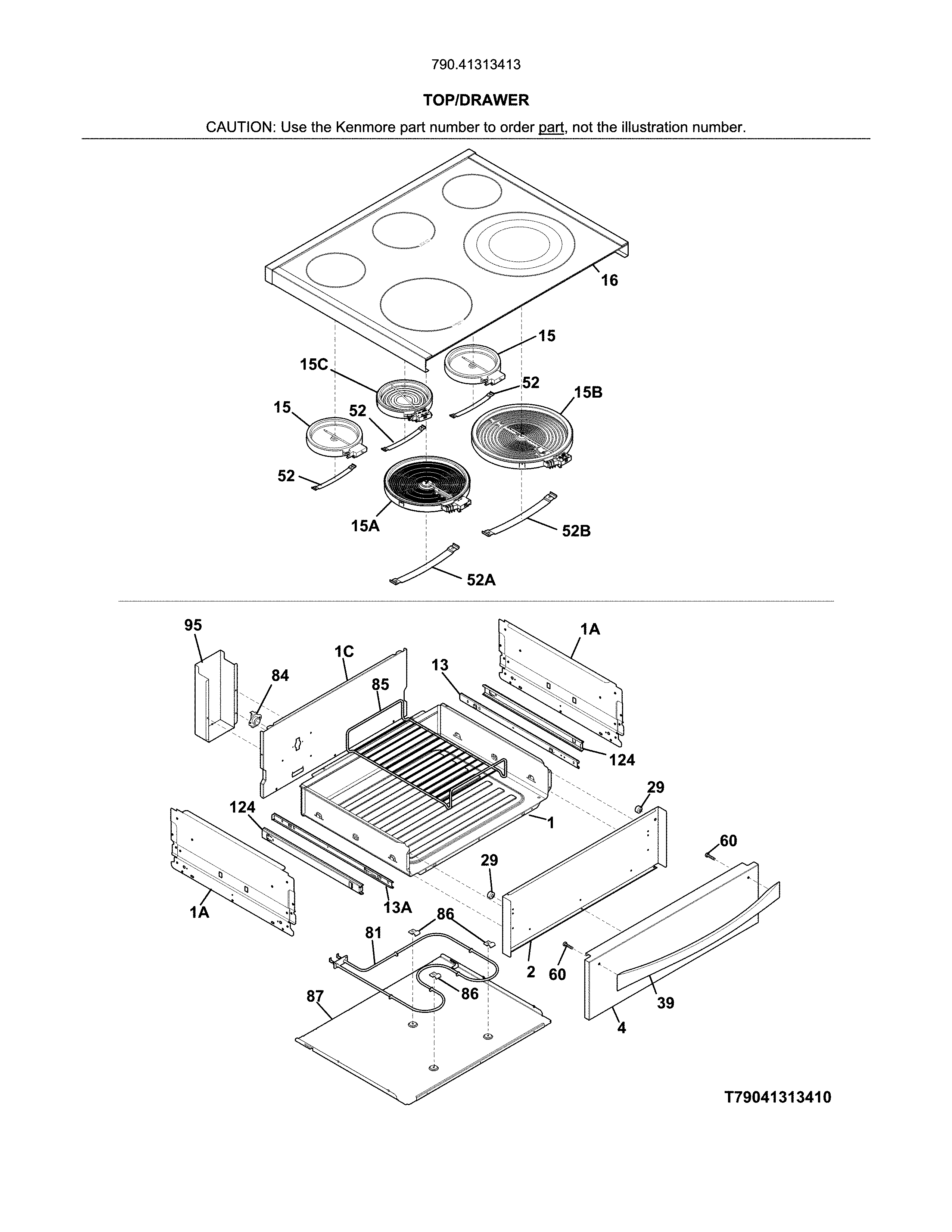

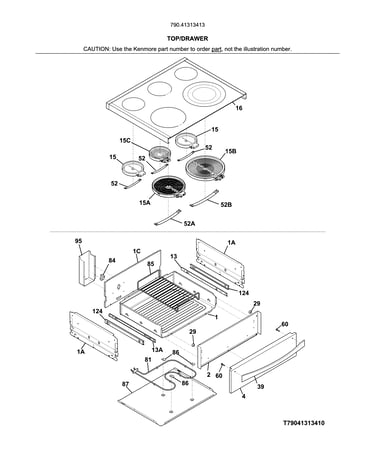

- Pull out the bottom drawer and look on the frame behind it.
- Check the back panel of the range near where the power cord connects.
- Look along the side frame edges if the range is installed tightly between cabinets.
The serial plate lists both identifiers you need for parts and service.
| What to record | Why it matters | Example format |
|---|---|---|
| Model number | Ensures parts match your exact Kenmore Elite range version | 79041313413 |
| Serial number | Helps confirm production details and correct part variations | Letters and numbers |
We use the model number to match the correct wiring, surface element controls, and oven electronics for your exact range. Even small model differences can change which control board, temperature sensor, or surface element switch fits.
- Wipe the plate gently with a damp cloth and mild dish soap; dry it fully.
- Use a flashlight at an angle to make faint printing easier to see.
- Take a close-up photo and zoom in to read the characters.
- If the drawer blocks access, remove the drawer fully and recheck the frame.
If you are ordering parts after you find the model number, you can use the parts list for model 79041313413 on this page, or search by model on Sears PartsDirect.
Last updated: February 2026
Why is my Kenmore Elite oven not working?
On Kenmore Elite electric range model 79041313413, an oven that will not work is usually caused by a power interruption or control setup issue (the clock must be set), a tripped breaker, or a failed heating control component such as the temperature sensor, safety thermostat, or control board.
- If the display is flashing after a power interruption, set the clock; the oven will not program until the clock is set.
- Select Bake or Broil, then set a temperature (a mode without a temperature will not heat).
- Confirm the oven door is fully closed.
- Check the home breaker; most electric ranges use a 240V circuit (two-pole breaker).
- If the control beeps and shows an F-code, press STOP to clear it; if it returns, troubleshoot the related circuit.
If the basics are good, these parts are frequent culprits:
- Oven temperature sensor 5304504897: a bad sensor can prevent proper heating.
- Range oven safety thermostat 318003400: if open, it can interrupt oven operation.
- Range oven relay control board 316472807 or range oven user interface control board 316474921: failures can cause no response, beeping, or stopping mid-cycle.
| Symptom | Most likely direction | Best next step |
|---|---|---|
| Display flashing | Clock not set | Set clock, retry Bake |
| Controls work, no heat | Sensor or thermostat | Test sensor, check thermostat continuity |
| F-code beeping | Control detected a fault | Clear with STOP; if it returns, diagnose sensor/boards |
| Completely dead | Power supply issue | Check breaker and power connection |
Checking power and control setup first prevents unnecessary parts replacement; when those are correct, testing the sensor, thermostats, and control boards targets the most common electrical failures.
Use the owner's manual for model-specific control steps and the “Before you call” troubleshooting section. For power connection and installation requirements, use the installation guide. You can order parts from the parts list for model 79041313413, or search by model number on Sears PartsDirect.
Last updated: February 2026
