Whirlpool WGD8600YW3 27" gas dryer Parts

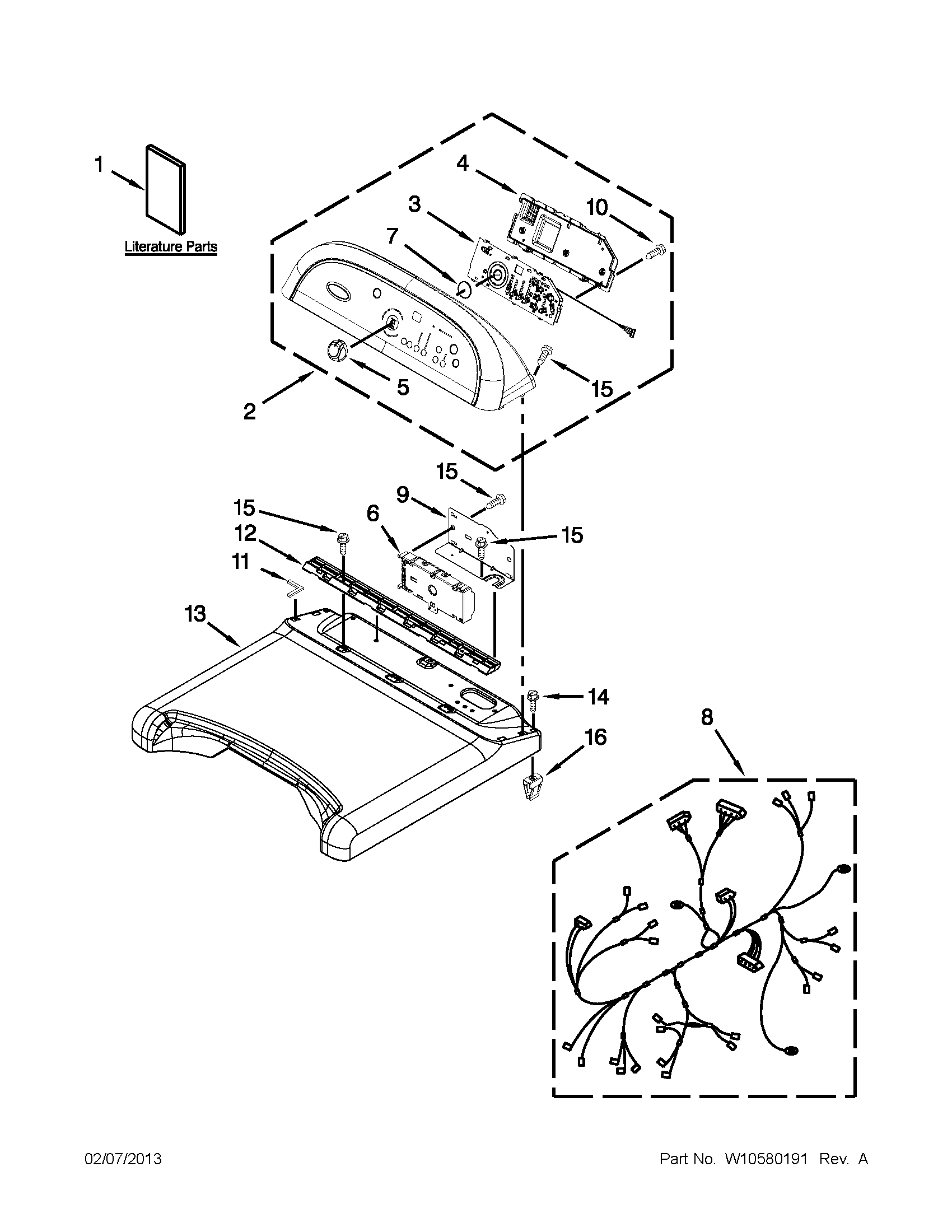

To open the control panel area on your Whirlpool WGD8600YW3 gas dryer, we start by disconnecting power, then remove the screws that secure the top and console so the console can be lifted or hinged forward for access to the user interface and wiring.

• Unplug the dryer from the wall outlet.
• For gas models like WGD8600YW3, confirm the gas supply is off if you will be working near the burner or gas valve.
• Let the dryer cool completely if it was recently running.
• Use a towel or soft cloth to protect the top panel from scratches.
• Keep screws grouped by location so reassembly is straightforward.

Most Whirlpool 27-inch gas dryers in this design open the same way:

• Remove the screws at the back edge of the top panel.
• Slide the top panel back slightly, then lift it up and off.
• With the top raised/removed, remove the screws that secure the console (control panel) to the cabinet.
• Tilt the console forward or lift it up (depending on the mounting style) to access the control board, harness connectors, and user interface.

For the exact screw locations and console release method for WGD8600YW3, follow the disassembly guidance in the WGD8600YW3 installation guide.

The installation instructions for gas models call out these quick checks:

• Controls are set to a running or “On” position.
• Start button is pushed firmly.
• Dryer is plugged in and power is present.
• Household fuse is intact or breaker is not tripped.
• Dryer door is fully closed.

If those basics check out and you suspect an internal safety device, a failed thermal fuse is a common cause; the dryer thermal fuse WP3390719 is one of the model-compatible parts we list for WGD8600YW3.

Opening the console correctly prevents broken plastic tabs, pinched wiring, and loose connections that can cause intermittent no-start symptoms, dead displays, or cycle interruptions.

Last updated: February 2026

Common problems we see with Whirlpool dryers like model WGD8600YW3 include a dryer that will not start, runs but has no heat, long dry times from poor airflow, and noisy tumbling from worn drum support parts. Many of these issues trace back to power, door/controls, venting, or a few high-wear components.

• Dryer will not run: door not fully closed, Start not pressed firmly, controls not set to an active cycle, or a power supply issue (fuse/breaker).
• Runs but no heat: airflow restriction, gas supply off (gas models), or a failed heating circuit component.
• Drying takes too long: clogged lint screen, blocked vent run, or restricted exterior vent hood.
• Noisy thumping or squealing: worn drum rollers, roller shafts, or drum seals.
• Stops mid-cycle or will not restart: overheating protection opening due to restricted venting.

Use the troubleshooting steps in the installation guide and start with these basics:

• Confirm the dryer door is fully closed and the Start button is pressed firmly.
• Verify the dryer is plugged in and the electrical supply is connected.
• Check household fuses/breakers (many dryers use two fuses or breakers).
• Clean the lint screen before every load.
• Inspect the vent path from dryer to wall and the exterior hood for lint buildup.
• For gas models, confirm the gas supply is on.

If symptoms point to a failed component, these are frequent replacements for this model:

Most “dryer problems” are really airflow or safety shutdown issues. Keeping lint and venting clear helps prevent overheating, improves dry times, and reduces repeat failures of fuses, thermostats, and sensors.

Last updated: February 2026

For Whirlpool model WGD8600YW3, the dryer repair kit is a maintenance bundle used to refresh common drum-drive wear parts that cause squealing, thumping, or a drum that struggles to turn. On this model page, that kit is listed as the dryer repair kit 4392067.

A dryer repair kit is meant to restore smooth drum rotation and reduce friction-related noise. It is typically used when you notice:

• Squealing or chirping while the drum turns
• Thumping from flat-spotted rollers
• Drum that turns, but feels rough or uneven
• Excess lint buildup from worn seals or misalignment
• Dryer runs, but performance is inconsistent because the drum drive is slipping

Dryer maintenance kits commonly include a combination of drum support and drive components. For WGD8600YW3, the exact contents can vary by kit version, so we recommend matching what you remove to what you install.

If you are diagnosing noise or a no-heat complaint at the same time, these model-matched parts are commonly involved:

• Dryer drum support roller WPW10314173 (roller noise, thumping)
• Dryer thermal fuse WP3390719 (dryer won’t run or stops, often tied to airflow issues)
• Igniter 279311 (gas dryer won’t heat)
• Dryer valve coil kit 279834 (heats briefly, then stops heating)

Replacing worn drum support and drive components together helps prevent repeat breakdowns. A new roller on a worn shaft, or a new belt on a failing idler, can bring the noise back quickly and shorten the life of the repair.

For safe access, disassembly order, and installation notes for your 27 inch gas dryer, follow the installation guide.

Last updated: February 2026

On a Whirlpool WGD8600YW3 27-inch gas dryer, the main parts include the drum and support system, the drive system that turns the drum, the heating and flame-sensing components, and the airflow and safety controls that move air through the vent and prevent overheating. See the installation guide for venting and setup requirements.

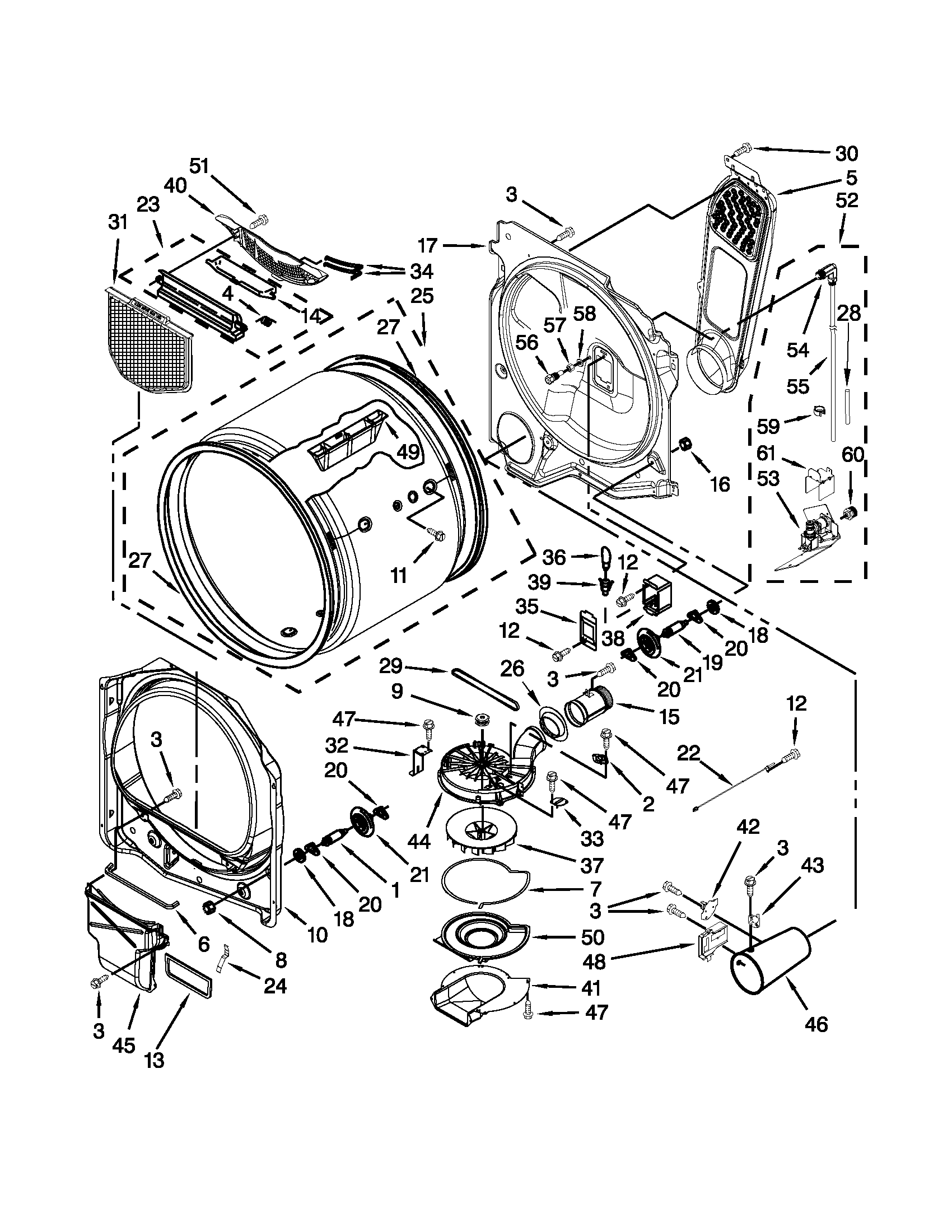

• Drum and support: holds clothes and tumbles them; supported by rollers and shafts

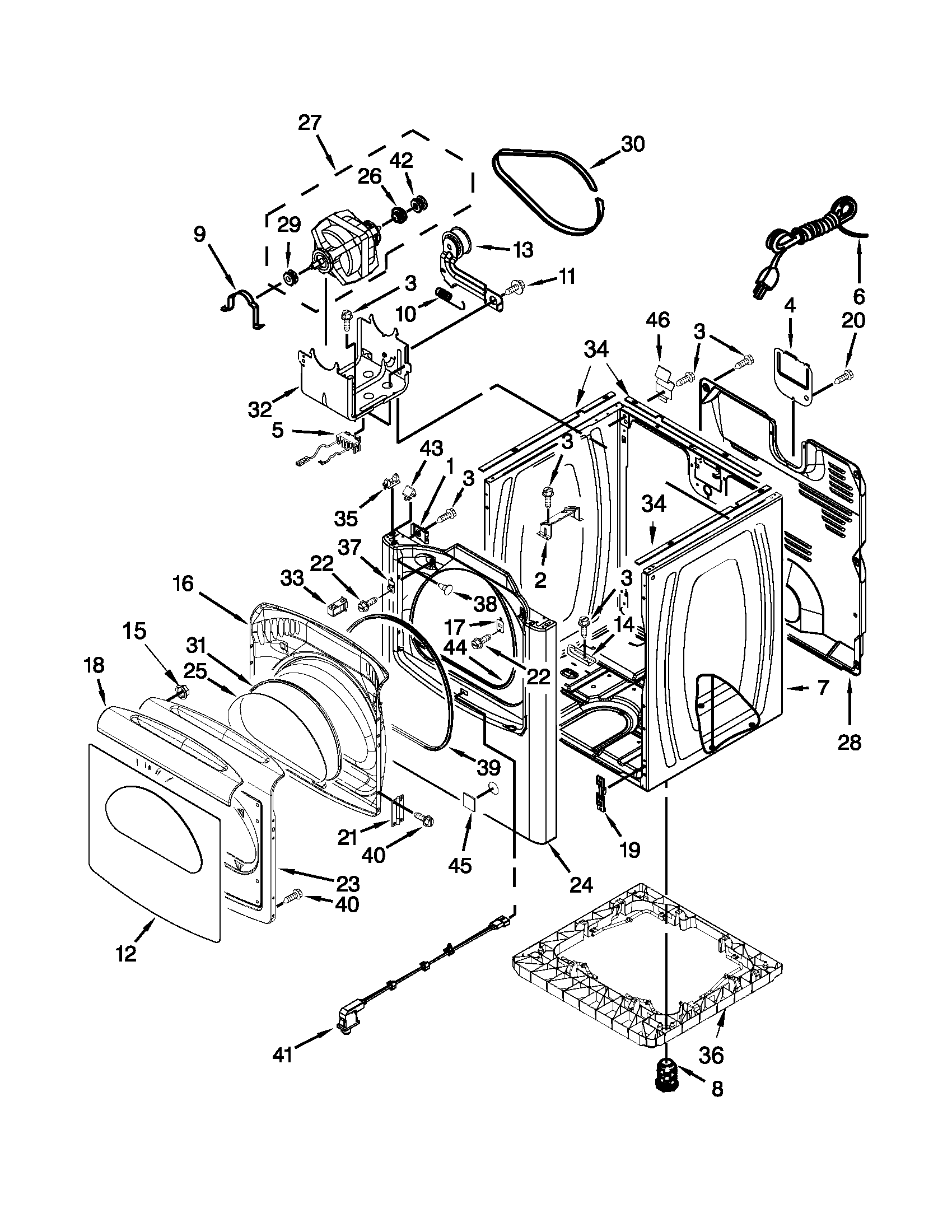

• Drive system: motor and belt components that rotate the drum

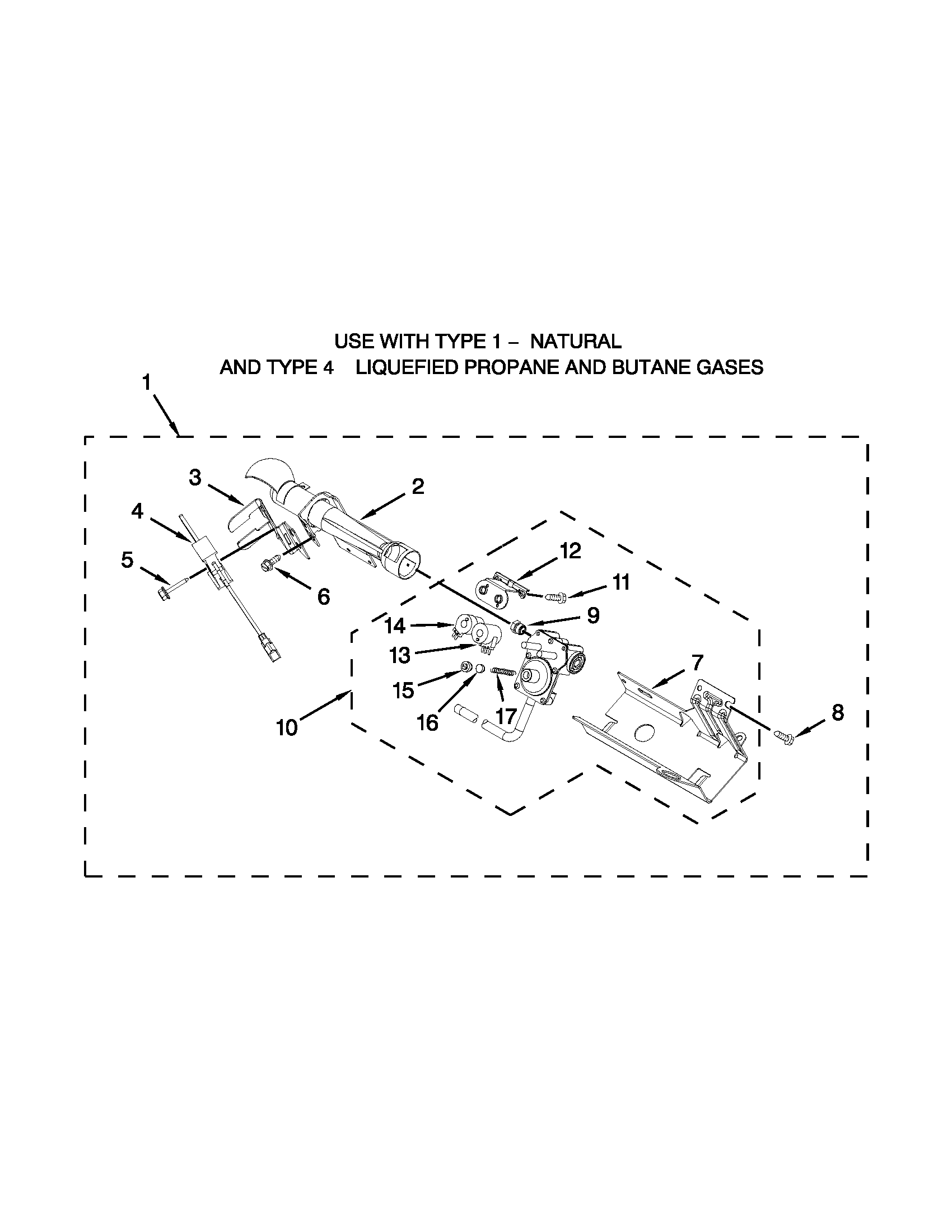

• Heating system (gas models): igniter and gas valve components that create heat
• Airflow system: blower and venting path that moves moist air outdoors
• Temperature and safety controls: thermostats, thermistor, and fuses that regulate heat and shut down on unsafe temperatures
• Door and user controls: door switch/catch and the control panel or user interface

Your dryer’s venting is part of the airflow system. For this Whirlpool gas dryer, proper venting is required for safe operation and good drying results.

• Exhaust must go outdoors
• Use heavy metal vent (rigid or flexible metal)
• Do not use plastic vent
• Do not use metal foil vent

These points are called out in the WGD8600YW3 installation instructions, and they directly affect drying time, heat, and safety.

Most “dryer problems” trace back to one of these systems: airflow (vent restriction), heat (ignition or gas valve components), drum support (rollers/seals), or safety controls (thermal fuse/thermostat). Knowing the main parts helps you troubleshoot faster and order the right replacement.

Last updated: February 2026
