Whirlpool WDE150LVT01C 30" electric drop-in range Parts
Here are the diagrams and repair parts for Whirlpool WDE150LVT01C 30" electric drop-in range, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for WDE150LVT01C Ranges
Optional parts (not included) diagram
Touch-up Paint
Part #4392899Replaced by #4392899
Manufacturer substitutionThis part replaces 4392899. Substitute parts can look different from the original.This item is not returnableIn Stock$15.1112% OFF Phone Price : $17.11
Qty

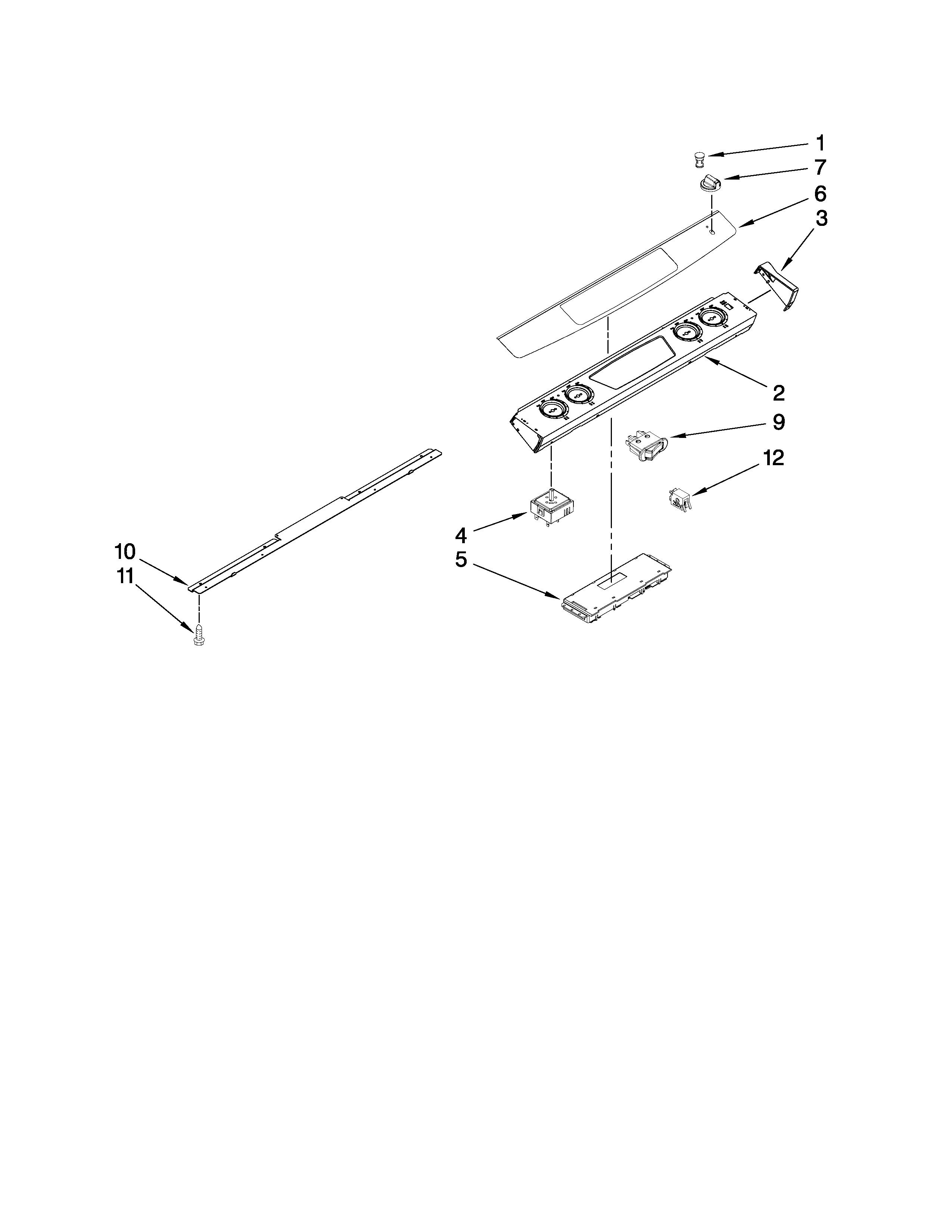

Control panel parts diagram
Indicator Lens
Part #7730P011-60Replaced by #WP7730P011-60
Manufacturer substitutionThis part replaces 7730P011-60. Substitute parts can look different from the original.This item is not returnableIn Stock$5.5315% OFF Phone Price : $6.53QtyOptional parts (not included) diagram
Spray W
Part #350930Replaced by #350930
Manufacturer substitutionThis part replaces 350930. Substitute parts can look different from the original.This item is not returnableIn Stock$26.0019% OFF Phone Price : $32.00QtyOptional parts (not included) diagram
Paint Wh
Part #206922Replaced by #350942

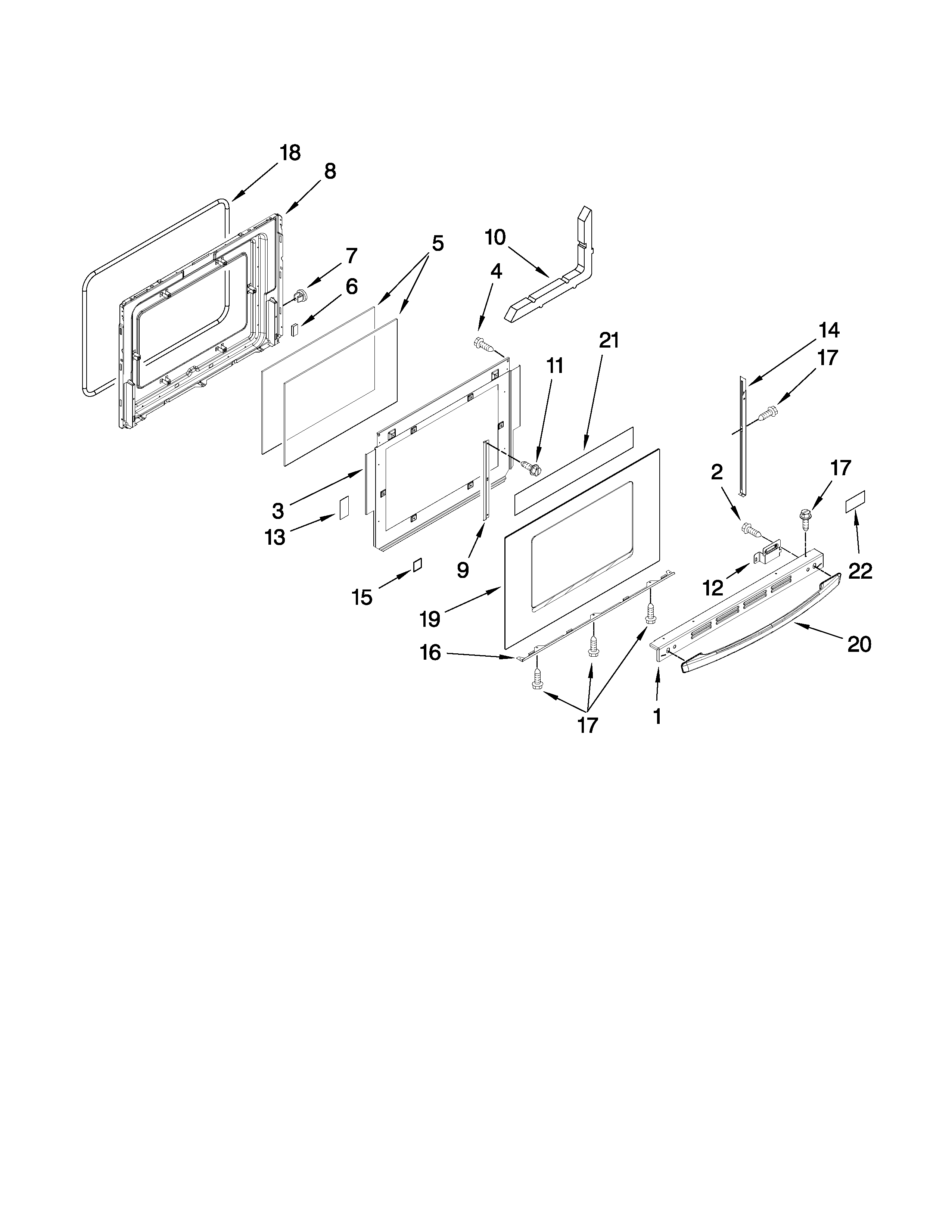

Manufacturer substitutionThis part replaces 206922. Substitute parts can look different from the original.In Stock$110.16QtyDoor parts diagram
Door Glass
Part #7902P436-60Replaced by #74003645
Manufacturer substitutionThis part replaces 7902P436-60. Substitute parts can look different from the original.In Stock$126.699% OFF Phone Price : $138.69QtyChassis parts diagram

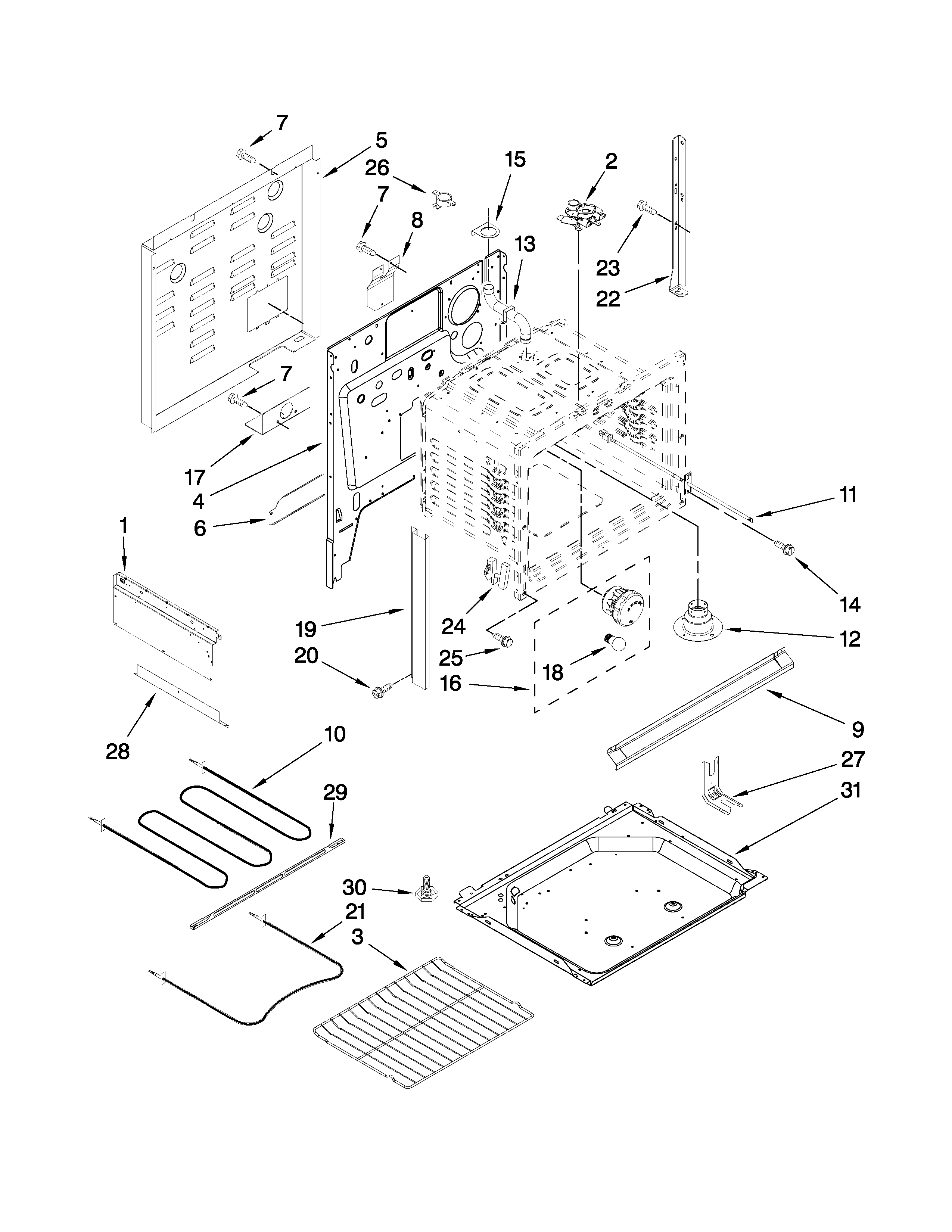

Hinge- Ove
Part #7106P141-60Replaced by #74011142
Manufacturer substitutionThis part replaces 7106P141-60. Substitute parts can look different from the original.In Stock$64.4933% OFF Was : $96.71QtyChassis parts diagram
Bake Element
Part #7406P439-60Replaced by #WPW10310274
Manufacturer substitutionThis part replaces 7406P439-60. Substitute parts can look different from the original.In Stock$101.4111% OFF Phone Price : $113.41QtyDoor parts diagram
Spacer
Part #8010P130-60Replaced by #WP74005546
Manufacturer substitutionThis part replaces 8010P130-60. Substitute parts can look different from the original.In Stock$8.2811% OFF Phone Price : $9.28QtyChassis parts diagram
Sensor
Part #7430P042-60Replaced by #12001656
Manufacturer substitutionThis part replaces 7430P042-60. Substitute parts can look different from the original.In Stock$22.6421% OFF Phone Price : $28.64QtyDoor parts diagram
Screw
Part #7101P376-60Replaced by #W11347848
Manufacturer substitutionThis part replaces 7101P376-60. Substitute parts can look different from the original.In Stock$38.25Qty
