GE
Electric Range

Model # JB250DF1WW Official GE electric range

Here are the diagrams and repair parts for Official GE JB250DF1WW electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 109 parts  |

Range Oven Light Bulb WX12X1510
#257

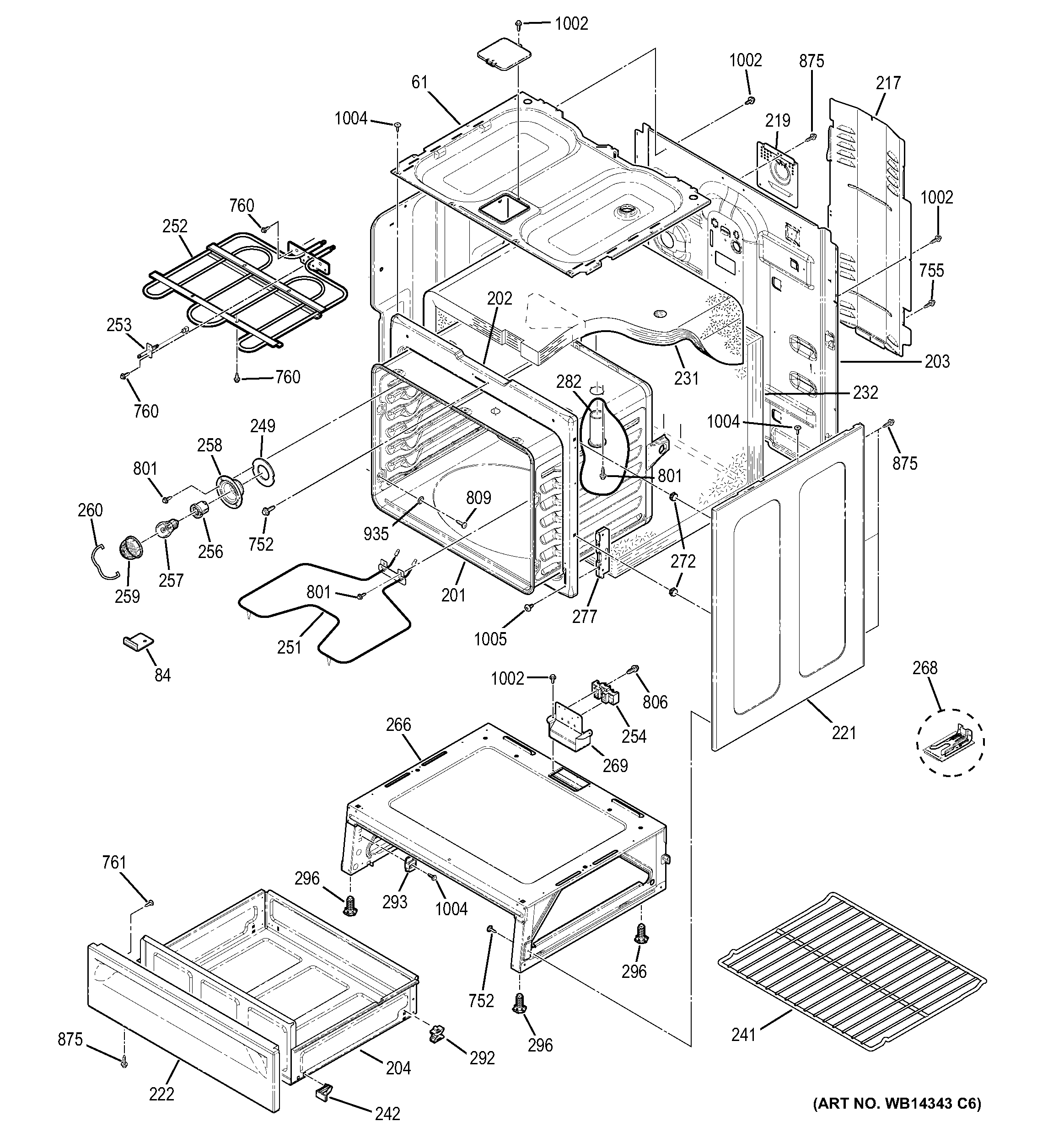

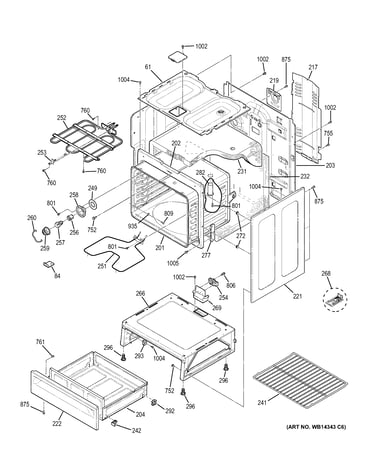

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$15.39
12% OFF Phone Price : $17.39
In Stock
Range Surface Element Control Switch, 2,600-watt WB24T10025
#19

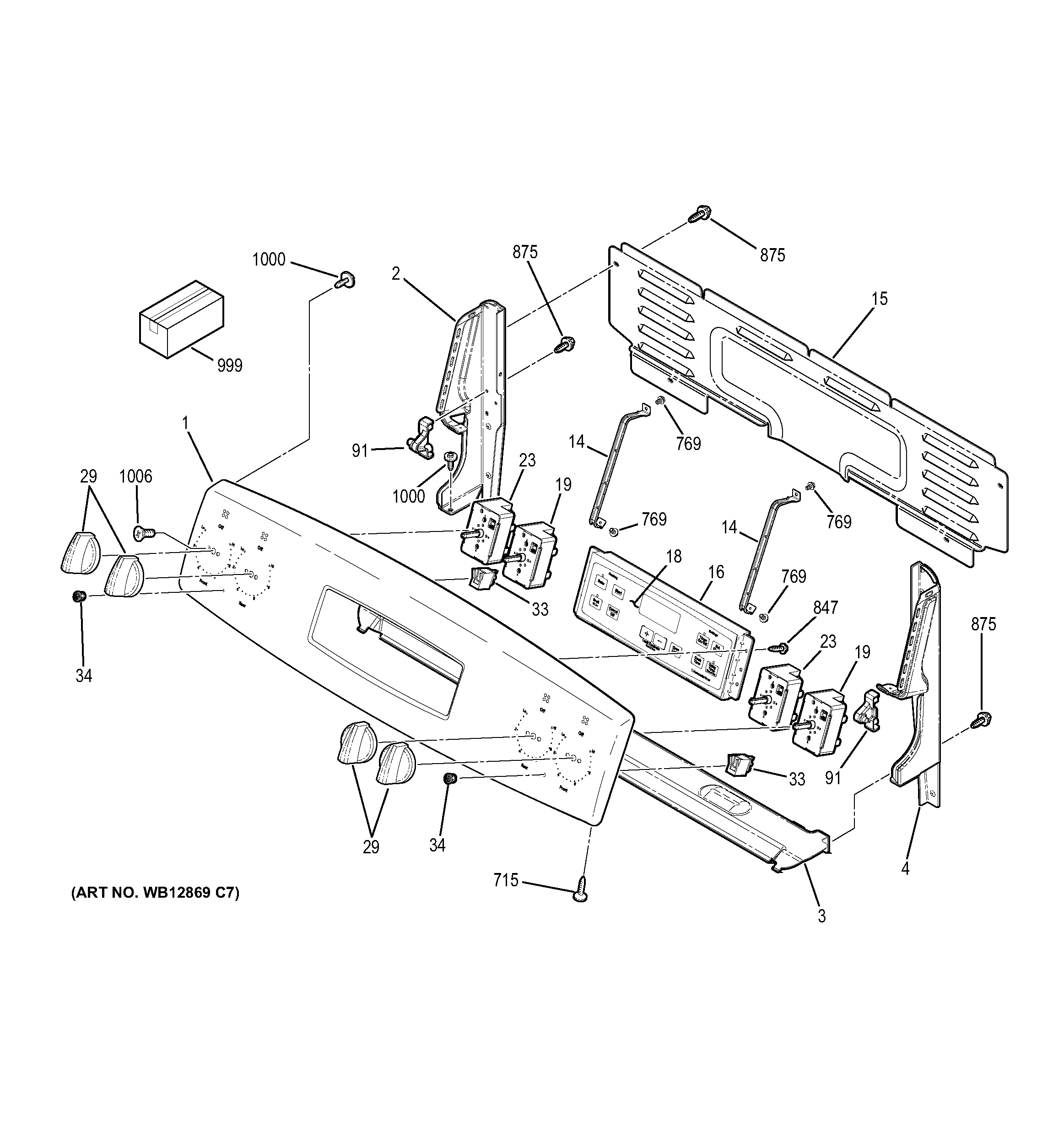

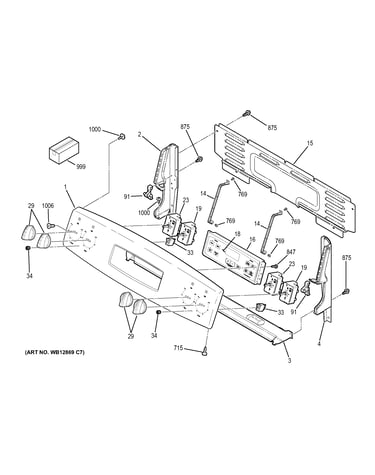

Control panel diagram

Range surface element control switch, 2,600-watt

Part #WB24T10025

BEST SELLER
$41.28
11% OFF Phone Price : $46.28
In Stock
Wall Oven Temperature Sensor WB21T10007
#253

Body parts diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$25.95
16% OFF Phone Price : $30.95
In Stock
Range Surface Element Control Switch, 1,500-watt WB24T10029
#23

Control panel diagram

Range surface element control switch, 1,500-watt

Part #WB24T10029

BEST SELLER
$44.54
10% OFF Phone Price : $49.54
In Stock
Range Drip Pan (replaces Wb32x10014) WB31T10011
#60

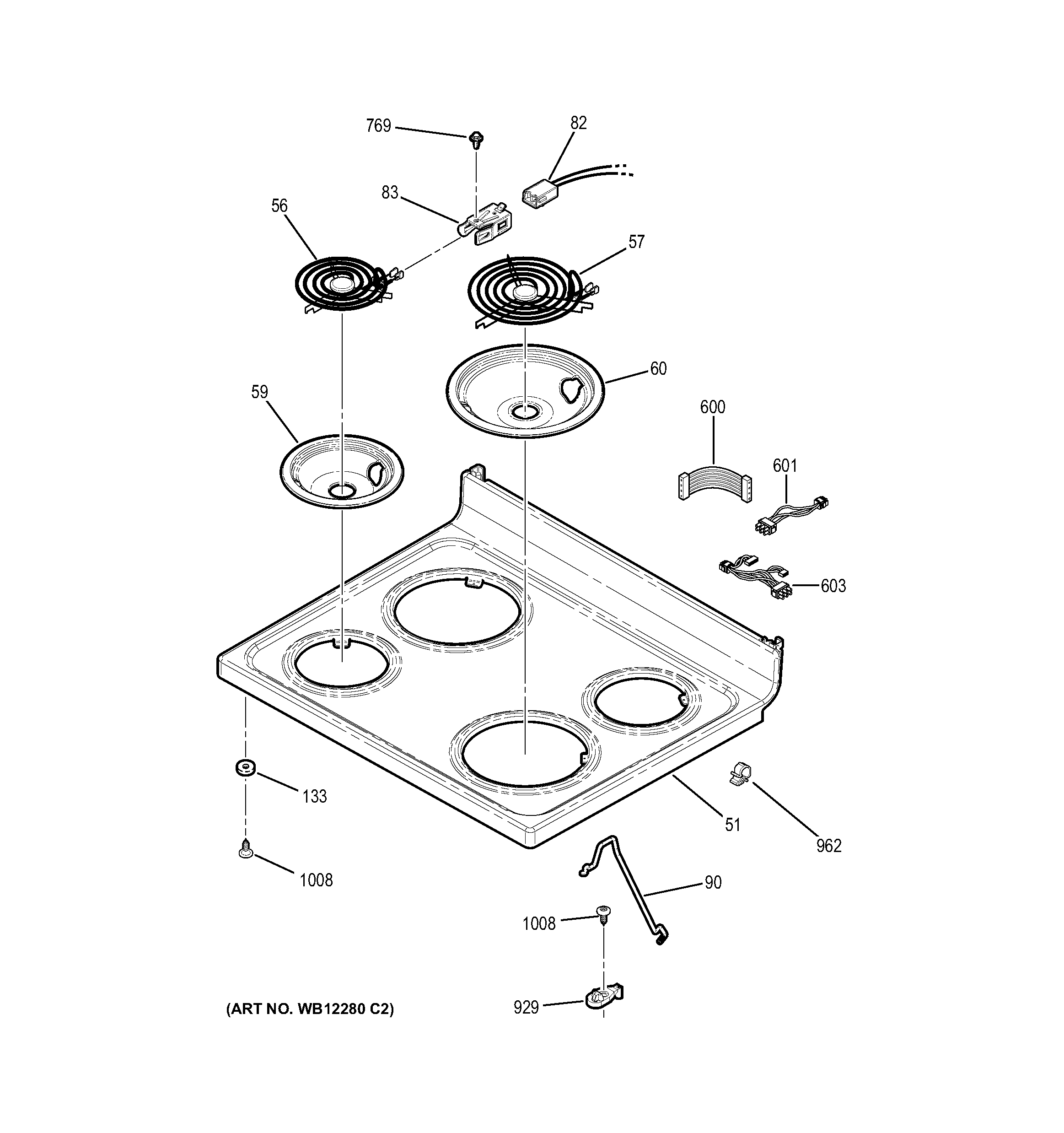

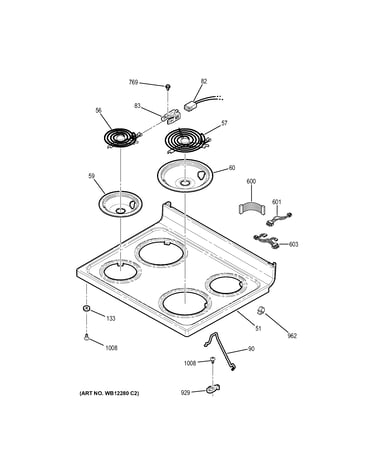

Cooktop diagram

Range drip pan (replaces wb32x10014)

Part #WB31T10011

BEST SELLER
$15.47
11% OFF Phone Price : $17.47
In Stock
Range Bake Element WB44T10059
#251

Body parts diagram

Range bake element

Part #WB44T10059

Replaced by #WB44T10011

?
Manufacturer substitution
This part replaces WB44T10059. Substitute parts can look different from the original.
BEST SELLER
$77.54
6% OFF Phone Price : $82.54
Back Order
Range Oven Control Board (replaces Wb27t11486) WB18X20153
#16

Control panel diagram

Range oven control board (replaces wb27t11486)

Part #WB18X20153

Replaced by #WB27X45466

?
Manufacturer substitution
This part replaces WB18X20153. Substitute parts can look different from the original.
BEST SELLER
$161.11
6% OFF Phone Price : $171.11
In Stock
Oven Door Glass WB55T10191
#338

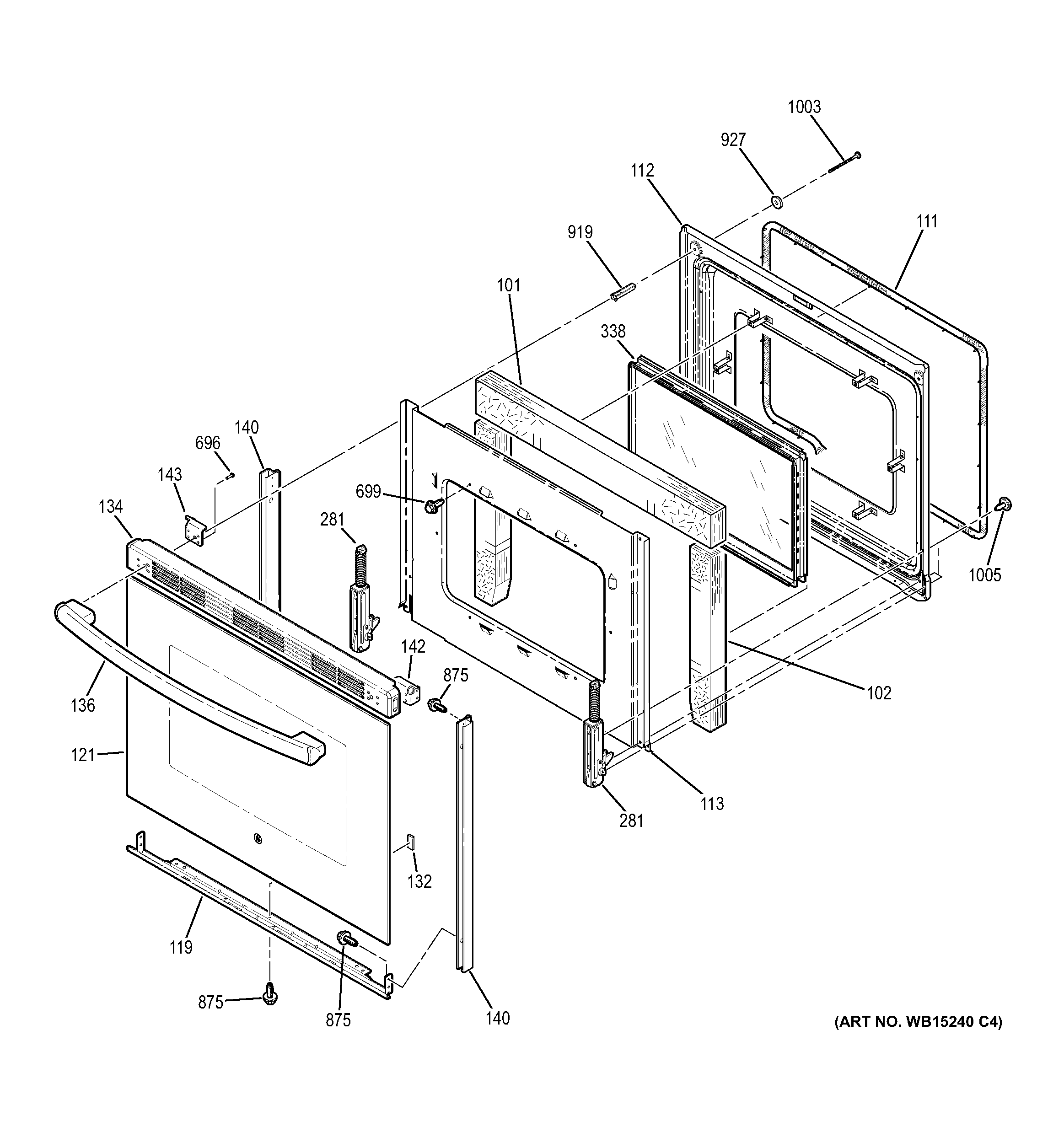

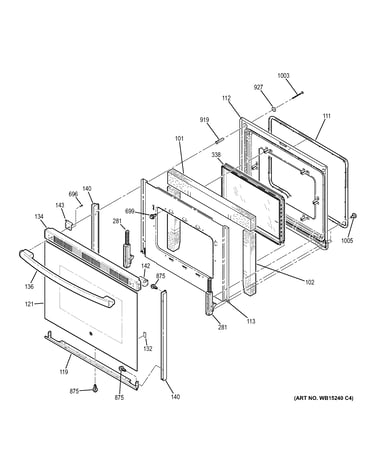

Door diagram

Oven door glass

Part #WB55T10191

Replaced by #WB56T10105

?
Manufacturer substitution
This part replaces WB55T10191. Substitute parts can look different from the original.
BEST SELLER
$99.32
9% OFF Phone Price : $109.32
In Stock
Range Terminal Block (replaces Wb17t10016, Wb17t10023) WB17T10011
#254

Body parts diagram

Range terminal block (replaces wb17t10016, wb17t10023)

Part #WB17T10011

BEST SELLER
$40.67
11% OFF Phone Price : $45.67
In Stock
Range Coil Surface Element, 8-in WB30X20482
#57

Cooktop diagram

Range coil surface element, 8-in

Part #WB30X20482

Replaced by #WB30X24400

?
Manufacturer substitution
This part replaces WB30X20482. Substitute parts can look different from the original.
BEST SELLER
$55.75
8% OFF Phone Price : $60.75
In Stock
