How do I find the size of my Kenmore refrigerator?
To find the size (capacity) of your Kenmore 10657262790 side-by-side refrigerator, we measure the usable interior space in cubic feet, not the outside cabinet dimensions. The most accurate method is the model-specific procedure in the owner's manual.
What “size” usually means
Most shoppers mean one of these:
- Capacity: cubic feet (cu ft) of storage inside the refrigerator and freezer
- Exterior dimensions: width, height, and depth for fit in a kitchen opening
- Installation clearance: space needed around the cabinet for airflow and door swing
How to estimate capacity (cubic feet)
If you need a quick estimate, use interior measurements.
- Empty the compartments enough to measure safely
- Measure interior width, height, and depth (in inches) for:
- Fresh food section
- Freezer section
- Multiply each section:
W × H × D = cubic inches - Add both sections together
- Convert to cubic feet:
total cubic inches ÷ 1728 = cu ft
Quick conversion table
| What you have | What to do | Result |
|---|---|---|
| Interior inches | Multiply W × H × D | Cubic inches |
| Cubic inches | Divide by 1728 | Cubic feet |
How to measure exterior dimensions (for fit)
Use a tape measure on the outside of the cabinet.
- Measure width across the front (door closed)
- Measure height from floor to top hinge cover or top of cabinet
- Measure depth from the back to the front (note whether you include handles)
Installation clearances that affect “size”
Clearances matter as much as the cabinet dimensions.
- Plan for 1/2 inch of space on each side and at the top for ventilation
- If installed next to a fixed wall, allow at least 2 inches on the wall side (door swing clearance varies by setup)
- If you have an ice maker, leave extra room behind for the water line connection
Why it matters
Using exterior dimensions to calculate cubic feet gives the wrong answer because insulation, shelves, bins, and the evaporator housing reduce usable space. Measuring interior space gives a realistic capacity for food storage and helps you compare refrigerators accurately.
Last updated: February 2026
What are the most common problems with Kenmore refrigerators?
The most common problems we see on Kenmore side-by-side refrigerators like model 10657262790 are poor cooling, ice maker not making ice, water leaks, and unusual noises. These issues usually trace back to airflow restrictions (dirty condenser coils), door sealing problems, or a failing fan or defrost component.
Most common symptoms and what they usually mean
- Not cooling well: dirty condenser coils, evaporator fan issue, or defrost frost buildup restricting airflow
- Ice maker not producing ice: freezer not cold enough, ice maker shutoff arm off, or water supply valve closed
- Water leaking or puddles: clogged/iced defrost drain, loose water line connection, or dispenser tubing issue
- Loud humming, rattling, or buzzing: normal operating sounds, condenser fan area vibration, or a worn fan motor/blade
- Doors not closing or sweating/condensation: door gasket not sealing, door alignment, or frequent door openings
Quick checks you can do first (fast, no parts)
- Confirm temperatures: set freezer near 0°F and fresh food near 37°F (allow 24 hours to stabilize after changes).
- Clean condenser coils: dirty coils reduce heat transfer and make the compressor run longer.
- Check door closure: push doors firmly shut; a poor seal causes warm air intrusion and longer run times.
- Listen for the evaporator fan: when the compressor is running, you should typically hear airflow from the freezer side.
- For ice maker issues: verify the shutoff arm is down (ON) and the household water shutoff valve is open.
Parts that commonly solve these problems on 10657262790
| Problem area | Common fix | Example part for this model |
|---|---|---|

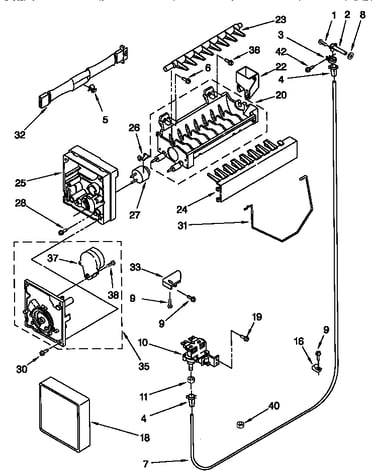

| Ice maker not making ice | Replace ice maker assembly | Ice maker assembly - refrigerator ice maker by whirlpool 4317943 |
| Warm temps, weak airflow | Inspect/replace evaporator fan components | Refrigerator evaporator motor 4389144 or refrigerator evaporator fan blade WP2169142 |
| Frost buildup, warm freezer | Check defrost thermostat (bi-metal) | Refrigerator defrost bi-metal WPW10225581 |
| Lights or door sensing issues | Check door switch | Refrigerator freeer door switch W11457217 |
Why it matters
Cooling, ice production, and noise complaints are often connected. For example, dirty condenser coils can make the compressor run longer, raise cabinet temperatures, and reduce ice maker performance. A door that does not seal can also cause frost buildup that blocks airflow.
Where to confirm model-specific steps
We recommend following the troubleshooting and maintenance steps in the owner's manual for model 10657262790, especially for control settings, coil cleaning, and ice maker operation.
Last updated: February 2026
What's the average lifespan of a Kenmore refrigerator?
Most Kenmore refrigerators average 10 to 15 years of service life. For a Kenmore 10657262790 side-by-side refrigerator, lifespan depends most on basic care (cleaning, airflow, and door sealing) and fixing cooling or ice maker issues early using the procedures in the owner's manual.
Typical lifespan and what affects it
A refrigerator’s sealed system (compressor and refrigerant tubing) is built for long-term use, but day-to-day wear items and maintenance usually determine how long the unit stays reliable.
- Condenser coil cleanliness (dirty coils run hotter and longer)
- Door gasket condition (air leaks cause longer run times and frost)
- Fan performance (evaporator and condenser airflow)
- Defrost system health (prevents ice buildup that blocks airflow)
- Water and ice system upkeep (filters, lines, and ice maker components)
Maintenance that extends life (high impact)
These steps are the most effective for getting the full lifespan from a side-by-side refrigerator.
- Vacuum and brush condenser coils regularly
- Keep vents inside the freezer and fresh food sections unblocked
- Clean sticky or dirty door gaskets so they seal tightly
- Replace the water filter when flow drops (a full filter reduces dispenser flow)
- Address unusual noises quickly (often a fan blade, motor, or ice maker issue)
Common “wear parts” vs. “major parts”
Knowing what typically fails first helps you decide whether a repair is worth it.
| Part type | Examples on this model | Typical role in reliability |
|---|---|---|
| Wear and convenience parts | Light bulb, bins, pans | Annoying failures; usually easy fixes |
| Cooling airflow parts | Evaporator fan blade, evaporator motor, condenser motor | Strong impact on temperatures and compressor run time |
| Defrost and control parts | Defrost bi-metal, thermostat | Prevents frost buildup and temperature swings |
| Major sealed-system parts | Compressor | Higher-cost repair; often a “replace vs. repair” decision |
Why it matters
A refrigerator that runs warmer than normal or runs constantly wears the compressor faster and can shorten overall lifespan. Keeping airflow strong and seals tight reduces run time, stabilizes temperatures, and protects food.
Last updated: February 2026
Where is the model number on a Kenmore side by side refrigerator?
On Kenmore side-by-side refrigerator model 10657262790, the model number is printed on the model and serial number label on the side wall inside the fresh food (refrigerator) compartment. The owner's manual shows this label location in the Parts and Features section.
Where to look (fast checklist)
- Open the refrigerator (fresh food) door, not the freezer door
- Look along the inside side wall (typically near the front edge)
- Find a sticker/plate labeled Model and Serial Number
- Write down the full model number and serial number exactly as shown
- If the label is hard to read, wipe it gently with a damp cloth and dry it
What the label includes
The label typically lists both identifiers you need for parts and service.
| Item on label | What it’s used for | Example format |
|---|---|---|
| Model number | Matching the correct parts diagrams and parts | 10657262790 |
| Serial number | Identifying production details for your unit | Letters and numbers |
Why it matters
We use the model number to match your exact Kenmore 106-series configuration (shelves, ice maker setup, controls, and internal components). Using the full model number helps you avoid ordering the wrong part, especially for common repairs like ice maker or thermostat issues.
Tip for parts matching
When you’re shopping for replacement parts, keep the model number handy and compare the part description to your symptom. For example, ice production issues often point to the ice maker assembly - refrigerator ice maker by whirlpool 4317943.
Last updated: February 2026
